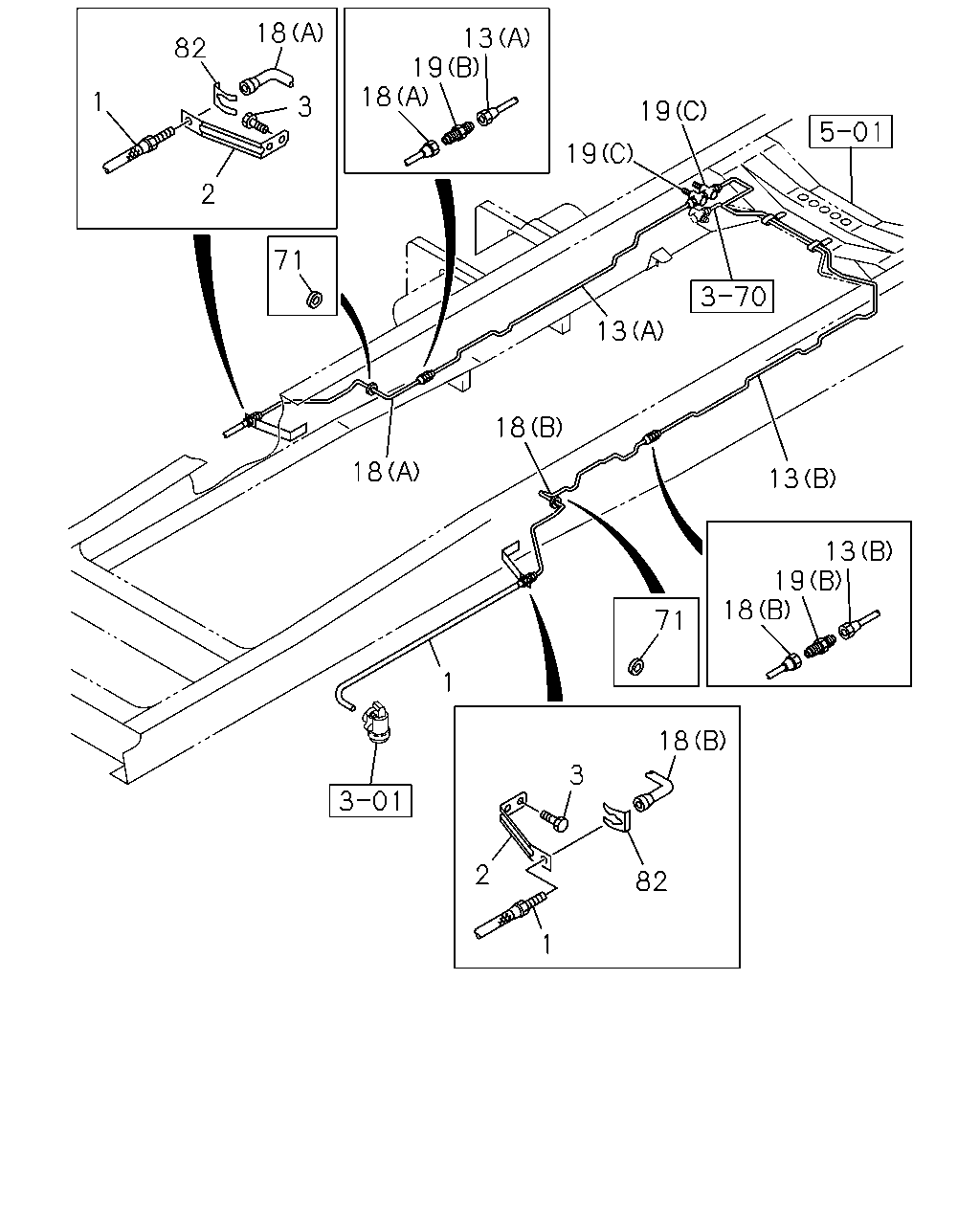

3-52 — BRAKE PIPING; OIL,FRONT (#46886) — 68 parça

18 82 13 19 18 19 1 2 3 71 13 18 18 13 13 19 18 71 1 82 2 18 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1109-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=640	8-98085-202-0	02	1	1109-1109
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98202-875-0	02	1	1110-1210
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1211-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1109-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1109-
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1109-1205
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1109-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=1016	8-98065-376-0	01	1	1109-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=567	8-98067-426-0	01	1	1109-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1206-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1109-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1109-1205
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1206-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1109-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1109-

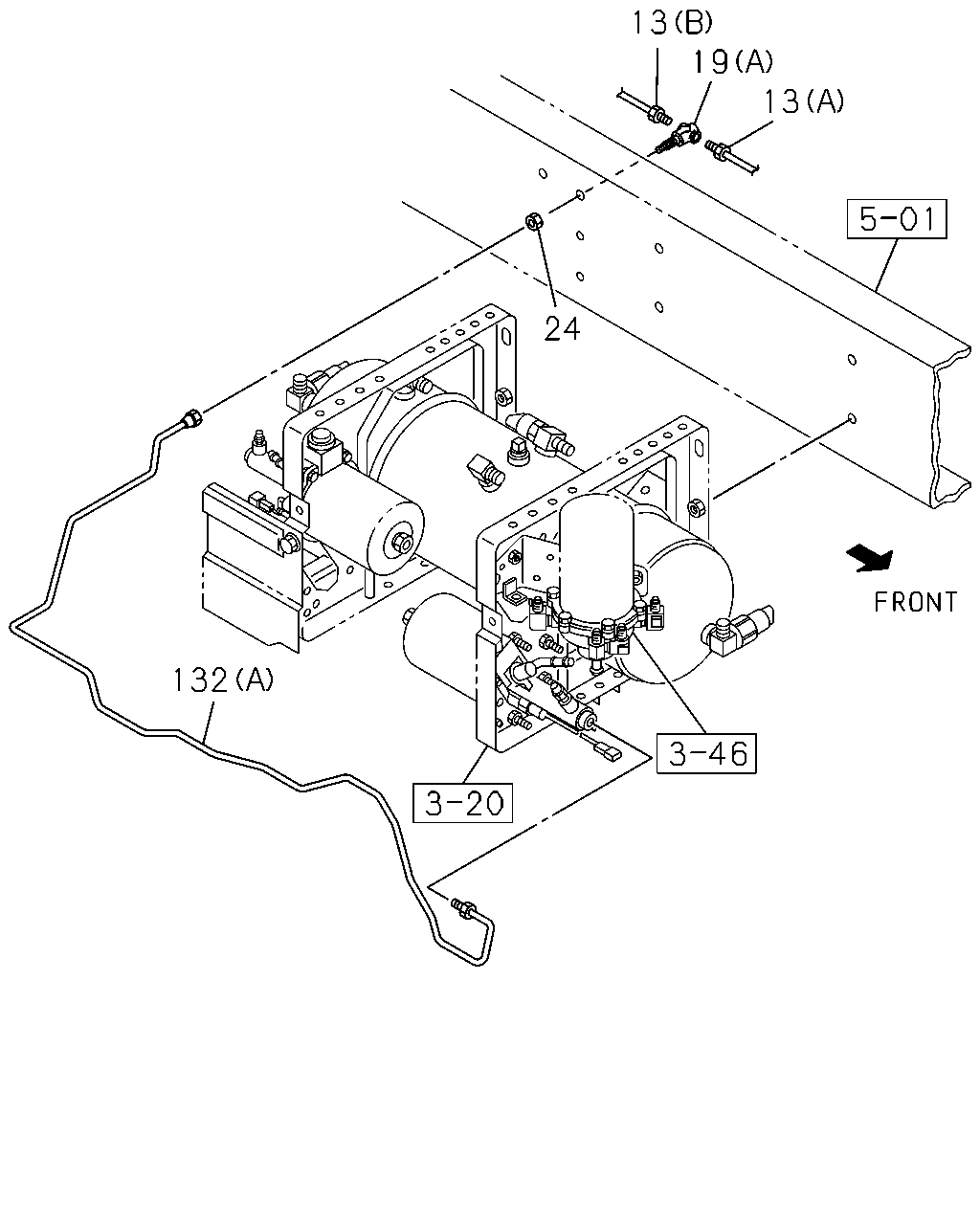

13 19 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1109-1205
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1109-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1206-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1109-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1109-1205
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1206-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=625	8-98116-095-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=949	8-98078-732-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT (A) L=1467	8-98135-796-0	01	1	1109-1205
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (A) L=1467	8-98135-796-0	01	1	1206-

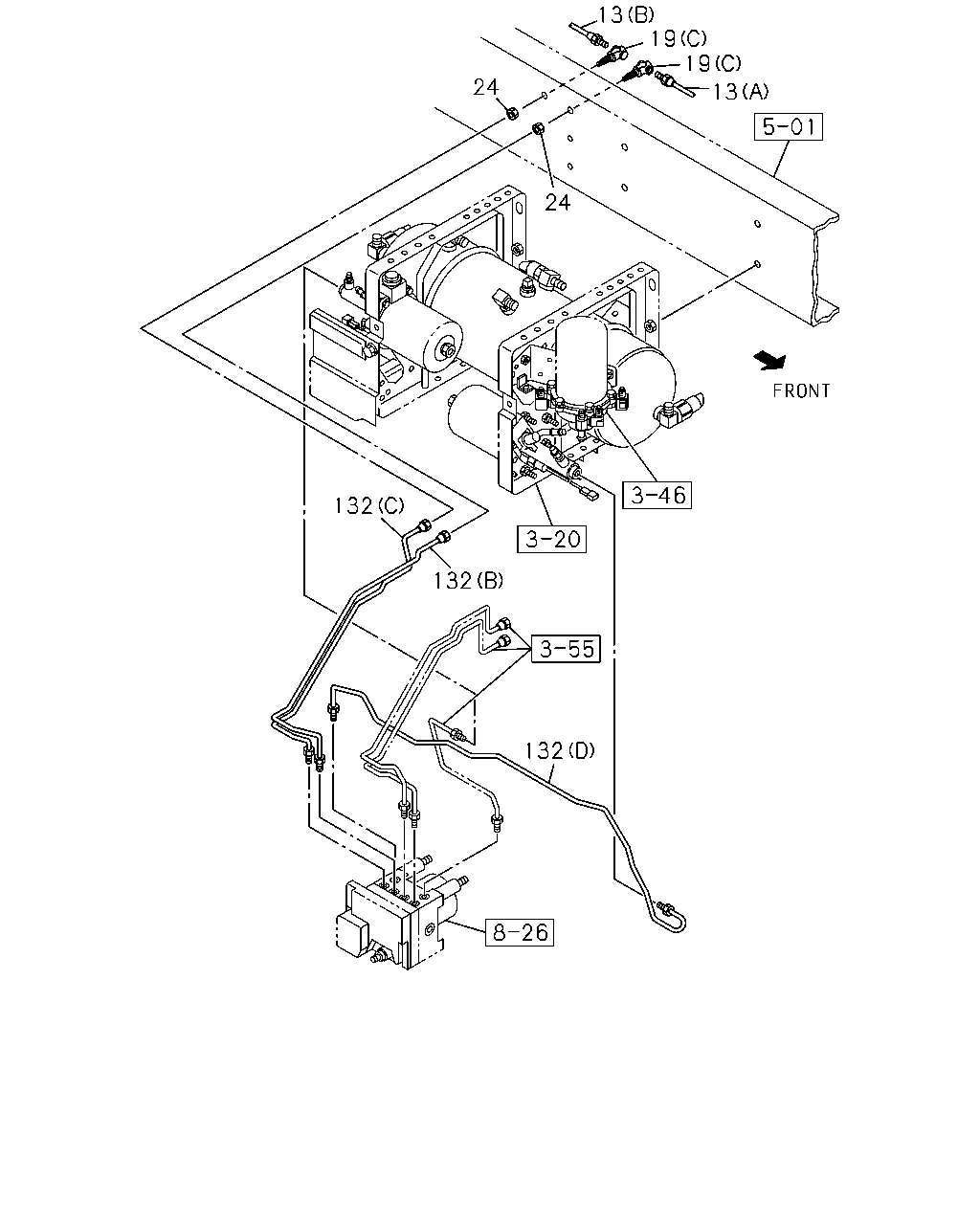

13 19 19 24 13 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1109-1205
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1109-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1206-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1109-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1109-1205
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1206-
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1206-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1109-1205
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=625	8-98116-095-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=645	8-98011-949-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=949	8-98078-732-0	01	1	1206-
132	PIPE; OIL,BRK,HYD UNIT (A) L=1467	8-98135-796-0	01	1	1109-1205
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5) (A) L=1467	8-98135-796-0	01	1	1206-

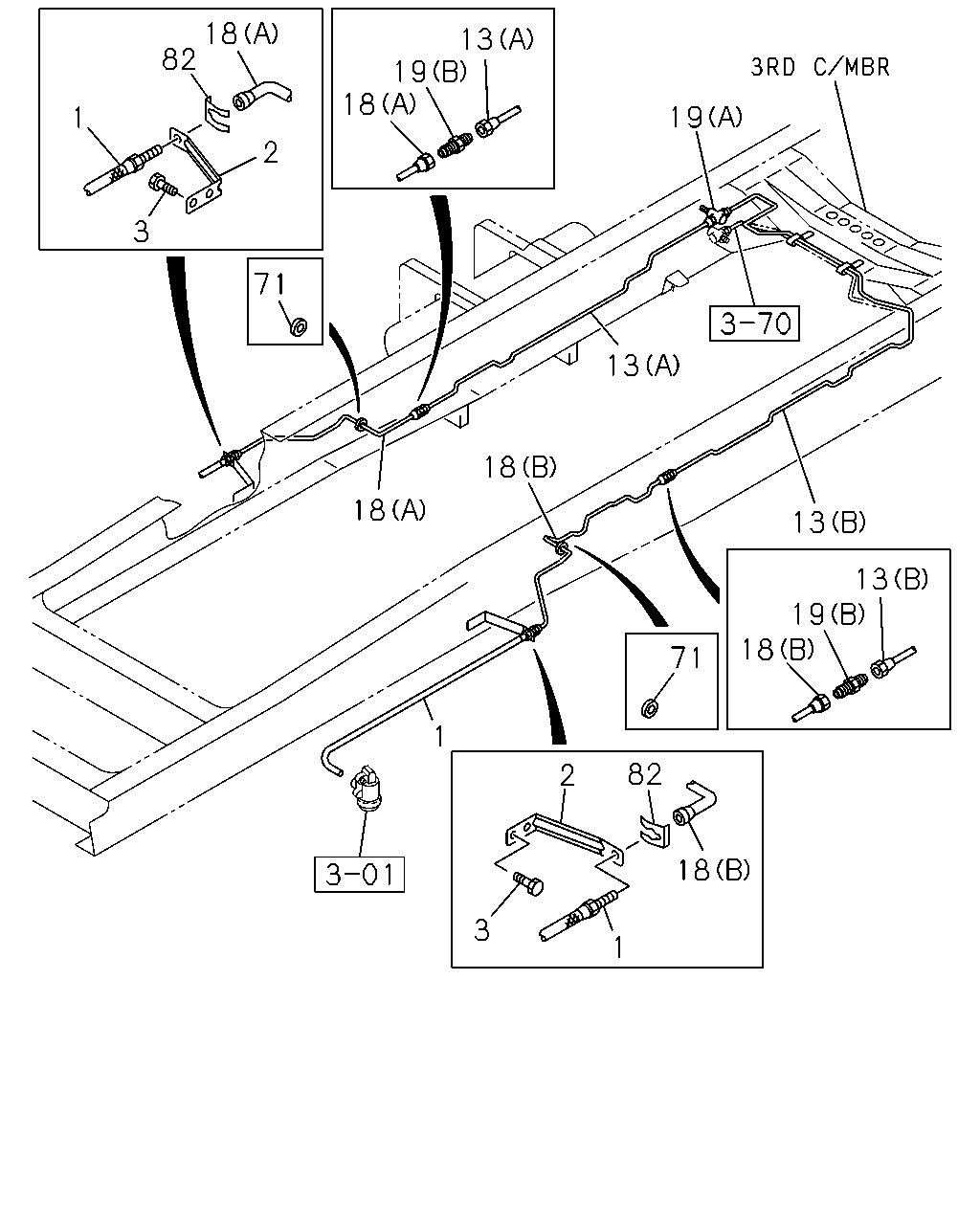

18 13 19 18 82 1 3 19 19 2 71 13 18 18 13 13 19 18 71 1 18 3 2 82 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	02	1	1109-
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=640	8-98085-202-0	02	1	1109-1109
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98202-875-0	02	1	1110-1210
1	HOSE; FLEX,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=660	8-98232-626-0	02	1	1211-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1109-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1109-
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833	8-98158-297-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1109-1205
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891	8-98113-684-0	01	1	1206-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1109-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=1016	8-98065-376-0	01	1	1109-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=567	8-98067-426-0	01	1	1109-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (C) M10X2 ELBOW	8-98018-438-0	02	1	1206-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1109-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1109-1205
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1206-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1109-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1109-
