Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#46885) — 83 parça
◀

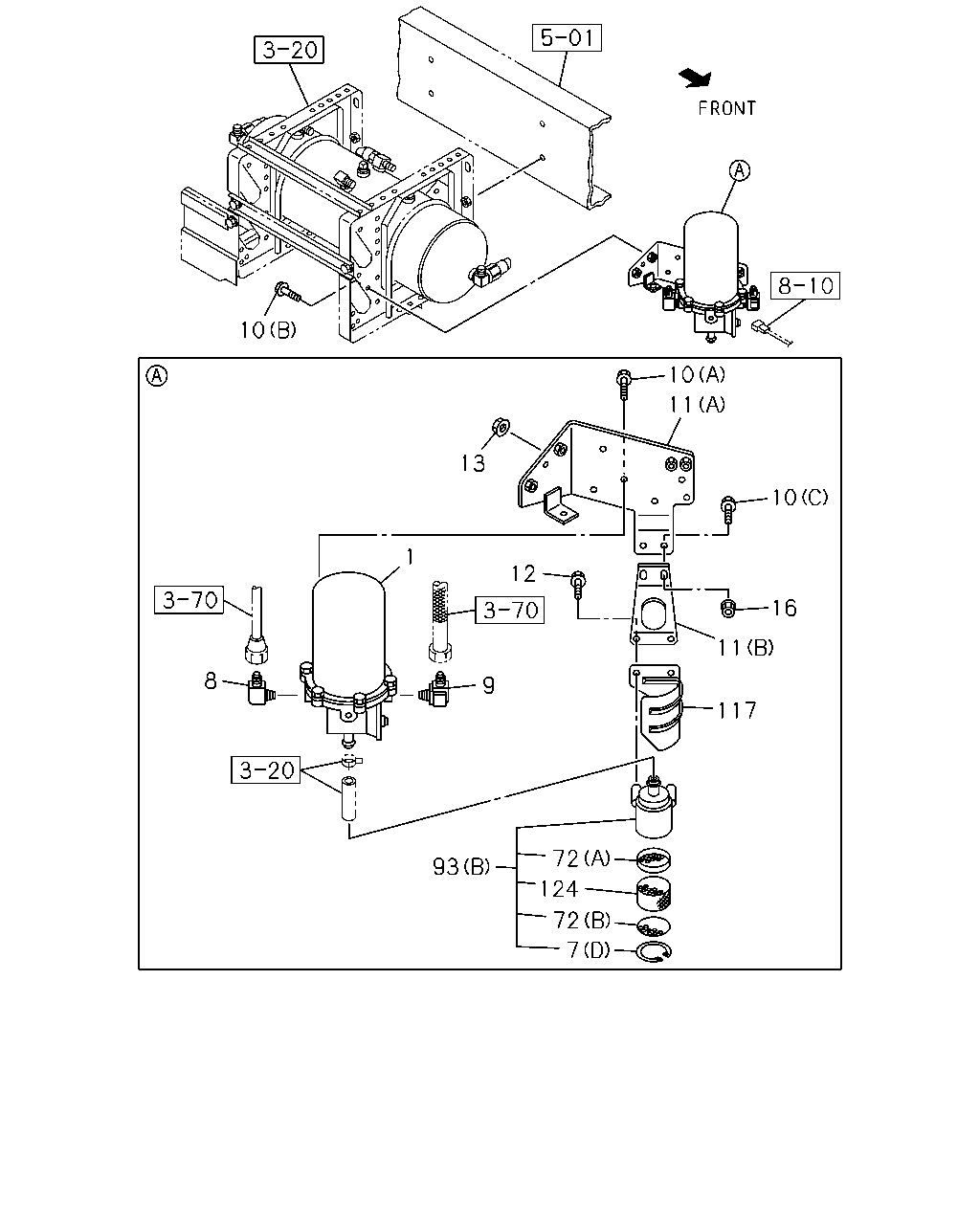

[346A] FIXING (29 parça)
[346A] COMPONENT (36 parça)

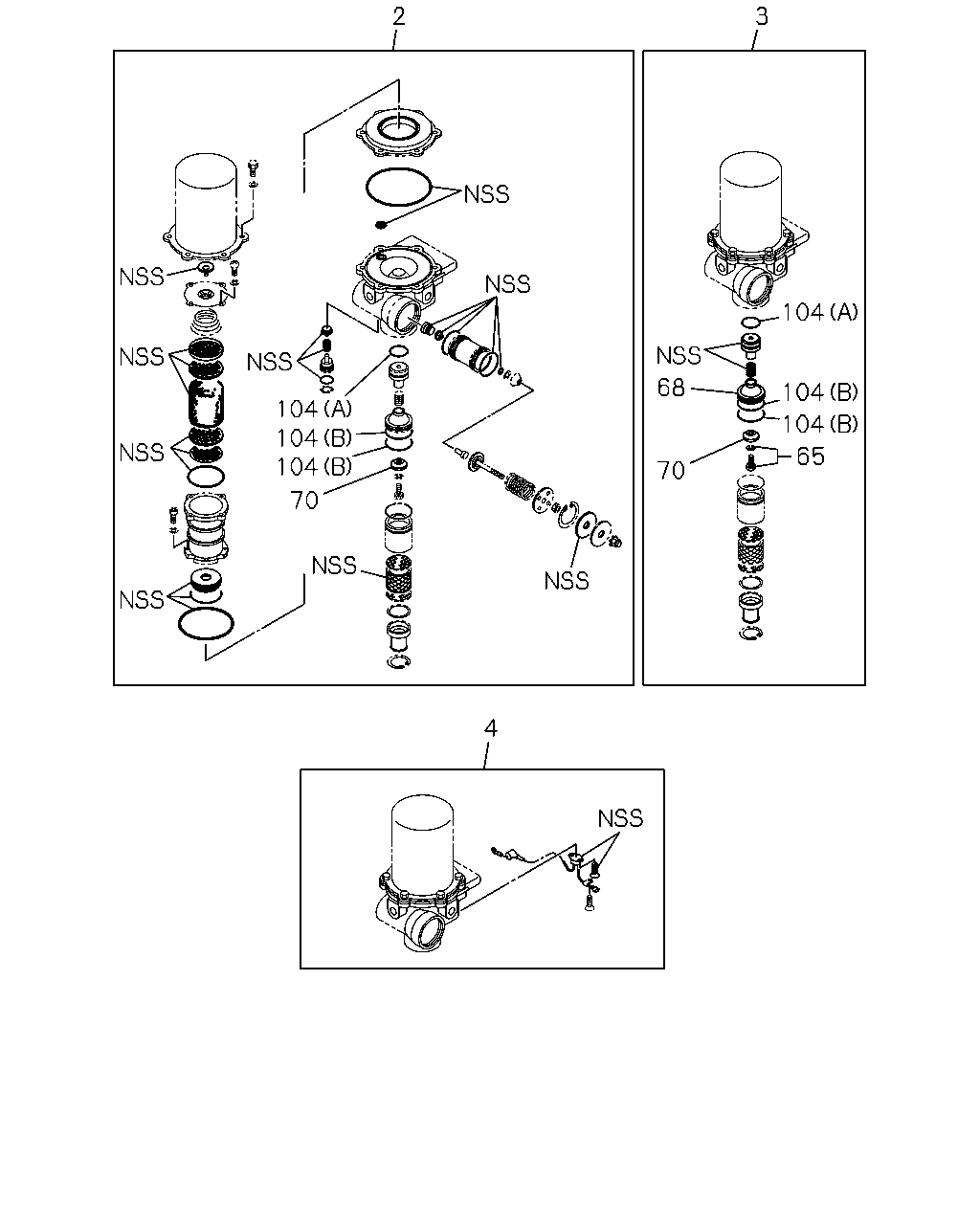

[346A] THERMOSTAT,PISTON AND REPAIR KIT (18 parça)
▶
10
10
11
13
10
1
12
16
11
8
9
117
72
93
124
72
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-370-2
01
1
1206-1211
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98225-285-0
01
1
1212-
1
DRYER; AIR
1-48190-369-2
01
1
1109-1205
1
DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-369-2
01
1
1206-1211
1
DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98225-289-0
01
1
1212-
7
RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)
1-47769-017-0
01
1
1206-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1109-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1109-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1109-
8
CONNECTOR; OUT,AIR DRYER
TIRE INFLATOR DEVICE<SG4>
1-09656-676-0
01
1
1109-1205
8
CONNECTOR; OUT,AIR DRYER
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)
1-09656-676-0
01
1
1206-
8
CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1109-1205
8
CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1206-
8
CONNECTOR; OUT,AIR DRYER
BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1206-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1109-
10
BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER
1-09980-548-0
02
1
1206-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1109-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
03
1
1109-
11
BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-98039-092-0
01
1
1206-
11
BRACKET; AIR DRYER
(A)
8-98044-548-4
01
1
1109-
12
BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE
0-28650-820-0
02
1
1206-
13
NUT; AIR DRYER
M8 FLANGE
0-91180-108-0
02
1
1109-
16
NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1206-
72
PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48199-585-0
01
1
1206-
72
PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-602-0
01
1
1206-
93
SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-581-0
01
1
1206-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1109-
117
COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98065-972-1
01
1
1206-
124
FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-465-0
01
1
1206-
1
1
81
75
76
5
84
104
109
84
7
114
113
112
68
104
70
104
65
7
78
7
111
110
93
7

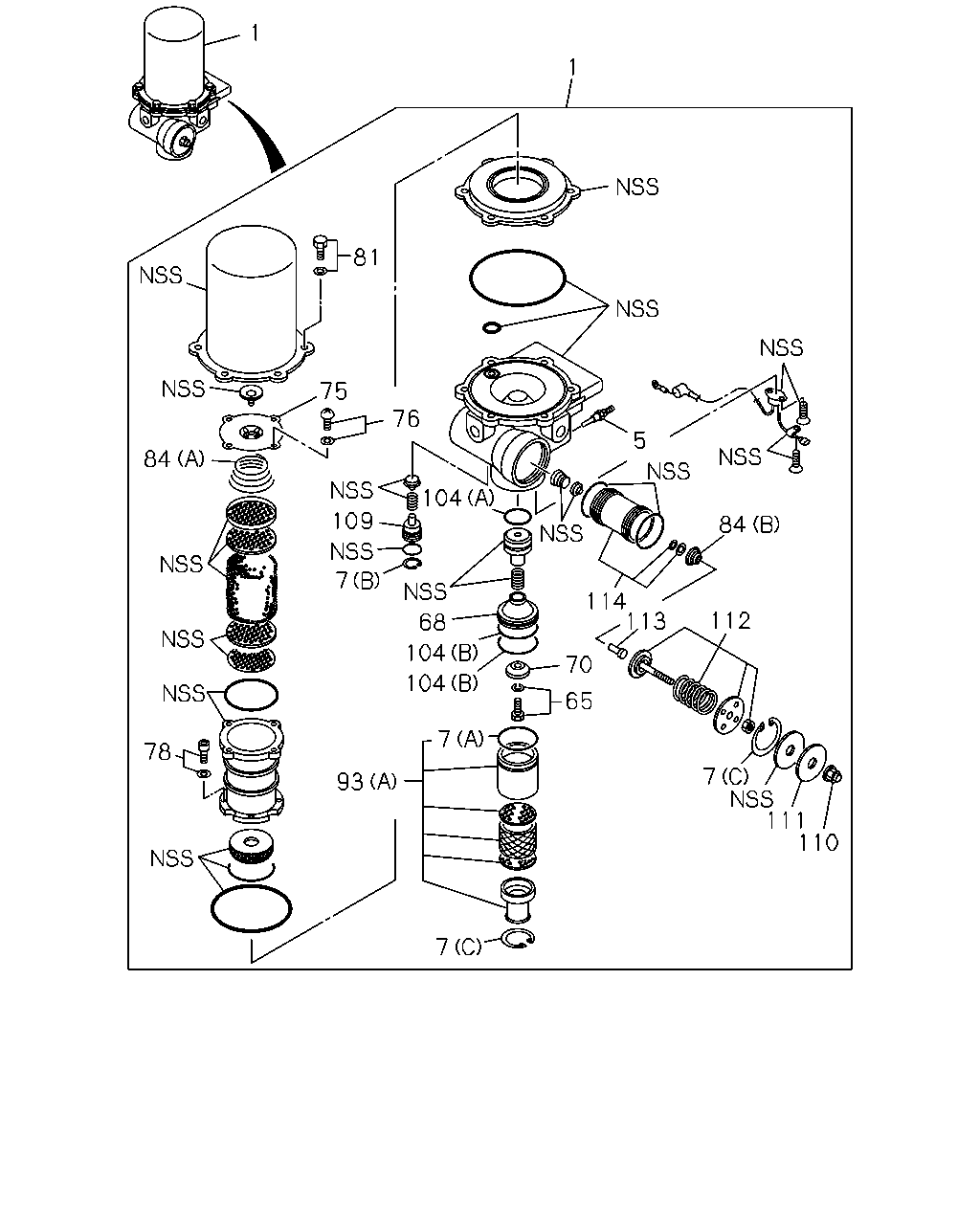

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-370-2
01
1
1206-1211
1
DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98225-285-0
01
1
1212-
1
DRYER; AIR
1-48190-369-2
01
1
1109-1205
1
DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48190-369-2
01
1
1206-1211
1
DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98225-289-0
01
1
1212-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1109-
7
RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)
1-47769-017-0
01
1
1206-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1109-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1109-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1109-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1109-
68
BODY; VALVE
1-48199-515-0
01
1
1109-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1109-
75
COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-427-0
01
1
1206-
75
COVER; CASE,AIR DRYER
1-48199-395-0
01
1
1109-1205
75
COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48199-395-0
01
1
1206-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1109-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1109-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1109-
84
SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48199-425-0
01
1
1206-
84
SPRING; AIR DRYER
(A)
1-48199-396-0
01
1
1109-1205
84
SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48199-396-0
01
1
1206-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1109-
93
SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-581-0
01
1
1206-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1109-
104
GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-496-0
01
1
1212-
104
GASKET
(A)
1-48199-495-0
01
1
1109-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1109-1211
104
GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-496-0
02
1
1212-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1109-
110
NUT; CAP
1-48199-527-0
01
1
1109-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1109-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1109-
113
STEM; EXHAUST
1-48199-522-0
01
1
1109-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1109-
2
3
104
68
104
104
104
104
104
65
70
70
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-457-0
01
1
1206-1211
2
REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98226-323-0
01
1
1212-
2
REPAIR KIT; AIR DRYER
1-85576-456-0
01
1
1109-1205
2
REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-456-0
01
1
1206-1211
2
REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98226-326-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1109-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-443-0
01
1
1206-
4
THERMOSTAT KIT; AIR DRYER
1-85576-386-0
01
1
1109-1205
4
THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-386-0
01
1
1206-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1109-
68
BODY; VALVE
1-48199-515-0
01
1
1109-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1109-
104
GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-496-0
01
1
1212-
104
GASKET
(A)
1-48199-495-0
01
1
1109-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1109-1211
104
GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48199-496-0
02
1
1212-
