Sayfa 3-22 - Isuzu EPC

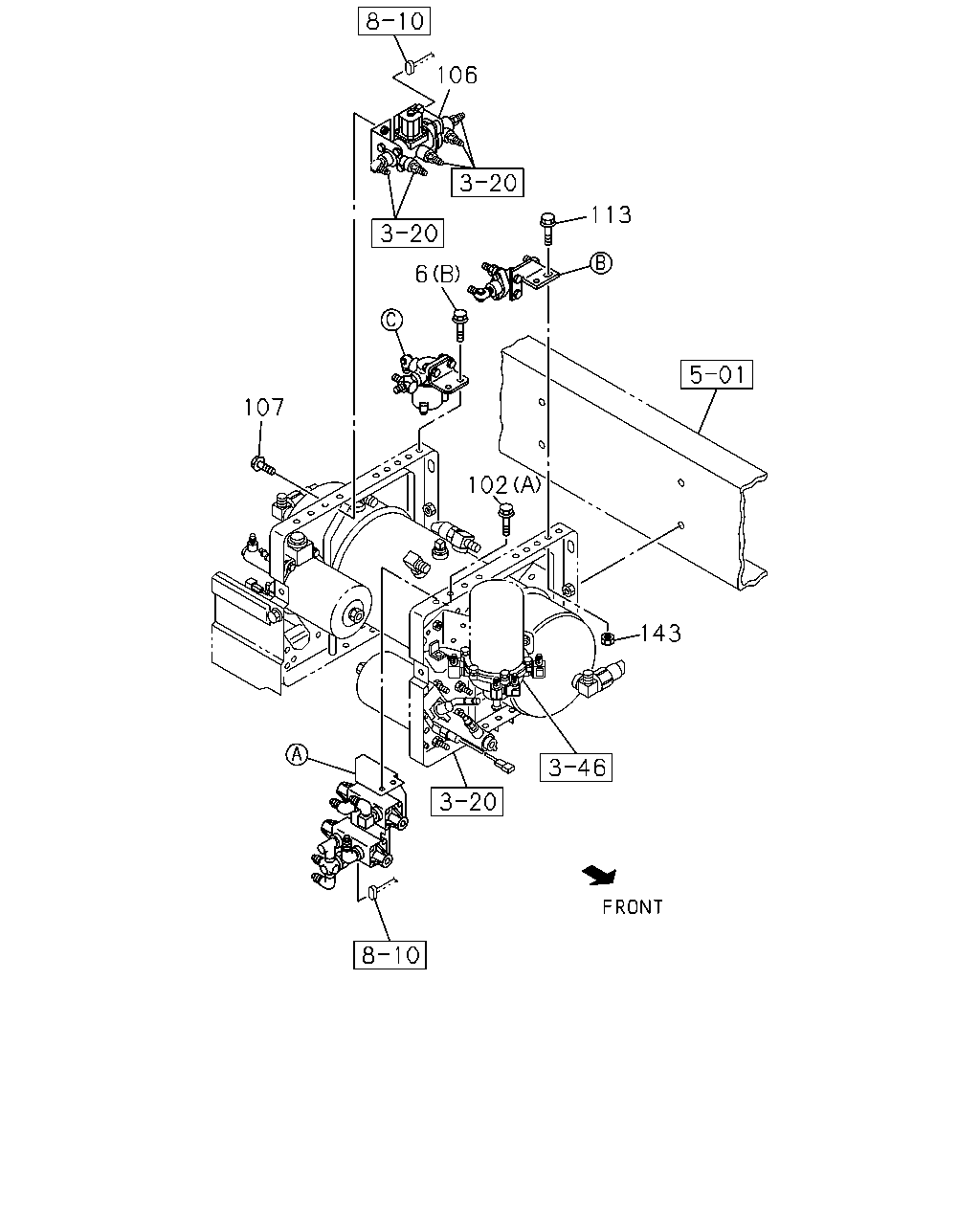

106 113 6 107 102 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1206-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1109-
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	1109-
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	1206-
143	NUT; VLV THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1206-

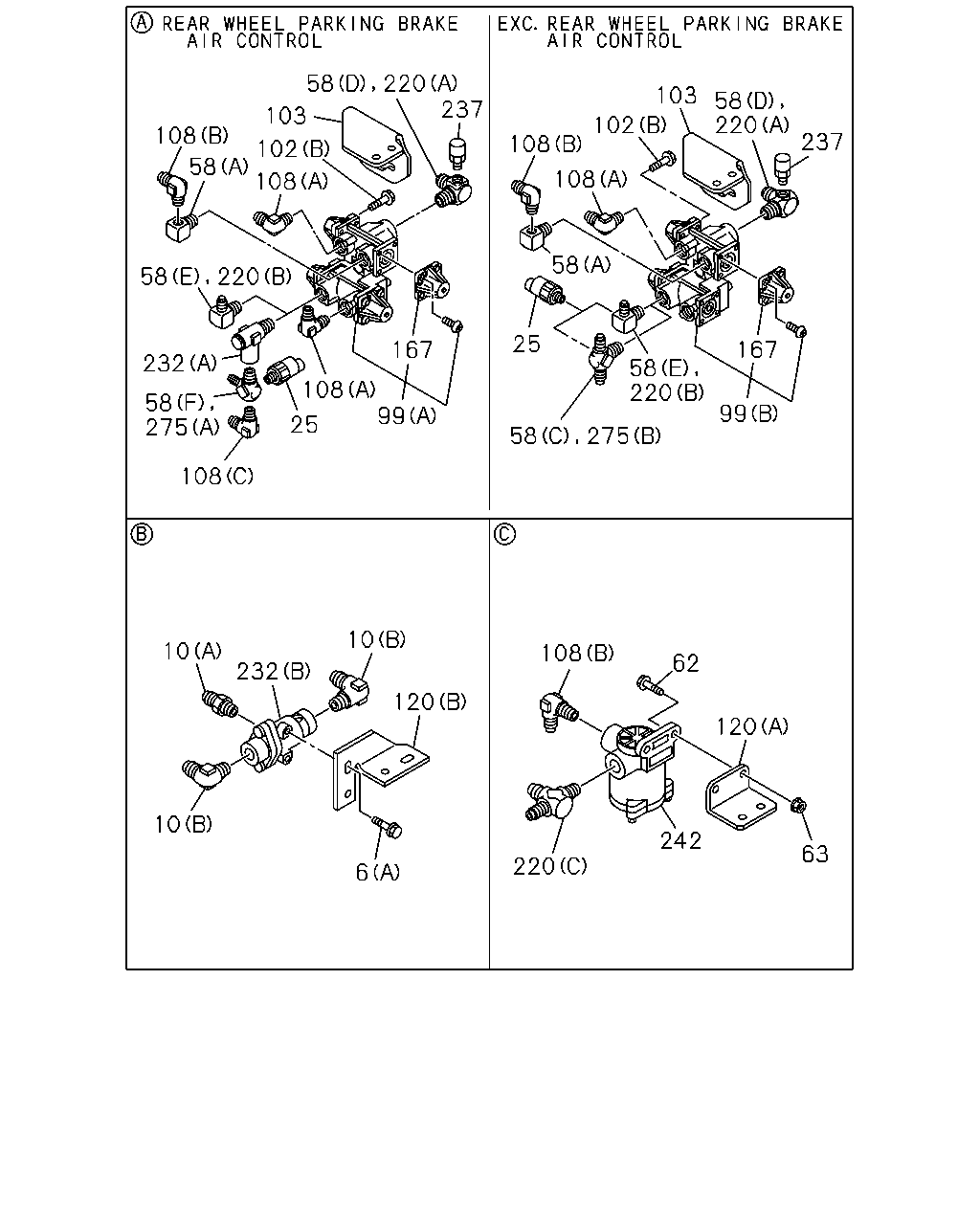

58 220 103 237 108 108 108 58 58 220 232 108 167 99 25 58 275 108 58 25 58 220 275 99 167 237 58 103 102 108 108 58 108 62 120 63 242 220 10 120 6 10 232 10 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1206-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1206-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1206-
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1109-
58	ADAPTER H.S.A SYSTEM<6EP> (C)	1-09656-704-0	01	1	1204-1205
58	ADAPTER H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C)	1-09656-704-0	01	1	1206-
58	ADAPTER (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1205
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER EXC. H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1205
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1206-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1206-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1109-
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	1206-
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1206-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A)	1-48110-294-3	01	1	1206-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> (A)	1-48110-288-3	01	1	1206-
99	VALVE; PROTECTION H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	1-48110-288-3	01	1	1206-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	1-48110-288-3	01	1	1206-
99	VALVE; PROTECTION BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B)	1-48110-293-3	01	1	1206-
99	VALVE; PROTECTION (B)	1-48110-287-1	01	1	1109-1205
99	VALVE; PROTECTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	1-48110-287-3	01	1	1206-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-
103	BRACKET; PROTECTION VALVE	8-98034-985-1	01	1	1109-1311
103	BRACKET; PROTECTION VALVE	8-98221-293-0	01	1	1312-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1206-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1206-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1206-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1206-
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1206-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1109-1205
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1206-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1206-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1109-1205
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1206-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1206-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1206-
167	COVER; VALVE	1-48119-625-0	03	1	1109-1205
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1206-
167	COVER; VALVE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	03	1	1206-
167	COVER; VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-48119-625-0	03	1	1206-
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	03	1	1206-
220	CONNECTOR; 3WAY BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
220	CONNECTOR; 3WAY BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (C) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1206-
220	CONNECTOR; 3WAY (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1109-1203
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP> (B) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1109-1203
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1206-
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1206-
237	VALVE; SAFETY	1-48320-012-2	01	1	1109-
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1206-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1206-
275	CONNECTOR; 4WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1206-
275	CONNECTOR; 4WAY THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B)	8-98050-414-0	01	1	1206-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> (B)	1-09656-704-0	01	1	1109-1203

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1109-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1109-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1109-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1109-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1109-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1109-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1109-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1109-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1109-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1109-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1109-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1109-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1109-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1109-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1109-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1109-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1109-

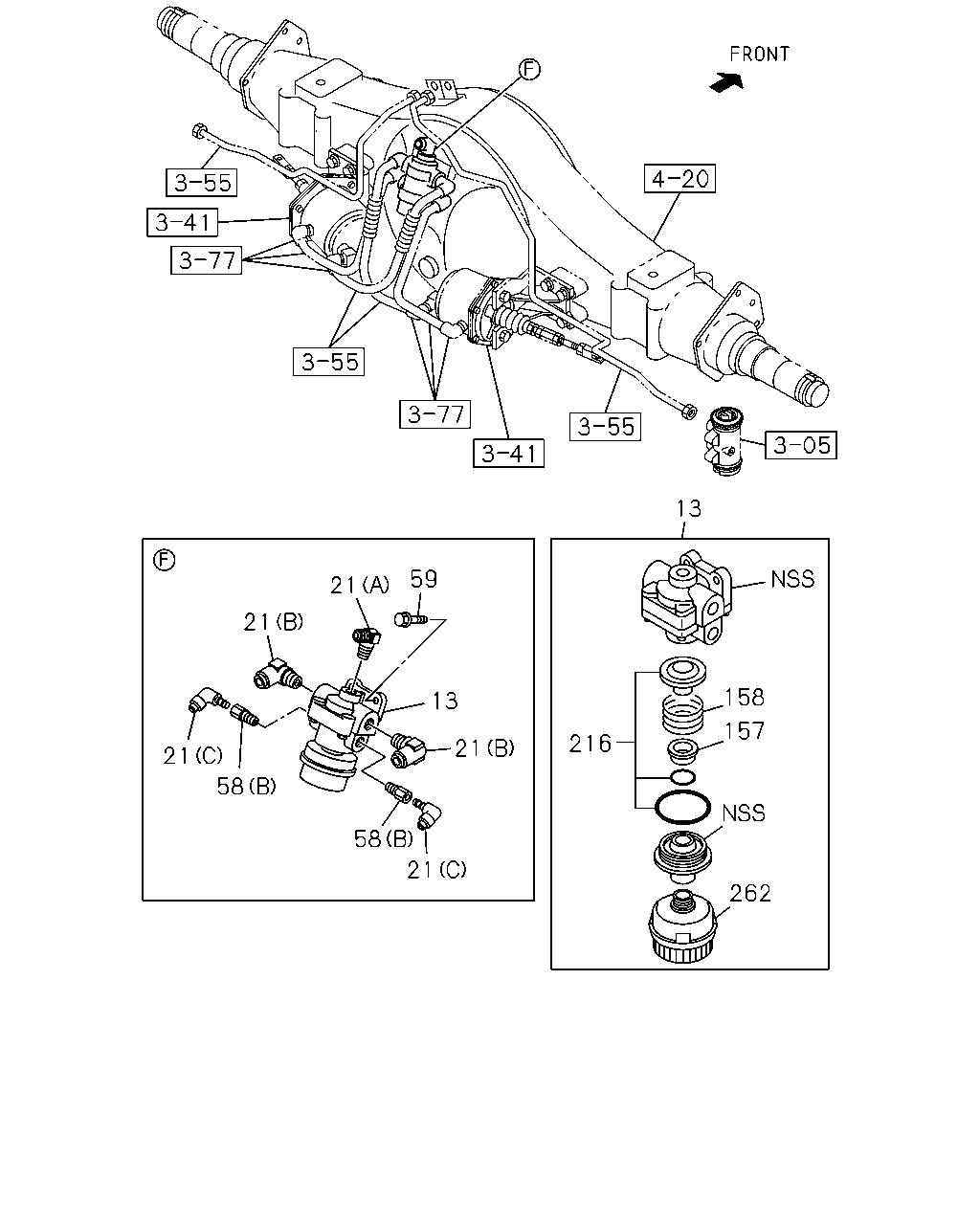

21 21 59 13 21 58 21 58 21 216 158 13 157 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48410-781-2	01	1	1206-
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48410-783-0	01	1	1206-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1206-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	1206-
58	ADAPTER H.S.A SYSTEM<6EP> (C)	1-09656-704-0	01	1	1204-1205
58	ADAPTER H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C)	1-09656-704-0	01	1	1206-
58	ADAPTER (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1205
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1206-
58	ADAPTER EXC. H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1205
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1206-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1206-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1109-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	1206-
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48419-036-0	01	1	1206-
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	9-48419-003-0	01	1	1206-
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-85579-062-0	01	1	1206-
262	SILENCER; RELAY VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	1-48219-149-0	01	1	1206-

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH) W/GREASE	1-85576-381-0	01	1	1206-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1109-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1109-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE	1-85576-452-1	01	1	1109-1205
241	REPAIR KIT; PROTECTION VALVE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH)	1-85576-452-2	01	1	1206-
241	REPAIR KIT; PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU)	1-85576-452-2	01	1	1206-
241	REPAIR KIT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-452-2	01	1	1206-
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-2	01	1	1206-
