3-20 — AIR TANK (#46881) — 134 parça

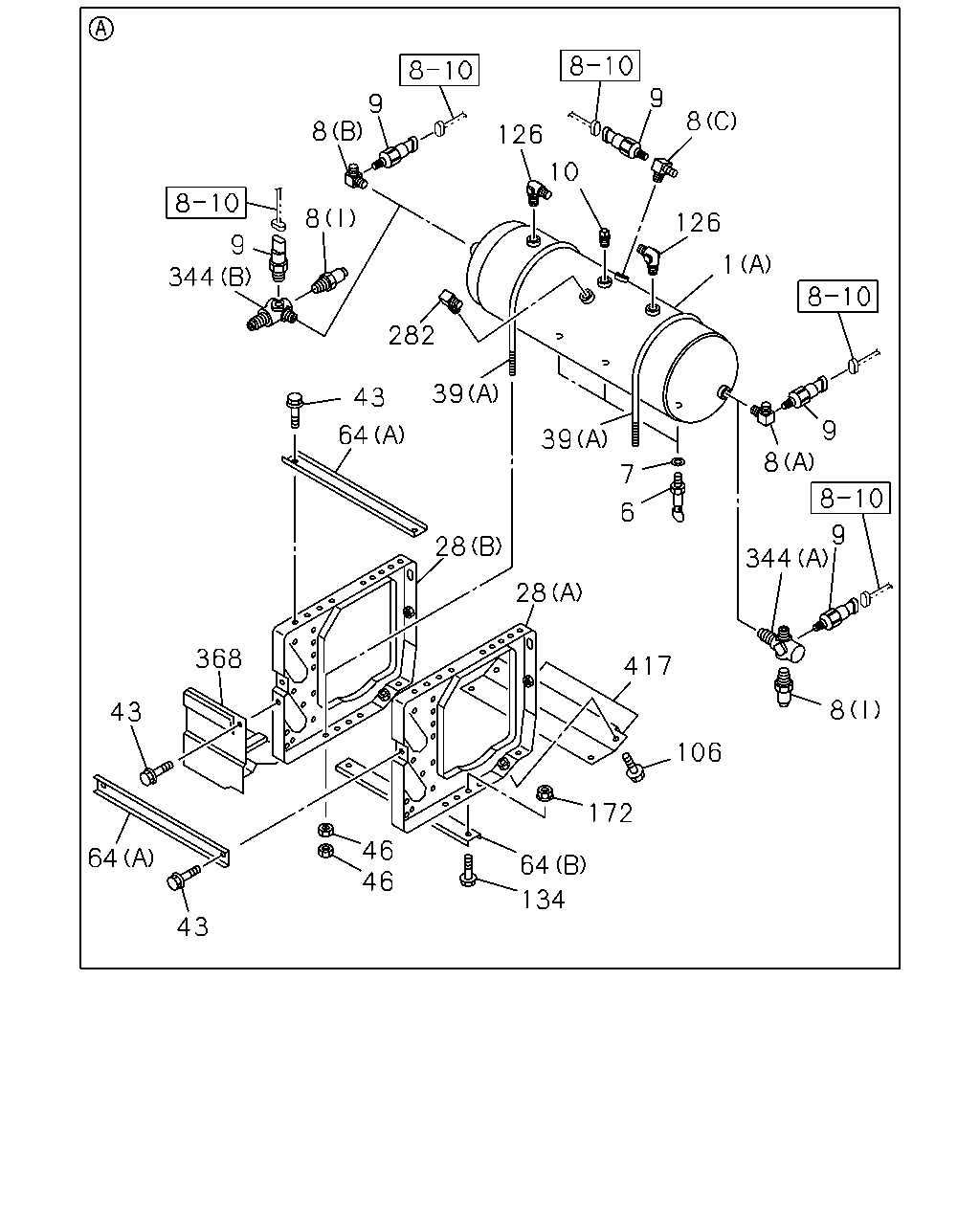

çizim 16257
9 9 8 8 126 10 8 126 9 344 1 282 39 43 9 64 39 8 7 6 9 28 344 28 368 417 8 43 106 172 46 46 64 64 134 43
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1206-
1 TANK ASM; AIR
BRAKE REGULATION ADR(TDU) (C) 		8-98081-870-1 01 1 1206-
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1109-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ADR(TDU) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1109-
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR(TDU) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1109-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (F) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (G) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (H) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1206-
8 CONNECTOR; AIR TANK
BRAKE REGULATION ADR(TDU) (I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1206-
8 CONNECTOR; AIR TANK
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1109-1205
8 CONNECTOR; AIR TANK
EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1206-
8 CONNECTOR; AIR TANK
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1109-1205
8 CONNECTOR; AIR TANK
EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1206-
8 CONNECTOR; AIR TANK
(C) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1109-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE REGULATION ADR(TDU) STAMP 6.0 		8-97615-622-0 03 1 1206-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 03 1 1109-1205
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 03 1 1206-
10 PLUG; AIR TANK
BRAKE REGULATION ADR(TDU) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1109-1205
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1206-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1206-
28 BRACKET; AIR TANK
BRAKE REGULATION ADR(TDU) (C) 		8-98100-165-3 01 1 1206-
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1109-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1109-
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR(TDU) (B) L=210 		1-48317-458-1 02 1 1206-
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1109-
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 1109-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1109-1205
46 NUT; U-BOLT
BRAKE REGULATION ADR(TDU) M8 		0-91110-508-0 08 1 1206-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1206-
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1109-
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1109-
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1109-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ADR(TDU) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1206-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1206-
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1109-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1109-
282 UNION; 2 WAY
M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1109-
344 CONNECTOR; 4WAY
BRAKE REGULATION ADR(TDU) (A) 		1-09656-726-0 01 1 1206-
344 CONNECTOR; 4WAY
BRAKE REGULATION ADR(TDU) (B) 		1-09656-767-0 01 1 1206-
368 COVER; AIR TANK 8-98061-625-3 01 1 1109-
417 COVER; HARNESS 8-98111-401-0 01 1 1109-

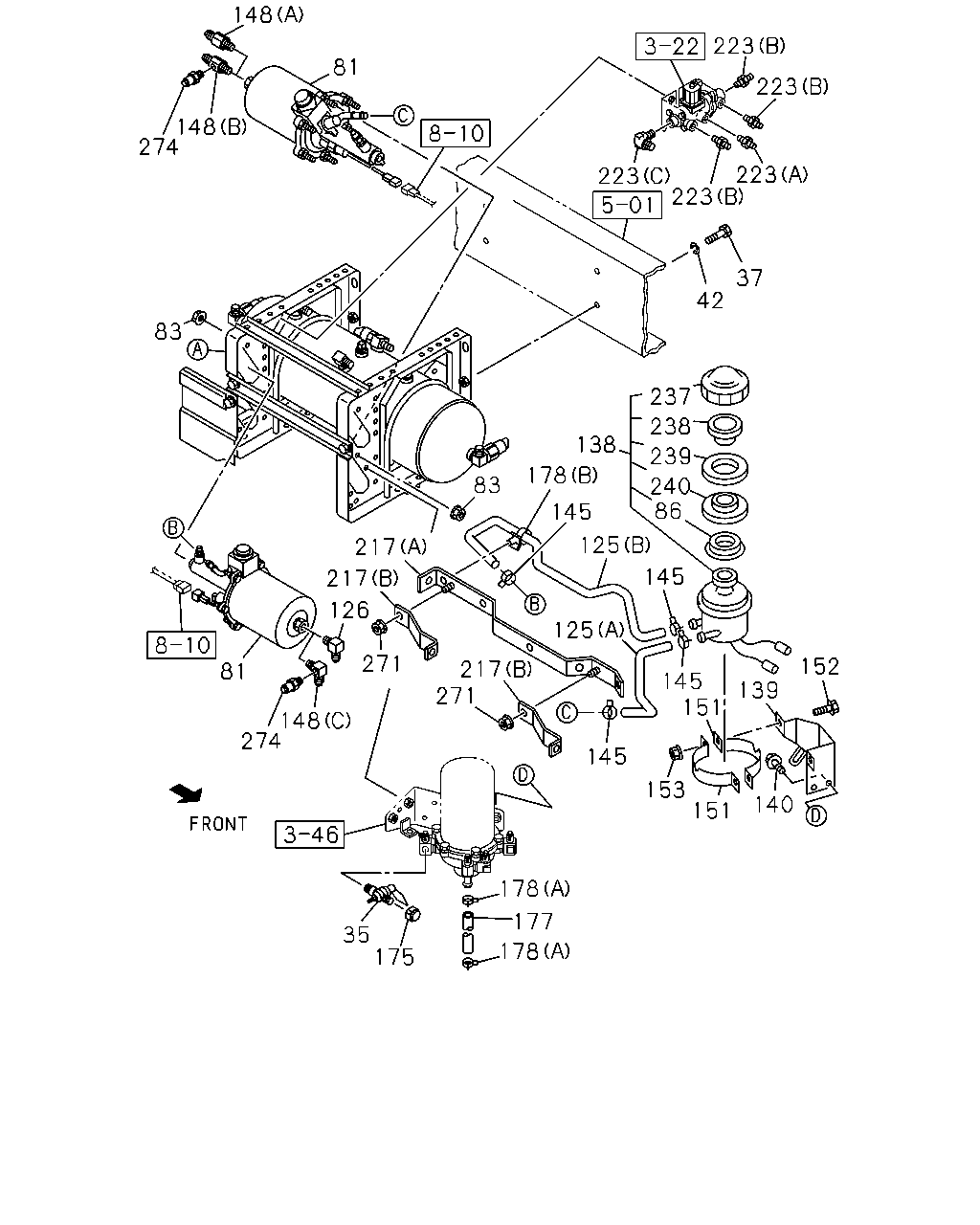

çizim 98951
148 223 81 223 148 274 223 223 223 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 126 125 217 271 271 152 81 145 151 139 148 274 145 153 151 140 178 177 35 175 178
BalonParca AdiParca NoAdetTipApplied Date
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1109-1205
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) 		1-09680-099-0 01 1 1206-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1109-
42 WASHER; PL
ID=12.5 OD=32 		0-91614-712-0 04 1 1109-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1109-
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1109-
86 SEAL; DUST 1-47529-019-0 01 1 1109-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1109-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1109-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ADR(TDU) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1206-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1109-1205
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR(TDU) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1206-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1109-
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1109-
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1109-
148 CONNECTOR; AIR MASTER
BRAKE REGULATION ADR(TDU) (B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1206-
148 CONNECTOR; AIR MASTER
BRAKE REGULATION ADR(TDU) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1206-
148 CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1109-1205
148 CONNECTOR; AIR MASTER
EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1206-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1109-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1109-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1109-1205
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) 		9-48319-102-0 01 1 1206-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1109-
178 CLIP; HOSE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21 		8-94242-034-0 01 1 1206-
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1109-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1109-1205
178 CLIP; HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21 		8-94242-034-0 02 1 1206-
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1109-
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1109-
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1109-
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1109-
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1109-
237 CAP; OIL TANK 1-47525-030-0 01 1 1109-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1109-
239 FILTER; DUST 1-47529-017-0 01 1 1109-
240 HOLDER; FILTER 1-47529-018-0 01 1 1109-
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1109-
274 CONNECTOR; VLV
BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1206-

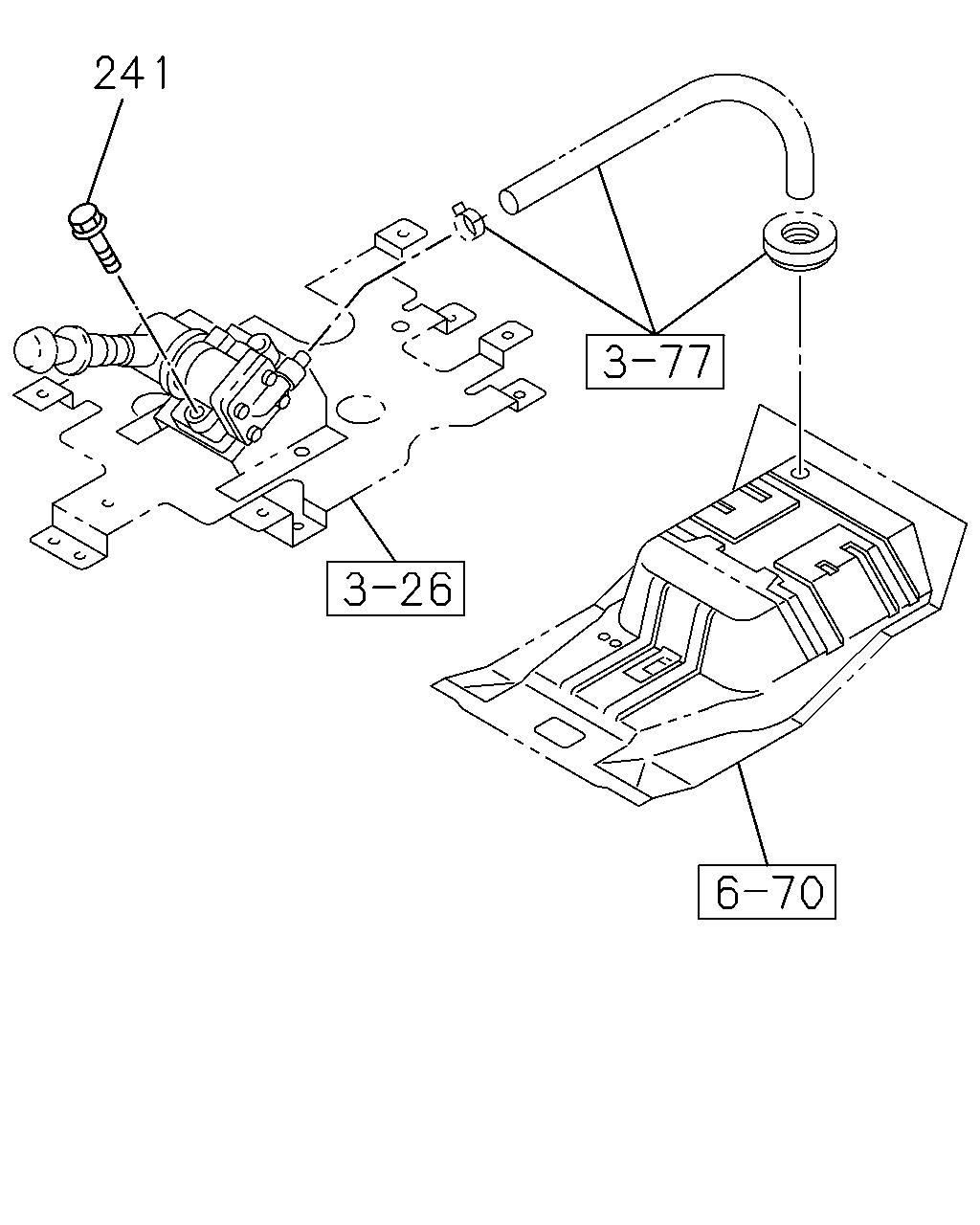

çizim 284114
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28050-870-0 02 1 1206-

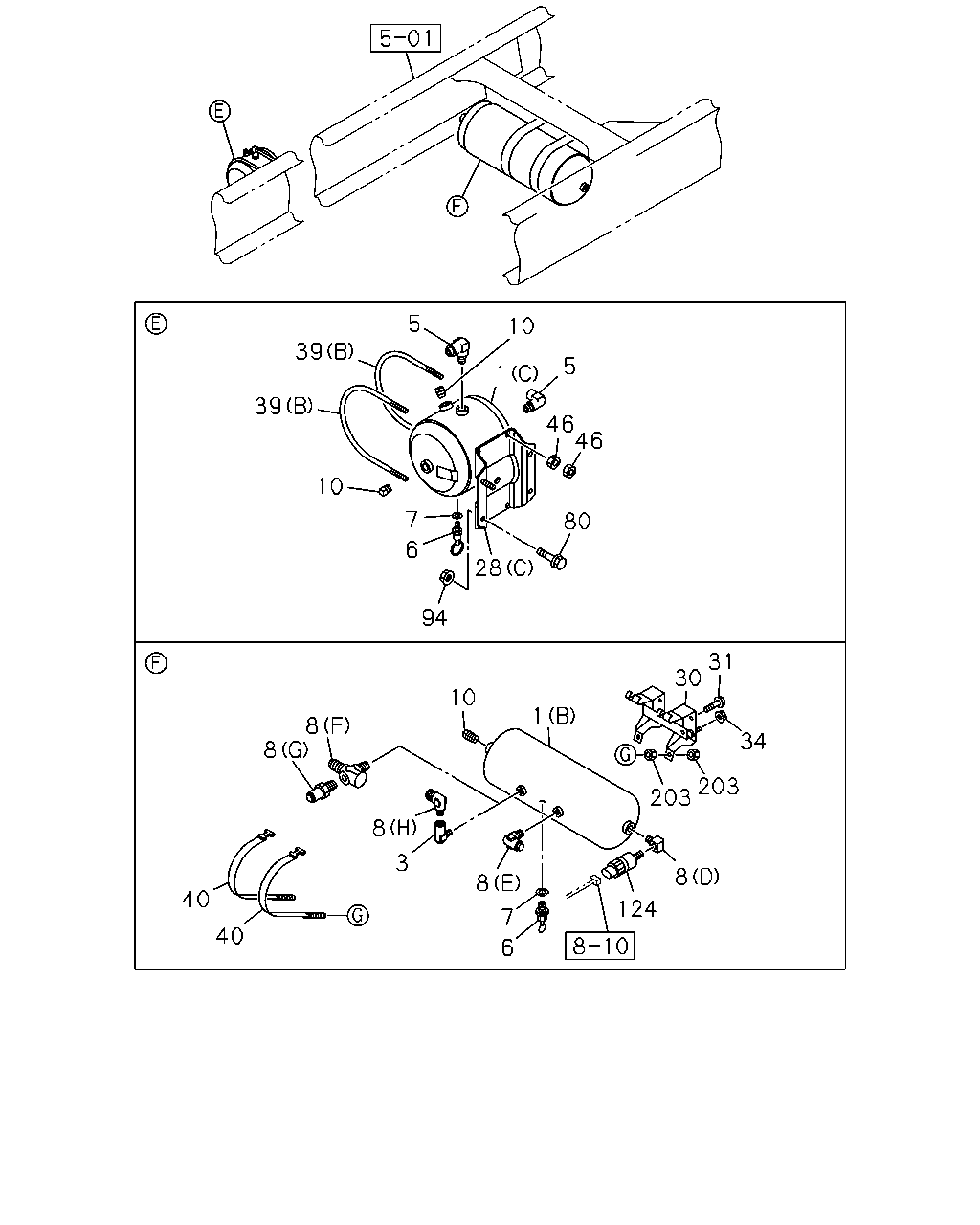

çizim 284117
5 10 39 5 1 39 46 46 10 7 80 6 28 94 31 30 10 1 8 34 8 203 203 8 3 8 8 40 124 7 40 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98166-972-0 01 1 1206-
1 TANK ASM; AIR
BRAKE REGULATION ADR(TDU) (C) 		8-98081-870-1 01 1 1206-
1 TANK ASM; AIR
(A) 		8-98018-785-3 01 1 1109-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48320-031-1 01 1 1206-
5 UNION; AIR TANK
BRAKE REGULATION ADR(TDU) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1206-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ADR(TDU) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 1206-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1109-
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR(TDU) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 1206-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1109-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (F) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (G) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1206-
8 CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (H) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1206-
8 CONNECTOR; AIR TANK
BRAKE REGULATION ADR(TDU) (I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1206-
8 CONNECTOR; AIR TANK
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1109-1205
8 CONNECTOR; AIR TANK
EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1206-
8 CONNECTOR; AIR TANK
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1109-1205
8 CONNECTOR; AIR TANK
EXC. BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1206-
8 CONNECTOR; AIR TANK
(C) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1109-
10 PLUG; AIR TANK
BRAKE REGULATION ADR(TDU) PT3/8 		9-09204-517-0 02 1 1206-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1109-1205
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1206-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 		9-09204-517-0 01 1 1206-
28 BRACKET; AIR TANK
BRAKE REGULATION ADR(TDU) (C) 		8-98100-165-3 01 1 1206-
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1109-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1109-
30 BRACKET; AIR TANK,SUB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-894-1 01 1 1206-
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1206-
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1206-
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR(TDU) (B) L=210 		1-48317-458-1 02 1 1206-
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1109-
40 BAND ASM; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-893-1 02 1 1206-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1109-1205
46 NUT; U-BOLT
BRAKE REGULATION ADR(TDU) M8 		0-91110-508-0 08 1 1206-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1206-
80 BOLT; BRKT
BRAKE REGULATION ADR(TDU) M10X30 FLANGE 		0-28651-030-0 03 1 1206-
94 NUT; BRKT FIX
BRAKE REGULATION ADR(TDU) M10 FLANGE 		0-91180-210-0 04 1 1206-
124 SWITCH; AIR PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) STAMP 6.0 		8-97615-622-0 01 1 1206-
124 SWITCH; AIR PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 1206-
203 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 04 1 1206-
