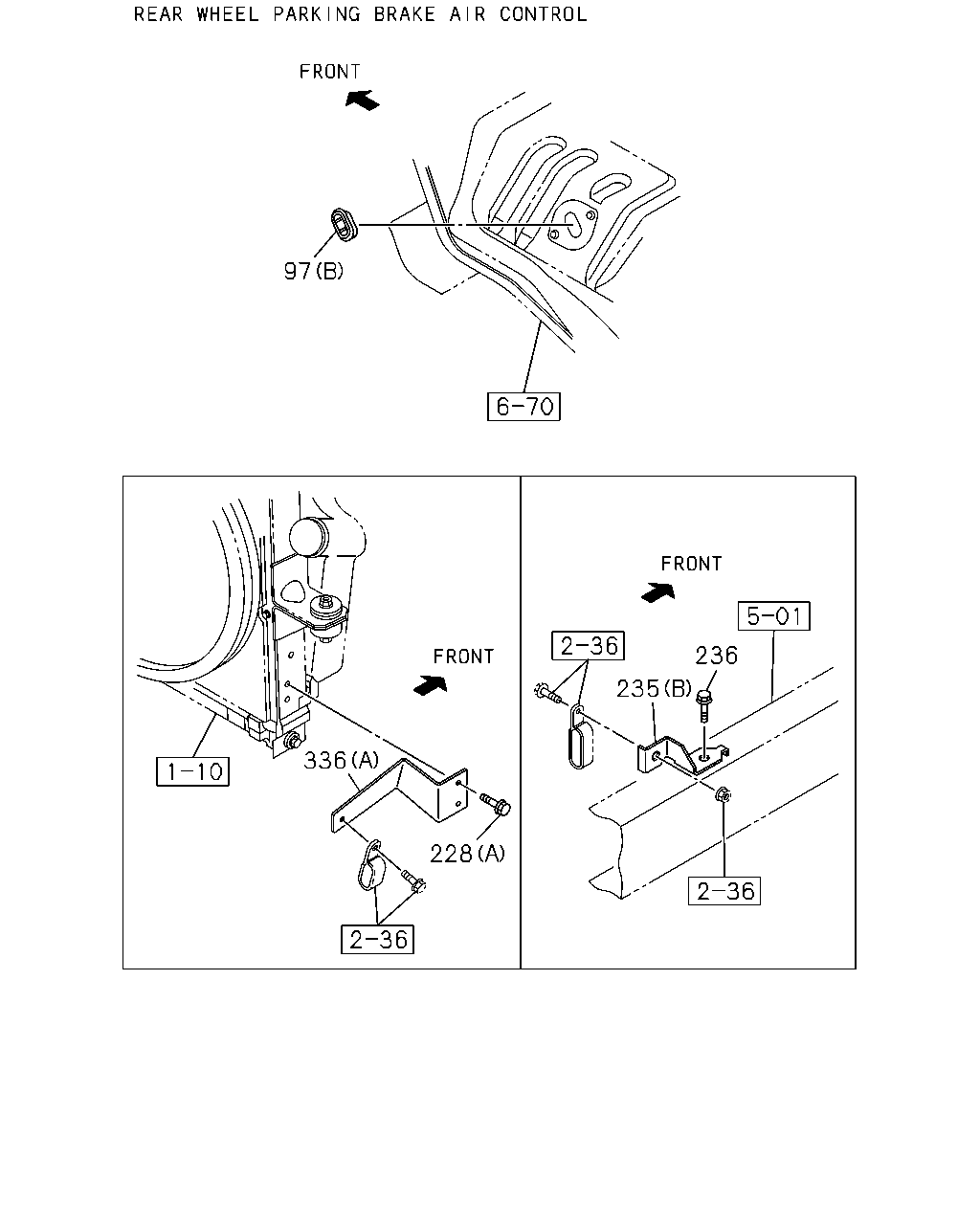

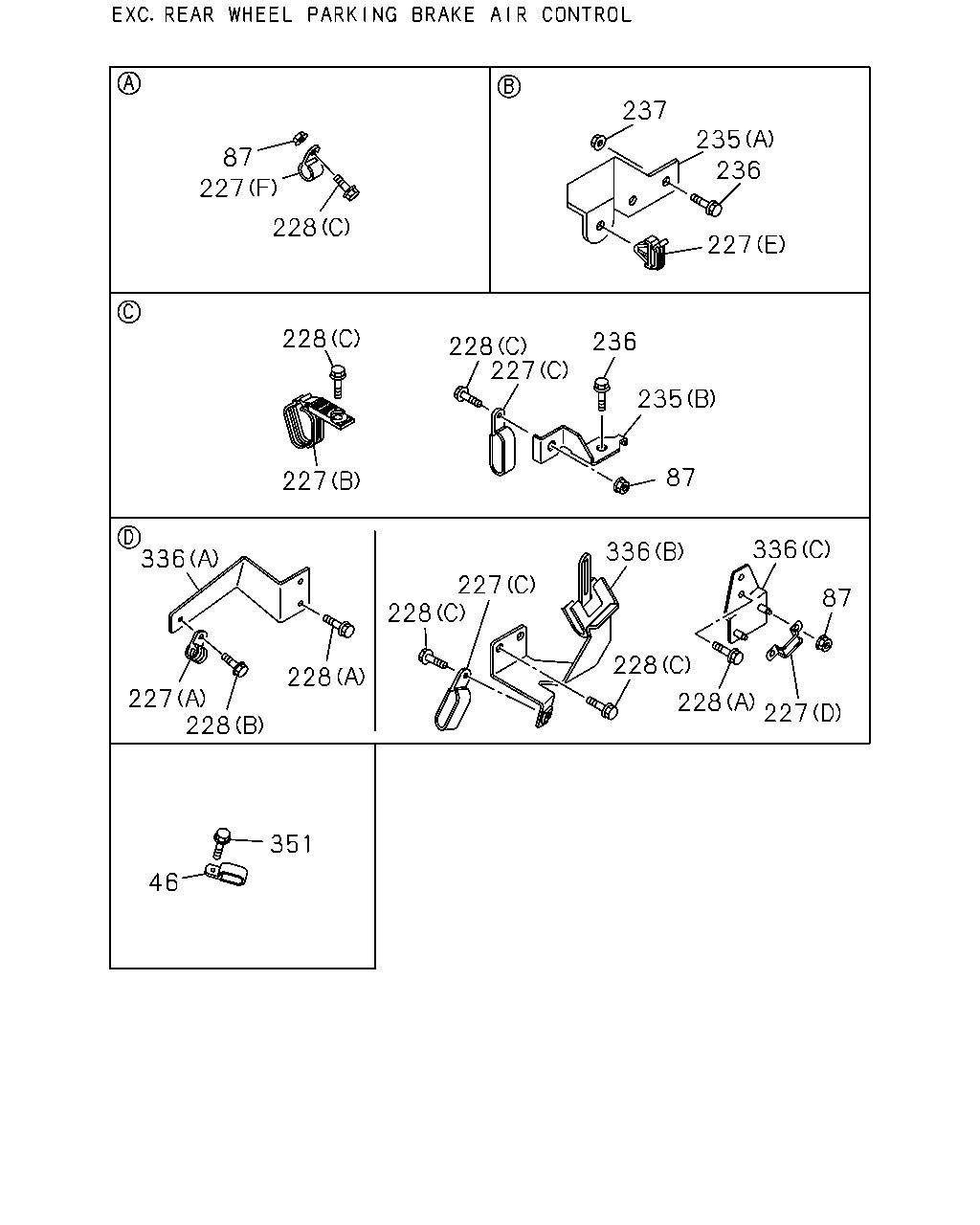

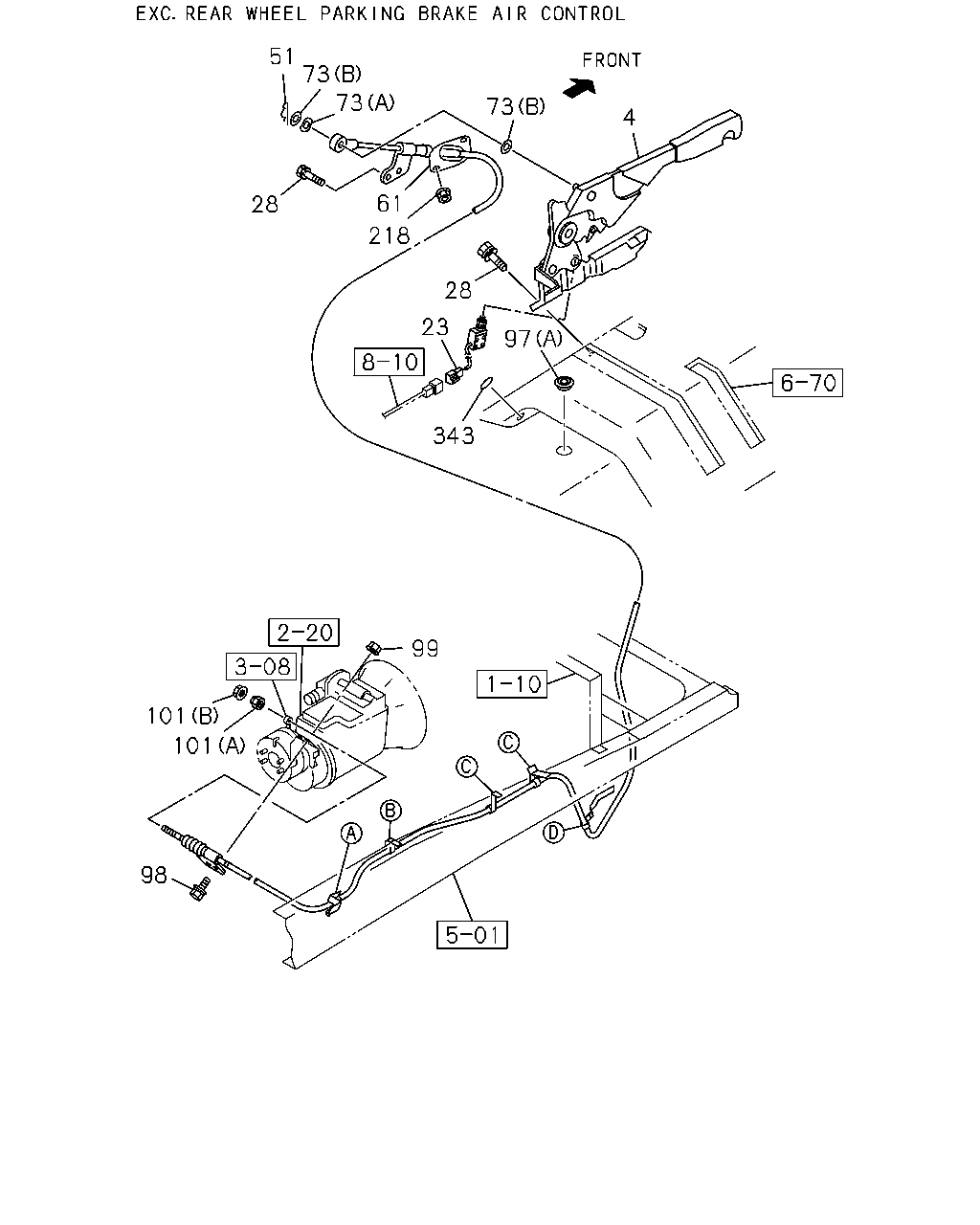

3-11 — PARKING BRAKE CONTROL (#46880) — 97 parça

51 73 73 73 4 61 28 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK	1-79996-565-0	01	1	1109-1205
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	1206-
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	1109-1205
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1206-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1109-1205
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1206-
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	1109-1205
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1206-
61	CABLE; PARKING BRK GENERATOR 24V90A(K44) L=4420	8-98171-945-2	01	1	1109-1205
61	CABLE; PARKING BRK GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4420	8-98171-945-2	01	1	1206-
61	CABLE; PARKING BRK EXC. GENERATOR 24V90A(K44) L=4300	8-98167-241-2	01	1	1109-1205
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) L=4300	8-98167-241-2	01	1	1206-
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	1109-1205
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1206-
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	1109-1205
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1206-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98029-219-1	01	1	1206-
97	GROMMET; PARKING BRK CABLE (A) OD=35	8-94122-971-0	01	1	1109-1205
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35	8-94122-971-0	01	1	1206-
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	01	1	1109-1205
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1206-
99	NUT; CONT CABLE M10 FLANGE	0-91180-210-0	02	1	1109-1205
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1206-
101	NUT; CABLE TO LEVER (B) M8 FLANGE	0-91180-108-0	01	1	1109-1205
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1206-
101	NUT; CABLE TO LEVER (A) M8	1-46259-007-0	01	1	1109-1205
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	1-46259-007-0	01	1	1206-
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	0-91180-108-0	02	1	1109-1205
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
343	SEAL OD=25 BLACK	1-76798-019-0	08	1	1109-1205
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	1206-

237 235 87 236 227 228 227 228 236 228 227 235 87 227 336 336 336 227 228 87 228 228 227 228 228 227 351 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	01	1	1109-1205
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1206-
87	NUT M8 FLANGE	0-91180-108-0	02	1	1109-1205
87	NUT GENERATOR 24V90A(K44) M8 FLANGE	0-91180-108-0	02	1	1109-1205
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
87	NUT GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
227	CLIP; RAD (F) ID=16 L=20	0-95235-535-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20	0-95235-535-0	01	1	1206-
227	CLIP; RAD (E) ID=9.5	5-09709-020-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	1206-
227	CLIP; RAD (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1206-1504
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-
227	CLIP; RAD GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1109-1205
227	CLIP; RAD (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1109-1205
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1206-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1206-
227	CLIP; RAD GENERATOR 24V90A(K44) (D)	8-98080-966-0	01	1	1109-1205
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98080-966-0	01	1	1206-
227	CLIP; RAD EXC. GENERATOR 24V90A(K44) (A) ID=26 L=26	1-09701-236-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26	1-09701-236-0	01	1	1206-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1206-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1206-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1109-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	1206-
228	BOLT; CLIP RAD MTG EXC. GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (A)	8-98100-152-0	01	1	1109-1205
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-152-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1109-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1206-
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	03	1	1109-1205
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1109-1205
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98080-965-0	01	1	1109-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98139-517-0	01	1	1109-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1109-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1109-1205
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1206-

97 236 235 336 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98029-219-1	01	1	1206-
97	GROMMET; PARKING BRK CABLE (A) OD=35	8-94122-971-0	01	1	1109-1205
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35	8-94122-971-0	01	1	1206-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1206-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	02	1	1206-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1109-
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (C) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	01	1	1206-
228	BOLT; CLIP RAD MTG EXC. GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (A)	8-98100-152-0	01	1	1109-1205
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98100-152-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1109-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1206-
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	03	1	1109-1205
236	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98080-965-0	01	1	1109-1309
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98251-969-0	01	1	1310-
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98139-517-0	01	1	1109-
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1109-
