◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#46878) — 37 parça

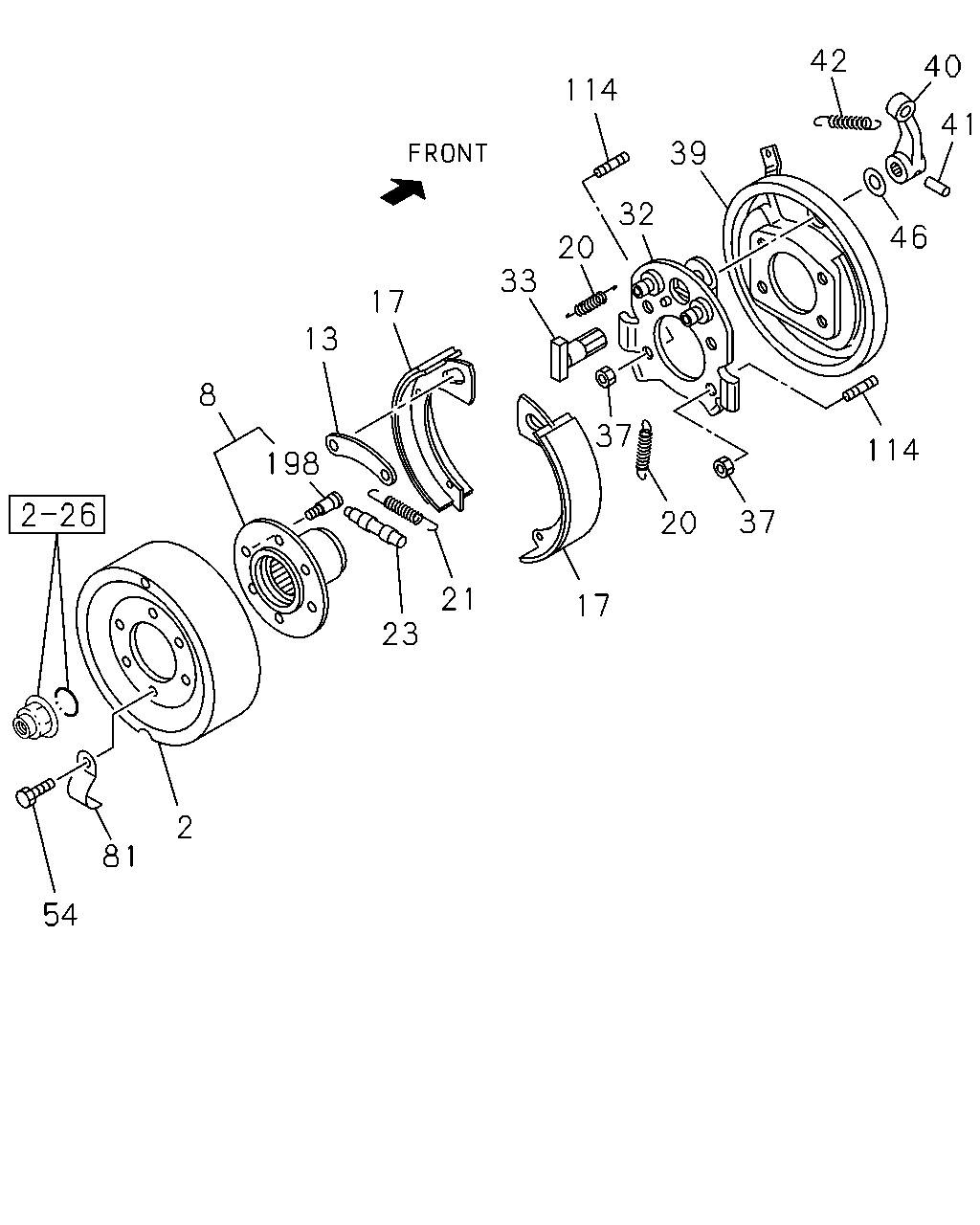

çizim 16200
42 40 114 41 39 32 46 20 33 17 13 8 37 114 198 37 20 21 17 23 2 81 54
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK 1-46211-020-1 01 1 1109-
8 FLANGE; PARKING BRK 8-98171-007-0 01 1 1109-
13 BRACE; PARKING BRK 9-46239-003-0 01 1 1109-1205
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-46239-003-0 01 1 1206-
17 SHOE; PARKING BRK 1-46220-029-0 02 1 1109-1205
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46220-029-0 02 1 1206-
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-567-1 02 1 1109-1205
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-567-1 02 1 1206-
21 SPRING; RETURN,PARKING BRK SHOE 1-09583-268-0 01 1 1109-1205
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09583-268-0 01 1 1206-
23 SCREW; ADJ,PARKING BRK SHOE 9-46240-008-0 01 1 1109-1205
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-46240-008-0 01 1 1206-
32 PLATE; SUPPORT,PARKING BRK 1-46213-023-0 01 1 1109-1205
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-023-0 01 1 1206-
33 SHAFT; CAM,PARKING BRK 1-46251-070-0 01 1 1109-1205
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46251-070-0 01 1 1206-
37 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1109-1205
37 NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE 		8-97365-444-0 04 1 1206-
39 COVER; DUST,PARKING BRK 1-46213-115-0 01 1 1109-1205
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46213-115-0 01 1 1206-
40 LEVER; CM/SHF,PARKING BRK 1-46252-057-0 01 1 1109-1205
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46252-057-0 01 1 1206-
41 PIN; KNOCK,LEVER 9-09878-594-0 01 1 1109-1205
41 PIN; KNOCK,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09878-594-0 01 1 1206-
42 SPRING; RETURN,LEVER 9-09942-592-0 01 1 1109-1205
42 SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09942-592-0 01 1 1206-
46 WASHER; LEVER 9-09855-367-0 01 1 1109-1205
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-09855-367-0 01 1 1206-
54 BOLT; COVER
M8X20 W/LK WASHER 		0-50740-820-0 02 1 1109-
81 COVER; CHECK HOLE,PARKING BRK 1-46219-018-0 02 1 1109-
114 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 1109-1205
114 STUD; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5 		8-97365-445-0 04 1 1206-
198 BOLT; KNURL
M14X43 KNURL 		8-98014-003-0 04 1 1109-

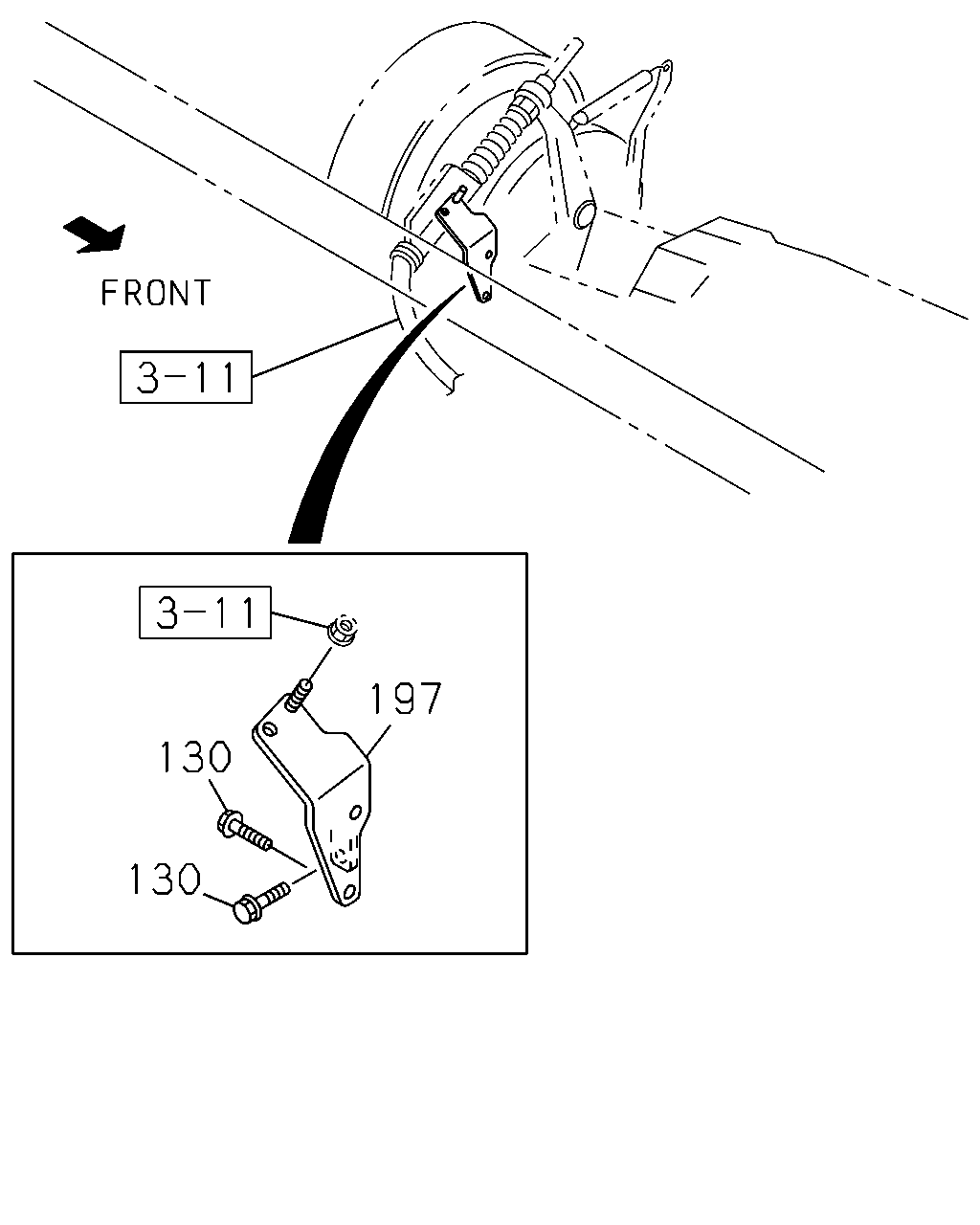

çizim 99378
197 130 130
BalonParca AdiParca NoAdetTipApplied Date
130 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 03 1 1109-1205
130 BOLT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28151-025-0 03 1 1206-
197 BRACKET; CENTER BRAKE CABLE 8-98170-963-2 01 1 1109-1205
197 BRACKET; CENTER BRAKE CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98170-963-2 01 1 1206-
