Sayfa 3-05 - Isuzu EPC

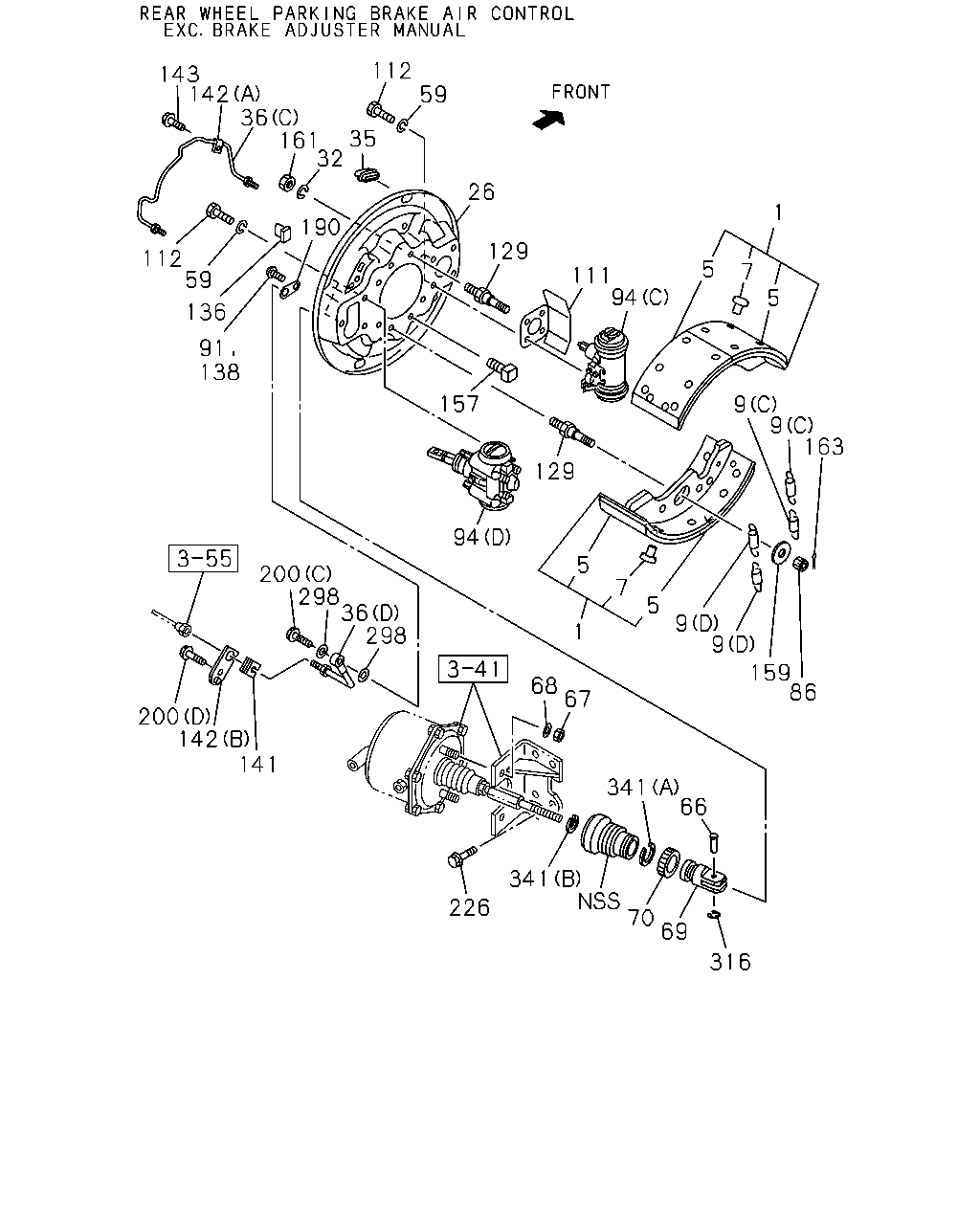

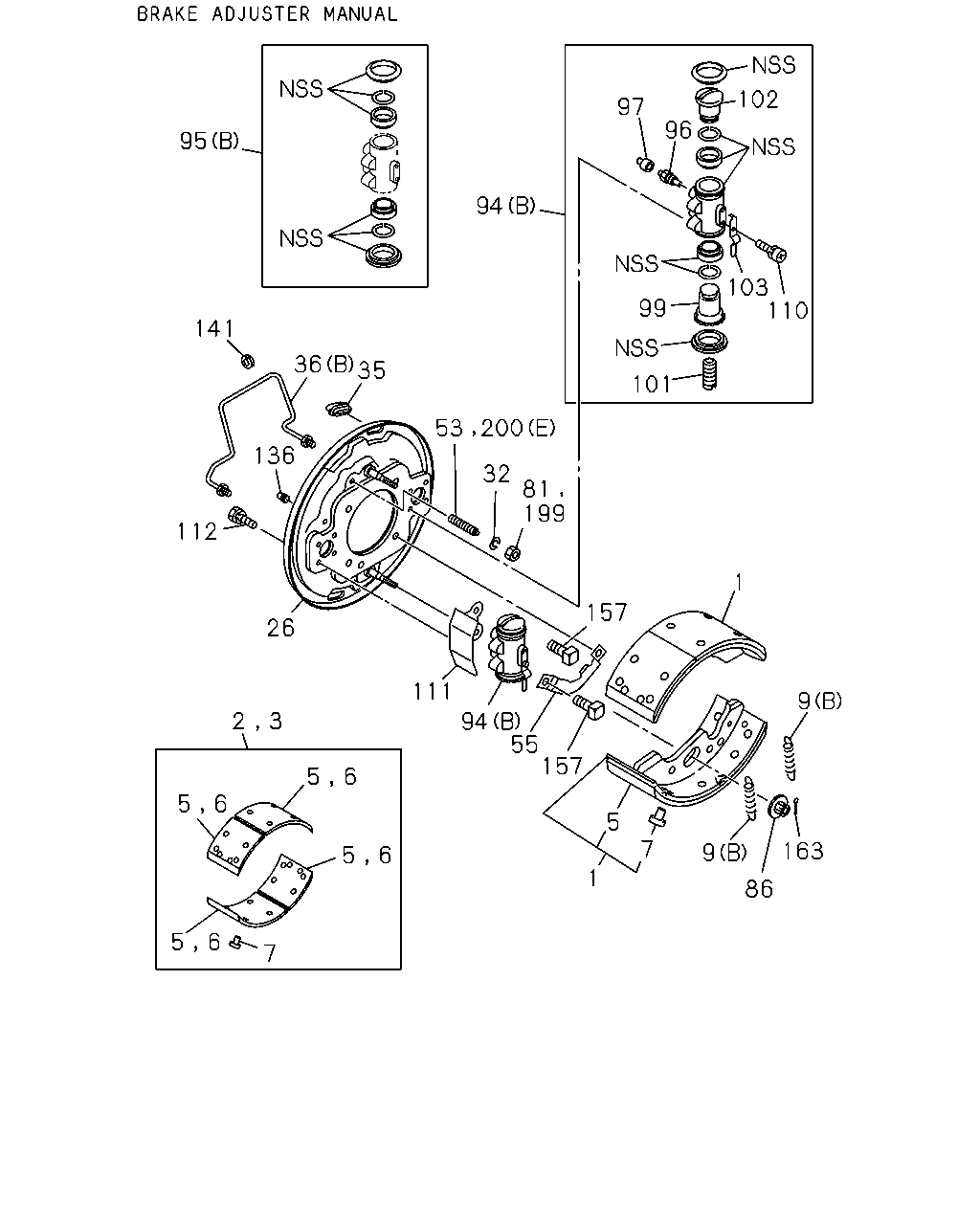

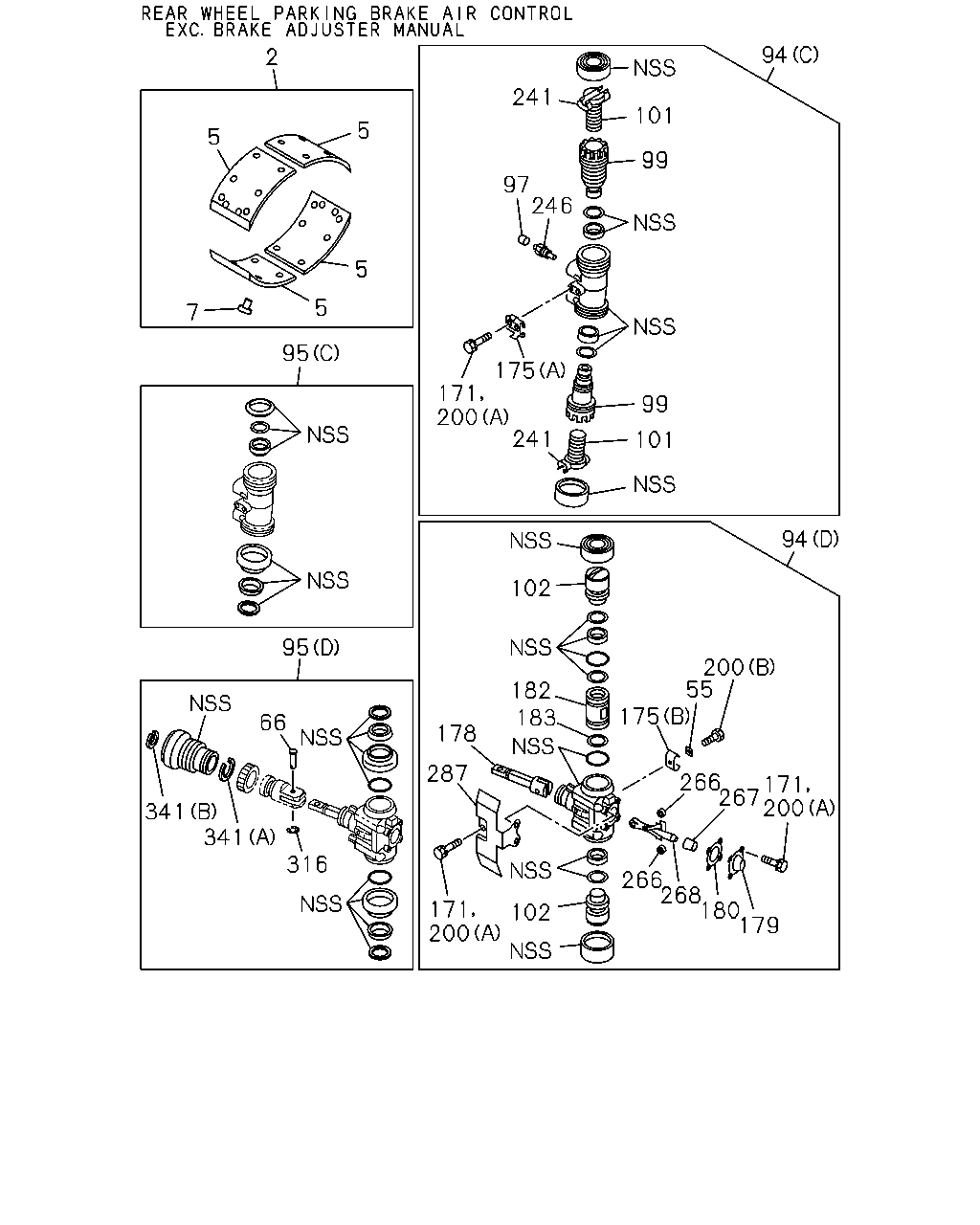

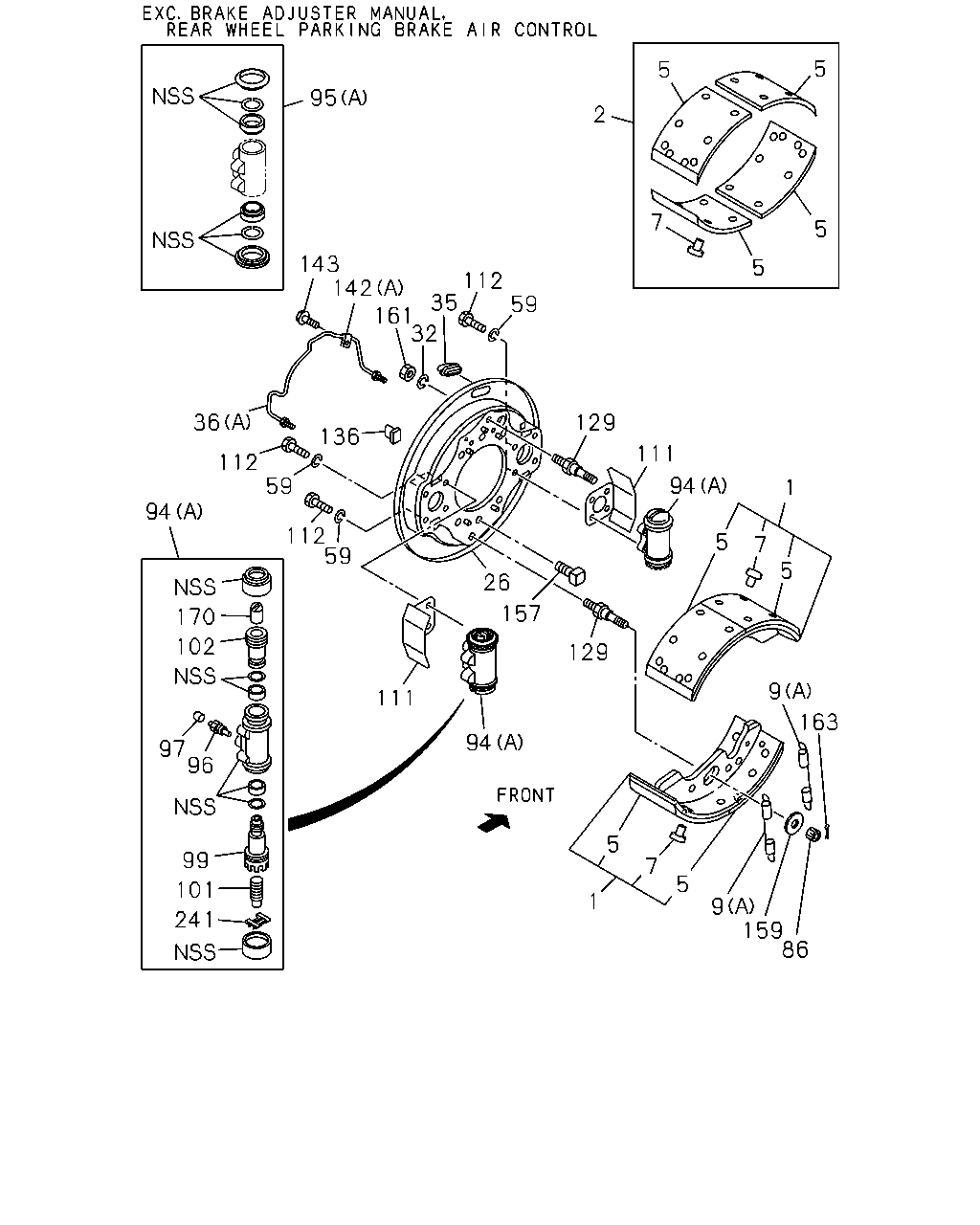

3-05 — REAR WHEEL BRAKE (#46877) — 383 parça

102 97 96 95 94 103 110 99 141 36 35 101 136 32 81 199 112 1 157 26 111 9 2 3 94 55 157 5 6 5 6 5 7 163 9 5 6 1 86 5 6 7 53 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1109-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-484-0	04	1	1109-1205
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1206-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1109-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-386-0	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-552-1	02	1	1109-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1109-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-801-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-804-0	08	1	1109-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1109-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1109-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-381-1	04	1	1206-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-382-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-271-0	04	1	1109-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-384-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-384-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-383-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1206-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1109-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1109-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-709-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1206-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-708-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1206-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1109-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1109-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1109-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1109-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-857-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-858-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-49167-905-0	02	1	1206-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B)	1-47421-815-0	02	1	1109-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-859-0	02	1	1109-1205
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-859-0	02	1	1206-
53	BOLT; LOCK PLATE BRAKE ADJUSTER MANUAL<BJR>	1-47162-050-0	02	1	1109-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1206-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-064-0	04	1	1109-
81	NUT BRAKE ADJUSTER MANUAL<BJR>	1-09400-100-0	02	1	1109-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1109-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1109-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-47601-166-1	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-218-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-219-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-958-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-959-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-956-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-957-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) BACKWARD	1-47601-169-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) BACKWARD	1-47601-169-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-171-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-171-1	01	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-170-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-170-1	01	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-87831-324-0	02	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-87831-325-0	02	1	1206-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	1-87830-770-0	04	1	1109-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-87831-323-0	04	1	1109-1205
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87831-323-0	04	1	1206-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47615-020-0	02	1	1109-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-018-1	02	1	1109-1205
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1206-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1109-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1109-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1206-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1109-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1109-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-238-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1206-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1109-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1206-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1109-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-239-0	04	1	1109-1205
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1206-
103	SPRING; LK,RR WHEEL CYL,ADJ BRAKE ADJUSTER MANUAL<BJR>	1-47629-072-0	04	1	1109-
110	SCREW; LOCK SPRING,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-94128-727-0	04	1	1109-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1206-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1109-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	04	1	1109-1205
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1206-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1206-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1109-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	16	1	1109-1205
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1206-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1109-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1109-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1206-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1109-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1109-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1109-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1109-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1109-
199	NUT BRAKE ADJUSTER MANUAL<BJR>	1-09400-100-0	02	1	1109-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1206-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1109-

59 112 35 142 143 95 2 5 5 5 5 7 1 5 7 5 94 111 129 32 161 36 136 112 112 59 94 59 111 26 157 129 94 9 163 9 5 7 5 1 159 86 96 97 102 170 99 101 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1109-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-484-0	04	1	1109-1205
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1206-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1109-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-386-0	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1206-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1109-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-801-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1109-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1109-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-381-1	04	1	1206-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-382-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-271-0	04	1	1109-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-384-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-384-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-383-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1206-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1109-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1109-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-709-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1206-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-708-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1206-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1109-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1109-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1109-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1109-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-857-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-858-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-49167-905-0	02	1	1206-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B)	1-47421-815-0	02	1	1109-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-859-0	02	1	1109-1205
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-859-0	02	1	1206-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1206-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	16	1	1109-1205
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1206-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1109-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1109-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-47601-166-1	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-218-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-219-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-958-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-959-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-956-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-957-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) BACKWARD	1-47601-169-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) BACKWARD	1-47601-169-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-171-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-171-1	01	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-170-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-170-1	01	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-87831-324-0	02	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-87831-325-0	02	1	1206-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	1-87830-770-0	04	1	1109-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-87831-323-0	04	1	1109-1205
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87831-323-0	04	1	1206-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47615-020-0	02	1	1109-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-018-1	02	1	1109-1205
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1206-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1109-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1109-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1206-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1109-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1109-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-238-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1206-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1109-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1206-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1109-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-239-0	04	1	1109-1205
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1206-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1206-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1109-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	04	1	1109-1205
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1206-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1206-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1109-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	16	1	1109-1205
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1206-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1109-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1109-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1109-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1206-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1109-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1109-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1109-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1109-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1109-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1109-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1109-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1109-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-185-0	04	1	1109-1205
170	PIECE; ANCHOR,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	1206-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1109-

143 36 142 112 35 59 32 161 26 129 190 112 136 59 91 111 5 7 1 5 94 9 163 9 86 159 9 9 5 7 5 129 157 94 138 66 316 69 70 341 341 226 67 68 298 36 298 200 142 200 141 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1109-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-484-0	04	1	1109-1205
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1206-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1109-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-801-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1109-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1109-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-381-1	04	1	1206-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-382-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-271-0	04	1	1109-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-384-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-384-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-383-0	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-383-0	02	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1206-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1206-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1206-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1109-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1109-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-709-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1206-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-708-2	01	1	1109-1205
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1206-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1109-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1109-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1109-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1109-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-857-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-858-0	01	1	1206-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-49167-905-0	02	1	1206-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B)	1-47421-815-0	02	1	1109-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-859-0	02	1	1109-1205
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-859-0	02	1	1206-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1206-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	16	1	1109-1205
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1206-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1206-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	1206-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	1206-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	1206-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	1206-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1109-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1109-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-47601-166-1	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-218-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-219-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-958-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-959-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-956-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-957-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) BACKWARD	1-47601-169-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) BACKWARD	1-47601-169-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-171-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-171-1	01	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-170-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-170-1	01	1	1206-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1206-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1109-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	04	1	1109-1205
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1206-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1206-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1109-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	16	1	1109-1205
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1206-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1109-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1109-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1109-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1206-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1206-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1109-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1206-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1109-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1109-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1109-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1109-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1109-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1109-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1109-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1109-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-032-0	04	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1206-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1109-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	1206-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47616-115-0	04	1	1206-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1206-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1206-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1206-

2 5 5 5 5 7 95 95 66 341 341 316 102 94 200 182 183 175 55 178 287 266 267 200 180 179 171 268 266 102 171 200 101 99 99 101 241 97 175 246 171 241 200 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1109-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-386-0	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1206-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1109-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-801-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1109-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1109-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1206-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-064-0	04	1	1109-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-47601-166-1	02	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-218-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-47601-219-0	01	1	1206-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-958-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-959-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	1-47600-956-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47600-957-0	01	1	1109-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) BACKWARD	1-47601-169-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) BACKWARD	1-47601-169-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-171-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-171-1	01	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-170-0	01	1	1109-1205
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-170-1	01	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) FORWARD	1-87831-324-0	02	1	1206-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D) BACKWARD	1-87831-325-0	02	1	1206-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	1-87830-770-0	04	1	1109-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-87831-323-0	04	1	1109-1205
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87831-323-0	04	1	1206-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1109-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1109-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1206-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1109-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1109-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-238-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1206-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1109-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1109-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1206-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1109-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-239-0	04	1	1109-1205
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1206-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-071-0	10	1	1206-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47619-187-0	02	1	1206-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-188-0	02	1	1206-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47640-013-0	02	1	1206-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-045-0	02	1	1206-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-013-0	02	1	1206-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-280-0	04	1	1206-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09623-690-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1206-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1206-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1109-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1109-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-018-1	02	1	1206-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47643-003-0	04	1	1206-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-004-0	02	1	1206-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-003-0	02	1	1206-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-186-0	02	1	1206-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	1206-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1206-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
