◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#46868) — 77 parça

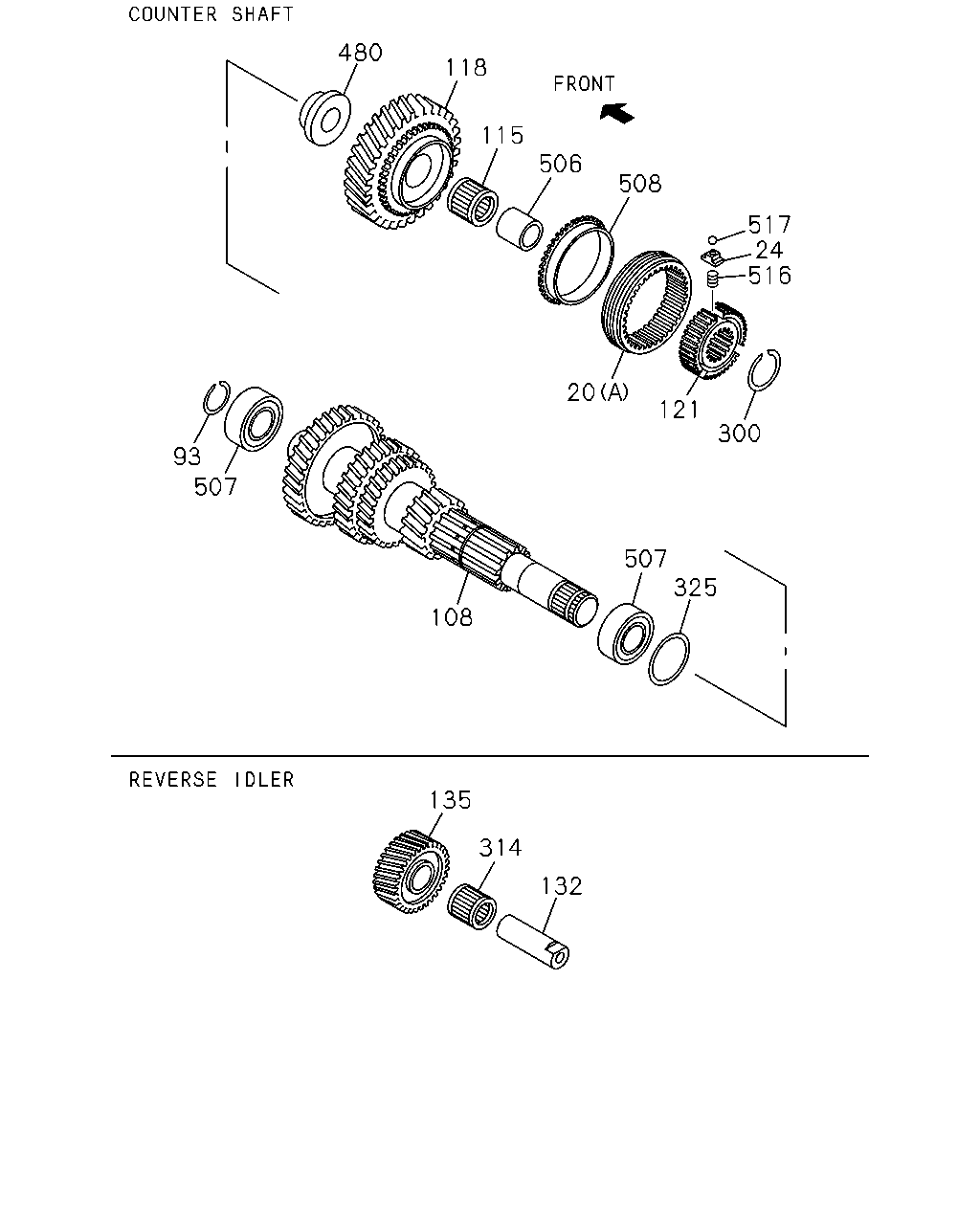

çizim 15509
480 118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1109-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1109-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1109-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1109-
108 SHAFT; COUNTER
Z=46-37-27-21 		8-98168-526-0 01 1 1109-1308
108 SHAFT; COUNTER
Z=46-37-27-21 		8-98249-483-0 01 1 1309-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1109-
118 GEAR; 6TH,COUNTER
Z=46 		8-97241-245-0 01 1 1109-
121 HUB; CLU,6TH 8-97241-301-2 01 1 1109-
132 SHAFT; REV 8-97252-655-0 01 1 1109-
135 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1109-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1109-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1109-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1109-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1109-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1109-
480 WASHER; THRUST,6TH 8-97253-122-1 01 1 1109-
506 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1109-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1109-
508 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1109-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1109-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1109-

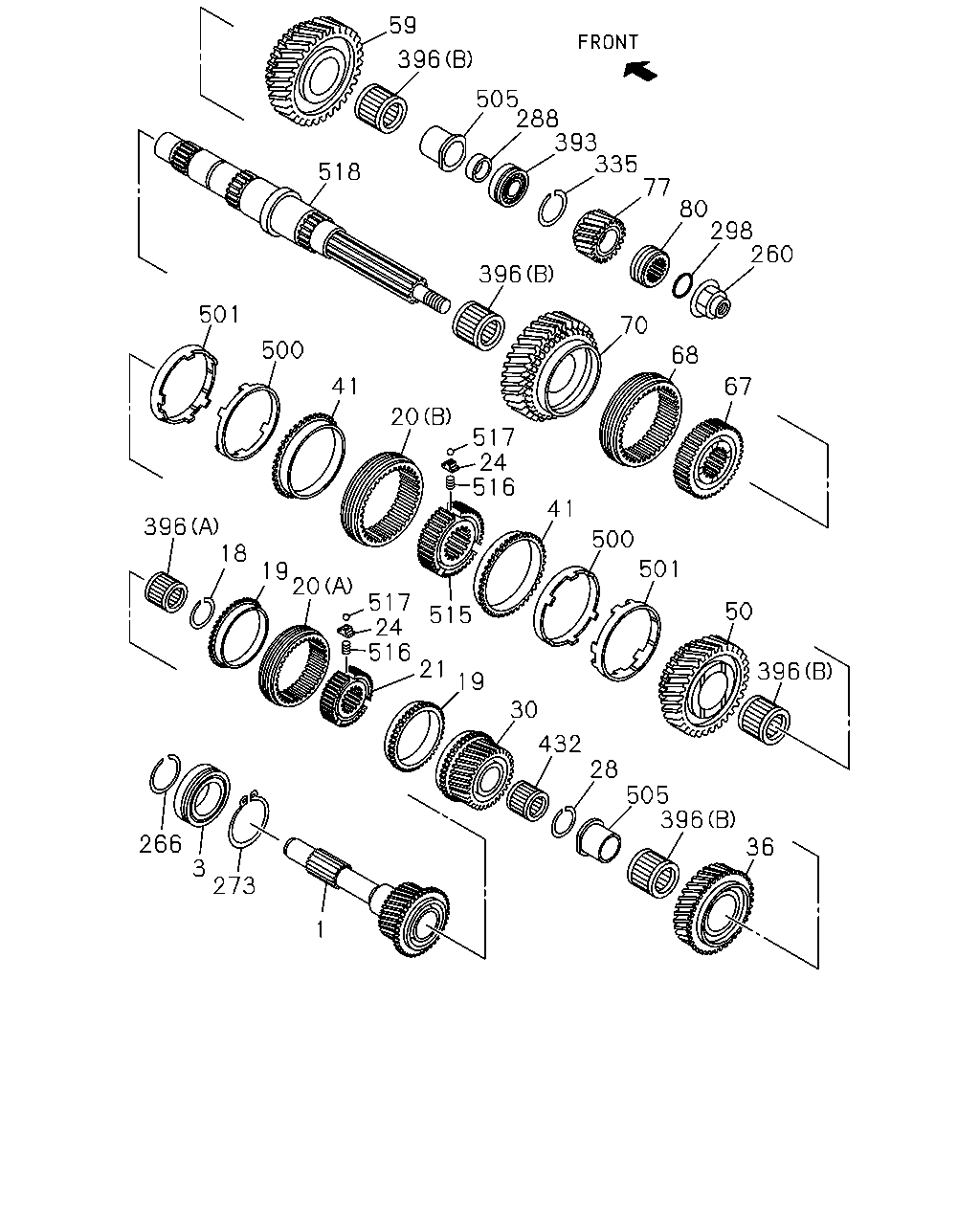

çizim 98956
59 396 505 288 393 335 77 80 298 260 518 396 501 70 500 68 41 67 20 517 24 516 41 396 18 500 501 19 20 517 24 516 21 50 515 396 19 30 432 28 505 396 36 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=25 		8-97371-089-0 01 1 1109-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1109-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1109-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1109-
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1109-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1109-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
21 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1109-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1109-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1109-
30 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 1109-
36 GEAR; 3RD,MAINSHAFT
Z=35 		8-98168-524-0 01 1 1109-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1109-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1109-
59 GEAR; REV MAINSHAFT
Z=45 		8-97254-182-0 01 1 1109-
67 HUB; CLU,1ST TO REV 8-97255-184-1 01 1 1109-
68 SLEEVE; 1ST TO REV 1-33262-175-1 01 1 1109-
70 GEAR; 1ST,MAINSHAFT
Z=45 		8-97254-889-0 01 1 1109-
77 GEAR; 6TH,MAINSHAFT
Z=18 		8-97241-264-0 01 1 1109-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1109-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1109-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1109-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1109-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1109-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 1109-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 1109-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1109-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1109-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1109-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1109-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1109-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1109-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1109-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1109-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1109-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1109-
518 SHAFT; MAIN,5TH & 6TH SPEED
Z=26-42-23 		8-97253-115-3 01 1 1109-
