◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#46861) — 20 parça

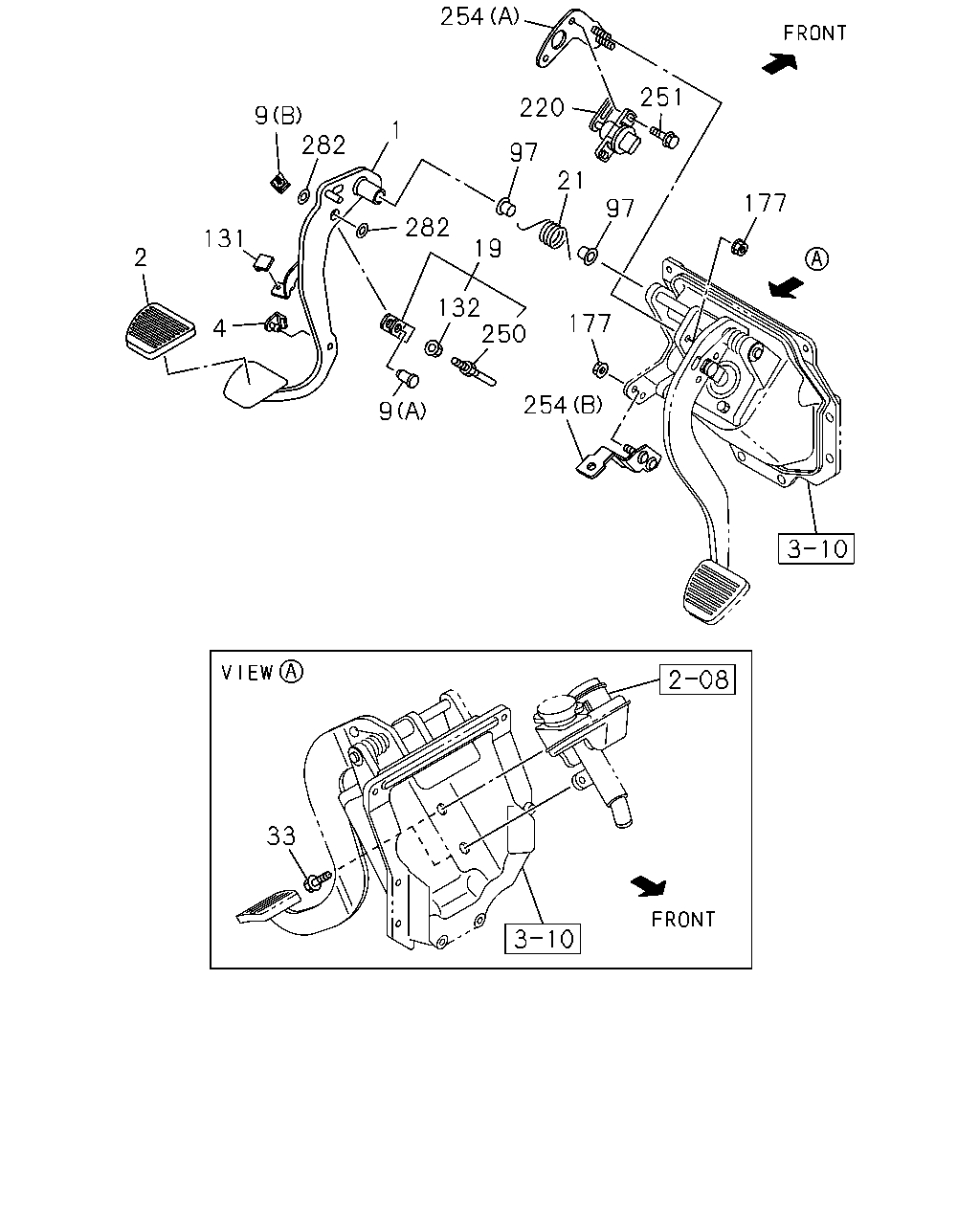

çizim 16418
254 251 220 9 282 1 97 21 177 97 282 131 19 2 132 250 177 4 254 9 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98064-603-1 01 1 1109-
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 1109-
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1109-
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1109-
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1109-
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1109-
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1109-
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1109-
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1109-
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1109-
131 STOPPER; CLU SW 8-97302-305-0 01 1 1109-
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1109-
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 1109-
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1109-
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1109-
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1109-
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 1109-
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 1109-
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1109-
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1109-
