◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11440 - FRR-L SPACE EU4 DOC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#46859) — 18 parça

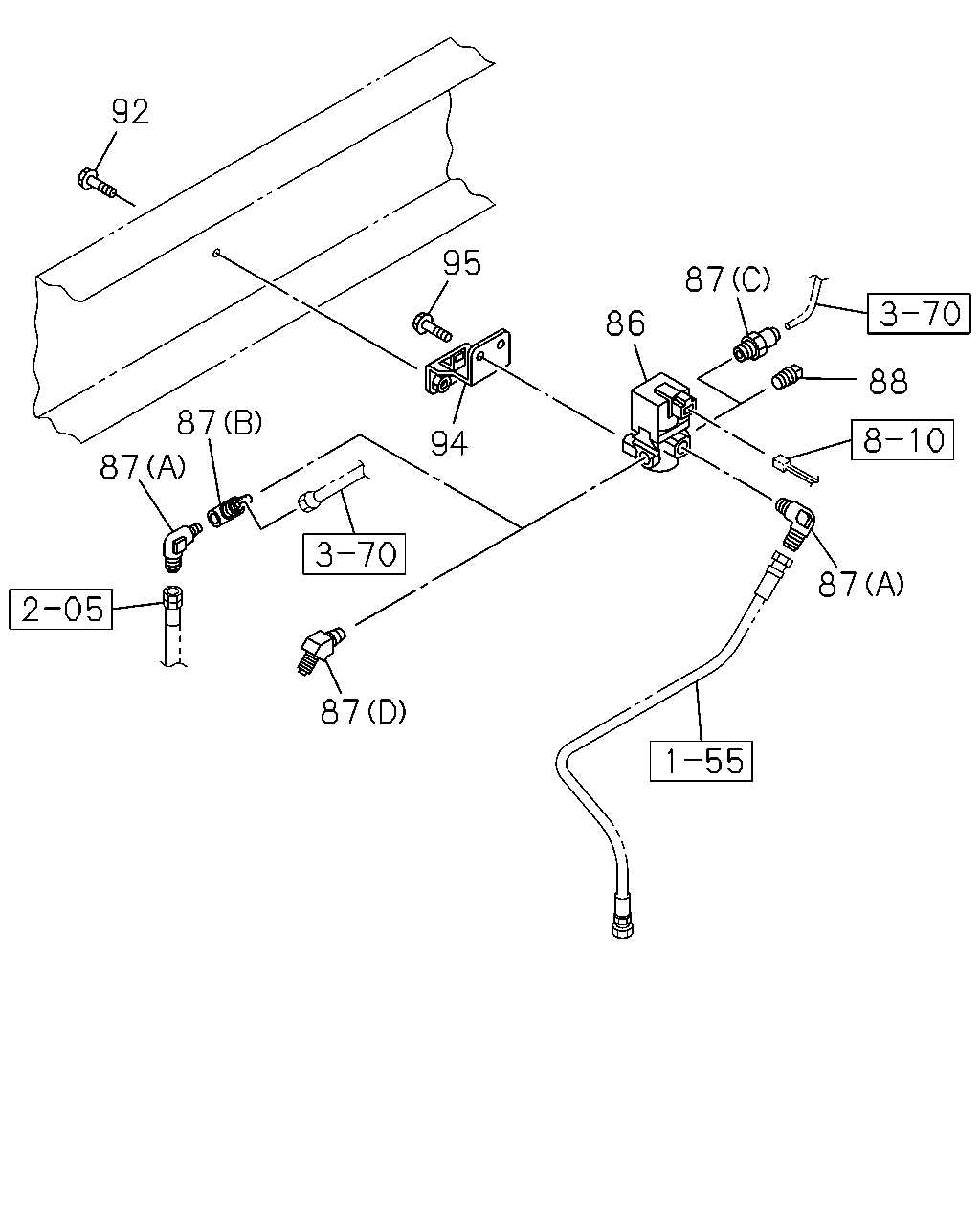

çizim 16250
92 95 87 86 88 87 94 87 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1109-
87 CONNECTOR
EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1206-
87 CONNECTOR
PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1206-
87 CONNECTOR
BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1206-
87 CONNECTOR
RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1206-
87 CONNECTOR
RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1206-1503
87 CONNECTOR
RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1109-1205
87 CONNECTOR
BRAKE REGULATION ADR(TDU) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1206-
87 CONNECTOR
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1205
87 CONNECTOR
EXC. BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
87 CONNECTOR
PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
87 CONNECTOR
BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
88 PLUG
PT1/4 		9-99204-513-0 01 1 1109-1205
88 PLUG
EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1206-
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1109-
94 BRACKET; MAG VLV,EXH BRAKE 8-98078-098-0 01 1 1109-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
