0-31A — THERMOSTAT AND HOUSING (#4685) — 84 parça

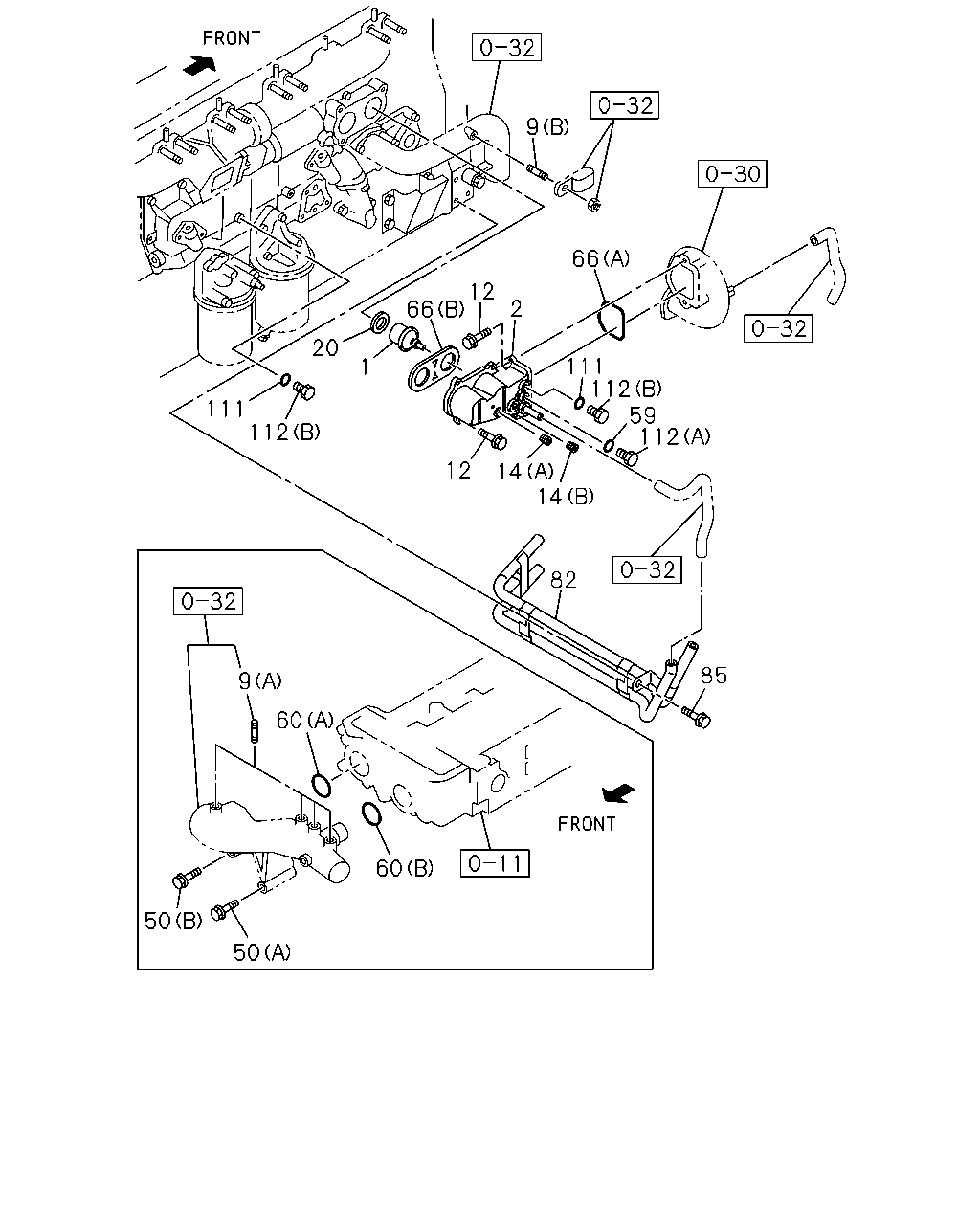

çizim 45071
9 66 12 66 2 20 111 112 59 112 1 111 112 12 14 14 82 85 9 60 60 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 9603-9706 ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 9707-9804 ● ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 9805-9904 ● ● ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-2 02 1 9905- ● ● ● ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-530-0 01 1 9603-9706 ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-530-0 01 1 9707-9804 ● ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-530-0 01 1 9805-9904 ● ● ●
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-531-0 01 1 9603-9804 ●
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-531-0 01 1 9805-9904 ● ●
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-531-0 01 1 9905- ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-530-0 01 1 9905- ● ● ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9603-9706 ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9707-9804 ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9805-9904 ● ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9604-9706 ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9707-9804 ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9805-9904 ● ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9905- ● ● ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9905- ● ● ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9603-9706 ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9707-9804 ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9805-9904 ● ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9905- ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9603-9706 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9707-9804 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9805-9904 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9905- ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 9905- ● ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 9603-9706 ●
20 RING; SEAL 1-13779-011-0 02 1 9707-9804 ● ●
20 RING; SEAL 1-13779-011-0 02 1 9805-9904 ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 9905- ● ● ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9603-9706 ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9707-9804 ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9805-9904 ● ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 9603-9804 ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 9805-9904 ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9707-9904 ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9905- ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9905- ● ● ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 9905- ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9603-9706 ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9707-9804 ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9805-9904 ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9905- ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9603-9706 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9707-9804 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9805-9904 ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9603-9706 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9707-9804 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9805-9904 ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9905- ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9905- ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9603-9706 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9707-9804 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9805-9904 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9603-9706 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9707-9804 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9805-9904 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9905- ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9905- ● ● ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13721-547-1 01 1 9603-9603 ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13721-669-1 01 1 9604-9804 ●
82 PIPE; WATER,HTR 1-13721-669-1 01 1 9805-9904 ● ● ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 9707-9904 ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 9905- ●
82 PIPE; WATER,HTR 1-13721-669-1 01 1 9905- ● ● ●
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28181-420-0 01 1 9603-9606 ●
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28981-420-0 01 1 9607-9706 ●
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28981-420-0 01 1 9707-9804 ● ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 9805-9904 ● ● ● ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 9905- ● ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9603-9706 ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9707-9804 ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9805-9904 ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9905- ● ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9603-9706 ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9707-9804 ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9805-9904 ● ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9603-9706 ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9707-9804 ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9805-9904 ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9905- ● ● ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9905- ● ● ● ●
