0-30B — WATER PUMP AND CORROSION RESISTOR (#4684) — 180 parça

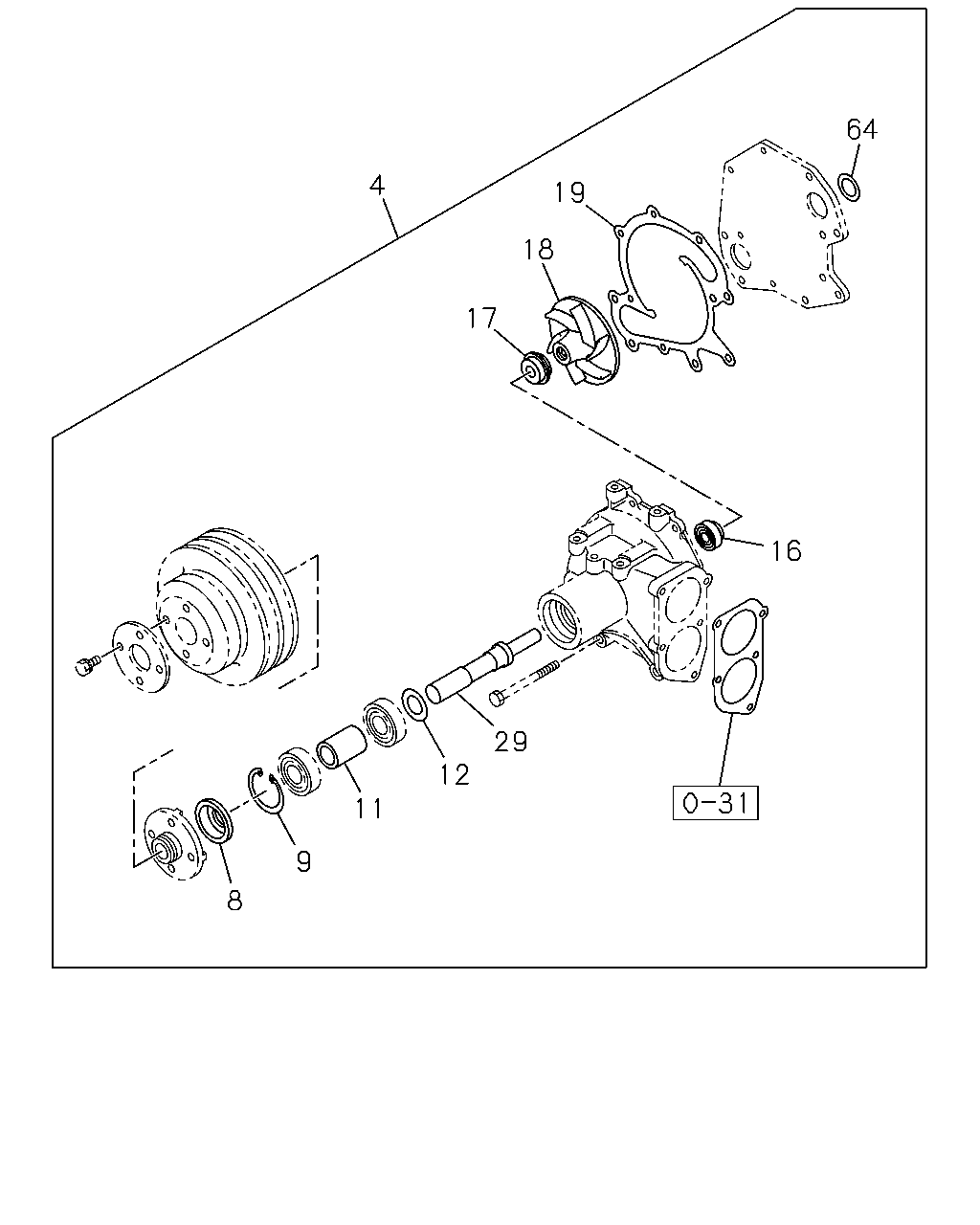

64 4 19 18 17 16 29 12 11 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	REPAIR KIT; WATER PUMP	1-87810-979-0	01	1	9603-9904	●
4	REPAIR KIT; WATER PUMP	1-87812-095-0	01	1	9905-9909	●	●	●
4	REPAIR KIT; WATER PUMP	1-87812-096-0	01	1	9910-0008	●	●	●
4	REPAIR KIT; WATER PUMP	1-87812-008-3	01	1	0009-	●	●	●
8	THROWER; DUST,WATER PUMP	1-13639-021-0	01	1	9603-9811	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9812-9904	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9905-	●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9603-9904	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9905-	●	●	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9603-9904	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9905-	●	●	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9603-9904	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9905-	●	●	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9603-9904	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9905-	●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9901-9904	●
17	SEAL UNIT; WATER PUMP	1-13620-016-0	01	1	9603-9812	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9905-	●	●	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9603-9904	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9905-	●	●	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9603-9904	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9905-	●	●	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9603-9904	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9905-	●	●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9603-9904	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9905-	●	●	●

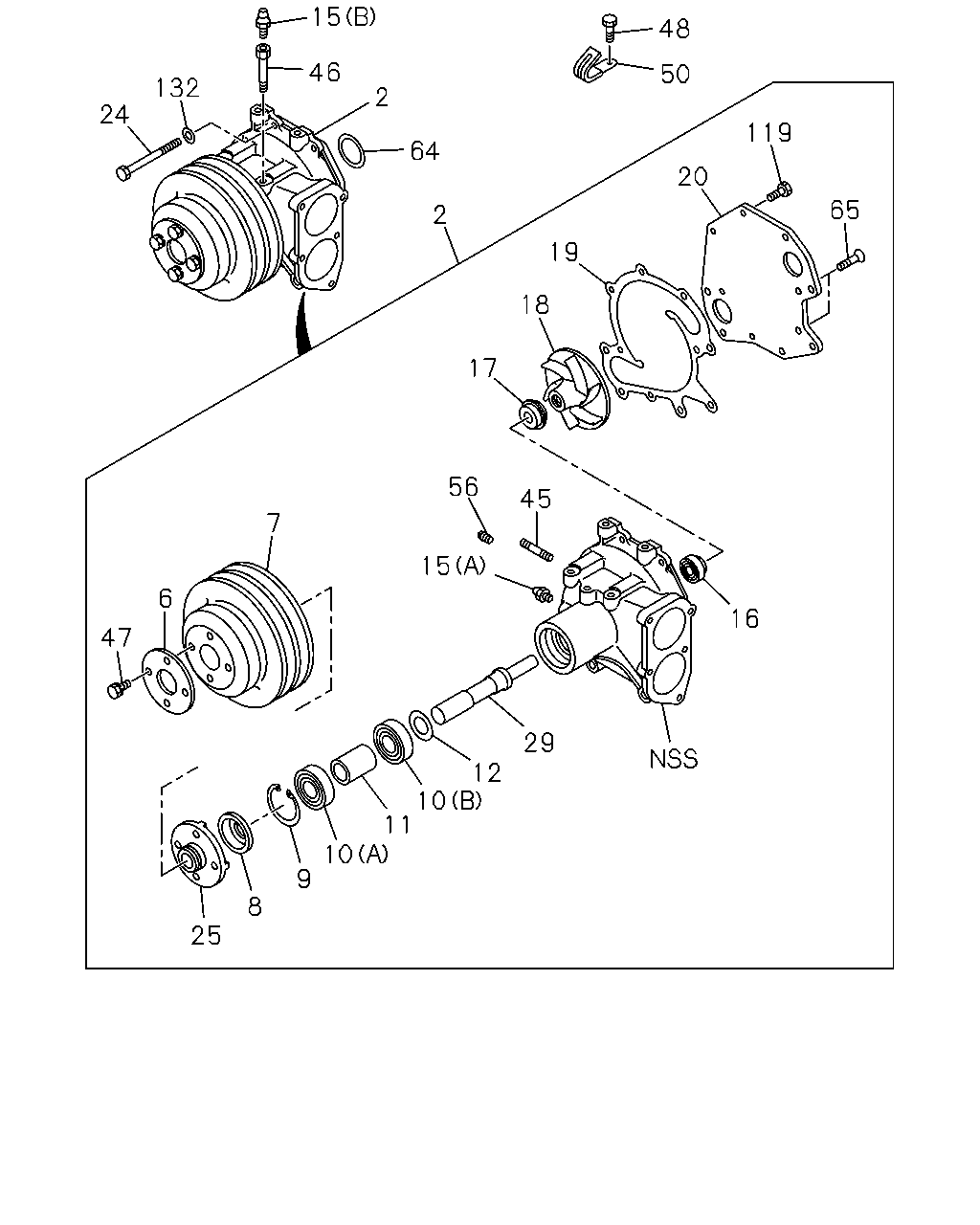

15 48 46 50 132 2 24 119 64 20 65 2 19 18 17 56 45 7 15 6 16 47 29 12 10 11 10 9 8 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	PUMP ASM; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13610-789-3	01	1	9603-9703	●
2	PUMP ASM; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13610-774-1	01	1	9603-9703	●
6	WASHER; PL,PULLEY	1-13639-024-0	01	1	9603-9904	●
6	WASHER; PL,PULLEY	1-13639-024-0	01	1	9905-	●	●	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-104-0	01	1	9603-9904	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-104-0	01	1	9905-	●	●	●
8	THROWER; DUST,WATER PUMP	1-13639-021-0	01	1	9603-9811	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9812-9904	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9905-	●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9603-9904	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9905-	●	●	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9603-9603	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9603-9603	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9604-9606	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9604-9606	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9607-9611	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9612-9904	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9607-9904	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9905-	●	●	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9905-0008	●	●	●
10	BEARING; WATER PUMP (B)	1-09800-299-0	01	1	0009-	●	●	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9603-9904	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9905-	●	●	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9603-9904	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9905-	●	●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9603-9904	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9905-	●	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9603-9904	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-	●	●	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9603-9904	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9905-	●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9901-9904	●
17	SEAL UNIT; WATER PUMP	1-13620-016-0	01	1	9603-9812	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9905-	●	●	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9603-9904	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9905-	●	●	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9603-9904	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9905-	●	●	●
20	COVER; WATER PUMP	1-13612-027-1	01	1	9603-9904	●
20	COVER; WATER PUMP	1-13612-027-1	01	1	9905-	●	●	●
24	BOLT; WATER PUMP M10X110	1-09020-004-0	03	1	9603-9705	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9603-9707	●
24	BOLT; WATER PUMP M10X110	1-09020-004-0	03	1	9706-9809	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9708-9903	●
24	BOLT; WATER PUMP M10X110	1-09020-004-1	03	1	9810-9904	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9904-9904	●
24	BOLT; WATER PUMP M10X110	1-09020-004-1	03	1	9905-	●	●	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9905-	●	●	●
25	CENTER; WATER PUMP	1-13669-092-0	01	1	9603-9808	●
25	CENTER; WATER PUMP	1-13669-173-0	01	1	9809-9904	●
25	CENTER; WATER PUMP	1-13669-173-0	01	1	9905-	●	●	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9603-9904	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9905-	●	●	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9603-9706	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9707-9804	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9805-9904	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9905-	●	●	●
46	CONNECTOR; GREASE PIPE	1-09660-102-0	01	1	9603-9904	●
46	CONNECTOR; GREASE PIPE	1-09660-102-0	01	1	9905-	●	●	●
47	BOLT; PULLEY TO CENTER M10X22 W/LK WASHER	0-50051-022-0	04	1	9603-9904	●
47	BOLT; PULLEY TO CENTER M10X22 W/LK WASHER	0-50051-022-0	04	1	9905-	●	●	●
48	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9603-9904	●
48	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●	●
50	CLIP; ENG HARNESS L=36	8-94224-891-1	01	1	9603-9904	●
50	CLIP; ENG HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
56	PLUG; TAPER SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9603-9904	●
56	PLUG; TAPER SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9905-	●	●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9603-9904	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9905-	●	●	●
65	SCREW; COVER,WATER PUMP M8X16 CK-HEAD	9-03090-816-0	02	1	9603-9904	●
65	SCREW; COVER,WATER PUMP M8X16 CK-HEAD	9-03090-816-0	02	1	9905-	●	●	●
119	BOLT; PUMP COVER M8X18 W/LK WASHER	0-50040-818-0	04	1	9603-9904	●
119	BOLT; PUMP COVER M8X18 W/LK WASHER	0-50040-818-0	04	1	9905-	●	●	●
132	WASHER; PL,WATER PUMP ID=10.5	9-09851-866-0	04	1	9603-9904	●
132	WASHER; PL,WATER PUMP ID=10.5	9-09851-866-0	04	1	9905-	●	●	●

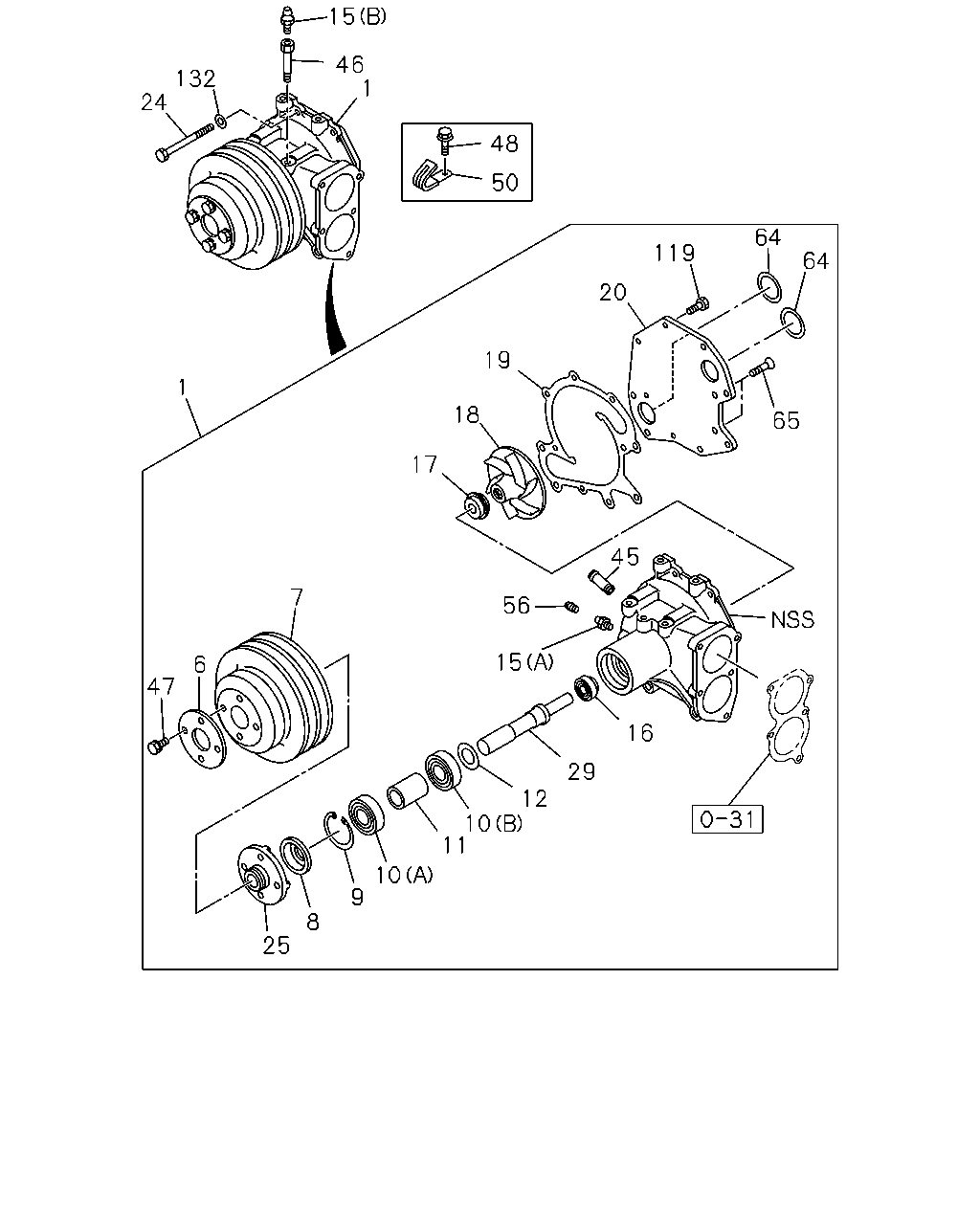

15 46 1 132 24 48 50 64 119 64 20 19 1 18 65 17 45 7 56 15 6 47 16 29 12 10 11 10 9 8 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-038-1	01	1	9704-9904	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-037-1	01	1	9704-9904	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-038-1	01	1	9905-0008	●	●	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-140-0	01	1	0009-	●	●	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-037-1	01	1	9905-0008	●	●	●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13650-141-0	01	1	0009-	●	●	●
6	WASHER; PL,PULLEY	1-13639-024-0	01	1	9603-9904	●
6	WASHER; PL,PULLEY	1-13639-024-0	01	1	9905-	●	●	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-104-0	01	1	9603-9904	●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-104-0	01	1	9905-	●	●	●
8	THROWER; DUST,WATER PUMP	1-13639-021-0	01	1	9603-9811	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9812-9904	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9905-	●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9603-9904	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9905-	●	●	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9603-9603	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9603-9603	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9604-9606	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9604-9606	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9607-9611	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9612-9904	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9607-9904	●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9905-	●	●	●
10	BEARING; WATER PUMP (B)	1-09800-012-0	01	1	9905-0008	●	●	●
10	BEARING; WATER PUMP (B)	1-09800-299-0	01	1	0009-	●	●	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9603-9904	●
11	SPACER; BRG,WATER PUMP	1-13634-009-0	01	1	9905-	●	●	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9603-9904	●
12	WASHER; BALL BRG	1-09503-024-0	01	1	9905-	●	●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9603-9904	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9905-	●	●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9603-9904	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-	●	●	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9603-9904	●
16	SEAL; OIL,WATER PUMP	1-09625-437-0	01	1	9905-	●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9901-9904	●
17	SEAL UNIT; WATER PUMP	1-13620-016-0	01	1	9603-9812	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	9905-	●	●	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9603-9904	●
18	IMPELLER; WATER PUMP	1-13621-022-0	01	1	9905-	●	●	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9603-9904	●
19	GASKET; COVER TO BODY	1-13613-048-0	01	1	9905-	●	●	●
20	COVER; WATER PUMP	1-13612-027-1	01	1	9603-9904	●
20	COVER; WATER PUMP	1-13612-027-1	01	1	9905-	●	●	●
24	BOLT; WATER PUMP M10X110	1-09020-004-0	03	1	9603-9705	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9603-9707	●
24	BOLT; WATER PUMP M10X110	1-09020-004-0	03	1	9706-9809	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9708-9903	●
24	BOLT; WATER PUMP M10X110	1-09020-004-1	03	1	9810-9904	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9904-9904	●
24	BOLT; WATER PUMP M10X110	1-09020-004-1	03	1	9905-	●	●	●
24	BOLT; WATER PUMP M10X170	1-09020-013-0	01	1	9905-	●	●	●
25	CENTER; WATER PUMP	1-13669-092-0	01	1	9603-9808	●
25	CENTER; WATER PUMP	1-13669-173-0	01	1	9809-9904	●
25	CENTER; WATER PUMP	1-13669-173-0	01	1	9905-	●	●	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9603-9904	●
29	SHAFT; WATER PUMP	1-13631-060-1	01	1	9905-	●	●	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9603-9706	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9707-9804	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9805-9904	●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9905-	●	●	●
46	CONNECTOR; GREASE PIPE	1-09660-102-0	01	1	9603-9904	●
46	CONNECTOR; GREASE PIPE	1-09660-102-0	01	1	9905-	●	●	●
47	BOLT; PULLEY TO CENTER M10X22 W/LK WASHER	0-50051-022-0	04	1	9603-9904	●
47	BOLT; PULLEY TO CENTER M10X22 W/LK WASHER	0-50051-022-0	04	1	9905-	●	●	●
48	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9603-9904	●
48	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●	●
50	CLIP; ENG HARNESS L=36	8-94224-891-1	01	1	9603-9904	●
50	CLIP; ENG HARNESS L=36	8-94224-891-1	01	1	9905-	●	●	●
56	PLUG; TAPER SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9603-9904	●
56	PLUG; TAPER SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9905-	●	●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9603-9904	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9905-	●	●	●
65	SCREW; COVER,WATER PUMP M8X16 CK-HEAD	9-03090-816-0	02	1	9603-9904	●
65	SCREW; COVER,WATER PUMP M8X16 CK-HEAD	9-03090-816-0	02	1	9905-	●	●	●
119	BOLT; PUMP COVER M8X18 W/LK WASHER	0-50040-818-0	04	1	9603-9904	●
119	BOLT; PUMP COVER M8X18 W/LK WASHER	0-50040-818-0	04	1	9905-	●	●	●
132	WASHER; PL,WATER PUMP ID=10.5	9-09851-866-0	04	1	9603-9904	●
132	WASHER; PL,WATER PUMP ID=10.5	9-09851-866-0	04	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
