Isuzu WW
▶
TRUCKS
▶
FVM
▶
11423 - FVM(AUST)EURO4
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#46835) — 101 parça
Tümü
A - FGM5MV
B - FGL5MV
◀
[301A] LEAF SUS NO.2 (16 parça)
[301A] LEAF SUS NO.1 (46 parça)
[301A] AIR SUS (39 parça)
▶
304
278
294
306
23
282
275
29
121
271
264
279
282
271
23
279
305
271
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
SPRING; COIL
1-47629-196-0
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-47119-114-0
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47119-119-0
02
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(C)
1-09583-365-1
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(D)
1-47649-041-0
02
1
0710-
●
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
0710-
●
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
0710-
●
271
CLIP; ADJ
1-47621-017-0
04
1
0710-
●
275
RING; RETAINER
1-47649-031-0
02
1
0710-
●
278
RETAINER; SPRING
1-47649-020-0
02
1
0710-
●
279
CAGE; SPRING
1-47629-192-0
04
1
0710-
●
282
RING; DRIVE
1-47629-200-0
04
1
0710-
●
294
BOOT; WEDGE
1-47649-042-0
02
1
0710-
●
304
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
0710-
●
305
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
0710-
●
306
CAP; EXPANDER
1-47649-044-0
02
1
0710-
●

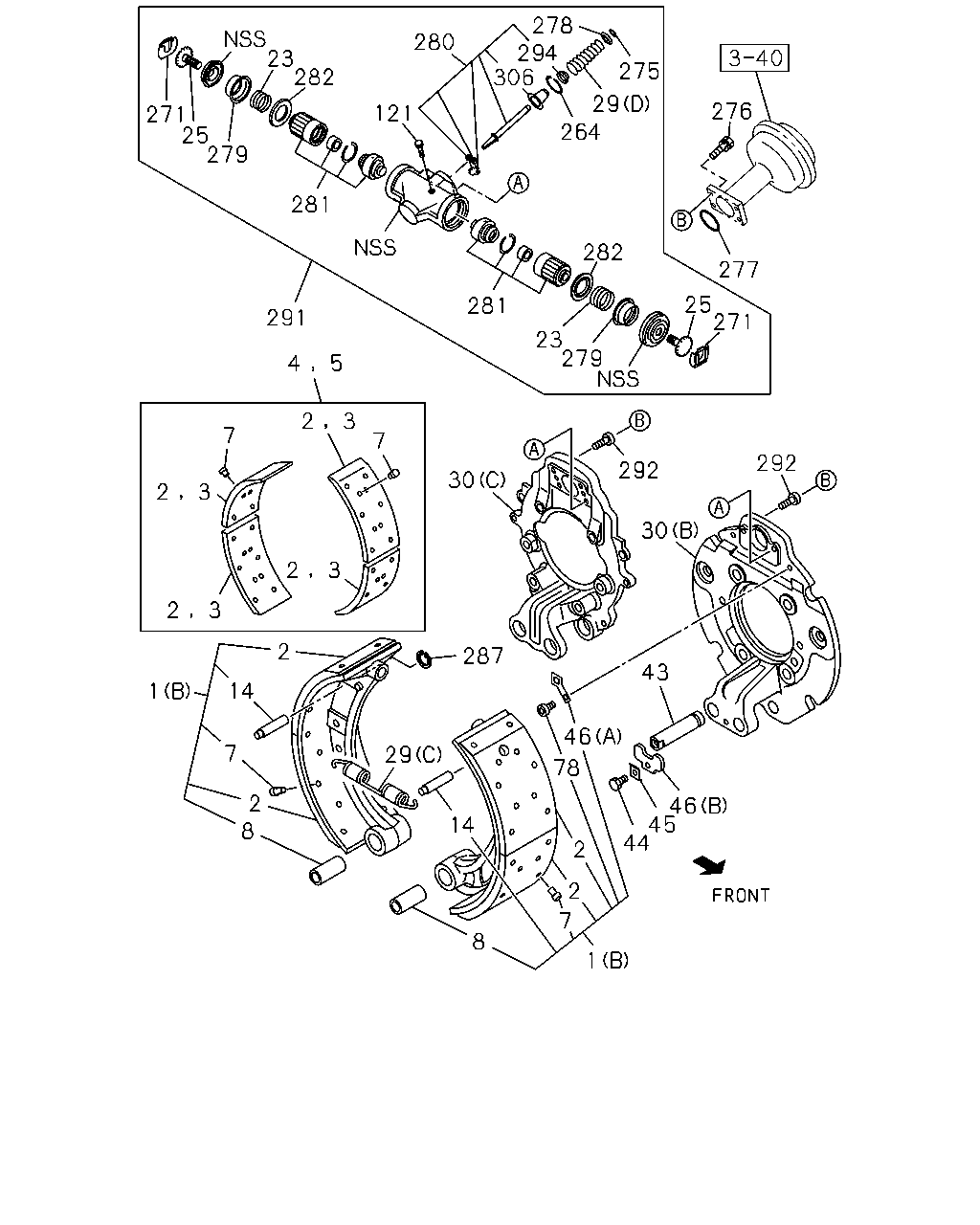

278
294
306
23
282
280
275
29
276
121
271
25
279
264
281
282
277
25
271
281
291
23
279
5
4
2
3
7
7
292
292
30
2
3
30
2
3
2
3
2
287
43
1
14
46
7
29
78
2
8
46
45
44
14
2
2
7
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
(A)
1-47120-832-0
04
1
0710-
●
1
SHOE; BRK,FRT
(B) LEADING
1-47170-316-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) TRAILING
1-47170-317-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) LEADING
1-47170-318-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) TRAILING
1-47170-319-0
01
1
0710-
●
2
LINING; FRT BRK SHOE,STANDARD
1-47126-698-0
08
1
0710-
●
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-699-0
08
1
0710-
●
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
0710-
●
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
0710-
●
7
RIVET; LINING,FRT BRK
L=15.5
1-09732-053-0
80
1
0710-
●
8
BUSHING; BRK SHOE
1-47112-020-0
04
1
0710-
●
14
PIN; SHOE RETURN SPR
1-47119-177-1
04
1
0710-
●
23
SPRING; COIL
1-47629-196-0
04
1
0710-
●
25
SCREW; ADJ,FRT WHEEL CYL
1-47623-035-2
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-47119-114-0
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47119-119-0
02
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(C)
1-09583-365-1
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(D)
1-47649-041-0
02
1
0710-
●
30
BRACKET; ANCHOR,FRT
(A)
1-47137-450-0
01
1
0710-
●
30
BRACKET; ANCHOR,FRT
(A)
1-47137-451-0
01
1
0710-
●
30
BRACKET; ANCHOR,FRT
(B)
1-47137-512-0
02
1
0710-1005
●
30
BRACKET; ANCHOR,FRT
(C)
8-98091-252-0
02
1
1006-
●
43
PIN; ANCHOR
1-47131-040-0
04
1
0710-
●
43
PIN; ANCHOR
L=115.5
1-47131-044-0
04
1
0710-
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
0710-0910
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
1-47139-173-0
02
1
0911-
●
45
WASHER; LK
1-47133-011-0
02
1
0710-
●
46
PLATE; LOCK
(A)
1-47119-152-0
04
1
0710-
●
46
PLATE; LOCK
(B)
1-47133-010-0
02
1
0710-
●
78
BOLT; LK,PLATE
1-47119-153-0
04
1
0710-
●
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
0710-
●
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
0710-
●
271
CLIP; ADJ
1-47621-017-0
04
1
0710-
●
275
RING; RETAINER
1-47649-031-0
02
1
0710-
●
276
BOLT; CHAMBER
M10X42.5
1-47139-163-0
08
1
0710-
●
277
RING; CHAMBER
1-48259-231-0
02
1
0710-
●
278
RETAINER; SPRING
1-47649-020-0
02
1
0710-
●
279
CAGE; SPRING
1-47629-192-0
04
1
0710-
●
280
WEDGE; FRT WHEEL CYL
1-47640-012-0
02
1
0710-
●
281
SLEEVE
1-47629-247-1
04
1
0710-
●
282
RING; DRIVE
1-47629-200-0
04
1
0710-
●
287
RING; SNAP
ID=10
0-91805-510-0
08
1
0710-
●
291
EXPANDER
1-47601-087-0
02
1
0710-
●
292
BOLT; EXPANDER
1-47634-008-0
04
1
0710-
●
294
BOOT; WEDGE
1-47649-042-0
02
1
0710-
●
306
CAP; EXPANDER
1-47649-044-0
02
1
0710-
●

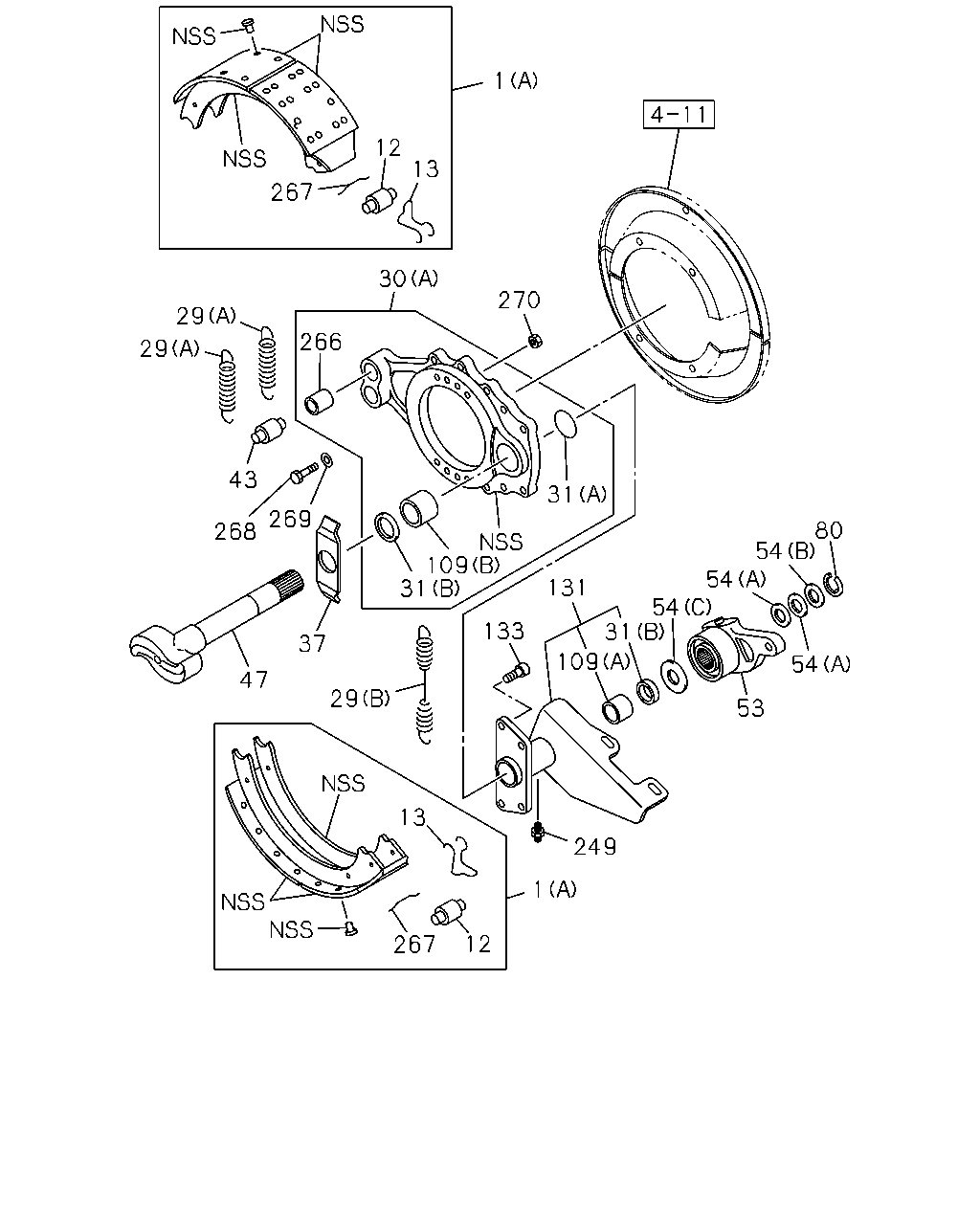

54
53
80
54
54
54
31
109
131
133
249
1
12
267
13
29
37
47
31
109
31
270
30
266
29
29
43
269
268
13
12
267
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
(A)
1-47120-832-0
04
1
0710-
●
1
SHOE; BRK,FRT
(B) LEADING
1-47170-316-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) TRAILING
1-47170-317-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) LEADING
1-47170-318-0
01
1
0710-
●
1
SHOE; BRK,FRT
(B) TRAILING
1-47170-319-0
01
1
0710-
●
12
ROLLER; CAM,BRK SHOE
1-47119-141-0
02
1
0710-
●
13
CLIP; ROLLER PIN,BRK SHOE
1-47119-118-0
02
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-47119-114-0
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47119-119-0
02
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(C)
1-09583-365-1
04
1
0710-
●
29
SPRING; RETURN,FRT BRK SHOE
(D)
1-47649-041-0
02
1
0710-
●
30
BRACKET; ANCHOR,FRT
(A)
1-47137-450-0
01
1
0710-
●
30
BRACKET; ANCHOR,FRT
(A)
1-47137-451-0
01
1
0710-
●
30
BRACKET; ANCHOR,FRT
(B)
1-47137-512-0
02
1
0710-1005
●
30
BRACKET; ANCHOR,FRT
(C)
8-98091-252-0
02
1
1006-
●
31
SEAL; OIL,CM/SHF
(A)
1-47149-056-0
02
1
0710-
●
31
SEAL; OIL,CM/SHF
(B)
1-47149-057-0
02
1
0710-
●
37
WASHER; ADJ CAM
1-47149-087-0
02
1
0710-
●
43
PIN; ANCHOR
1-47131-040-0
04
1
0710-
●
43
PIN; ANCHOR
L=115.5
1-47131-044-0
04
1
0710-
●
47
CAMSHAFT; FRT BRK
1-47141-126-0
01
1
0710-
●
47
CAMSHAFT; FRT BRK
1-47141-127-0
01
1
0710-
●
53
ADJUSTER ASM; SLACK
1-48270-107-0
02
1
0710-
●
54
SPACER; CM/SHF
(A) T=0.06"
1-47139-121-0
02
1
0710-
●
54
SPACER; CM/SHF
(B)
1-47149-059-0
02
1
0710-
●
54
SPACER; CM/SHF
(A) T=0.03"
1-47149-060-0
02
1
0710-
●
54
SPACER; CM/SHF
(C)
1-47149-065-0
02
1
0710-
●
80
RING; SNAP,CM/SHF
1-87050-005-0
02
1
0710-
●
109
BUSHING; CM/SHF,FRT BRK
(A)
1-47146-012-0
02
1
0710-
●
109
BUSHING; CM/SHF,FRT BRK
(B)
1-47146-017-0
02
1
0710-
●
131
BRACKET; POWER CHAMBER
1-48258-194-0
01
1
0710-
●
131
BRACKET; POWER CHAMBER
1-48258-195-0
01
1
0710-
●
133
BOLT; BRKT
1-47139-116-0
08
1
0710-
●
249
NIPPLE; GREASE,CHAMBER BRKT
1-48259-253-0
02
1
0710-
●
266
BUSHING; BRKT
1-47139-117-0
04
1
0710-
●
267
PIN; RETURN SPRING,FRT BRK SHOE
1-47119-116-0
02
1
0710-
●
268
BOLT; ANCHOR BRKT
1-47139-122-0
12
1
0710-
●
269
WASHER; ANCHOR BRKT
1-41519-102-0
28
1
0710-
●
270
NUT; ANCHOR BRKT
1-41229-169-0
14
1
0710-
●
