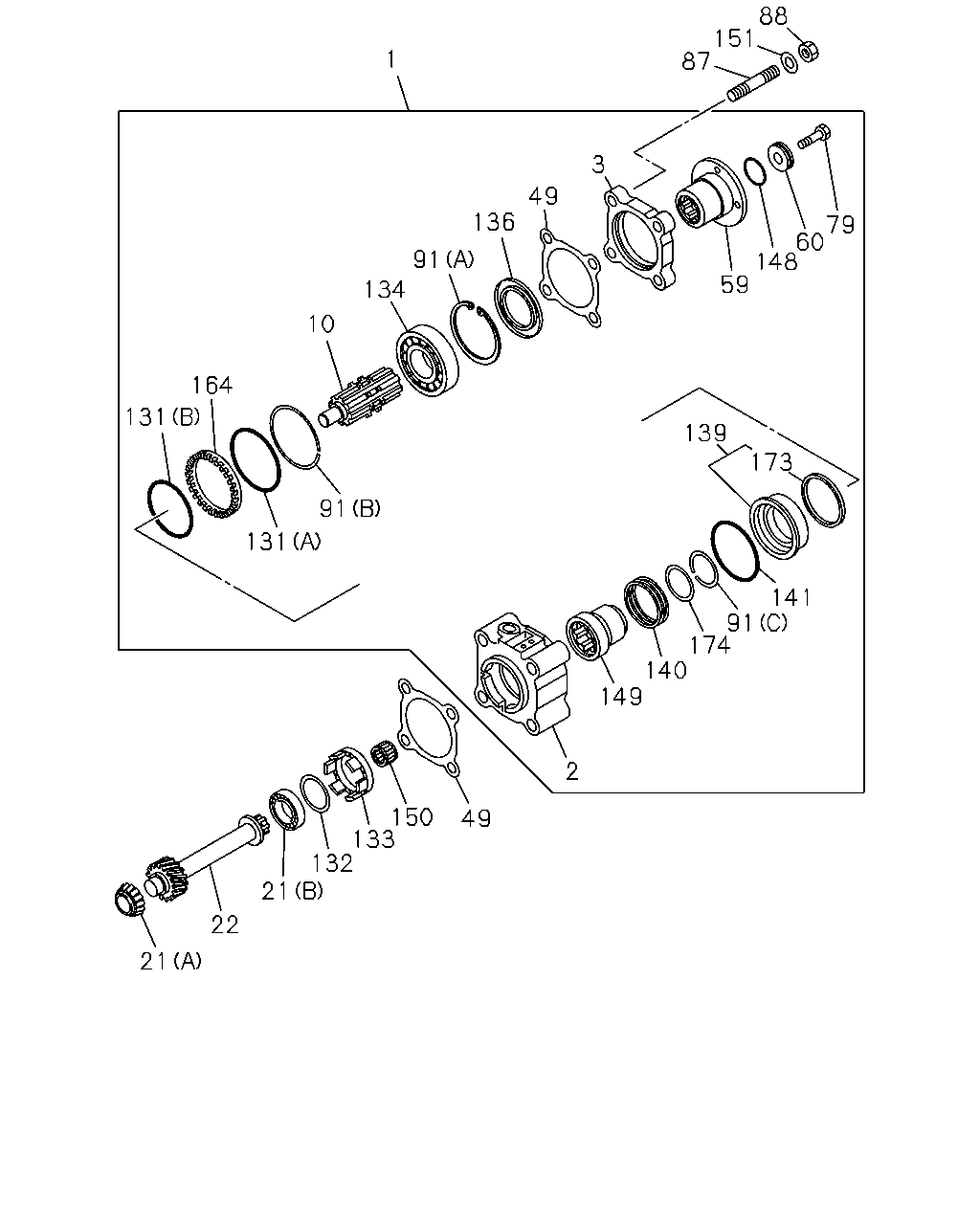

1 |
POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR(BDM)
|
1-38000-398-0 |
01 |
1 |
0710- |
| |
2 |
CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-38111-116-0 |
01 |
1 |
0710-1305 |
| |
2 |
CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-38111-120-0 |
01 |
1 |
1306- |
| |
3 |
COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-38159-008-0 |
01 |
1 |
0710-1305 |
| |
3 |
COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-38159-009-0 |
01 |
1 |
1306- |
| |
10 |
SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-38221-064-0 |
01 |
1 |
0710- |
| |
21 |
BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM)
(A)
|
1-33389-054-0 |
01 |
1 |
0710-1305 |
| |
21 |
BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM)
(A)
|
1-33389-090-0 |
01 |
1 |
1306- |
| |
21 |
BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM)
(B)
|
1-33389-068-0 |
01 |
1 |
0710- |
| |
22 |
SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR(BDM)
|
1-33381-015-0 |
01 |
1 |
0710- |
| |
49 |
GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR(BDM)
|
1-33132-084-0 |
02 |
1 |
0710- |
| |
59 |
YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM)
|
1-38229-020-0 |
01 |
1 |
0710- |
| |
60 |
WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM)
|
1-38519-021-0 |
01 |
1 |
0710- |
| |
79 |
BOLT
PTO ZF TRANS RR(BDM)
|
1-37249-184-0 |
01 |
1 |
0710-1305 |
| |
79 |
BOLT
PTO ZF TRANS RR(BDM)
|
1-37249-216-0 |
01 |
1 |
1306- |
| |
87 |
STUD; GEAR CASE
PTO ZF TRANS RR(BDM)
|
1-38119-093-0 |
04 |
1 |
0710-1305 |
| |
87 |
STUD; GEAR CASE
PTO ZF TRANS RR(BDM)
M12X80
|
1-38119-103-0 |
04 |
1 |
1306- |
| |
88 |
NUT; COVER
PTO ZF TRANS RR(BDM)
|
1-38119-027-0 |
04 |
1 |
0710-1305 |
| |
88 |
NUT; COVER
PTO ZF TRANS RR(BDM)
|
1-38119-104-0 |
04 |
1 |
1306- |
| |
91 |
RING; SNAP
PTO ZF TRANS RR(BDM)
(A)
|
1-38219-017-0 |
01 |
1 |
0710-1305 |
| |
91 |
RING; SNAP
PTO ZF TRANS RR(BDM)
(C)
|
1-38219-037-0 |
01 |
1 |
0710- |
| |
91 |
RING; SNAP
PTO ZF TRANS RR(BDM)
(B)
|
1-38219-038-0 |
01 |
1 |
0710- |
| |
131 |
GASKET; OUTPUT SHAFT
PTO ZF TRANS RR(BDM)
(A)
|
1-38129-035-0 |
01 |
1 |
0710- |
| |
131 |
GASKET; OUTPUT SHAFT
PTO ZF TRANS RR(BDM)
(B)
|
1-38129-036-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.60
|
1-33389-047-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.80
|
8-98080-566-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.55
|
1-33389-048-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.50
|
1-33389-049-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.50
|
8-98080-571-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.45
|
1-33389-050-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.40
|
1-33389-051-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.60
|
8-98080-572-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.35
|
1-33389-052-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.30
|
1-33389-053-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.25
|
1-33389-055-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.95
|
8-98080-567-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.20
|
1-33389-056-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.15
|
1-33389-057-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.10
|
1-33389-058-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.10
|
8-98080-568-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.05
|
1-33389-059-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.00
|
1-33389-060-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.95
|
1-33389-061-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.25
|
8-98080-569-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.90
|
1-33389-062-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.85
|
1-33389-063-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.80
|
1-33389-064-0 |
01 |
1 |
0710-1305 |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=1.40
|
8-98080-570-0 |
01 |
1 |
1306- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.75
|
1-33389-065-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.70
|
1-33389-066-0 |
01 |
1 |
0710- |
| |
132 |
SHIM; BRG
PTO ZF TRANS RR(BDM)
T=0.65
|
1-33389-067-0 |
01 |
1 |
0710- |
| |
133 |
BUSHING; SHAFT
PTO ZF TRANS RR(BDM)
|
1-33389-046-0 |
01 |
1 |
0710- |
| |
134 |
BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM)
|
1-38219-015-0 |
01 |
1 |
0710- |
| |
136 |
SEAL; SHAFT
PTO ZF TRANS RR(BDM)
|
1-38519-010-0 |
01 |
1 |
0710-1305 |
| |
139 |
PISTON; RR PTO
PTO ZF TRANS RR(BDM)
|
1-38129-033-0 |
01 |
1 |
0710-1305 |
| |
139 |
PISTON; RR PTO
PTO ZF TRANS RR(BDM)
|
1-38129-039-0 |
01 |
1 |
1306- |
| |
140 |
SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM)
|
1-38129-032-0 |
01 |
1 |
0710-1305 |
| |
140 |
SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM)
|
1-38129-042-0 |
01 |
1 |
1306- |
| |
141 |
GASKET; PISTON,RR PTO
PTO ZF TRANS RR(BDM)
|
1-38129-035-0 |
01 |
1 |
0710- |
| |
148 |
GASKET; YOKE
PTO ZF TRANS RR(BDM)
|
1-38519-014-0 |
01 |
1 |
0710- |
| |
149 |
SLEEVE; SLIDING
PTO ZF TRANS RR(BDM)
|
1-38229-059-0 |
01 |
1 |
0710-1305 |
| |
149 |
SLEEVE; SLIDING
PTO ZF TRANS RR(BDM)
|
1-38229-060-0 |
01 |
1 |
1306- |
| |
150 |
BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM)
|
1-38249-018-0 |
01 |
1 |
0710-1305 |
| |
150 |
BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM)
|
8-98080-565-0 |
01 |
1 |
1306- |
| |
151 |
WASHER; PL,COVER
PTO ZF TRANS RR(BDM)
|
1-38119-028-0 |
04 |
1 |
0710-1305 |
| |
151 |
WASHER; PL,COVER
PTO ZF TRANS RR(BDM)
|
8-98080-563-0 |
04 |
1 |
1306- |
| |
164 |
RING; CENTERING,PTO
PTO ZF TRANS RR(BDM)
|
1-38129-038-0 |
01 |
1 |
0710- |
| |
173 |
RING; MAGNET
PTO ZF TRANS RR(BDM)
|
1-38129-034-0 |
01 |
1 |
0710- |
| |
174 |
DISK; PRESSURE
PTO ZF TRANS RR(BDM)
|
1-38129-037-0 |
01 |
1 |
0710-1305 |
| |
174 |
DISK; PRESSURE
PTO ZF TRANS RR(BDM)
|
1-38129-040-0 |
01 |
1 |
1306- |
