Isuzu WW
▶
TRUCKS
▶
FVM
▶
11423 - FVM(AUST)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#46830) — 62 parça
Tümü
A - FGL5MV
B - FGM5MV
◀

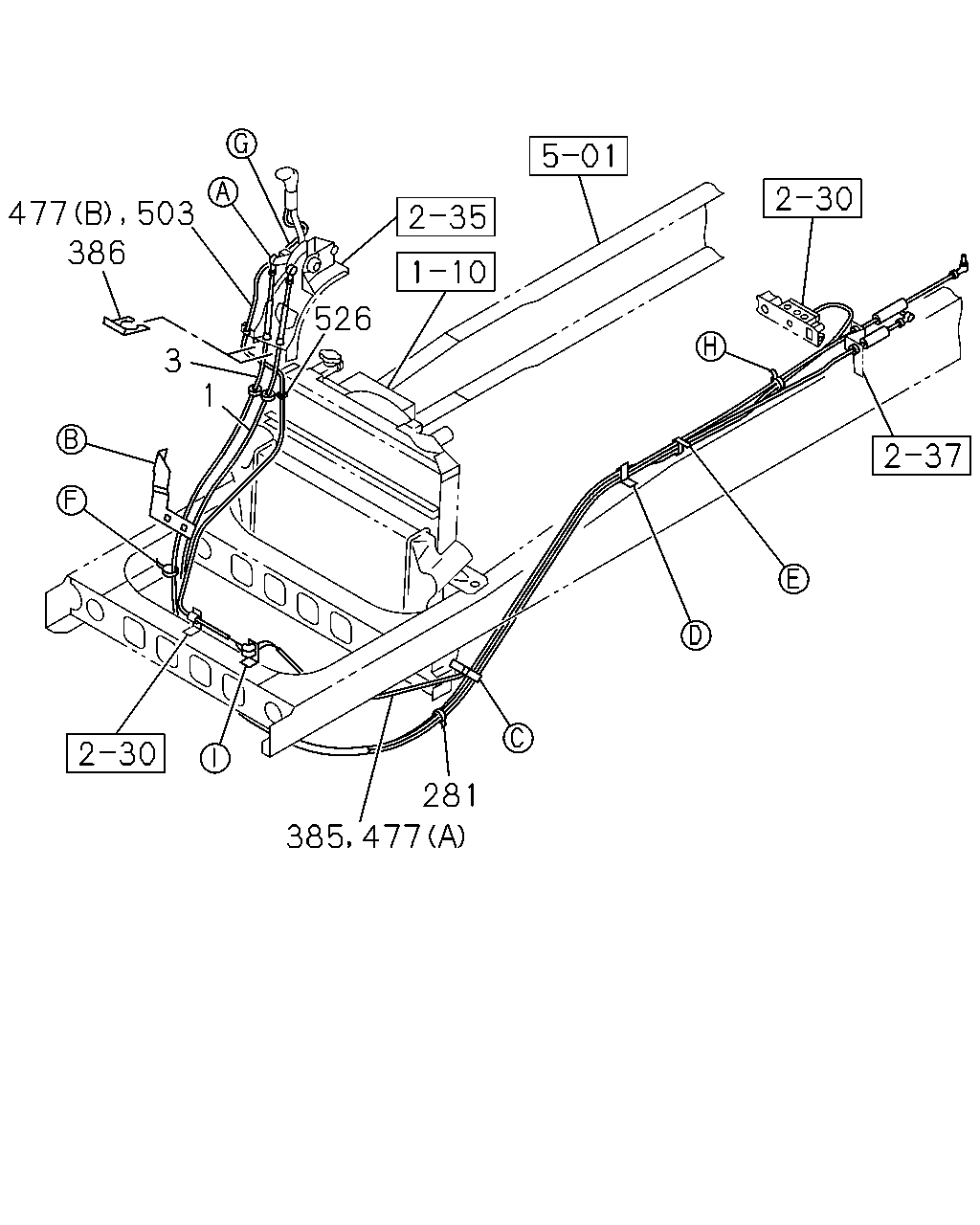

[236A] NO.2 (47 parça)

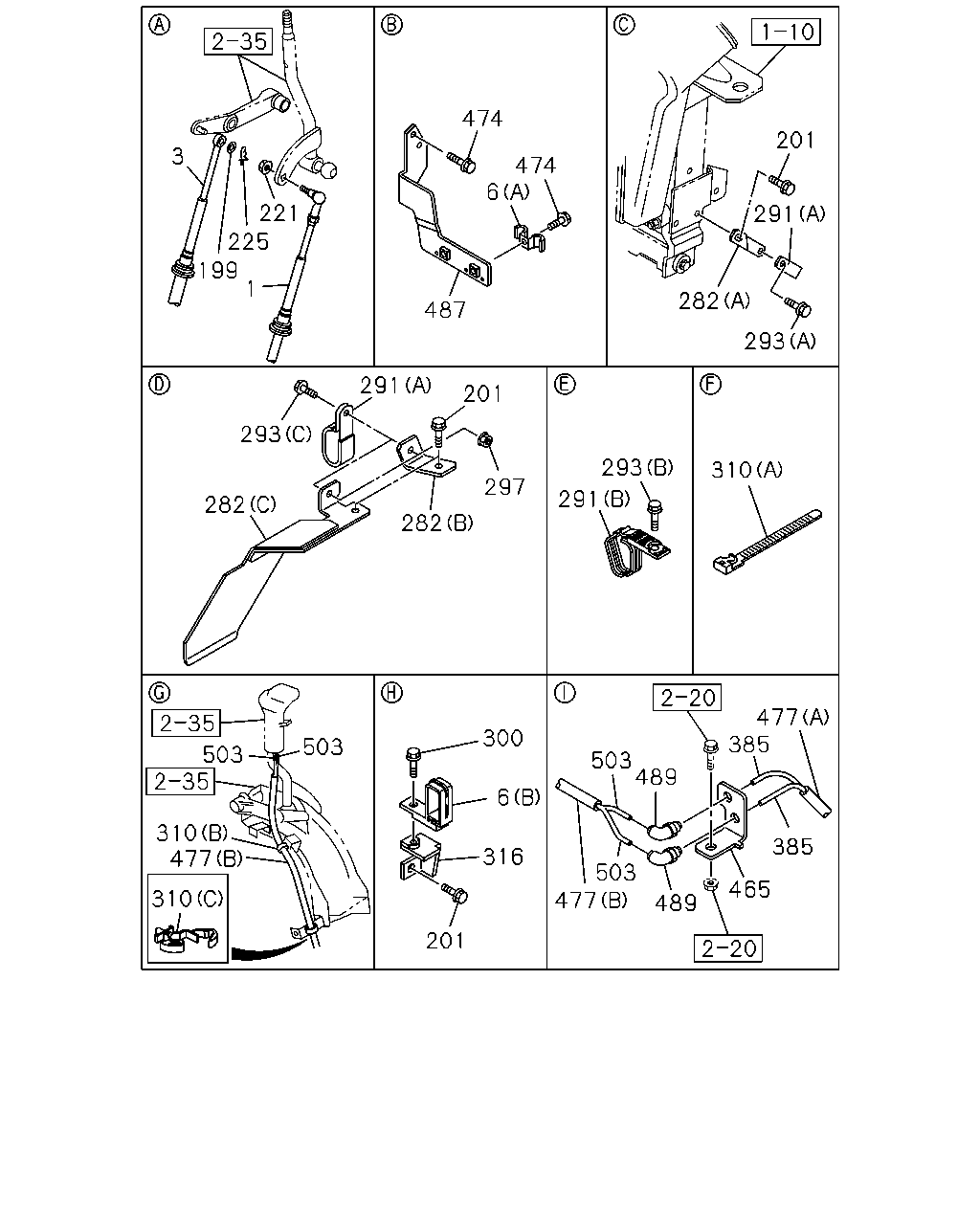

[236A] NO.1 (15 parça)
▶
474
201
3
474
6
291
221
225
199
1
282
487
293
291
201
293
293
310
297
291
282
282
477
385
300
503
503
503
489
6
310
477
385
316
465
503
477
310
489
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; SHIFT,TRANS CONT
L=3620
8-98010-459-1
01
1
0710-0710
●
●
1
CABLE; SHIFT,TRANS CONT
L=3620
8-98099-965-2
01
1
0710-
●
●
3
CABLE; SELECT,TRANS CONT
L=3700
8-98010-495-1
01
1
0710-0710
●
●
3
CABLE; SELECT,TRANS CONT
L=3700
8-98099-967-1
01
1
0710-
●
●
6
CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0710-
●
●
6
CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
0710-
●
●
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
0710-
●
●
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0710-0805
●
●
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
0806-
●
●
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
0806-
●
●
201
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
01
1
0710-
●
●
201
BOLT; BRKT
M12X30 FLANGE
0-28151-230-0
01
1
0710-0806
●
●
201
BOLT; BRKT
M12X35 FLANGE
0-28151-235-0
01
1
0807-
●
●
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0710-1011
●
●
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
●
●
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
0710-
●
●
282
BRACKET; TRANS SIDE
(B)
1-82699-199-0
01
1
0710-1103
●
●
282
BRACKET; TRANS SIDE
(C)
8-98171-762-0
01
1
1104-
●
●
282
BRACKET; TRANS SIDE
(A)
8-98010-419-0
01
1
0710-0711
●
●
282
BRACKET; TRANS SIDE
(A)
8-98098-265-2
01
1
0712-
●
●
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
02
1
0710-
●
●
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
0710-
●
●
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0710-
●
●
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28050-820-0
02
1
0710-0801
●
●
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE
0-28050-820-0
01
1
0802-
●
●
293
BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE
0-28650-820-0
01
1
0802-
●
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0710-
●
●
300
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
●
●
310
CLIP; TUBE
(A) L=100
5-09707-036-1
01
1
0710-
●
●
310
CLIP; TUBE
(B) ID=12
8-94218-436-0
01
1
0710-
●
●
310
CLIP; TUBE
(C) ID=6 & 10-13
8-97069-515-0
01
1
0710-
●
●
316
BRACKET; CLIP
8-98086-439-0
01
1
0710-
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
02
1
0710-0710
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
01
1
0710-0808
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
02
1
0809-
●
●
465
BRACKET; CONNECTOR
8-98091-848-0
01
1
0710-0710
●
●
465
BRACKET; CONNECTOR
8-98085-414-0
01
1
0710-0907
●
●
465
BRACKET; CONNECTOR
8-98141-474-0
01
1
0908-
●
●
465
BRACKET; CONNECTOR
8-98141-474-0
01
1
0908-
●
●
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
01
1
0710-
●
●
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
02
1
0710-
●
●
477
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
0710-
●
●
477
TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10
1-87411-020-0
01
1
0710-
●
●
487
BRACKET; CONT CABLE
8-98021-923-2
01
1
0710-1012
●
●
487
BRACKET; CONT CABLE
8-98180-729-0
01
1
1101-
●
●
489
CONNECTOR
8-98085-747-0
02
1
0710-
●
●
503
TUBE; NYLON
SERVICED BY L=2000 OD=4
1-87410-077-0
02
1
0710-
●
●
386
526
3
1
281
385
477
477
503
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; SHIFT,TRANS CONT
L=3620
8-98010-459-1
01
1
0710-0710
●
●
1
CABLE; SHIFT,TRANS CONT
L=3620
8-98099-965-2
01
1
0710-
●
●
3
CABLE; SELECT,TRANS CONT
L=3700
8-98010-495-1
01
1
0710-0710
●
●
3
CABLE; SELECT,TRANS CONT
L=3700
8-98099-967-1
01
1
0710-
●
●
281
CLIP; BAND
L=300
1-09707-001-1
01
1
0710-0802
●
●
281
CLIP; BAND
L=300
1-09707-001-1
01
1
0803-
●
●
281
CLIP; BAND
L=300
1-09707-001-1
01
1
0803-
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
02
1
0710-0710
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
01
1
0710-0808
●
●
385
TUBE; NYLON
SERVICED BY L=4000 OD=4
1-87410-078-0
02
1
0809-
●
●
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0710-
●
●
477
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
0710-
●
●
477
TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10
1-87411-020-0
01
1
0710-
●
●
503
TUBE; NYLON
SERVICED BY L=2000 OD=4
1-87410-077-0
02
1
0710-
●
●
526
GROMMET
5-09333-062-0
01
1
0710-
●
●
