◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#46829) — 23 parça

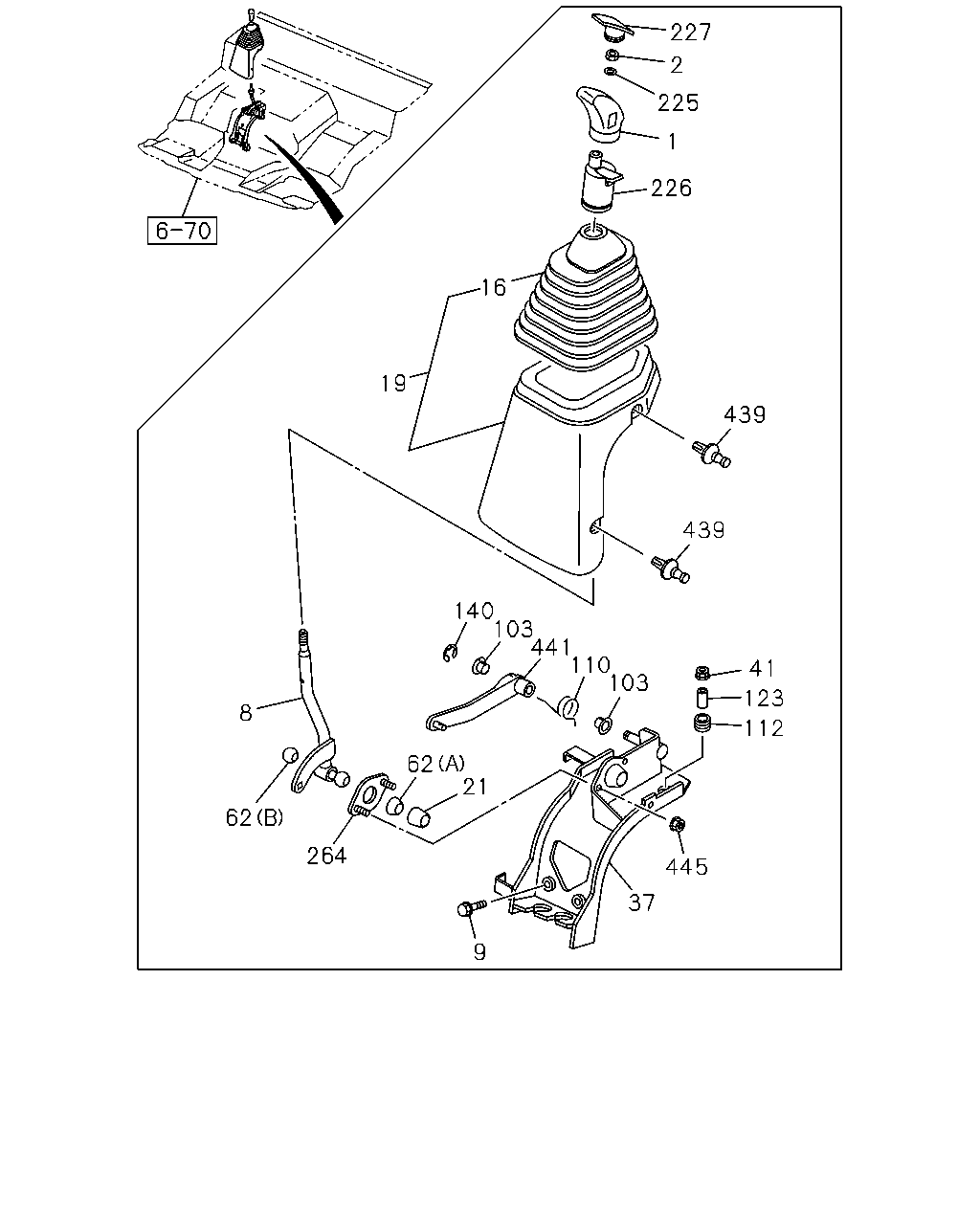

çizim 111111
227 2 225 1 226 16 19 439 439 140 103 441 110 103 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 0710- ● ●
2 NUT; KNOB
M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
8 LEVER; CHANGE 8-98071-308-0 01 1 0710- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0710- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 0710- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0710- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-307-0 01 1 0710- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0710- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0710- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0710- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0710- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0710- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0710- ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0710- ● ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0710- ● ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0710- ● ●
227 COVER; KNOB 8-98013-168-0 01 1 0710- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0710- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0710- ● ●
441 LEVER; SELECT 8-98071-283-0 01 1 0710- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
