2-05 — CLUTCH PIPING (#46822) — 87 parça

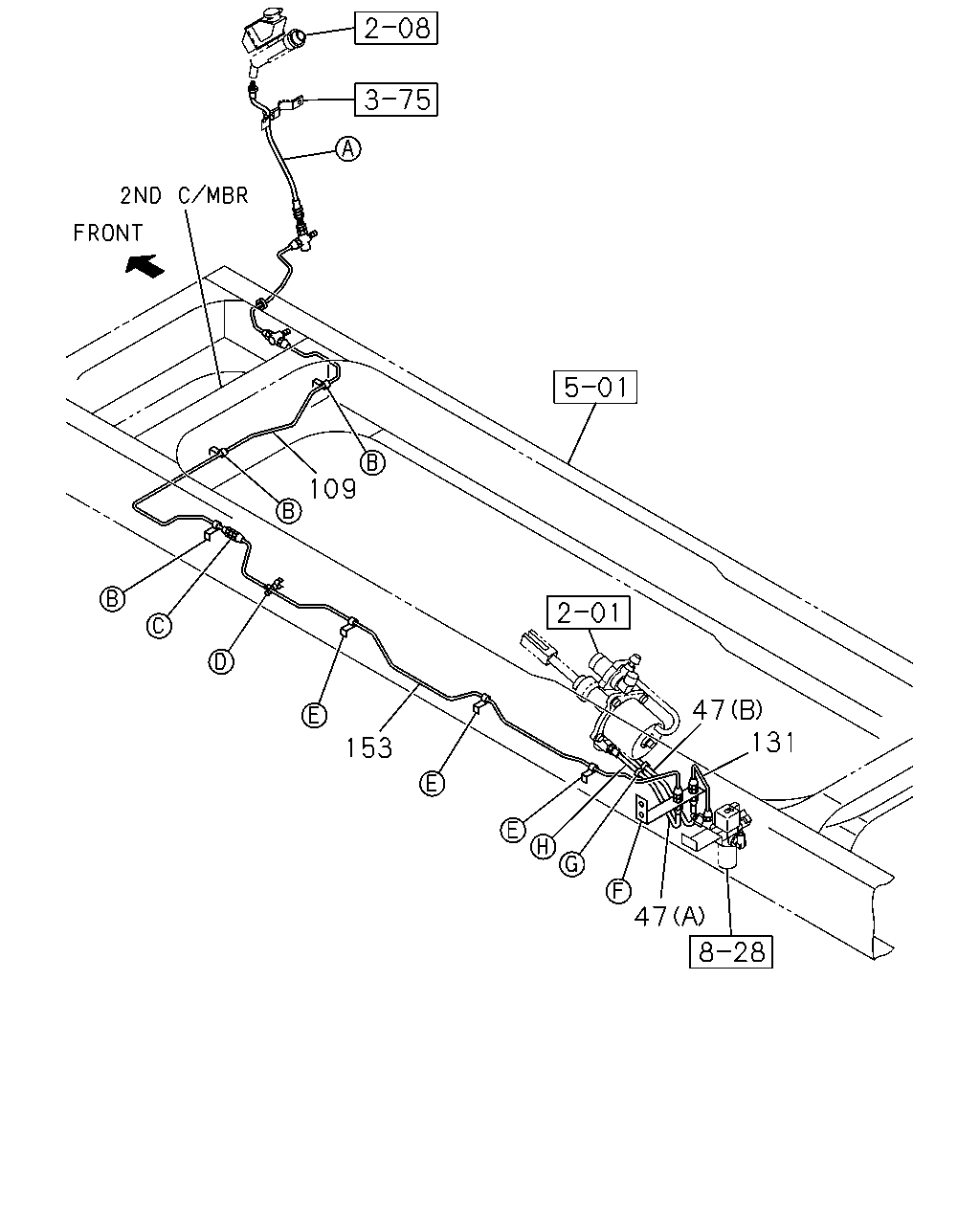

çizim 111088
109 47 131 153 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 0710- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 0710- ● ●
109 PIPE; AIR,UNION TO UNION
L=1408 SERVICED BY L=1550 		1-47428-766-0 01 1 0710-0710 ● ●
109 PIPE; AIR,UNION TO UNION
L=1412 SERVICED BY L=1550 		1-47428-766-0 01 1 0710-0711 ● ●
109 PIPE; AIR,UNION TO UNION
L=1405 SERVICED BY L=1550 		1-47428-766-0 01 1 0712-0802 ● ●
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 0803- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
L=244 		8-98092-621-0 01 1 0710-0710 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0710-0801 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0802-0802 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0803-0803 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0804-0804 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0804-0804 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0805- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 0710-0801 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203 		8-98100-103-0 01 1 0802-0802 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 0803- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2142 SERVICED BY L=2150 		1-47428-770-0 01 1 0710-0710 ● ●
153 PIPE ASM; CLU,UNION TO FLEX 8-98100-292-0 01 1 0710-0710 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2127 SERVICED BY L=2150 		1-47428-770-0 01 1 0710-0711 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2129 SERVICED BY L=2150 		1-47428-770-0 01 1 0712-0712 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0802 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0803- ● ●

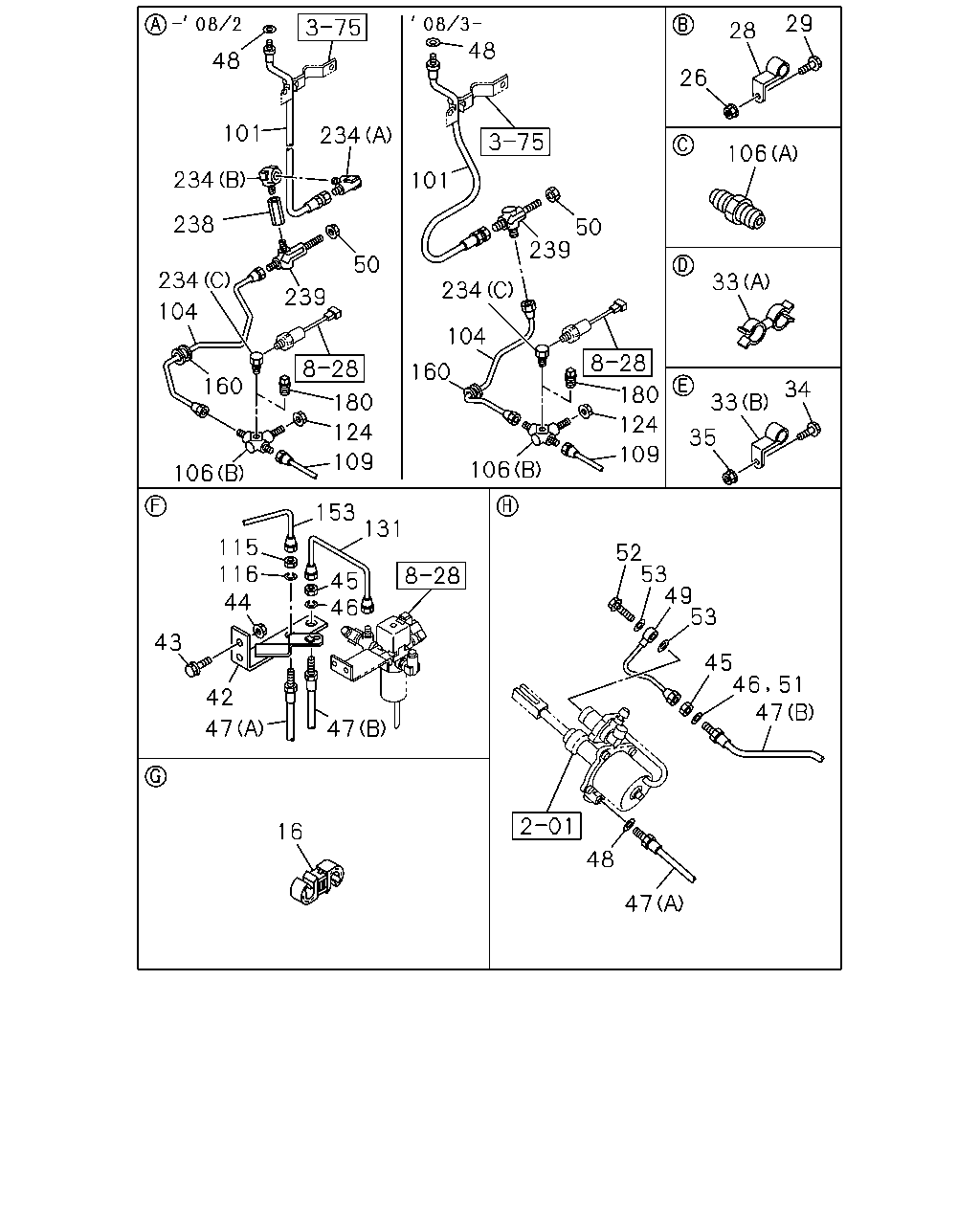

çizim 111094
29 48 28 48 26 101 234 106 234 101 238 50 239 50 234 33 234 239 104 104 160 160 34 180 33 180 124 124 35 109 109 106 106 153 131 115 116 44 52 53 49 53 45 46 43 45 47 42 47 47 16 48 47 46 51
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 0710- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0710- ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0811 ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0812- ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 0710- ● ●
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 0710- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0710- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-98077-571-0 01 1 0710-0710 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 0710- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 0710-0802 ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 02 1 0803- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 0710-0802 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 02 1 0803-1009 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-812-0 02 1 1010-1011 ● ●
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 0710- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 0710- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 0710- ● ●
50 NUT; UNION
M12 		0-91111-512-0 01 1 0710- ● ●
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1012- ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0710- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-1312 ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=510 		8-98059-811-0 01 1 0710-0802 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 0803- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=381 		8-98079-771-0 01 1 0710-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=533 SERVICED BY L=550 		1-47428-753-0 01 1 0804- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0710- ● ●
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 0710- ● ●
109 PIPE; AIR,UNION TO UNION
L=1408 SERVICED BY L=1550 		1-47428-766-0 01 1 0710-0710 ● ●
109 PIPE; AIR,UNION TO UNION
L=1412 SERVICED BY L=1550 		1-47428-766-0 01 1 0710-0711 ● ●
109 PIPE; AIR,UNION TO UNION
L=1405 SERVICED BY L=1550 		1-47428-766-0 01 1 0712-0802 ● ●
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 0803- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0710- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-814-0 01 1 0710-1011 ● ●
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0710- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
L=244 		8-98092-621-0 01 1 0710-0710 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0710-0801 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0802-0802 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0803-0803 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 0804-0804 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0804-0804 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 0805- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 0710-0801 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203 		8-98100-103-0 01 1 0802-0802 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 0803- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2142 SERVICED BY L=2150 		1-47428-770-0 01 1 0710-0710 ● ●
153 PIPE ASM; CLU,UNION TO FLEX 8-98100-292-0 01 1 0710-0710 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2127 SERVICED BY L=2150 		1-47428-770-0 01 1 0710-0711 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2129 SERVICED BY L=2150 		1-47428-770-0 01 1 0712-0712 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0802 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 0803- ● ●
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0710- ● ●
234 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0711-0802 ● ●
234 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0711-0802 ● ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) 		1-09660-012-0 01 1 0710- ● ●
238 ADAPTER; UNION
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0711-0802 ● ●
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 0710-0803 ● ●
239 UNION; CLU HOSE 8-98107-850-0 01 1 0804- ● ●
