0-28B — VENTILATION SYSTEM (#4682) — 48 parça

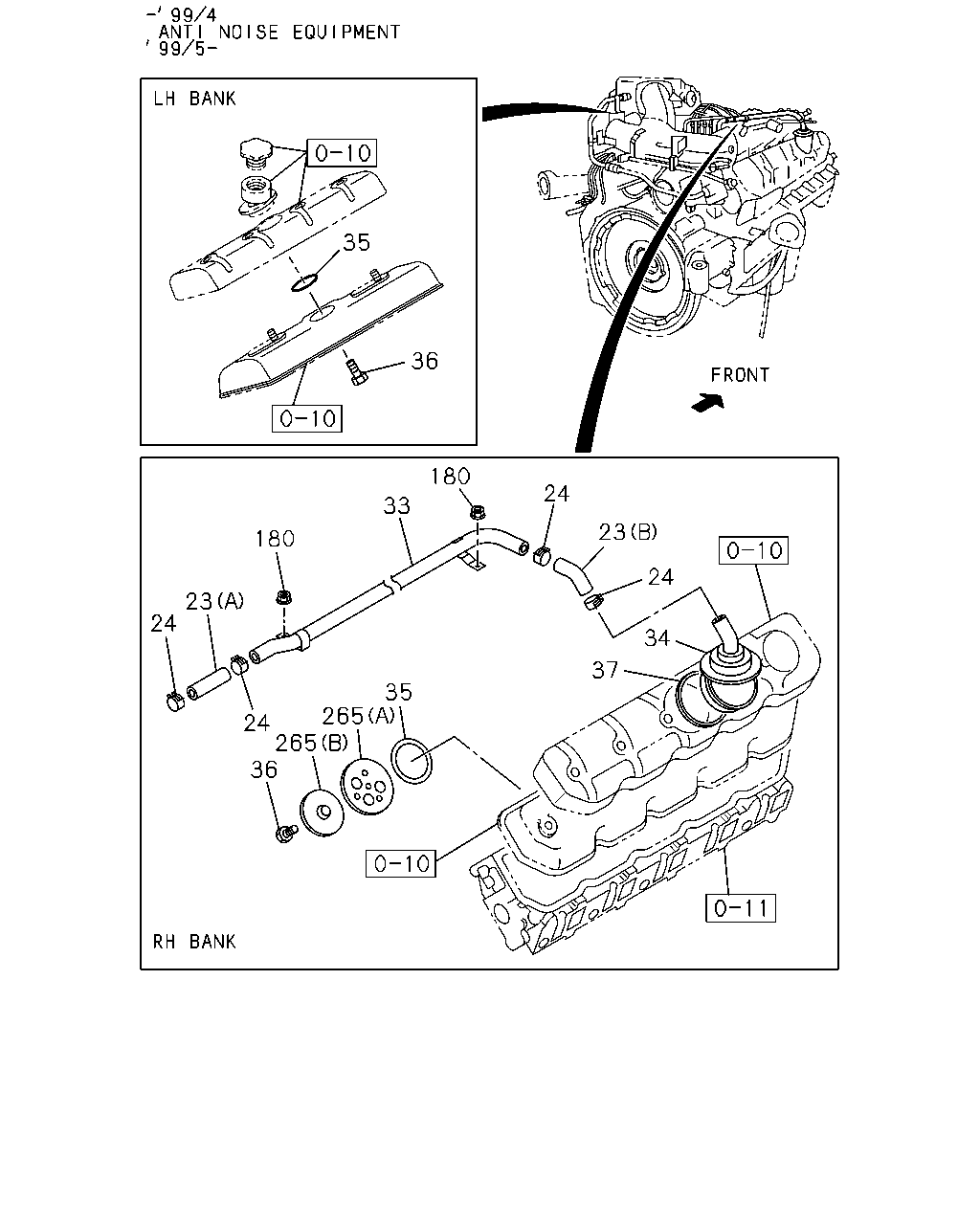

çizim 42032
35 36 180 24 33 23 180 24 23 24 34 37 35 265 24 265 36
BalonParca AdiParca NoAdetTipApplied Date A B C
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9603-9904 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9905- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9603-9904 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9905- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9603-9904 ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9905- ● ● ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9603-9904 ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9905- ● ● ●
34 VENTILATOR 1-14360-052-0 01 1 9603-9904 ●
34 VENTILATOR 1-14360-052-0 01 1 9905-9909 ● ● ●
34 VENTILATOR 1-14360-055-0 01 1 9910- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9> 		1-09623-418-0 02 1 9603-9904 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 02 1 9905- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> 		1-09623-418-0 01 1 9603-9904 ●
36 BOLT; VENTILATOR
ANTI NOISE EQUIPMENT<SV9> M6X12 FLANGE 		0-28080-612-0 07 1 9603-9904 ●
36 BOLT; VENTILATOR
M6X12 FLANGE 		0-28080-612-0 07 1 9905- ● ● ●
36 BOLT; VENTILATOR
EXC. ANTI NOISE EQUIPMENT<SV9> M6X12 		0-20800-612-0 04 1 9603-9904 ●
37 GROMMET; BREATHER,HD COVER
ANTI NOISE EQUIPMENT<SV9> 		1-09333-132-0 01 1 9603-9904 ●
37 GROMMET; BREATHER,HD COVER 1-09333-132-0 01 1 9905- ● ● ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9603-9904 ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9603-9904 ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9905- ● ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9603-9904 ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9905- ● ● ●

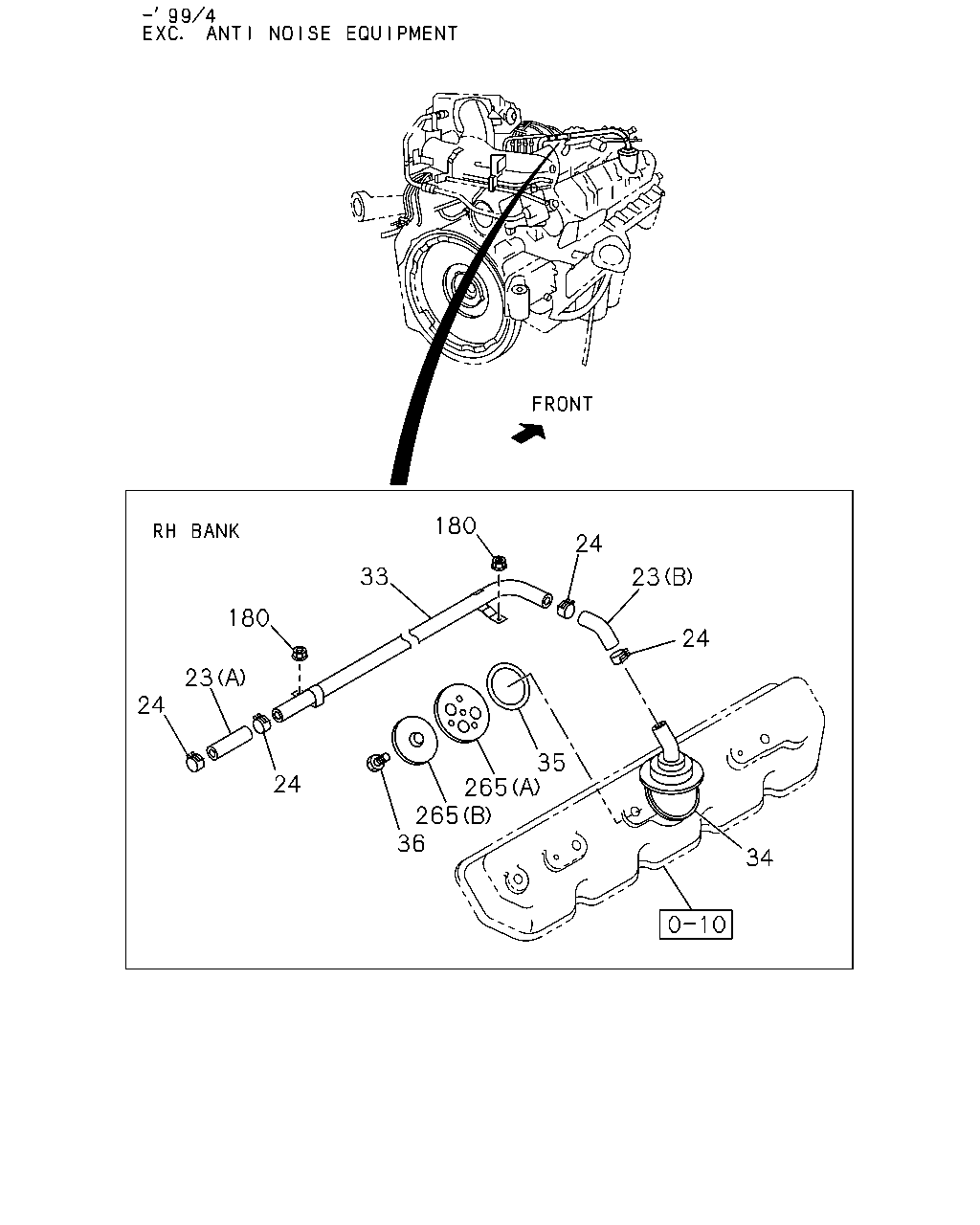

çizim 45077
180 24 33 23 180 24 23 24 35 24 265 265 36 34
BalonParca AdiParca NoAdetTipApplied Date A B C
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9603-9904 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9905- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9603-9904 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9905- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9603-9904 ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9905- ● ● ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9603-9904 ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9905- ● ● ●
34 VENTILATOR 1-14360-052-0 01 1 9603-9904 ●
34 VENTILATOR 1-14360-052-0 01 1 9905-9909 ● ● ●
34 VENTILATOR 1-14360-055-0 01 1 9910- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9> 		1-09623-418-0 02 1 9603-9904 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 02 1 9905- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> 		1-09623-418-0 01 1 9603-9904 ●
36 BOLT; VENTILATOR
ANTI NOISE EQUIPMENT<SV9> M6X12 FLANGE 		0-28080-612-0 07 1 9603-9904 ●
36 BOLT; VENTILATOR
M6X12 FLANGE 		0-28080-612-0 07 1 9905- ● ● ●
36 BOLT; VENTILATOR
EXC. ANTI NOISE EQUIPMENT<SV9> M6X12 		0-20800-612-0 04 1 9603-9904 ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9603-9904 ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9603-9904 ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9905- ● ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9603-9904 ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9905- ● ● ●
