◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#46817) — 305 parça

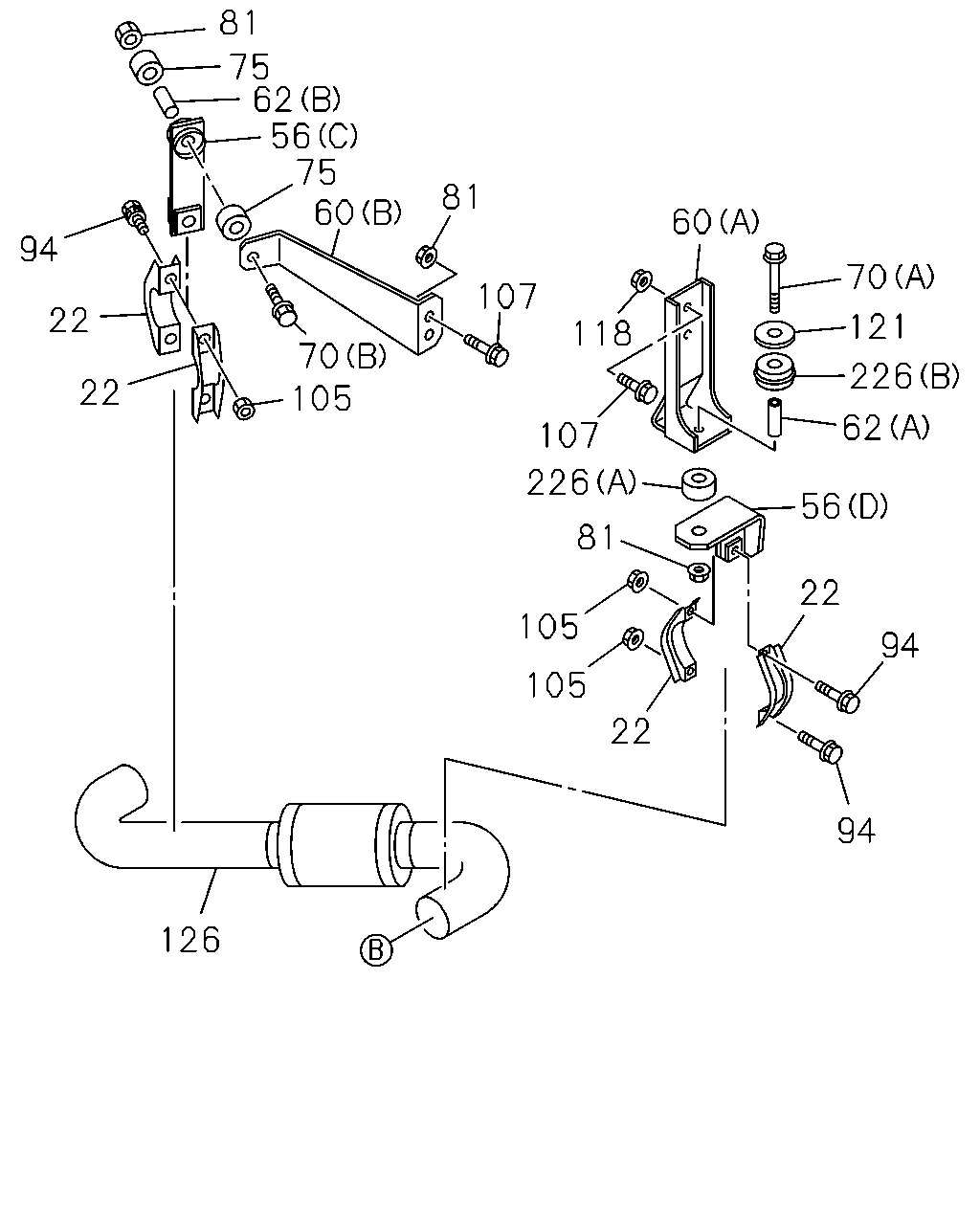

çizim 111075
81 75 62 56 75 60 81 60 94 70 107 22 121 118 70 105 226 22 62 107 226 56 81 22 105 94 105 22 94 126
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98071-231-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
126 PIPE; EXH,RR 1-22126-646-2 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●

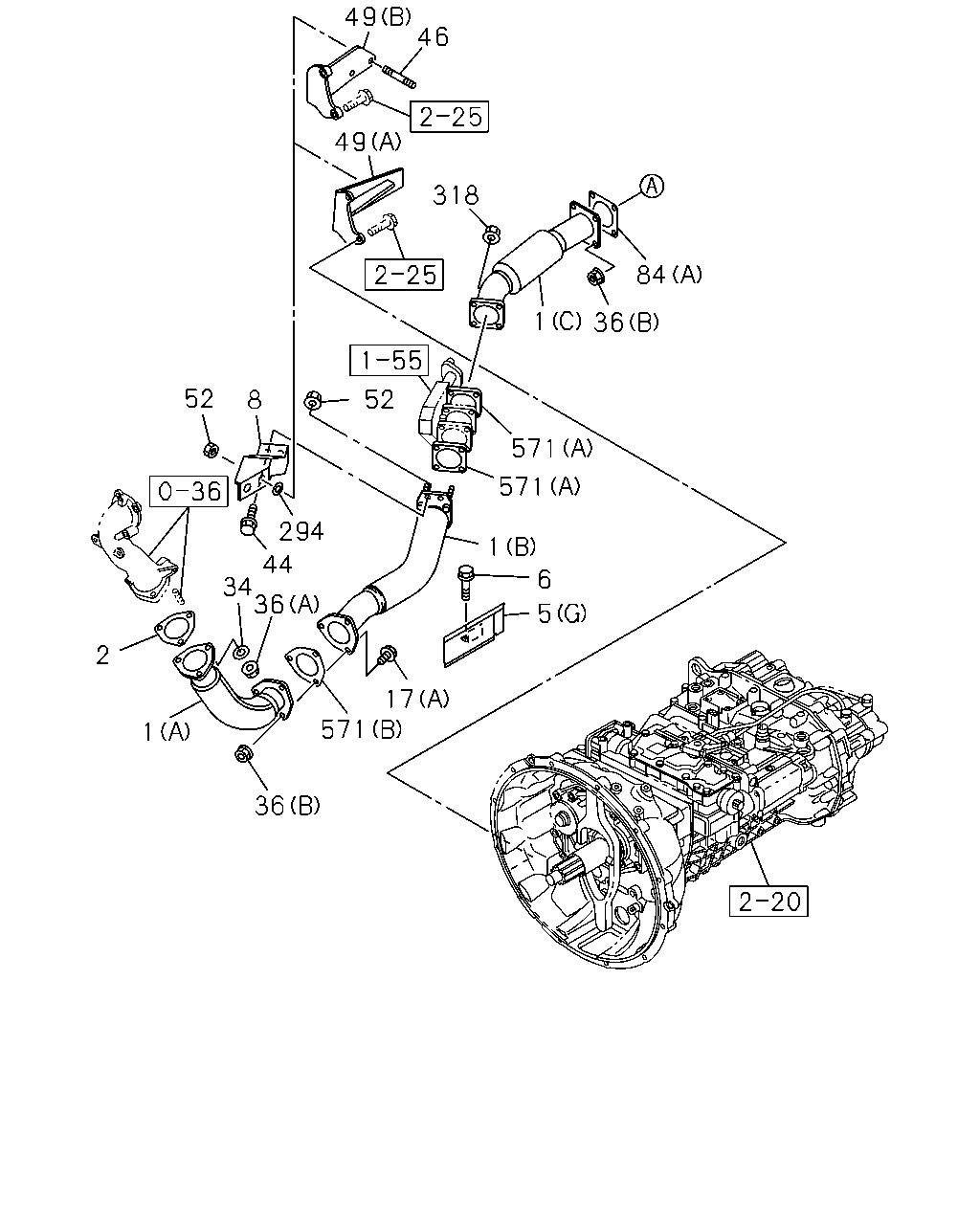

çizim 111077
49 46 49 318 84 36 1 571 571 1 6 5 17 571 36 1 36 44 294 8 52 2 52 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-893-1 01 1 0710-0710 ● ●
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 0710- ● ●
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 0710-1209 ● ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210- ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0902 ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0802-1406 ● ●
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407- ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0802- ● ●
8 BRACKET; EXH PIPE 8-98070-600-0 01 1 0710-1209 ● ●
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1210- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0710- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98069-944-1 01 1 0710-1209 ● ●
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98120-497-0 01 1 1210- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0710- ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0712 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
571 GASKET
(A) 		1-22116-043-0 02 1 0710- ● ●
571 GASKET
(B) 		8-98043-481-0 01 1 0710- ● ●

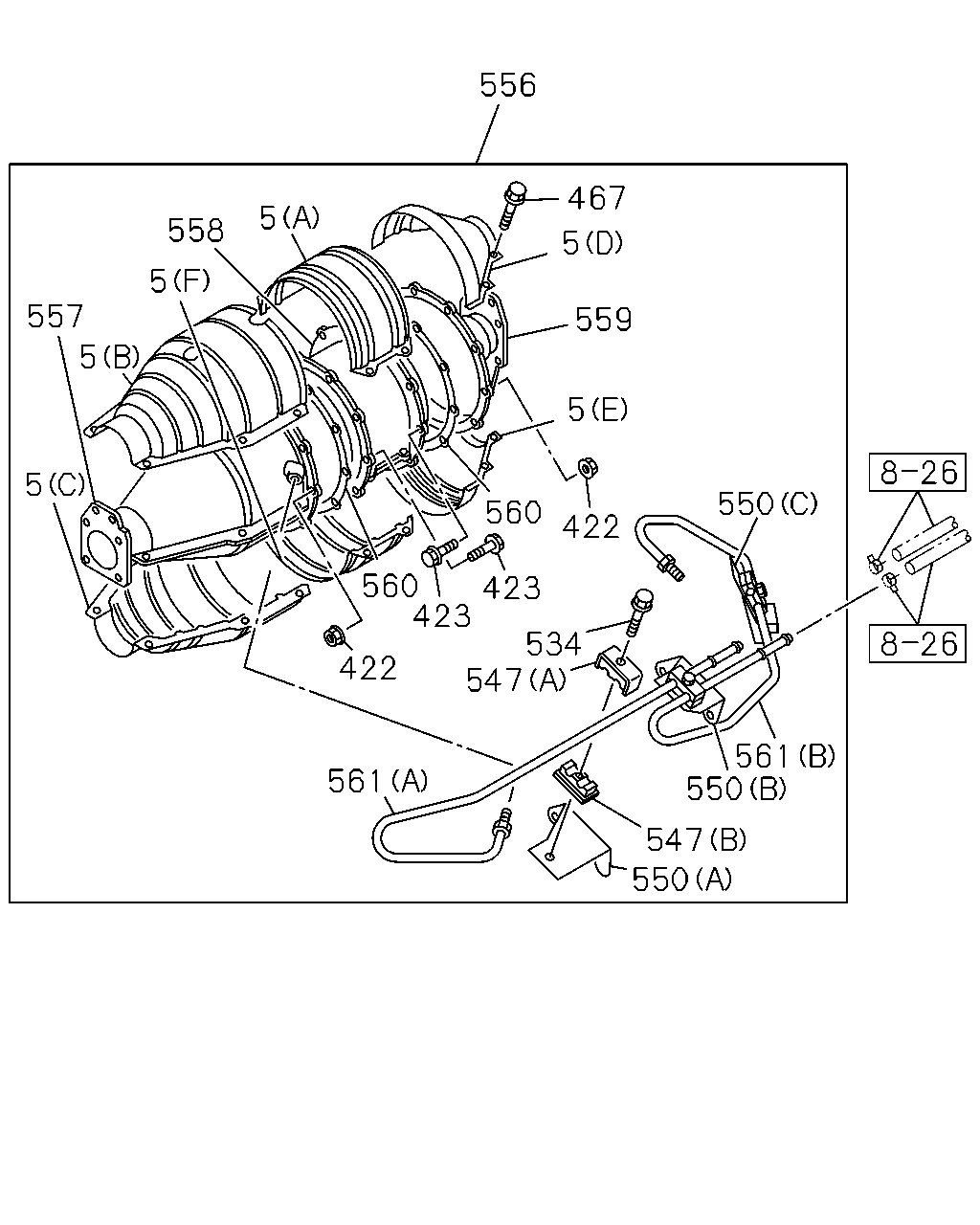

çizim 111081
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0802-1406 ● ●
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 0710- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 0710- ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●
557 CATALYST ASM 8-97608-054-5 01 1 0710- ● ●
558 FILTER ASM 8-97608-056-2 01 1 0710- ● ●
559 COVER; RR 8-97611-090-0 01 1 0710-1011 ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 0710- ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 0710-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 0710-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ●

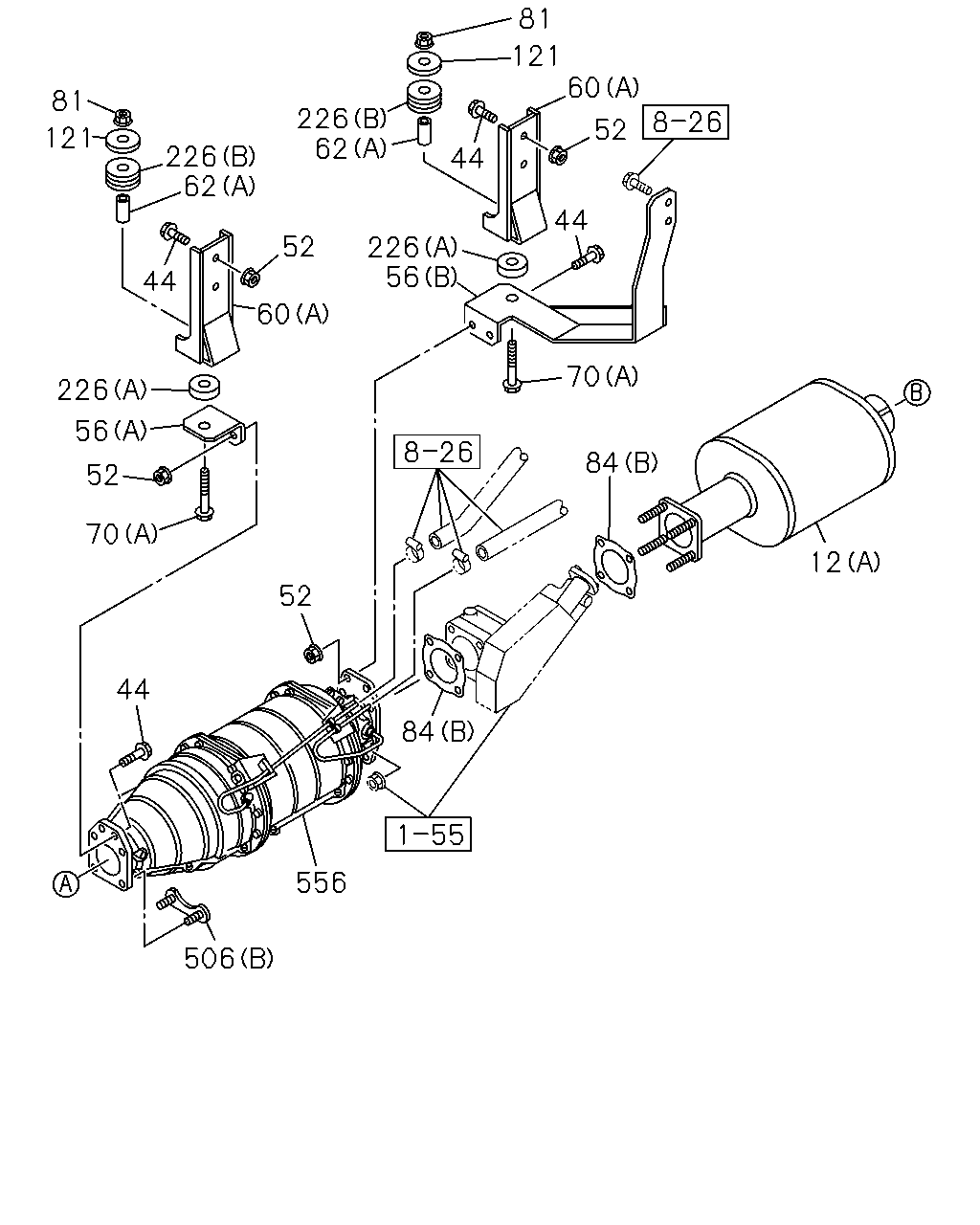

çizim 111082
81 121 60 81 226 62 52 121 226 62 44 44 52 226 56 44 60 70 226 56 84 52 70 12 52 44 84 556 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ● ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98071-231-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●

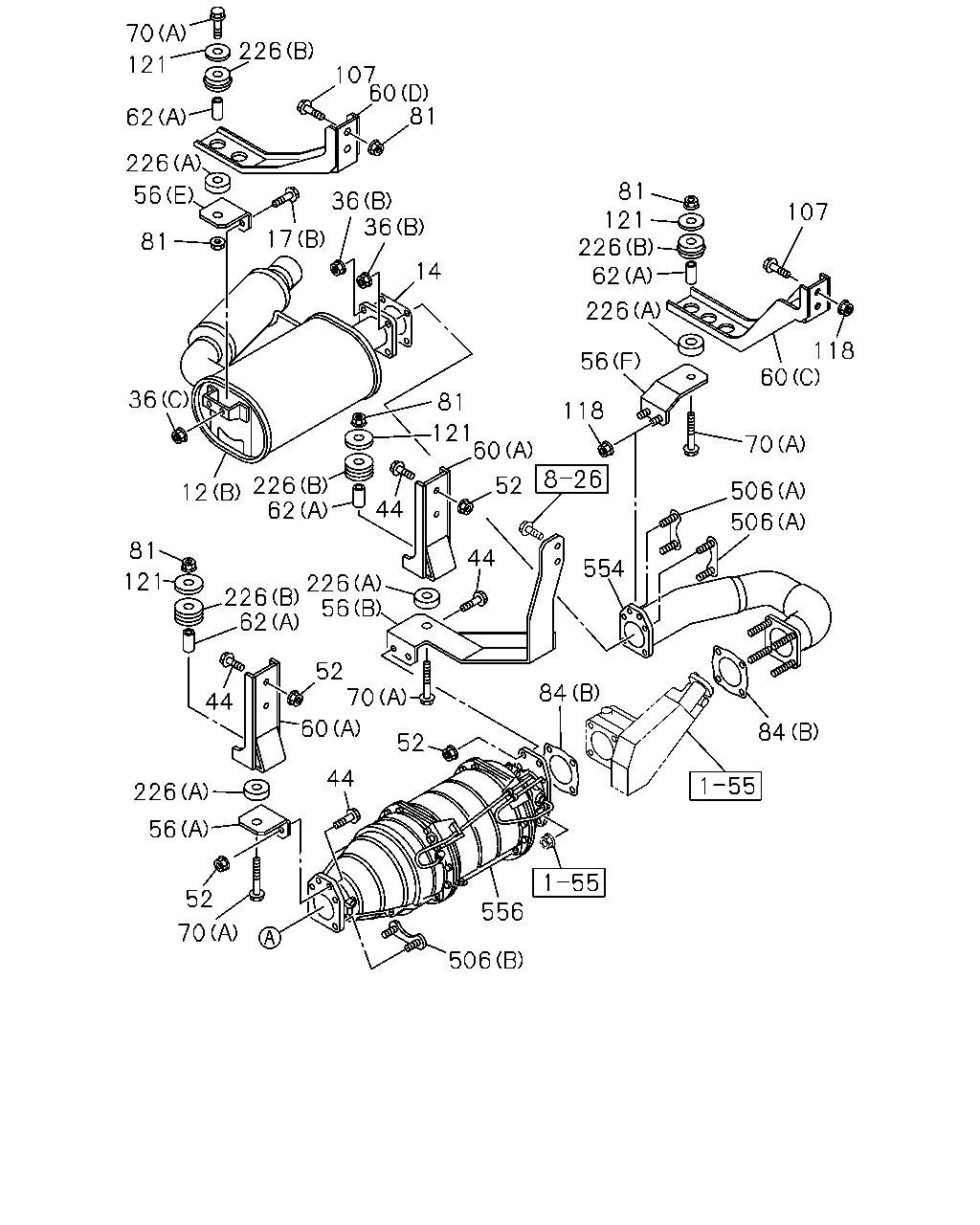

çizim 111084
70 226 121 107 60 81 62 226 81 121 226 62 56 36 36 107 17 81 14 226 118 60 56 36 81 118 121 60 70 226 62 52 506 12 44 506 81 44 554 121 226 226 56 62 52 70 84 44 60 84 52 44 226 56 52 556 70 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ● ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0911- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98071-231-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 0911- ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
