4-31 — STEERING COLUMN AND SHAFT (#46815) — 103 parça

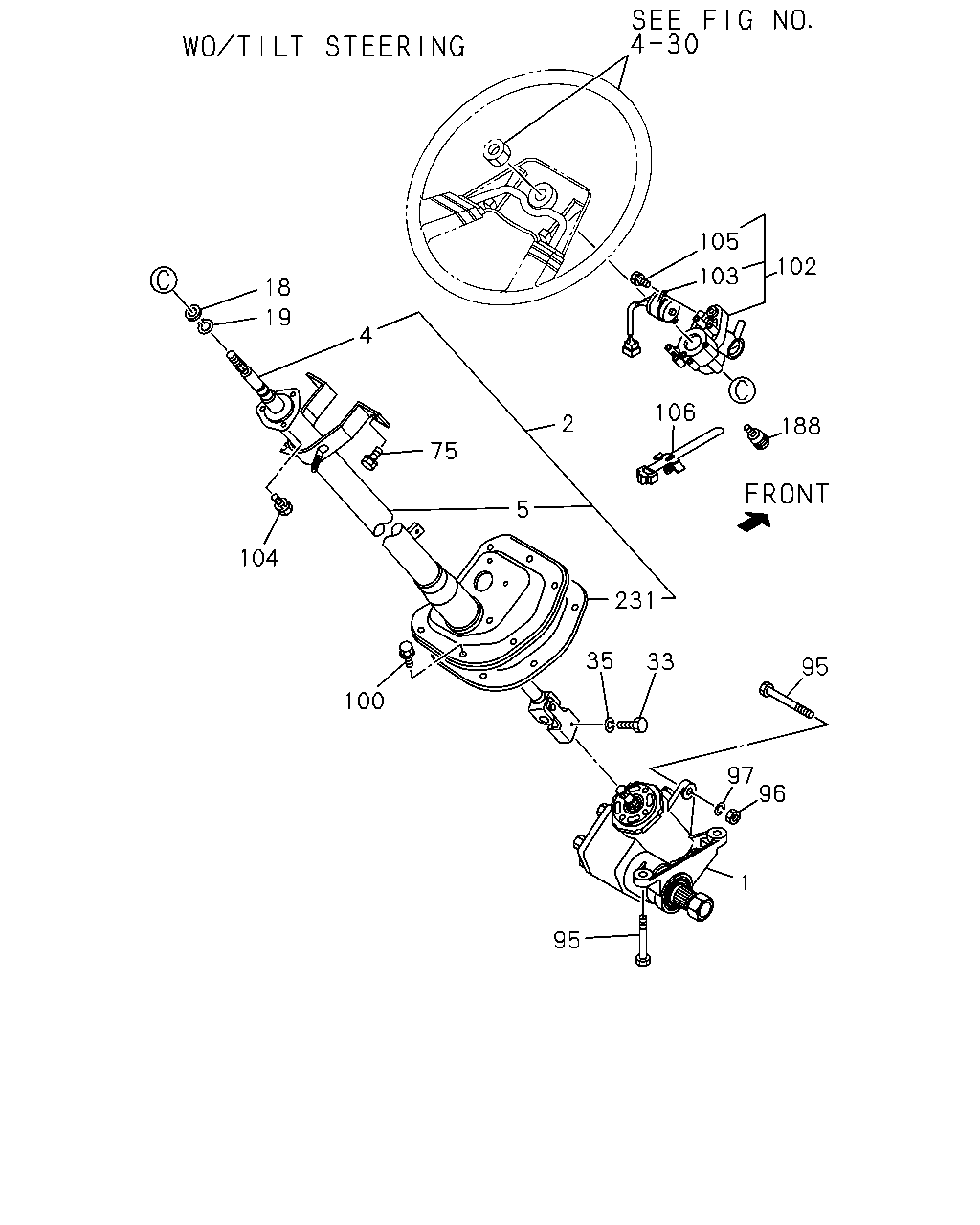

18 19 105 103 102 4 35 33 106 188 104 5 2 75 231 100 33 35 95 6 97 96 52 63 60 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97081-748-0	01	1	9307-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-94145-246-4	01	1	9307-	●	●
2	SHAFT ASM; STRG FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94416-161-3	01	1	9307-	●	●
2	SHAFT ASM; STRG FLOOR REMOTE SHIFT<M11> EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94416-158-2	01	1	9307-	●	●
2	SHAFT ASM; STRG EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>, POWER STEERING<N40>	8-94416-159-2	01	1	9307-	●	●
2	SHAFT ASM; STRG POWER STEERING<N40> EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>	8-94416-162-3	01	1	9307-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> POWER STEERING<N40>	8-97082-068-0	01	1	9307-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. POWER STEERING<N40>	8-97082-067-0	01	1	9307-	●	●
4	SHAFT; STRG POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94145-253-0	01	1	9307-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-94389-318-1	01	1	9307-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94145-254-0	01	1	9307-	●	●
5	COLUMN; STRG FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94416-666-2	01	1	9307-	●	●
5	COLUMN; STRG FLOOR REMOTE SHIFT<M11> EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94416-664-1	01	1	9307-	●	●
5	COLUMN; STRG EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>, POWER STEERING<N40>	8-94416-665-1	01	1	9307-	●	●
5	COLUMN; STRG POWER STEERING<N40> EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>	8-94416-667-2	01	1	9307-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97085-069-0	01	1	9307-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33> POWER STEERING<N40>	8-94389-320-0	01	1	9307-	●	●
6	SHAFT; STRG LWR TILT STEERING<N33> EXC. POWER STEERING<N40>	8-94389-319-0	01	1	9307-	●	●
13	COVER; SPR TILT STEERING<N33>	8-94437-070-1	01	1	9307-	●	●
18	WASHER; STEERING SHAFT	5-09509-013-0	01	1	9307-	●	●
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	9307-	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	9307-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	9307-	●	●
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	9307-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> ID=8.2	9-09150-508-0	01	1	9307-	●	●
52	WASHER; PL,ADJ LEVER TILT STEERING<N33> ID=8.4 OD=22	8-94127-883-1	01	1	9307-	●	●
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-94443-364-0	01	1	9307-	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-94127-888-1	01	1	9307-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28280-820-0	02	1	9307-	●	●
95	BOLT; STRG UNIT M12X128	8-94120-312-0	02	1	9307-	●	●
95	BOLT; STRG UNIT M12X85	9-91061-285-0	01	1	9307-	●	●
96	NUT; STRG UNIT M12	9-99110-512-0	01	1	9307-	●	●
97	WASHER; PL,STRG UNIT ID=12.5	8-94224-842-0	03	1	9307-	●	●
100	BOLT; COLUMN TO FLOOR M8X16 FLANGE	0-28080-816-0	07	1	9307-	●	●
102	LOCK ASM; STRG FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94384-476-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG FLOOR REMOTE SHIFT<M11>	8-94384-476-0	01	1	9308-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2) FLOOR REMOTE SHIFT<M11>	8-97073-418-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2) EXC. FLOOR REMOTE SHIFT<M11>	8-97073-420-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>	8-94340-044-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG EXC. FLOOR REMOTE SHIFT<M11>	8-94340-044-0	01	1	9308-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97095-153-0	01	1	9307-9307	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94318-693-0	01	1	9307-9307	●	●
103	SWITCH; IGNITION	8-94318-693-0	01	1	9308-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-9406	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X18 W/LK WASHER	0-50040-618-0	02	1	9307-9406	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X18 W/LK WASHER	0-50040-618-0	02	1	9407-	●	●
105	SCREW; IGN SW M3X12 W/LK WASHER	9-03910-312-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33> L=250	5-09707-030-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN L=250	5-09707-030-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN TILT STEERING<N33> L=155	8-94125-241-1	01	1	9307-	●	●
188	BOLT; TORQUE,STEERING EUROPEAN BASIC EQUIPMENT(EK4) M6X15	8-94128-317-0	01	1	9407-	●	●
188	BOLT; TORQUE,STEERING EUROPEAN BASIC EQUIPMENT(EK4) M6X18	8-94407-321-0	02	1	9407-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-94405-294-1	01	1	9307-	●	●

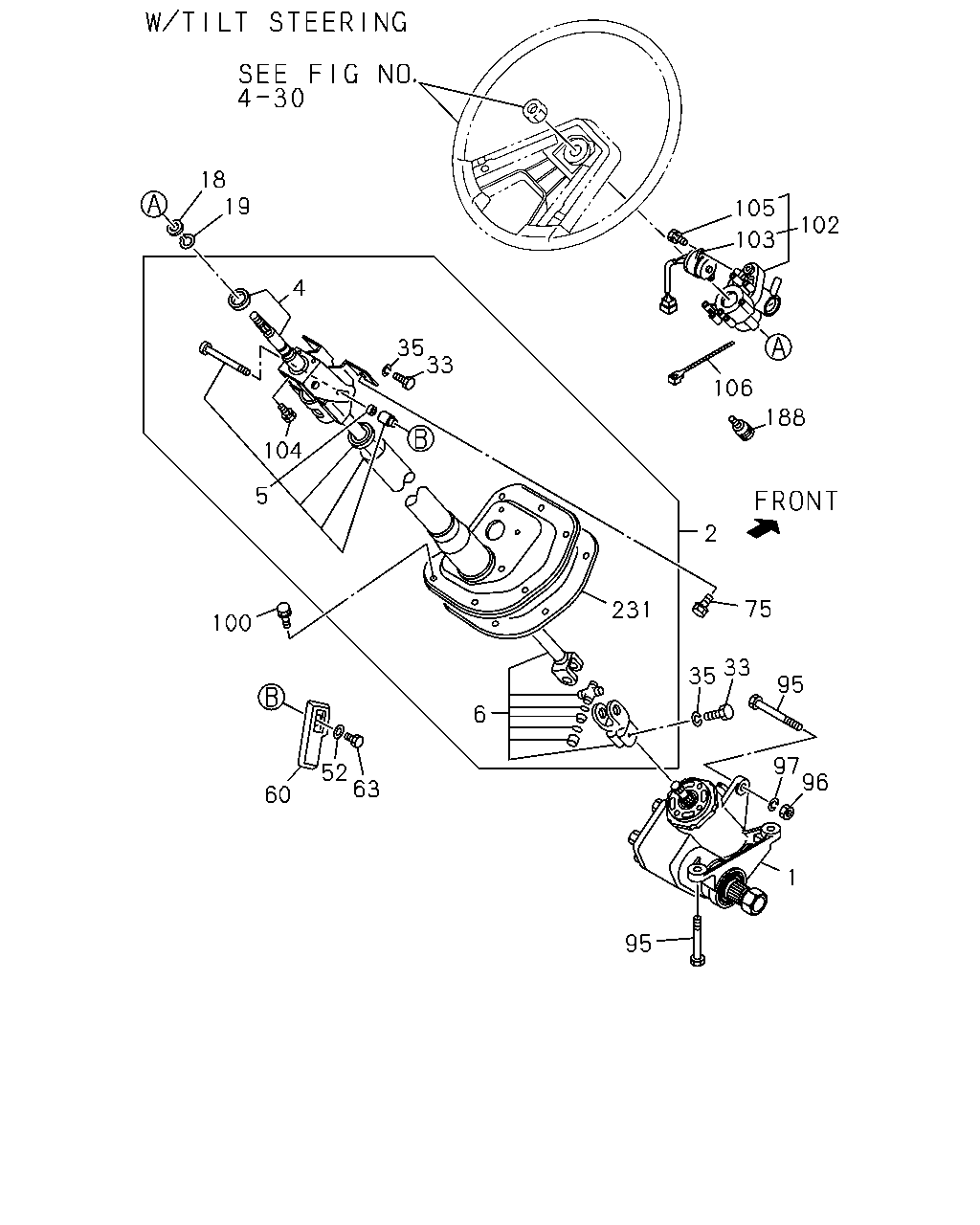

105 102 103 18 19 4 106 2 188 75 5 104 231 35 33 95 100 97 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97081-748-0	01	1	9307-	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-94145-246-4	01	1	9307-	●	●
2	SHAFT ASM; STRG FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94416-161-3	01	1	9307-	●	●
2	SHAFT ASM; STRG FLOOR REMOTE SHIFT<M11> EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94416-158-2	01	1	9307-	●	●
2	SHAFT ASM; STRG EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>, POWER STEERING<N40>	8-94416-159-2	01	1	9307-	●	●
2	SHAFT ASM; STRG POWER STEERING<N40> EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>	8-94416-162-3	01	1	9307-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> POWER STEERING<N40>	8-97082-068-0	01	1	9307-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. POWER STEERING<N40>	8-97082-067-0	01	1	9307-	●	●
4	SHAFT; STRG POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94145-253-0	01	1	9307-	●	●
4	SHAFT; STRG TILT STEERING<N33>	8-94389-318-1	01	1	9307-	●	●
4	SHAFT; STRG EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94145-254-0	01	1	9307-	●	●
5	COLUMN; STRG FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. TILT STEERING<N33>	8-94416-666-2	01	1	9307-	●	●
5	COLUMN; STRG FLOOR REMOTE SHIFT<M11> EXC. TILT STEERING<N33>,POWER STEERING<N40>	8-94416-664-1	01	1	9307-	●	●
5	COLUMN; STRG EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>, POWER STEERING<N40>	8-94416-665-1	01	1	9307-	●	●
5	COLUMN; STRG POWER STEERING<N40> EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33>	8-94416-667-2	01	1	9307-	●	●
5	COLUMN; STRG TILT STEERING<N33>	8-97085-069-0	01	1	9307-	●	●
13	COVER; SPR TILT STEERING<N33>	8-94437-070-1	01	1	9307-	●	●
18	WASHER; STEERING SHAFT	5-09509-013-0	01	1	9307-	●	●
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	9307-	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	9307-	●	●
33	BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	9307-	●	●
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	9307-	●	●
35	WASHER; LK,STRG SHAFT TILT STEERING<N33> ID=8.2	9-09150-508-0	01	1	9307-	●	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28280-820-0	02	1	9307-	●	●
95	BOLT; STRG UNIT M12X128	8-94120-312-0	02	1	9307-	●	●
95	BOLT; STRG UNIT M12X85	9-91061-285-0	01	1	9307-	●	●
96	NUT; STRG UNIT M12	9-99110-512-0	01	1	9307-	●	●
97	WASHER; PL,STRG UNIT ID=12.5	8-94224-842-0	03	1	9307-	●	●
100	BOLT; COLUMN TO FLOOR M8X16 FLANGE	0-28080-816-0	07	1	9307-	●	●
102	LOCK ASM; STRG FLOOR REMOTE SHIFT<M11> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94384-476-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG FLOOR REMOTE SHIFT<M11>	8-94384-476-0	01	1	9308-	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2) FLOOR REMOTE SHIFT<M11>	8-97073-418-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG SAUDI ARABIA EQUIPMENT(EU2) EXC. FLOOR REMOTE SHIFT<M11>	8-97073-420-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG EXC. SAUDI ARABIA EQUIPMENT(EU2),FLOOR REMOTE SHIFT<M11>	8-94340-044-0	01	1	9307-9307	●	●
102	LOCK ASM; STRG EXC. FLOOR REMOTE SHIFT<M11>	8-94340-044-0	01	1	9308-	●	●
103	SWITCH; IGNITION SAUDI ARABIA EQUIPMENT(EU2)	8-97095-153-0	01	1	9307-9307	●	●
103	SWITCH; IGNITION EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94318-693-0	01	1	9307-9307	●	●
103	SWITCH; IGNITION	8-94318-693-0	01	1	9308-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-9406	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X18 W/LK WASHER	0-50040-618-0	02	1	9307-9406	●	●
104	BOLT; STRG LOCK TO COLUMN EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X18 W/LK WASHER	0-50040-618-0	02	1	9407-	●	●
105	SCREW; IGN SW M3X12 W/LK WASHER	9-03910-312-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN EXC. FLOOR REMOTE SHIFT<M11>,TILT STEERING<N33> L=250	5-09707-030-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN L=250	5-09707-030-0	01	1	9307-	●	●
106	CLIP; HARNESS,STRG COLUMN TILT STEERING<N33> L=155	8-94125-241-1	01	1	9307-	●	●
188	BOLT; TORQUE,STEERING EUROPEAN BASIC EQUIPMENT(EK4) M6X15	8-94128-317-0	01	1	9407-	●	●
188	BOLT; TORQUE,STEERING EUROPEAN BASIC EQUIPMENT(EK4) M6X18	8-94407-321-0	02	1	9407-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-94405-294-1	01	1	9307-	●	●
