4-25 — REAR FINAL DRIVE (#46813) — 76 parça

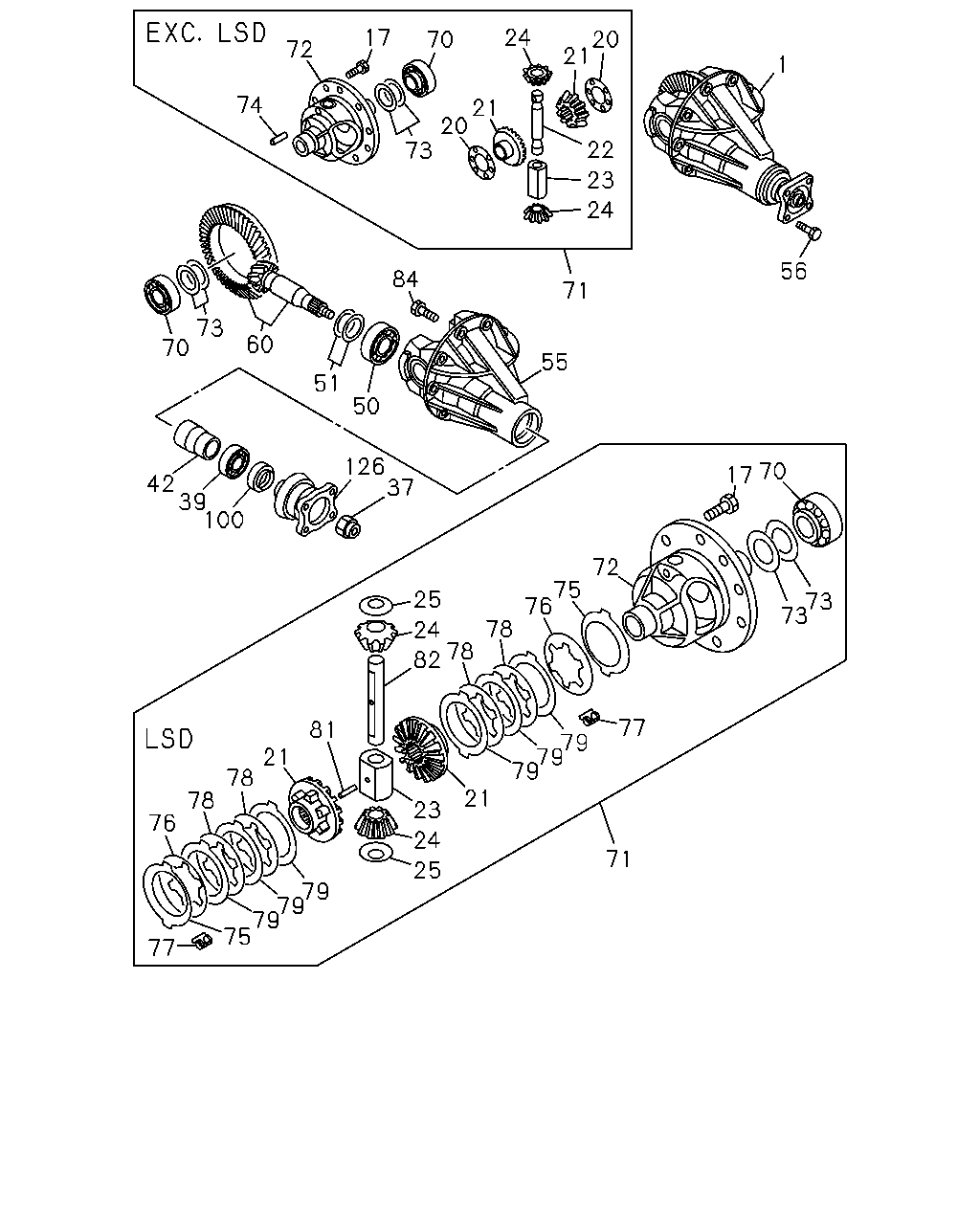

çizim 17065
24 17 20 21 70 72 1 74 21 20 73 22 23 24 56 84 71 73 70 60 55 51 50 126 37 17 70 42 39 100 72 75 25 76 24 78 78 82 73 73 77 81 79 79 79 21 78 78 76 21 23 24 25 71 79 79 79 75 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) LIMITED SLIP DIFF(G80) 41/9 		8-94468-547-3 01 1 9407- ● ●
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) EXC. LIMITED SLIP DIFF(G80) 41/9 		8-94468-546-3 01 1 9407- ● ●
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) LIMITED SLIP DIFF(G80) 43/9 		8-94314-056-3 01 1 9307-9406 ● ●
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) LIMITED SLIP DIFF(G80) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 43/9 		8-94314-056-3 01 1 9407- ● ●
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) EXC. LIMITED SLIP DIFF(G80) 43/9 		8-94314-055-3 01 1 9307-9406 ● ●
1 DRIVE ASM; FINAL,RR
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4),LIMITED SLIP DIFF(G80) 43/9 		8-94314-055-3 01 1 9407- ● ●
1 DRIVE ASM; FINAL,RR
4ZC1 ENG(LR9) LIMITED SLIP DIFF(G80) 41/9 		8-94468-545-3 01 1 9307-9406 ● ●
1 DRIVE ASM; FINAL,RR
4ZC1 ENG(LR9) LIMITED SLIP DIFF(G80) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 41/9 		8-94468-545-3 01 1 9407- ● ●
1 DRIVE ASM; FINAL,RR
4ZC1 ENG(LR9) EXC. LIMITED SLIP DIFF(G80) 41/9 		8-94468-544-3 01 1 9307-9406 ● ●
1 DRIVE ASM; FINAL,RR
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4),LIMITED SLIP DIFF(G80) 41/9 		8-94468-544-3 01 1 9407- ● ●
17 BOLT; DIFF CAGE SETTING
M10X17 		8-97038-065-0 10 1 9307- ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G80) T=1.00 		5-41562-005-1 02 1 9307- ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G80) T=1.05 		5-41562-006-1 02 1 9307- ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G80) T=1.10 		5-41562-007-1 02 1 9307- ● ●
21 GEAR; SIDE,DIFF
LIMITED SLIP DIFF(G80) 		8-94118-094-0 02 1 9307- ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G80) 		8-94474-302-0 02 1 9307- ● ●
22 PIN; CROSS,DIFF PINION
EXC. LIMITED SLIP DIFF(G80) 		9-41521-044-1 01 1 9307- ● ●
23 BLOCK; THRUST,DIFF BOX
LIMITED SLIP DIFF(G80) 		8-94118-097-0 01 1 9307- ● ●
23 BLOCK; THRUST,DIFF BOX
EXC. LIMITED SLIP DIFF(G80) 		9-41525-015-2 01 1 9307- ● ●
24 GEAR; PINION,DIFF
LIMITED SLIP DIFF(G80) 		8-94118-095-0 02 1 9307- ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G80) 		8-94474-301-0 02 1 9307- ● ●
25 WASHER; THRUST,PINION
LIMITED SLIP DIFF(G80) 		8-94118-099-0 02 1 9307- ● ●
37 NUT; DRIVING PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9307- ● ●
39 BEARING; FINAL PINION
NSK 		8-94472-099-0 01 1 9307- ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-94472-118-0 01 1 9307- ● ●
50 BEARING; FINAL PINION
NSK 		9-00093-621-0 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9307- ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9307- ● ●
55 CARRIER; DIFF 5-41110-016-3 01 1 9307- ● ●
56 BOLT; BRG CAP
M12X62 		8-94376-322-0 04 1 9307- ● ●
60 GEAR SET; FINAL DRIVE,RR
4FG1 ENG(RLL) 43/9 		8-97063-576-0 01 1 9307-9406 ● ●
60 GEAR SET; FINAL DRIVE,RR
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 43/9 		8-97063-576-0 01 1 9407- ● ●
60 GEAR SET; FINAL DRIVE,RR
4ZC1 ENG(LR9) 41/9 		8-97065-093-0 01 1 9307-9406 ● ●
60 GEAR SET; FINAL DRIVE,RR
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 41/9 		8-97065-093-0 01 1 9407- ● ●
70 BEARING; DIFF CAGE
NSK 		9-00093-074-0 02 1 9307- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
LIMITED SLIP DIFF(G80) 		8-94328-477-0 01 1 9307- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
EXC. LIMITED SLIP DIFF(G80) 		8-94313-752-0 01 1 9307- ● ●
72 CAGE; DIFF
LIMITED SLIP DIFF(G80) 		8-94118-093-0 01 1 9307- ● ●
72 CAGE; DIFF
EXC. LIMITED SLIP DIFF(G80) 		8-94313-589-0 01 1 9307-9310 ● ●
72 CAGE; DIFF
EXC. LIMITED SLIP DIFF(G80) 		8-97038-515-1 01 1 9311- ● ●
73 SHIM; DIFF SIDE BRG
T=0.24 		9-41519-109-0 AR 1 9307- ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 		9-41519-110-0 AR 1 9307- ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 		9-41519-111-0 AR 1 9307- ● ●
73 SHIM; DIFF SIDE BRG
T=0.12 		9-41519-112-0 AR 1 9307- ● ●
74 PIN; LK,CROSS PIN
EXC. LIMITED SLIP DIFF(G80) OD=5 L=35 		9-09878-096-0 01 1 9307- ● ●
75 PLATE; BEVEL
LIMITED SLIP DIFF(G80) 		8-94118-103-0 02 1 9307- ● ●
76 DISC; BEVEL
LIMITED SLIP DIFF(G80) 		8-94118-102-0 02 1 9307- ● ●
77 SLEEVE
LIMITED SLIP DIFF(G80) 		8-94118-101-0 04 1 9307- ● ●
78 DISC; FRICTION
LIMITED SLIP DIFF(G80) T=1.40 		8-94118-104-0 04 1 9307- ● ●
78 DISC; FRICTION
LIMITED SLIP DIFF(G80) T=1.50 		8-94118-105-0 04 1 9307- ● ●
79 PLATE; FRICTION
LIMITED SLIP DIFF(G80) 		8-94118-106-0 06 1 9307- ● ●
81 PIN; SPR,SLIP LK DIFF
LIMITED SLIP DIFF(G80) 		8-94118-098-0 01 1 9307- ● ●
82 SPIDER; DIFF PINION
LIMITED SLIP DIFF(G80) 		8-94118-096-0 01 1 9307- ● ●
84 BOLT; FINAL DRIVE GEAR
M10X17 		8-97038-065-0 10 1 9307- ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-97080-848-1 01 1 9307- ● ●
126 COUPLING; DRIVING PINION
4FG1 ENG(RLL) 		8-94426-786-4 01 1 9307- ● ●
126 COUPLING; DRIVING PINION
4ZC1 ENG(LR9) 		8-94426-785-2 01 1 9307-9406 ● ●
126 COUPLING; DRIVING PINION
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94426-785-3 01 1 9407- ● ●
