Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

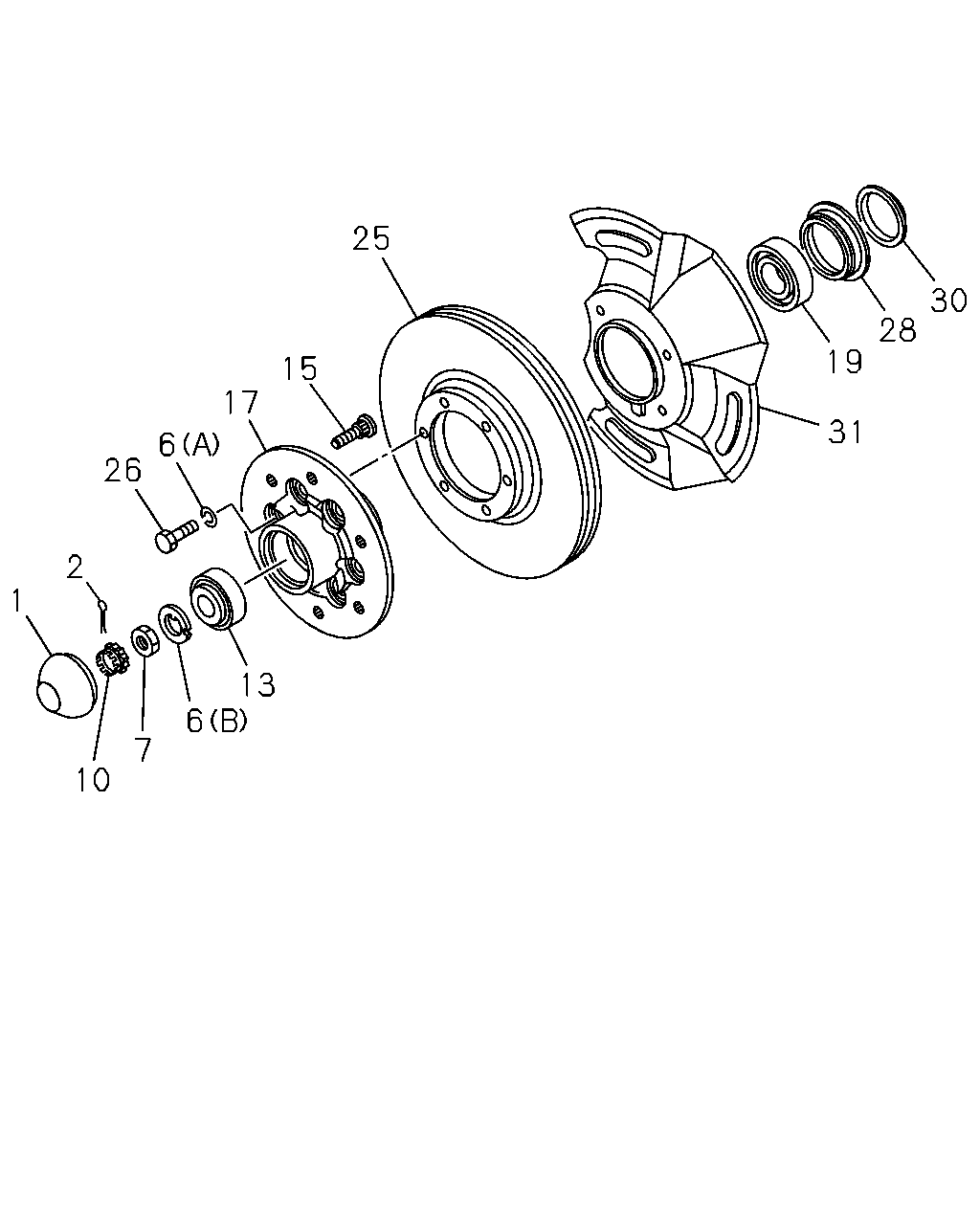

4-11 — FRONT HUB AND DRUM OR ROTOR
(#46811) — 21 parça
Tümü
A - WFB6VC
B - WFB6VF
25
30
28
19
15
17
6
26
31
2
1
13
6
7
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAP; HUB,FRT AXLE
9-42313-080-1
02
1
9307-
●
●
2
PIN; SPLIT,HUB TO AXLE SHAFT
L=30
9-08104-030-0
02
1
9307-
●
●
6
WASHER; LK,FRT HUB
(B) T=3.2 OD=35
8-94256-973-0
02
1
9307-
●
●
6
WASHER; LK,FRT HUB
(A) ID=10.2
9-09150-510-0
12
1
9307-
●
●
7
NUT; FRT HUB
M18
8-94243-927-1
02
1
9307-
●
●
10
NUT; FRT HUB BRG
8-94243-928-1
02
1
9307-
●
●
13
BEARING; HUB OUTER,FRT AXLE
TIMKEN
8-94361-801-0
02
1
9307-
●
●
15
PIN; WHEEL,FRT AXLE
8-94223-200-0
12
1
9307-
●
●
17
HUB; FRT AXLE
8-94242-570-3
02
1
9307-
●
●
19
BEARING; HUB INNER,FRT AXLE
NSK
8-94242-683-0
02
1
9307-
●
●
19
BEARING; HUB INNER,FRT AXLE
TIMKEN
8-94361-804-0
02
1
9307-
●
●
25
ROTOR; DISC BRK,FRT
8-94232-375-1
02
1
9307-9406
●
25
ROTOR; DISC BRK,FRT
8-94232-375-1
02
1
9407-
●
25
ROTOR; DISC BRK,FRT
EUROPEAN BASIC EQUIPMENT(EK4)
8-94232-375-1
02
1
9407-
●
25
ROTOR; DISC BRK,FRT
8-94328-225-0
02
1
9307-9406
●
25
ROTOR; DISC BRK,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
8-94328-225-0
02
1
9407-
●
26
BOLT; BRK,DISC TO HUB
5-09000-045-1
12
1
9307-
●
●
28
SEAL; OIL,FRT HUB
8-94169-621-0
02
1
9307-
●
●
30
RING; EXCITER,FRT HUB
8-94243-064-1
02
1
9307-
●
●
31
COVER; DUST,FRT BRAKE
8-94242-574-1
01
1
9307-
●
●
31
COVER; DUST,FRT BRAKE
8-94242-573-1
01
1
9307-
●
●
