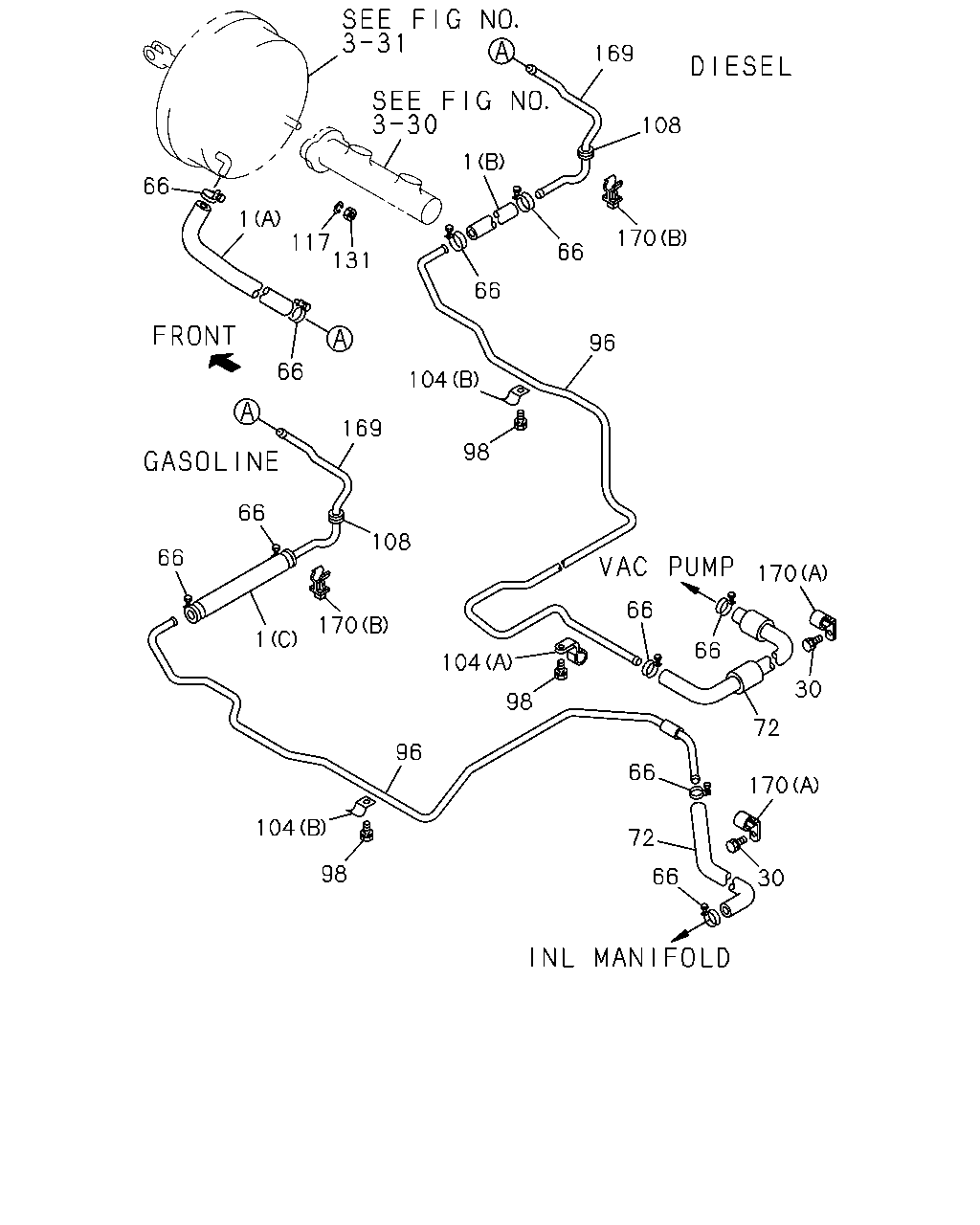

3-60 — BRAKE PIPING; VACUUM (#46808) — 21 parça
çizim 16565
169 108 1 66 1 117 131 170 66 66 96 66 104 169 98 66 108 66 170 66 170 1 66 104 30 98 72 96 66 170 104 72 98 66 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; VAC,M/VAC TO VAC PIPE
(A) L=250 		8-94116-728-1 01 1 9307- ● ●
1 HOSE; VAC,M/VAC TO VAC PIPE
4FG1 ENG(RLL) (B) L=160 SERVICED BY L=3000 		0-08158-300-0 01 1 9307- ● ●
1 HOSE; VAC,M/VAC TO VAC PIPE
4ZC1 ENG(LR9) (C) L=160 W/CHECK VALVE 		8-94106-553-1 01 1 9307- ● ●
30 BOLT; CLIP,VAC PIPE
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9307- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 06 1 9307- ● ●
72 HOSE; VAC,VAC PUMP TO PIPE
4FG1 ENG(RLL) L=340 W/INSULATOR:L=200 		8-94421-794-0 01 1 9307- ● ●
72 HOSE; VAC,VAC PUMP TO PIPE
4ZC1 ENG(LR9) POWER STEERING<N40> W/INSULATOR L=210 		8-97026-265-0 01 1 9307- ● ●
72 HOSE; VAC,VAC PUMP TO PIPE
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> W/INSULATOR L=80 		8-97026-266-0 01 1 9307- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4FG1 ENG(RLL) 		8-94423-532-2 01 1 9307- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4ZC1 ENG(LR9) 		8-94423-534-2 01 1 9307- ● ●
98 BOLT; VAC PIPE FIX
4FG1 ENG(RLL) M6X16 W/LK WASHER 		0-50040-616-0 02 1 9307- ● ●
98 BOLT; VAC PIPE FIX
4ZC1 ENG(LR9) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9307- ● ●
104 CLIP; VAC PIPE TO DEFLECTOR
4FG1 ENG(RLL) (A) ID=11 L=16 H=15.5 		5-09700-073-0 01 1 9307- ● ●
104 CLIP; VAC PIPE TO DEFLECTOR
4FG1 ENG(RLL) (B) 		9-09716-061-0 01 1 9307- ● ●
104 CLIP; VAC PIPE TO DEFLECTOR
4ZC1 ENG(LR9) (B) 		9-09716-061-0 02 1 9307- ● ●
108 GROMMET; PIPE 5-09983-001-0 01 1 9307- ● ●
117 WASHER; LK,VAC PIPE
4ZC1 ENG(LR9) ID=6.1 		9-09150-506-0 01 1 9307- ● ●
131 NUT; VAC PIPE FIX
4ZC1 ENG(LR9) M6 		9-09110-406-0 01 1 9307- ● ●
169 PIPE; VAC,BOOSTER SIDE 8-94421-751-0 01 1 9307- ● ●
170 CLIP; VAC PIPE
(A) 		5-09700-198-0 01 1 9307- ● ●
170 CLIP; VAC PIPE
(B) 		8-94234-808-0 01 1 9307- ● ●
