3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

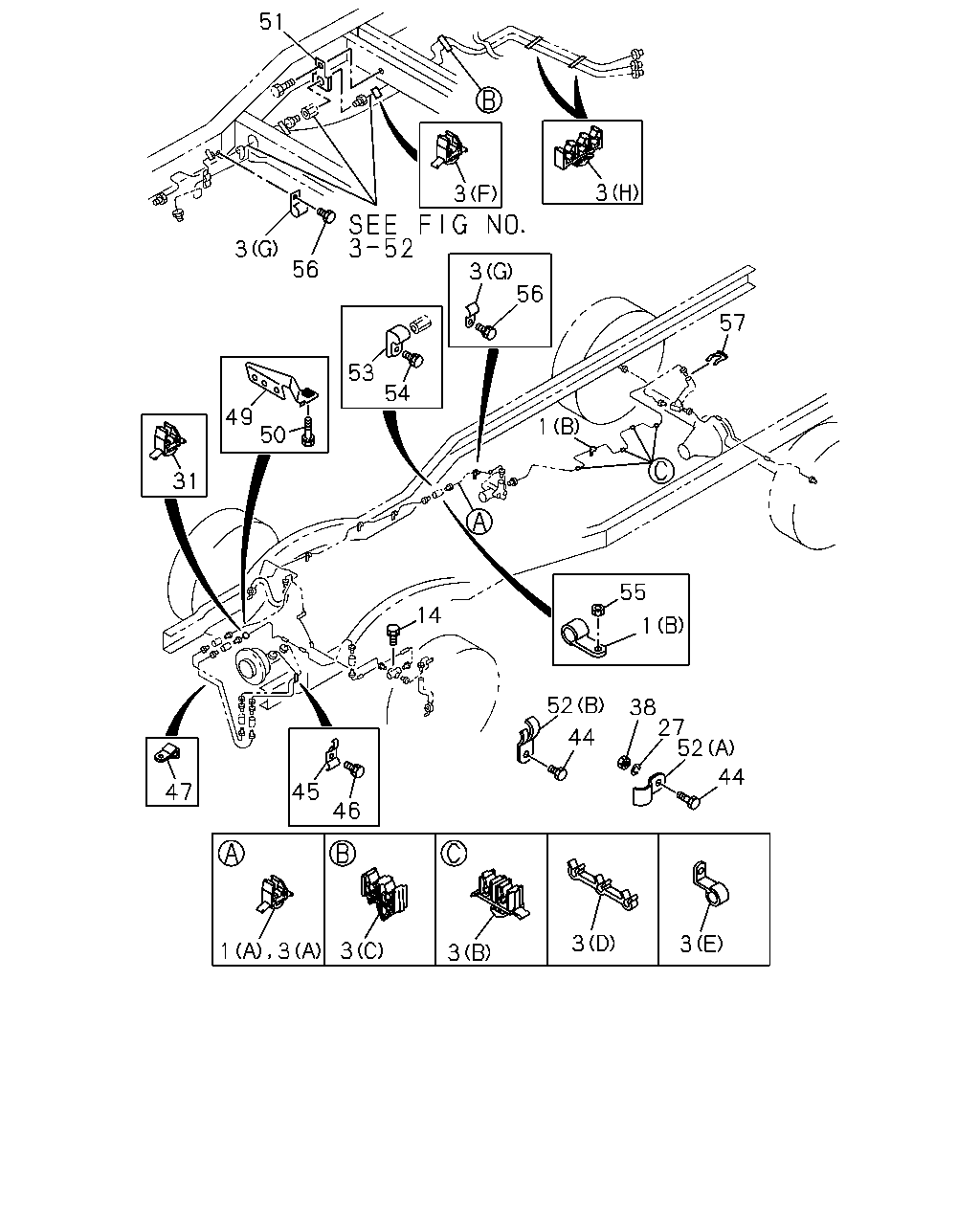

3-58 — FIXING PARTS; OIL PIPING
(#46807) — 35 parça
Tümü
A - WFB6VC
B - WFB6VF
51
3
3
3
56
3
56
57
53
54
49
50
1
31
55
1
14
52
44
38
27
52
44
45
46
47
3
3
3
3
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A) BLACK
8-94227-248-1
05
1
9307-9406
●
1
CLIP; OIL PIPE TO BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) BLACK
8-94227-248-1
05
1
9407-
●
1
CLIP; OIL PIPE TO BODY
EUROPEAN BASIC EQUIPMENT(EK4) (B) ID=16
9-09525-522-0
01
1
9407-
●
●
1
CLIP; OIL PIPE TO BODY
(A) BLACK
8-94227-248-1
06
1
9307-9406
●
1
CLIP; OIL PIPE TO BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) BLACK
8-94227-248-1
06
1
9407-
●
3
CLIP; BRK PIPE
4 DOOR WAGON(V4W) (A) BLACK
8-94227-248-1
01
1
9307-9406
●
3
CLIP; BRK PIPE
4 DOOR WAGON(V4W) (A) BLACK
8-94227-248-1
01
1
9407-
●
●
3
CLIP; BRK PIPE
(C) ID=4.8X2
8-94113-470-0
01
1
9307-
●
●
3
CLIP; BRK PIPE
(B)
8-94435-553-0
01
1
9307-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (H)
8-94107-743-0
04
1
9407-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (F) H=28.8
8-94222-877-1
01
1
9407-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (B)
8-94435-553-0
03
1
9407-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (D)
8-97043-991-0
01
1
9407-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (G) ID=6
9-09524-532-0
01
1
9407-
●
●
3
CLIP; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) (E) ID=9 H=20 L=20
9-09527-008-0
01
1
9407-
●
●
14
BOLT; CLIP,OIL PIPE
M8X25 W/LK WASHER
0-50040-825-0
01
1
9307-
●
●
14
BOLT; CLIP,OIL PIPE
EUROPEAN BASIC EQUIPMENT(EK4) M8X30 W/LK WASHER
0-50040-830-0
01
1
9407-
●
●
27
WASHER; LK,PIPE CLIP
ID=6.1
9-09150-506-0
01
1
9307-
●
●
31
CLIP; OIL PIPE
BLACK
8-94227-248-1
01
1
9307-
●
●
38
NUT; CLIP FIX
M6
9-09110-406-0
01
1
9307-
●
●
44
BOLT; CLIP TO FRAME
M6X16 W/LK WASHER
0-50040-616-0
05
1
9307-
●
●
45
CLIP; PIPE TO PEDAL BRKT
8-94170-328-1
01
1
9307-
●
●
46
BOLT; CLIP TO BRKT
M6X12 W/LK WASHER
0-50040-612-0
01
1
9307-
●
●
47
CLIP; PIPE TO MEMBER
8-94107-743-0
01
1
9307-
●
●
49
BRACKET; BRK PIPE
8-94170-379-0
01
1
9307-
●
●
50
BOLT; BRKT TO PANEL
M8X12 W/LK WASHER
0-50040-812-0
01
1
9307-
●
●
51
BRACKET; OIL PIPE
EUROPEAN BASIC EQUIPMENT(EK4)
8-97016-679-0
01
1
9407-
●
●
52
CLIP; BRK PIPE
(A) T=0.8
9-09916-161-0
04
1
9307-
●
●
52
CLIP; BRK PIPE
(B) T=1.6
9-09917-030-0
02
1
9307-
●
●
53
CLIP; UNION
9-09716-026-0
01
1
9307-
●
●
54
BOLT; CLIP TO S/MBR
M6X16 W/LK WASHER
0-50040-616-0
01
1
9307-
●
●
55
NUT; BRK PIPE
EUROPEAN BASIC EQUIPMENT(EK4) M6
9-09110-406-0
01
1
9407-
●
●
56
BOLT; CLIP
EUROPEAN BASIC EQUIPMENT(EK4) M6X12 W/LK WASHER
0-50040-612-0
01
1
9407-
●
●
56
BOLT; CLIP
EUROPEAN BASIC EQUIPMENT(EK4) M6X16 W/LK WASHER
0-50040-616-0
02
1
9407-
●
●
57
CLIP; BRK PIPE,RR AXLE
8-94107-711-0
01
1
9307-
●
●
