3 - Brakes, Brake System
▶

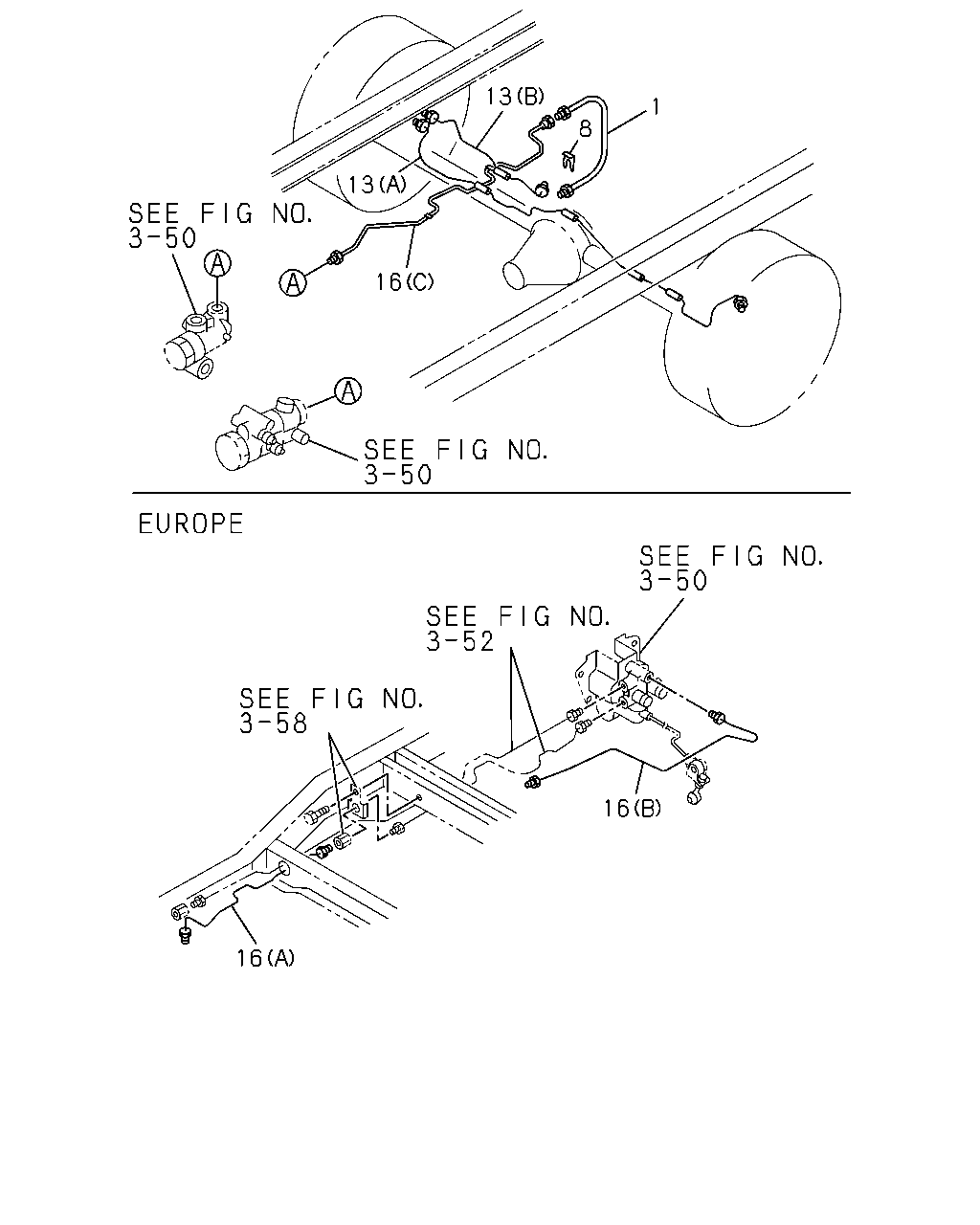

3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#46806) — 12 parça
Tümü
A - WFB6VC
B - WFB6VF
13
1
8
13
16
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
8-94464-643-0
01
1
9307-
●
●
8
CLIP; RR BRK
8-94137-662-0
01
1
9307-
●
●
13
PIPE; BRK,RR AXLE
(A)
8-94411-567-2
01
1
9307-
●
●
13
PIPE; BRK,RR AXLE
(B)
8-94425-171-1
01
1
9307-
●
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
4 DOOR WAGON(V4W) (C)
8-97041-523-0
01
1
9307-9406
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C)
8-97041-523-0
01
1
9407-
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
EUROPEAN BASIC EQUIPMENT(EK4) L.S.P.V.-FLEX (B)
8-97036-428-0
01
1
9407-
●
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
EUROPEAN BASIC EQUIPMENT(EK4) 3WAY-2WAY (A)
8-97047-479-0
01
1
9407-
●
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 DOOR WAGON(V4W) (C) L=2627
8-97016-666-0
01
1
9307-9406
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) (C) L=2627
8-97016-666-0
01
1
9407-
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
(C) L=2992
8-97016-668-0
01
1
9307-9406
●
16
PIPE; OIL,VLV TO RR FLEX HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) L=2992
8-97016-668-0
01
1
9407-
●
