3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#46804) — 30 parça

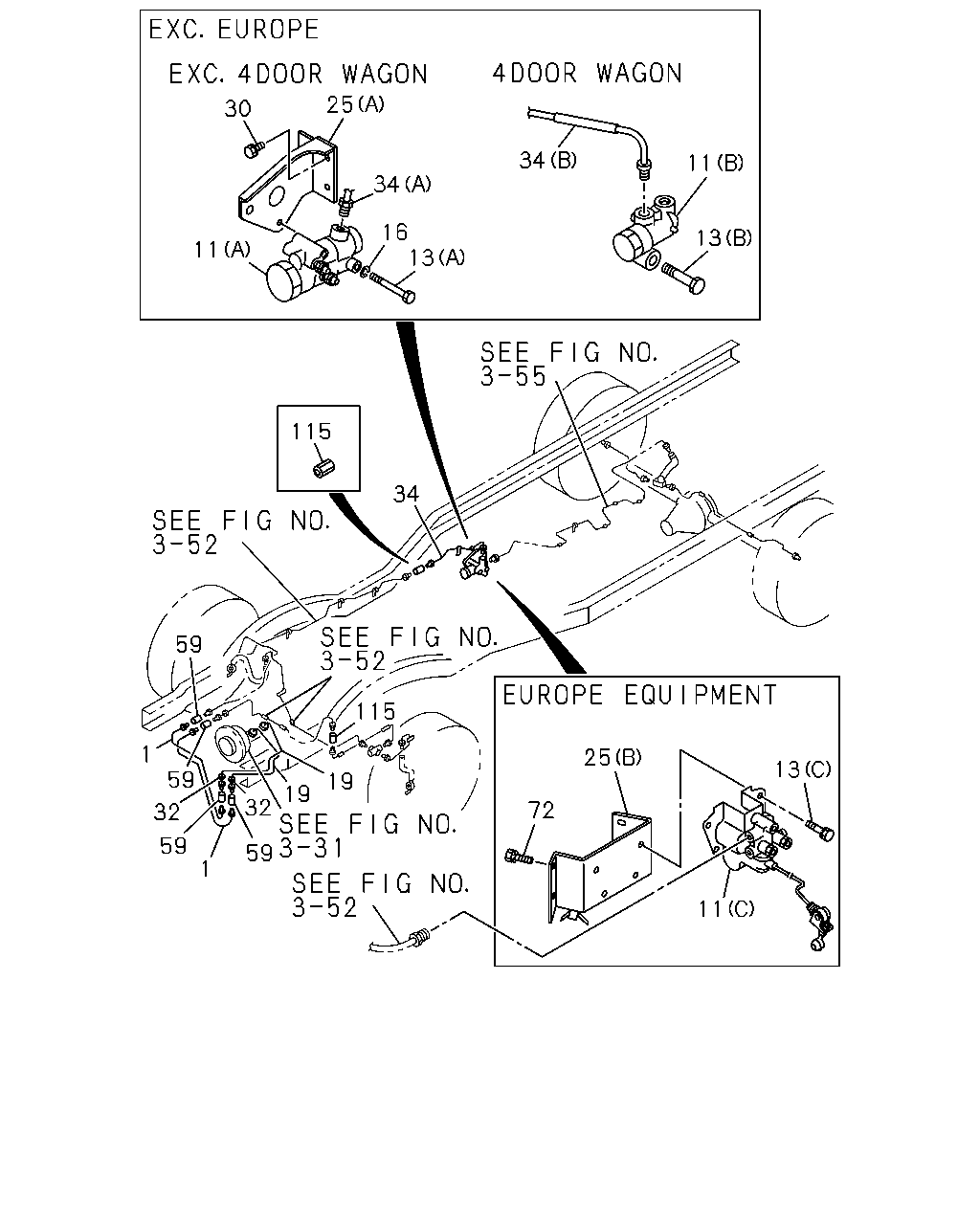

çizim 65642
30 25 34 11 34 16 13 13 11 115 34 115 59 59 19 32 32 59 59 1 19 1 25 13 72 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,M/CYL TO UNION
REAR 		8-94430-100-0 01 1 9307- ● ●
1 PIPE; OIL,M/CYL TO UNION
FRONT 		8-97016-655-0 01 1 9307- ● ●
11 VALVE; BRK CONT
4 DOOR WAGON(V4W) (B) 		8-94220-738-0 01 1 9307-9406 ●
11 VALVE; BRK CONT
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94220-738-0 01 1 9407- ●
11 VALVE; BRK CONT
EUROPEAN BASIC EQUIPMENT(EK4) (C) 		8-94364-640-0 01 1 9407- ● ●
11 VALVE; BRK CONT
EXC. 4 DOOR WAGON(V4W) (A) 		5-47660-026-3 01 1 9307-9406 ● ●
11 VALVE; BRK CONT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) (A) 		5-47660-026-3 01 1 9407- ● ●
13 BOLT; VLV TO BRKT
4 DOOR WAGON(V4W) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9307-9406 ●
13 BOLT; VLV TO BRKT
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9407- ●
13 BOLT; VLV TO BRKT
EUROPEAN BASIC EQUIPMENT(EK4) (C) M8X16 W/LK WASHER 		0-50040-816-0 04 1 9407- ● ●
13 BOLT; VLV TO BRKT
EXC. 4 DOOR WAGON(V4W) (A) M8X65 		0-10805-865-0 02 1 9307-9406 ● ●
13 BOLT; VLV TO BRKT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) (A) M8X65 		0-10805-865-0 02 1 9407- ● ●
16 WASHER; LK,VALVE
EXC. 4 DOOR WAGON(V4W) ID=8.2 		9-09150-508-0 02 1 9307-9406 ● ●
16 WASHER; LK,VALVE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) ID=8.2 		9-09150-508-0 02 1 9407- ● ●
19 PIPE; BRK,M/CYL TO UNION
FRONT 		8-94122-685-0 01 1 9307- ● ●
19 PIPE; BRK,M/CYL TO UNION
REAR 		8-94122-686-1 01 1 9307- ● ●
25 BRACKET; BRK CONT VALVE
EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94406-563-1 01 1 9407- ● ●
25 BRACKET; BRK CONT VALVE
EXC. 4 DOOR WAGON(V4W) (A) 		8-94233-496-4 01 1 9307-9406 ● ●
25 BRACKET; BRK CONT VALVE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) (A) 		8-94233-496-4 01 1 9407- ● ●
30 BOLT; PROPORTIONING BRKT TO BODY
EXC. 4 DOOR WAGON(V4W) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9307-9406 ● ●
30 BOLT; PROPORTIONING BRKT TO BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9407- ● ●
32 GROMMET; PIPE 5-09333-031-0 01 1 9307- ● ●
34 PIPE; BRK,UNION TO DSPV
4 DOOR WAGON(V4W) (B) 		8-97047-480-0 01 1 9307-9406 ●
34 PIPE; BRK,UNION TO DSPV
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97047-480-0 01 1 9407- ●
34 PIPE; BRK,UNION TO DSPV
EXC. 4 DOOR WAGON(V4W) (A) 		8-97016-663-0 01 1 9307-9406 ● ●
34 PIPE; BRK,UNION TO DSPV
EXC. EUROPEAN BASIC EQUIPMENT(EK4),4 DOOR WAGON(V4W) (A) 		8-97016-663-0 01 1 9407- ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 04 1 9307- ● ●
72 BOLT; BRKT TO BODY
EUROPEAN BASIC EQUIPMENT(EK4) M8X16 W/LK WASHER 		0-50040-816-0 04 1 9407- ● ●
72 BOLT; BRKT TO BODY
EUROPEAN BASIC EQUIPMENT(EK4) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9407- ● ●
115 UNION; OIL PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 9307- ● ●
