3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#46803) — 27 parça

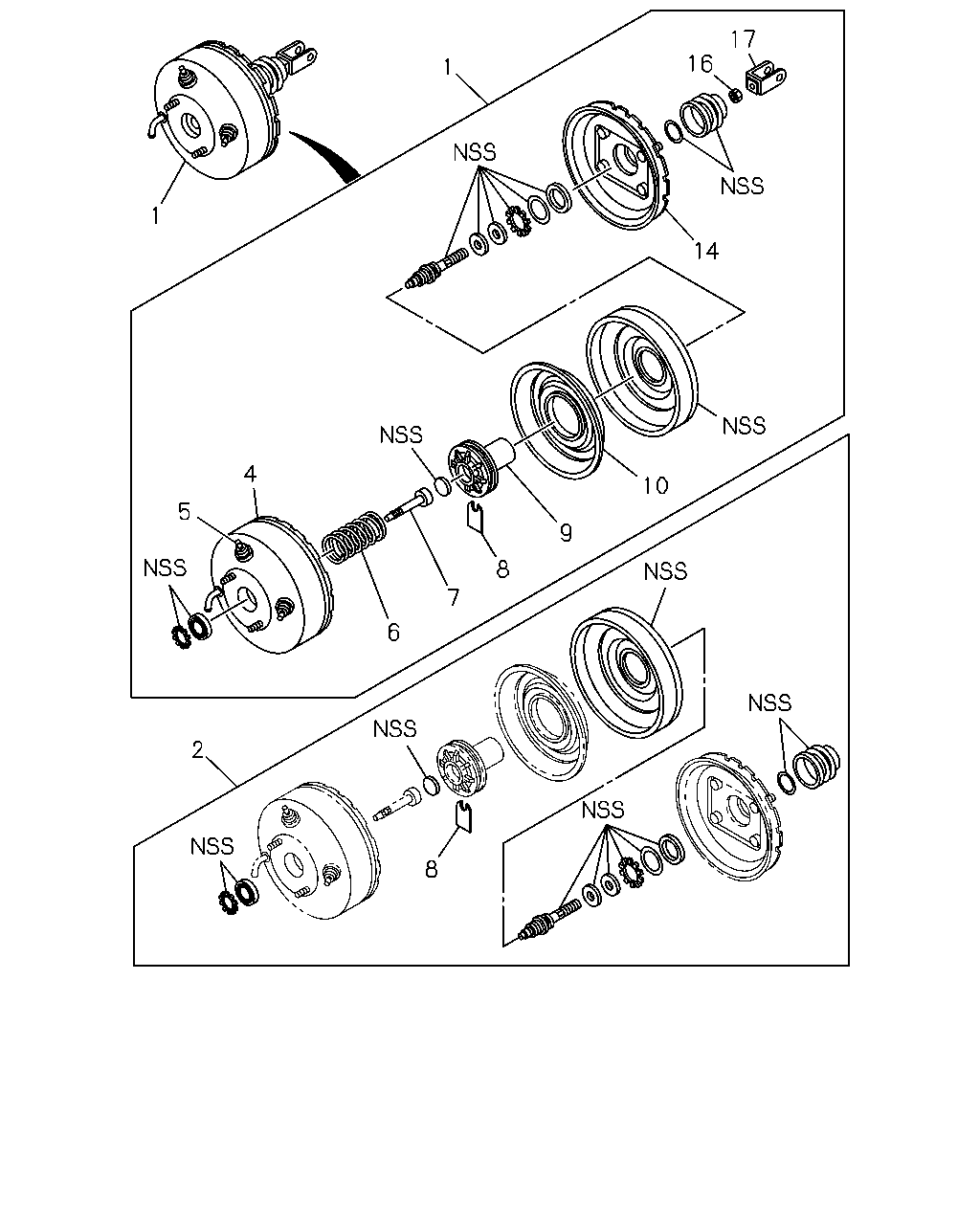

çizim 65643
17 16 1 1 14 4 10 5 9 8 7 6 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 MASTER VAC ASM; BRK
4FG1 ENG(RLL) 		8-94341-712-2 01 1 9307-9406 ● ●
1 MASTER VAC ASM; BRK
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94341-712-2 01 1 9407- ● ●
1 MASTER VAC ASM; BRK
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94341-714-2 01 1 9407- ● ●
1 MASTER VAC ASM; BRK
4ZC1 ENG(LR9) 		8-94341-711-2 01 1 9307-9406 ● ●
1 MASTER VAC ASM; BRK
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94341-711-2 01 1 9407- ● ●
2 REPAIR KIT; M/VAC 8-94133-072-2 01 1 9307-9406 ● ●
2 REPAIR KIT; M/VAC
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94133-072-2 01 1 9407- ● ●
2 REPAIR KIT; M/VAC
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94133-071-2 01 1 9407- ● ●
4 SHELL; FRT,M/VAC
4FG1 ENG(RLL) 		8-94432-158-0 01 1 9307-9406 ● ●
4 SHELL; FRT,M/VAC
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94432-158-0 01 1 9407- ● ●
4 SHELL; FRT,M/VAC
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94432-159-0 01 1 9407- ● ●
4 SHELL; FRT,M/VAC
4ZC1 ENG(LR9) 		8-94133-079-0 01 1 9307-9406 ● ●
4 SHELL; FRT,M/VAC
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94133-079-0 01 1 9407- ● ●
5 SWITCH; VAC,M/VAC
4FG1 ENG(RLL) 		8-94460-517-0 01 1 9307- ● ●
6 SPRING; M/VAC
9" 		8-94123-118-0 01 1 9307- ● ●
7 ROD; PUSH,M/VAC
9" 		8-94122-139-0 01 1 9307- ● ●
8 KEY; STOPPER,M/VAC
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94123-120-0 01 1 9407- ● ●
9 BODY; VALVE,M/VAC
9" 		8-94122-143-1 01 1 9307- ● ●
10 PLATE; DIAPH,M/VAC 8-94122-142-1 01 1 9307-9406 ● ●
10 PLATE; DIAPH,M/VAC
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94122-142-1 01 1 9407- ● ●
10 PLATE; DIAPH,M/VAC
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 9" 		8-94124-129-1 01 1 9407- ● ●
14 SHELL; RR,M/VAC 8-94361-897-0 01 1 9307-9406 ● ●
14 SHELL; RR,M/VAC
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94361-897-0 01 1 9407- ● ●
14 SHELL; RR,M/VAC
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94361-898-0 01 1 9407- ● ●
16 NUT; VLV ROD,M/VAC
M10 FLANGE 		0-91150-110-0 01 1 9307-9307 ● ●
16 NUT; VLV ROD,M/VAC
93-7-12- M10 FLANGE 		8-97096-430-0 01 1 9307- ● ●
17 CLEVIS; YOKE,M/VAC 8-94341-787-0 01 1 9307- ● ●
