0-27B — EXHAUST MANIFOLD (#4680) — 28 parça

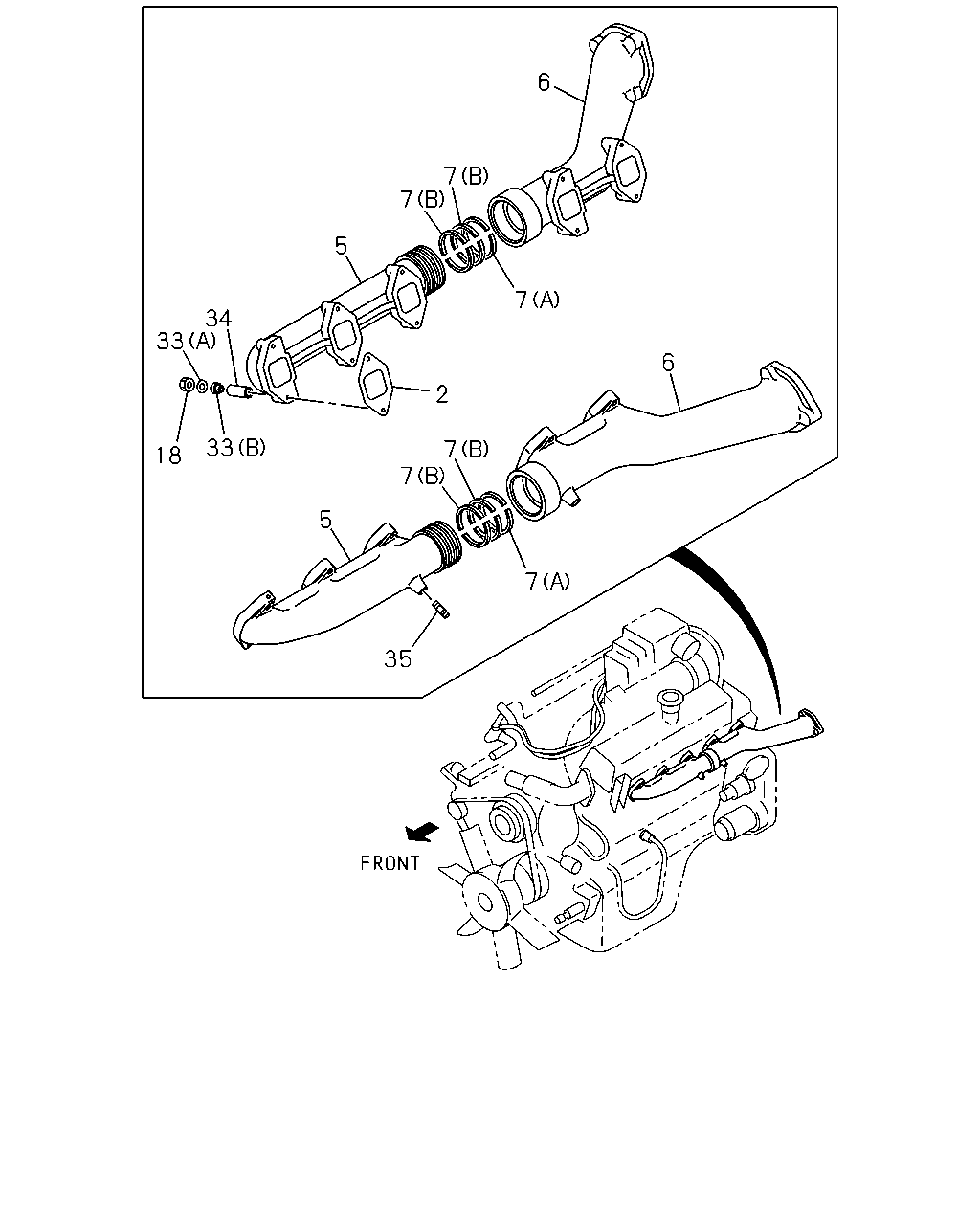

çizim 8738
6 7 7 5 7 34 33 6 2 33 7 7 18 5 7 35
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-185-0 10 1 9603-9904 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-185-0 10 1 9905- ● ● ●
5 MANIFOLD; EXH,FRT 1-14141-859-4 02 1 9603-9904 ●
5 MANIFOLD; EXH,FRT 1-14141-859-4 02 1 9905- ● ● ●
6 MANIFOLD; EXH,RR 1-14141-840-2 01 1 9603-9707 ●
6 MANIFOLD; EXH,RR 1-14141-875-2 01 1 9603-9707 ●
6 MANIFOLD; EXH,RR 1-14141-840-2 01 1 9708-9802 ●
6 MANIFOLD; EXH,RR 1-14141-875-2 01 1 9708-9802 ●
6 MANIFOLD; EXH,RR 1-14141-840-2 01 1 9803-9903 ●
6 MANIFOLD; EXH,RR 1-14141-875-2 01 1 9803-9903 ●
6 MANIFOLD; EXH,RR 1-14141-875-2 01 1 9904-9904 ●
6 MANIFOLD; EXH,RR 1-14141-840-2 01 1 9904-9904 ●
6 MANIFOLD; EXH,RR 1-14141-840-2 01 1 9905- ● ● ●
6 MANIFOLD; EXH,RR 1-14141-875-2 01 1 9905- ● ● ●
7 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 9603-9904 ●
7 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 9905- ● ● ●
7 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 9603-9904 ●
7 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 9905- ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 20 1 9603-9904 ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 20 1 9905- ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 20 1 9603-9904 ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 20 1 9603-9904 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 20 1 9905- ● ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 20 1 9905- ● ● ●
34 COLLAR; DIST,EXH MANIF
L=43 		1-14149-048-1 20 1 9603-9904 ●
34 COLLAR; DIST,EXH MANIF
L=43 		1-14149-048-1 20 1 9905- ● ● ●
35 STUD; BRKT
M8X16 L=28 		9-04110-816-0 01 1 9603-9904 ●
35 STUD; BRKT
M8X16 L=28 		9-04110-816-0 01 1 9905- ● ● ●
