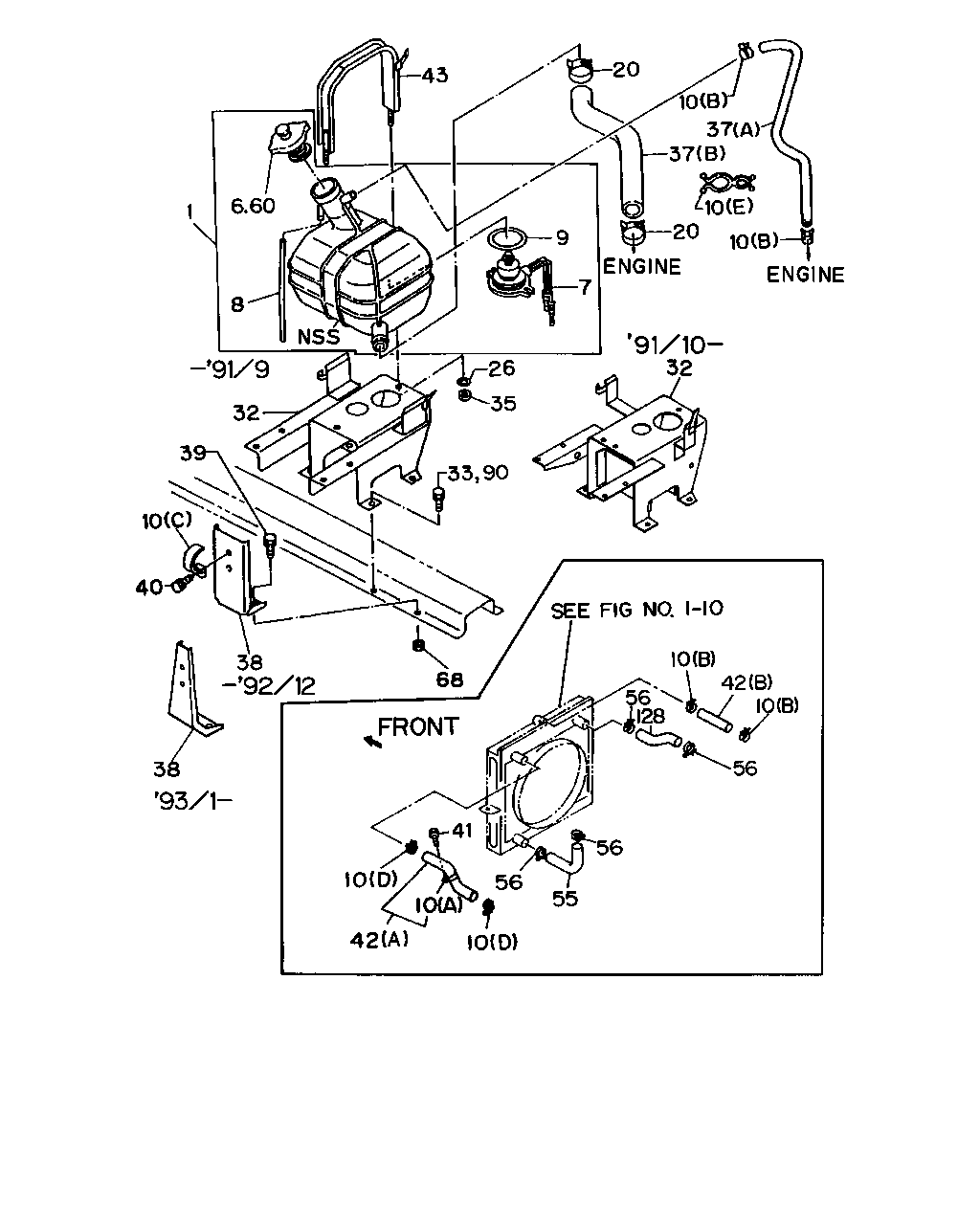

1-11A — RADIATOR HOSE AND SUB TANK (#468) — 56 parça
çizim 28256
43 20 10 37 37 10 20 10 9 7 26 35 33 90 10 42 10 56 128 56 56 55 56 41 10 10 42 10 38 38 68 40 10 39 32 8 1 6 60 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; SURGE,RAD 1-21481-039-5 01 1 8712-9306 ● ● ●
1 TANK; SURGE,RAD 1-21481-080-1 01 1 9307- ●
6 CAP; SUB TANK 1-21450-083-4 01 1 8712-9306 ● ● ●
7 SWITCH ASM; TANK 1-82480-022-3 01 1 8712-9306 ● ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9307- ●
8 HOSE; VINYL
L=1000 SERVICED BY L=3000 		0-03259-300-0 01 1 8712-9306 ● ● ●
8 HOSE; VINYL
L=680 SERVICED BY L=3000 		0-03259-300-0 01 1 9307- ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-101-0 01 1 8712-9306 ● ● ●
9 GASKET; SWITCH
ID=27.7 		9-09565-228-0 01 1 9307- ●
10 CLIP; RUBBER HOSE
(B) 		8-94238-572-0 02 1 8712-8903 ●
10 CLIP; RUBBER HOSE
(B) 		1-09704-102-0 02 1 8904-9001 ●
10 CLIP; RUBBER HOSE
(C) 		1-09700-703-0 01 1 8712- ● ● ●
10 CLIP; RUBBER HOSE
(D) 		1-09704-077-0 02 1 8712- ● ● ●
10 CLIP; RUBBER HOSE
(E) 		1-09709-125-0 03 1 8712- ● ● ●
10 CLIP; RUBBER HOSE
(A) 		1-09700-624-1 01 1 8712-9001 ● ●
10 CLIP; RUBBER HOSE
(B) 		8-94238-572-0 04 1 8712-8903 ● ●
10 CLIP; RUBBER HOSE
(B) 		1-09704-102-0 04 1 8904- ● ●
10 CLIP; RUBBER HOSE
(A) 		1-09700-624-2 01 1 9002- ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 8712- ● ● ●
26 WASHER
ID=8.4 		9-09160-508-0 02 1 8712-8904 ● ● ●
26 WASHER
ID=8.4 		9-09160-508-0 04 1 8905- ● ● ●
32 BRACKET; SUB TANK 1-21489-051-6 01 1 8712-8904 ● ● ●
32 BRACKET; SUB TANK 1-21489-111-0 01 1 8905-9109 ● ● ●
32 BRACKET; SUB TANK 1-21489-137-1 01 1 9110- ● ●
33 BOLT; BRKT
M10X25 		9-01911-025-0 04 1 8712-9002 ● ● ●
33 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9003- ● ●
35 NUT
M8 		9-09110-408-0 04 1 8712- ● ● ●
37 HOSE; RUBBER
(A) L=1050 		0-03259-105-0 01 1 8712-9001 ●
37 HOSE; RUBBER
(B) L=413 		1-21437-183-0 01 1 8712-9001 ●
37 HOSE; RUBBER
(A) L=1050 SERVICED BY L=3000 		0-03259-300-0 01 1 8712- ● ●
37 HOSE; RUBBER
(B) 		1-21437-162-2 01 1 8712- ● ●
38 BRACKET; RUBBER HOSE 1-21464-092-0 02 1 8712-9001 ● ● ●
38 BRACKET; RUBBER HOSE 1-21464-092-0 01 1 9002-9212 ● ●
38 BRACKET; RUBBER HOSE 1-21464-341-0 01 1 9301- ● ●
39 BOLT; BRKT FIX
M10X25 		9-01911-025-0 02 1 8712-9002 ● ● ●
39 BOLT; BRKT FIX
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003-9506 ● ●
39 BOLT; BRKT FIX
M10X20 FLANGE 		0-28081-020-0 02 1 9507- ● ●
40 BOLT; CLIP
M10X25 W/LK WASHER 		9-01901-025-0 01 1 8712-9001 ● ● ●
40 BOLT; CLIP
M10X25 		9-01911-025-0 01 1 9002-9002 ● ●
40 BOLT; CLIP
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9003-9506 ● ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9507- ● ●
41 BOLT
M10X20 		9-01971-020-0 01 1 8712-9002 ● ●
41 BOLT
M10X20 W/LK&PL WASHER 		0-50141-020-0 01 1 9003- ● ●
42 HOSE; RUBBER
(A) 		1-21437-189-0 01 1 8712-9001 ●
42 HOSE; RUBBER
(B) L=350 		0-03209-350-0 01 1 8712-9306 ● ● ●
42 HOSE; RUBBER
(B) L=350 SERVICED BY L=3000 		0-03259-300-0 01 1 9307- ●
42 HOSE; RUBBER
(A) 		1-21437-165-0 01 1 8712- ● ●
43 BAND ASM 1-21489-062-2 01 1 8712-9109 ● ● ●
43 BAND ASM 1-21489-139-2 01 1 9110- ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-050-2 01 1 8712- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 8712- ● ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9307- ●
68 NUT; BRKT
M10 		9-09110-510-0 02 1 8712- ● ● ●
90 BOLT; SUB TANK TO BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9010- ● ●
128 HOSE; WATER,RAD INL 1-21437-048-0 01 1 8712-9001 ●
128 HOSE; WATER,RAD INL 1-21437-289-0 01 1 8712- ● ●
