Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

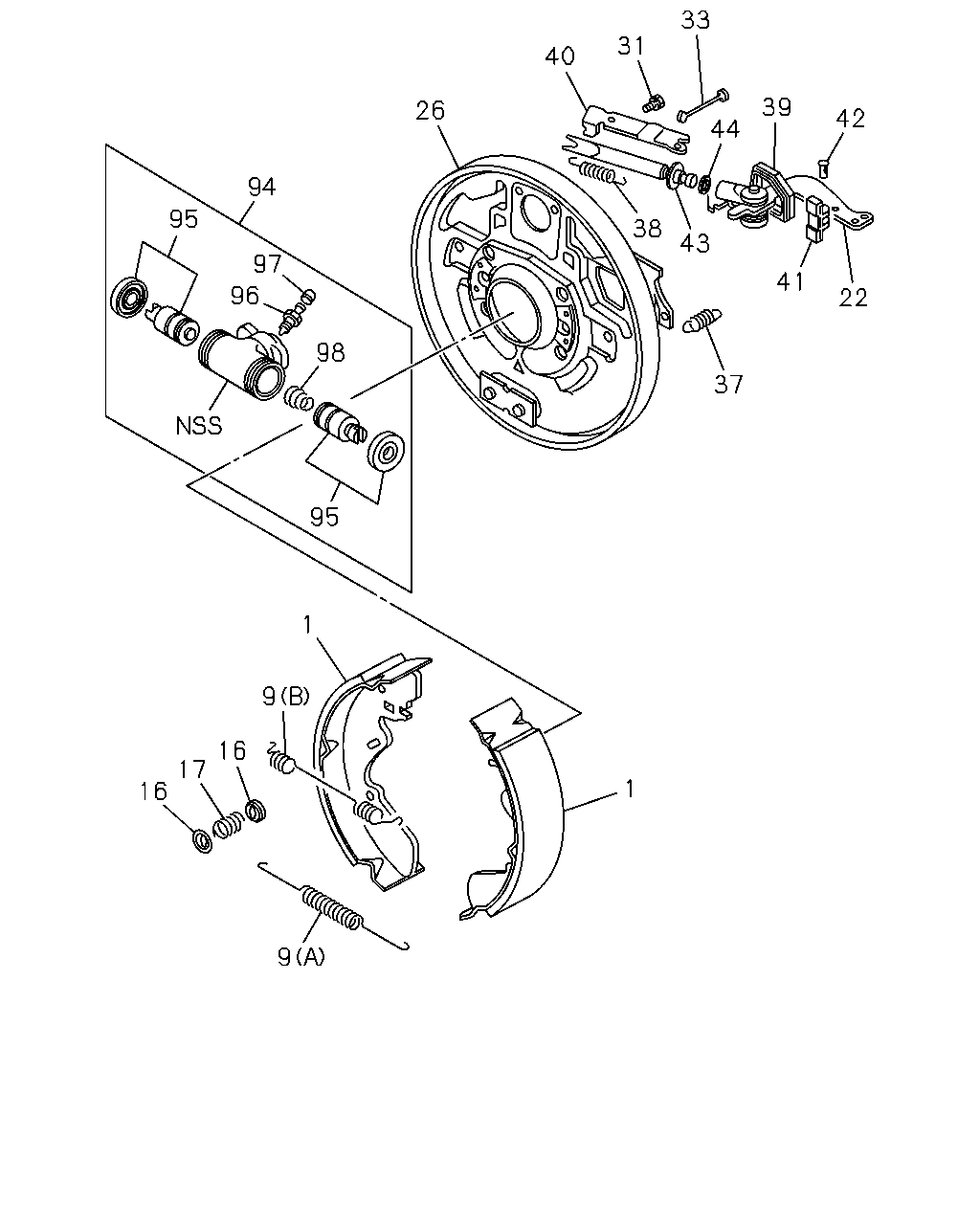

3-05 — REAR WHEEL BRAKE
(#46799) — 32 parça
Tümü
A - WFB6VC
B - WFB6VF
33
31
40
39
26
42
44
94
95
38
43
97
96
41
22
98
37
95
1
9
16
17
16
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,RR
8-97073-407-0
04
1
9307-9406
●
●
1
SHOE; BRK,RR
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
8-97073-407-0
04
1
9407-
●
●
1
SHOE; BRK,RR
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4)
8-97106-694-0
04
1
9407-
●
●
9
SPRING; RETURN,BRK SHOE
(A)
8-94230-595-0
02
1
9307-
●
●
9
SPRING; RETURN,BRK SHOE
(B)
8-94230-596-0
02
1
9307-
●
●
16
CUP; SHOE HOLDING
9-47162-033-0
08
1
9307-
●
●
17
SPRING; SHOE HOLD DOWN
9-09940-989-1
04
1
9307-
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97027-484-0
01
1
9307-
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97027-483-0
01
1
9307-
●
●
26
PLATE; BACK,RR BRK
8-94233-483-1
01
1
9307-
●
●
26
PLATE; BACK,RR BRK
8-94233-482-1
01
1
9307-
●
●
31
BOLT; RR WHEEL CYL
9-09602-058-1
04
1
9307-
●
●
33
PIN; SHOE HOLD DOWN
9-47162-617-0
04
1
9307-
●
●
37
SPRING; RETURN,PARKING LEVER
8-94233-499-0
02
1
9307-
●
●
38
SPRING; RETURN,LEVER
8-94233-201-0
02
1
9307-
●
●
39
BOOT; PARKING LEVER
8-94230-547-0
01
1
9307-
●
●
39
BOOT; PARKING LEVER
8-94233-484-0
01
1
9307-
●
●
40
BRACKET; LEVER,RETURN SPR
8-94232-351-0
01
1
9307-
●
●
40
BRACKET; LEVER,RETURN SPR
8-94238-530-0
01
1
9307-
●
●
41
STOPPER; PARKING LEVER
8-94230-546-0
02
1
9307-
●
●
42
PIN; STOPPER TO LEVER
8-94230-816-0
02
1
9307-
●
●
43
ADJUSTER; RR BRK
8-94232-353-0
01
1
9307-
●
●
43
ADJUSTER; RR BRK
8-94238-431-0
01
1
9307-
●
●
44
WASHER; ADJ SCREW
8-94233-202-0
02
1
9307-
●
●
94
CYLINDER; WHEEL,RR BRK
8-94233-500-6
01
1
9307-
●
●
94
CYLINDER; WHEEL,RR BRK
8-94256-308-5
01
1
9307-
●
●
95
CUP SET; RR WHEEL CYL
W/PISTON
5-87830-489-3
01
1
9307-
●
●
96
SCREW; BLEEDER,RR BRK
9-47615-027-0
02
1
9307-9412
●
●
96
SCREW; BLEEDER,RR BRK
9-47615-027-0
01
1
9501-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
9-47619-038-0
02
1
9307-9412
●
●
97
CAP; BLEEDER,RR WHEEL CYL
1-47619-009-0
01
1
9501-
●
●
98
SPRING; RR WHEEL CYL
8-94230-597-2
02
1
9307-
●
●
