Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

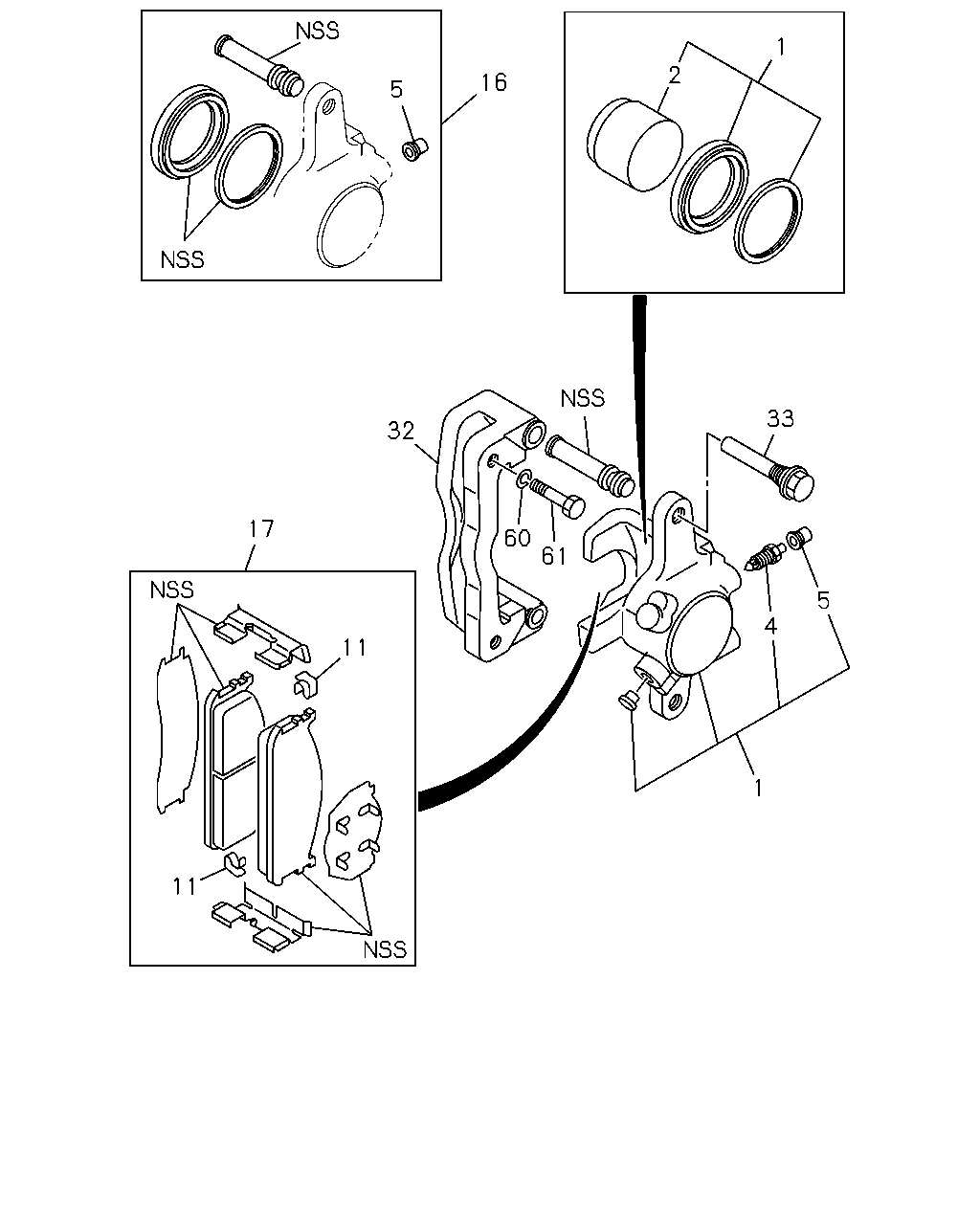

3-02 — FRONT DISC BRAKE CALIPER
(#46798) — 14 parça
Tümü
A - WFB6VC
B - WFB6VF
1
2
16
5
33
32
17
60
61
5
4
11
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CALIPER; FRT DISC BRK
8-94360-733-0
01
1
9307-
●
●
1
CALIPER; FRT DISC BRK
8-94360-732-0
01
1
9307-
●
●
2
PISTON; CALIPER,DISC BRK,FRT
8-94242-699-0
02
1
9307-
●
●
4
SCREW; BLEEDER,DISC BRK,FRT
L=27
8-94133-684-0
02
1
9307-
●
●
5
CAP; BLEEDER,DISC BRK,FRT
8-94202-898-0
02
1
9307-
●
●
11
INDICATOR; WEAR
8-94242-501-0
02
1
9307-
●
●
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-94242-493-0
01
1
9307-
●
●
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97078-457-0
01
1
9307-9406
●
●
17
PAD KIT; CALIPER,DISC BRK,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
8-97078-457-0
01
1
9407-
●
●
17
PAD KIT; CALIPER,DISC BRK,FRT
EUROPEAN BASIC EQUIPMENT(EK4)
8-94337-742-1
01
1
9407-
●
●
32
SUPPORT; FRT DISC BRK
8-94360-744-0
02
1
9307-
●
●
33
BOLT; SUPPORT BRKT TO DISC BRK
8-94137-939-0
04
1
9307-
●
●
60
WASHER; LK,SUPPORT BRKT TO KNUCKLE
ID=12.2
9-09150-612-0
02
1
9307-
●
●
61
BOLT; SUPPORT BRKT TO KNUCKLE
M12X25
5-09000-044-2
04
1
9307-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
