2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#46794) — 61 parça

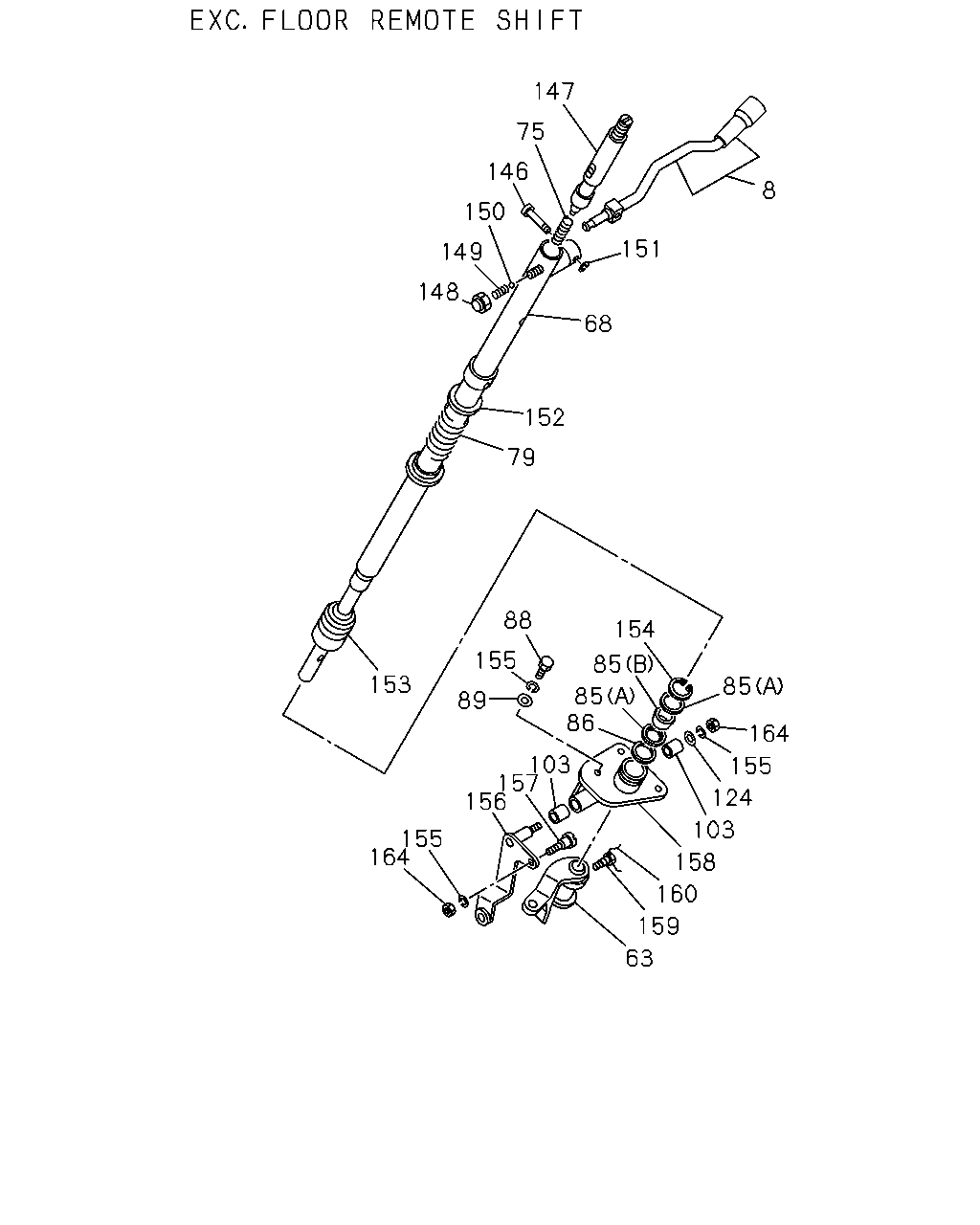

147 75 146 8 150 151 149 148 68 152 79 88 154 85 85 86 103 157 156 155 153 85 89 164 155 124 103 158 160 159 63 155 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-94425-745-1	01	1	9307-
8	LEVER; CHANGE EXC. FLOOR REMOTE SHIFT<M11>	8-94436-262-1	01	1	9307-
63	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94244-352-1	01	1	9307-
68	SHAFT; TRANS CONT,OUTER EXC. FLOOR REMOTE SHIFT<M11>	8-94404-747-2	01	1	9307-
75	SPRING; RETURN,3RD,4TH EXC. FLOOR REMOTE SHIFT<M11>	8-94233-527-1	01	1	9307-
79	SPRING; RETURN,REV EXC. FLOOR REMOTE SHIFT<M11>	5-09583-125-1	01	1	9307-
85	BUSHING; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> (A)	5-33657-070-0	02	1	9307-
85	BUSHING; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> (B)	9-33657-091-0	01	1	9307-
86	SEAL; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33619-029-1	01	1	9307-
88	BOLT; LWR SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> M8X14	0-20800-814-0	03	1	9307-
89	WASHER; PL,LWR SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	03	1	9307-
103	BUSHING; RELAY LEVER	8-94238-596-0	02	1	9307-
124	WASHER; PL,RELAY LEVER ID=8.4 OD=22	9-09160-708-0	01	1	9307-
146	PIN; HAND LEVER TO PIVOT EXC. FLOOR REMOTE SHIFT<M11>	5-09744-022-0	01	1	9307-
147	SHAFT; GEAR CONT,SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11>	8-94411-563-0	01	1	9307-
148	CAP; DETENT SPR,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94424-414-1	01	1	9307-
149	SPRING; DETENT,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94235-861-0	01	1	9307-
150	BALL; DETENT,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-00097-509-0	01	1	9307-
151	RING; SNAP,HAND LEVER EXC. FLOOR REMOTE SHIFT<M11>	5-09588-016-0	01	1	9307-
152	RETAINER; REV SPRING EXC. FLOOR REMOTE SHIFT<M11>	5-33659-049-0	02	1	9307-
153	BOOT; CONT SHAFT,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33614-007-1	01	1	9307-
154	RING; SNAP,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> OD=27.9	9-09180-126-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	05	1	9307-9406
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9407-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9407-
156	LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-94248-370-0	01	1	9307-
156	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94244-547-1	01	1	9307-
157	PIN; OPERATING,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33659-046-1	01	1	9307-
158	BRACKET; LWR SUPPORT,CONT ROD EXC. FLOOR REMOTE SHIFT<M11>	8-94244-485-1	01	1	9307-
159	SCREW; LOCKING,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94240-669-0	01	1	9307-
160	WIRE; LOCKING SCREW,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-08351-240-0	01	1	9307-
164	NUT; LWR SUPPORT M8	9-09110-408-0	02	1	9307-

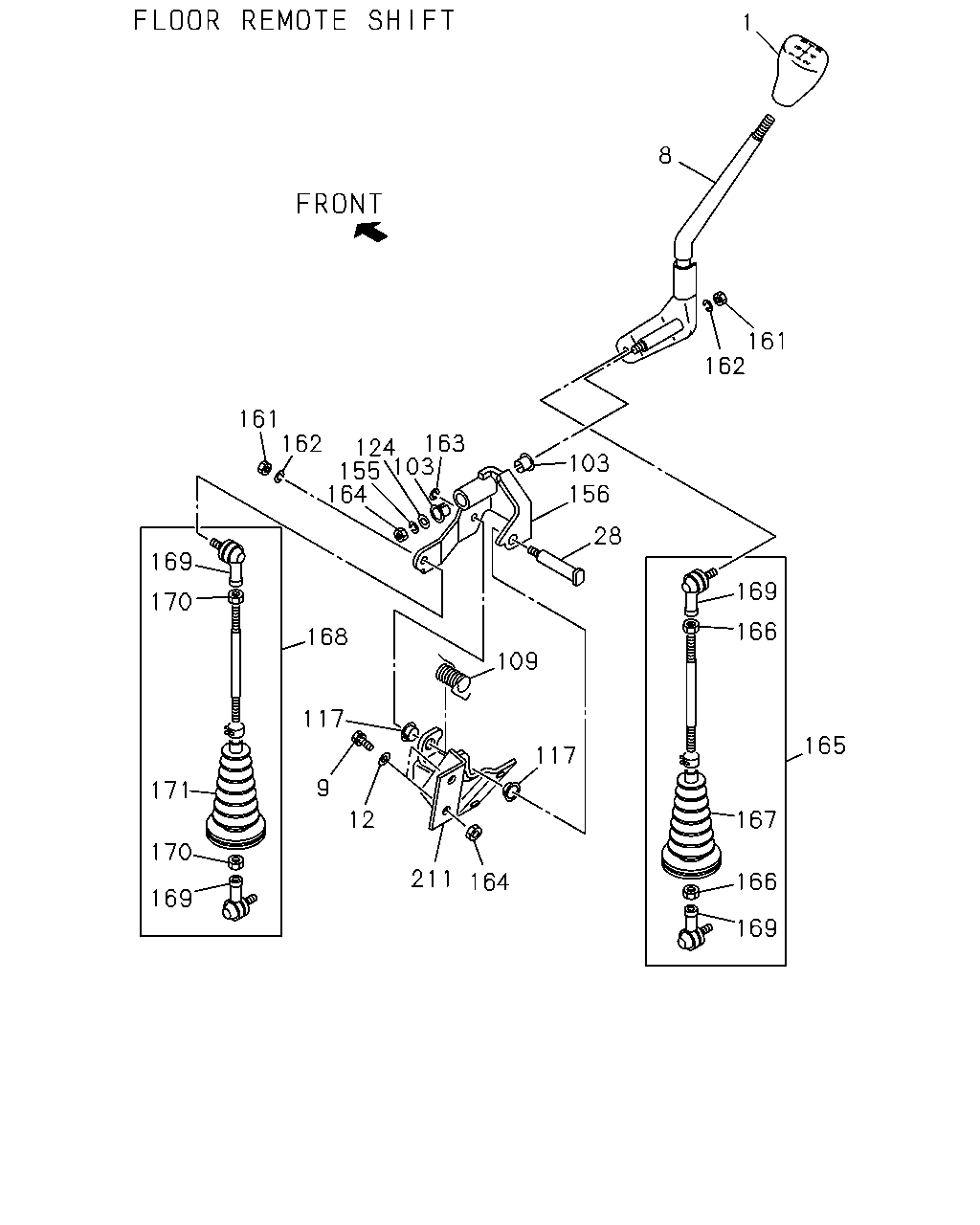

1 8 161 162 161 162 124 163 155 103 164 103 156 28 169 169 170 166 168 109 117 165 117 9 171 12 167 170 211 166 164 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-94108-652-0	01	1	9307-
8	LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-94425-745-1	01	1	9307-
8	LEVER; CHANGE EXC. FLOOR REMOTE SHIFT<M11>	8-94436-262-1	01	1	9307-
9	BOLT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9307-
12	WASHER; PL,CHANGE LEVER FLOOR REMOTE SHIFT<M11> ID=10.5 OD=22	9-09164-610-0	02	1	9307-
28	PIN; RELAY LEVER SELECT FLOOR REMOTE SHIFT<M11>	8-94248-648-0	01	1	9307-
103	BUSHING; RELAY LEVER	8-94238-596-0	02	1	9307-
109	SPRING; RETURN,SELECT LEVER FLOOR REMOTE SHIFT<M11>	8-94248-650-0	01	1	9307-
117	BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11>	8-94248-652-0	02	1	9307-
124	WASHER; PL,RELAY LEVER ID=8.4 OD=22	9-09160-708-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	05	1	9307-9406
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9407-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9407-
156	LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-94248-370-0	01	1	9307-
156	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94244-547-1	01	1	9307-
161	NUT; CONT ROD TO RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	02	1	9307-
162	WASHER; LK,CONT ROD FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9307-
163	WASHER; LK,OPERATING PIN,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
164	NUT; LWR SUPPORT M8	9-09110-408-0	02	1	9307-
165	ROD ASM; CONT SHIFT FLOOR REMOTE SHIFT<M11>	8-94248-629-2	01	1	9307-
166	NUT; LK,BALL JOINT TO CONT ROD FLOOR REMOTE SHIFT<M11>	9-09112-308-0	02	1	9307-
167	GROMMET; CONT ROD FLOOR REMOTE SHIFT<M11>	8-94254-719-0	01	1	9307-
168	ROD; LINK,SELECT,1ST FLOOR REMOTE SHIFT<M11>	8-94248-628-0	01	1	9307-
169	JOINT ASM; BALL,CONT ROD FLOOR REMOTE SHIFT<M11>	5-09760-018-0	04	1	9307-
170	NUT; LK,BALL JOINT,CONT ROD FLOOR REMOTE SHIFT<M11>	9-09112-308-0	02	1	9307-
171	GROMMET; CONT ROD FLOOR REMOTE SHIFT<M11>	8-94254-719-0	01	1	9307-
211	BRACKET; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-94254-837-1	01	1	9307-
