2-30 — GEAR SHIFTER AND QUADRANT BOX (#46793) — 28 parça

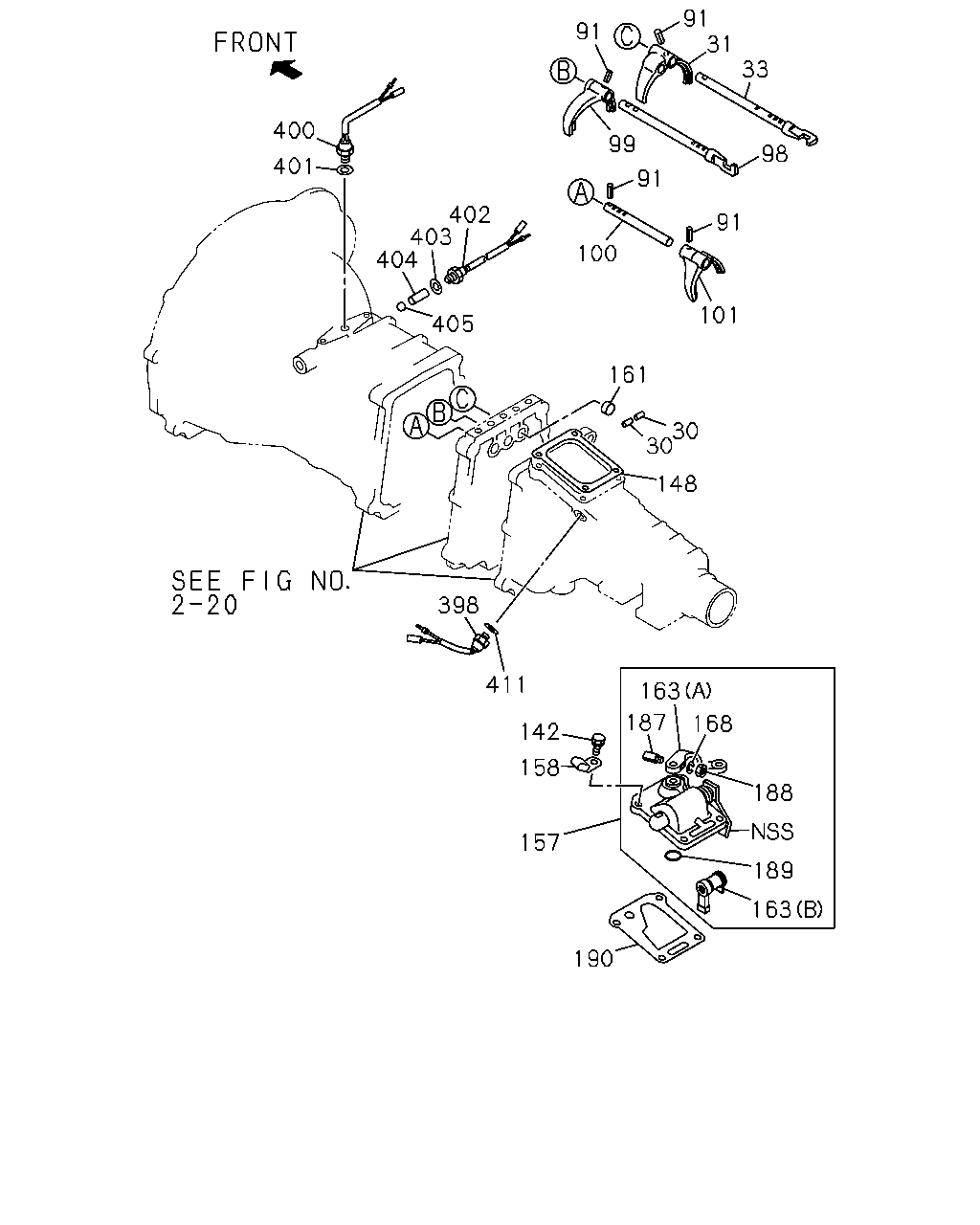

çizim 67101
91 31 33 91 400 99 91 98 401 402 403 404 91 100 101 405 161 30 30 148 398 411 163 187 168 142 158 188 157 189 163 190
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9307-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9307-
33 ROD; SHIFT,LOW & 2ND 8-94435-156-1 01 1 9307-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 9307-
98 ROD; SHIFT,TOP & 3RD 8-94372-766-0 01 1 9307-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9307-
100 ROD; SHIFT,REV & 5TH 8-94474-329-2 01 1 9307-
101 ARM; SHIFT,REV & 5TH 8-94440-061-3 01 1 9307-
142 BOLT; QUAD BOX
M8X20 W/DRY-ROCK 		8-97021-210-0 04 1 9307-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94462-112-0 02 1 9307-
157 BOX; QUAD,TRANS 8-94462-107-1 01 1 9307-
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9307-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9307-
163 LEVER; SELECT,INTERNAL
(A) 		5-33521-085-0 01 1 9307-
163 LEVER; SELECT,INTERNAL
(B) 		9-33521-194-1 01 1 9307-
168 WASHER; LK,SELECT LEVER
ID=6.1 		9-09150-506-0 01 1 9307-
187 BOLT; SELECT LEVER 9-09808-572-0 01 1 9307-
188 NUT; SELECT LEVER
M6 		9-09110-406-0 01 1 9307-
189 GASKET; SELECT LEVER,CONT BOX 9-09921-196-0 01 1 9307-
190 PLATE; OIL DEFLECTOR,TRANS 8-94343-883-0 01 1 9307-
398 SWITCH; REV LAMP 8-94411-366-1 01 1 9307-
400 SWITCH; SHIFT,TOP 3RD
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) 		8-94411-366-1 01 1 9307-
401 GASKET; SWITCH,TOP & 3RD
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2 		8-94462-114-0 01 1 9307-
402 SWITCH; SHIFT,2ND
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) 		8-94411-366-1 01 1 9307-
403 GASKET; SWITCH,2ND
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) ID=14.2 		8-94462-114-0 01 1 9307-
404 PLUNGER; SWITCH,2ND
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) D=5.5 L=20.7 		8-94225-228-0 01 1 9307-
405 BALL; SWITCH,2ND
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) 		9-00097-517-0 01 1 9307-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9307-
