2-03 — CLUTCH PEDAL AND CONTROL (#46785) — 19 parça

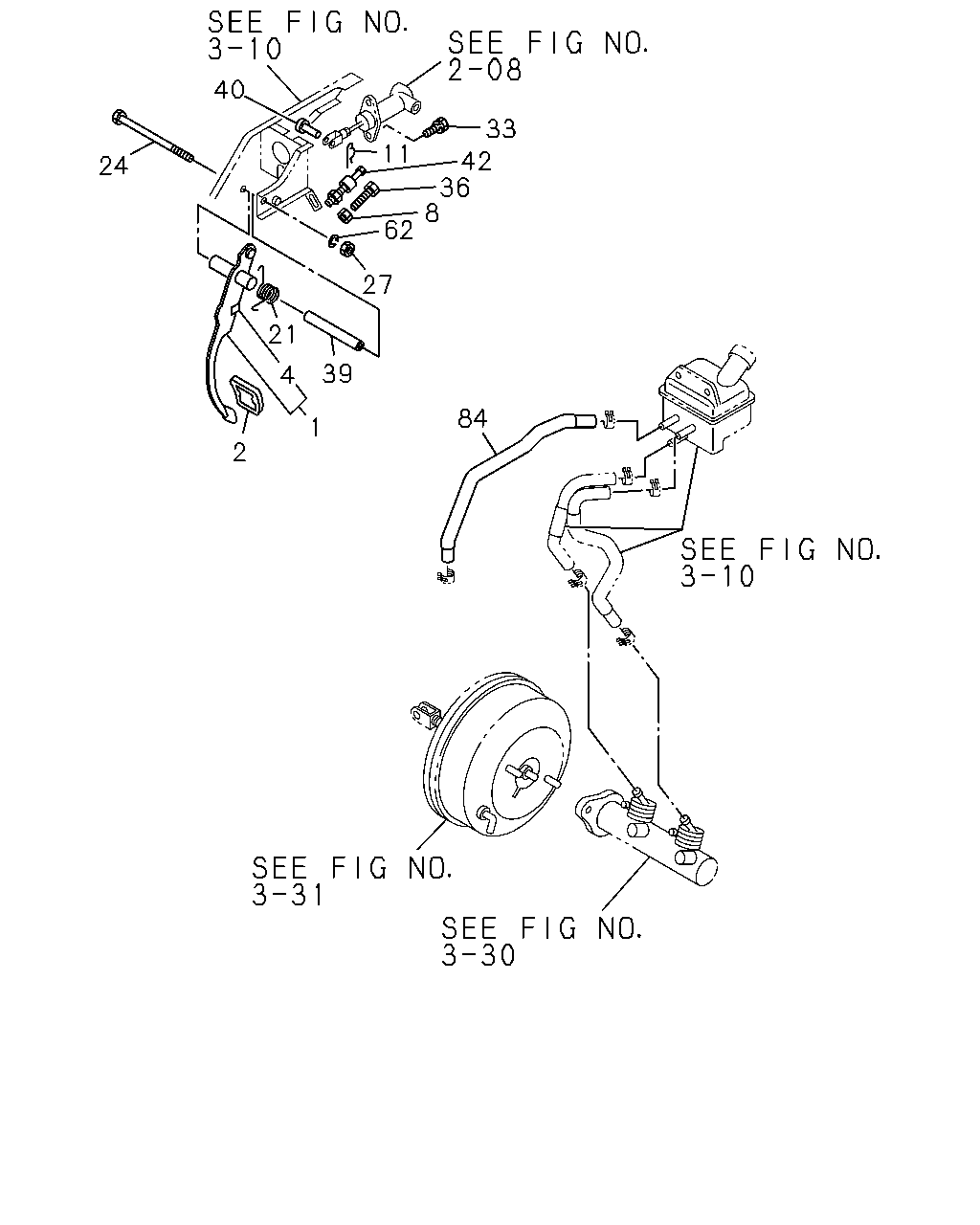

çizim 67733
40 11 33 42 36 8 62 24 27 21 39 4 84 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-94366-766-0 01 1 9307- ● ●
2 COVER; CLU PEDAL 8-94238-618-1 01 1 9307- ● ●
4 STOPPER; CLU PEDAL 5-31414-003-0 01 1 9307- ● ●
8 NUT; PIN TO PEDAL
4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) M10 		9-09111-410-0 01 1 9307-9406 ● ●
8 NUT; PIN TO PEDAL
4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) M10 		9-09111-410-0 01 1 9407- ● ●
8 NUT; PIN TO PEDAL
4FG1 ENG(RLL) M10 		9-09111-410-0 01 1 9407- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
L=27.7 		1-09747-005-0 01 1 9307- ● ●
21 SPRING; RETURN,CLU PEDAL 8-94367-106-0 01 1 9307- ● ●
24 SHAFT; CLU PEDAL
M12X111 		8-94366-845-0 01 1 9307- ● ●
27 NUT; FULCRUM PIN
M12 		9-99110-412-0 01 1 9307- ● ●
33 BOLT; CLU M/CYL TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9307- ● ●
36 BOLT; STOPPER,CLU PEDAL
4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) M10X32 		0-20801-032-0 01 1 9307-9406 ● ●
36 BOLT; STOPPER,CLU PEDAL
4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) M10X32 		0-20801-032-0 01 1 9407- ● ●
36 BOLT; STOPPER,CLU PEDAL
4FG1 ENG(RLL) M10X32 		0-20801-032-0 01 1 9407- ● ●
39 SLEEVE; CLU PEDAL 8-94226-613-1 01 1 9307- ● ●
40 PIN; JOINT,CLU DAMPER 8-94142-259-0 01 1 9307- ● ●
42 SWITCH; CLU
4ZC1 ENG(LR9) SAUDI ARABIA EQUIPMENT(EU2) 		5-82340-007-1 01 1 9307- ● ●
62 WASHER; LK,PIN TO PEDAL
ID=12.2 		9-09150-512-0 01 1 9307- ● ●
84 HOSE; RUBBER,CLU LINE 8-94171-375-1 01 1 9307- ● ●
