1-50 — EXHAUST PIPE AND SILENCER (#46783) — 168 parça

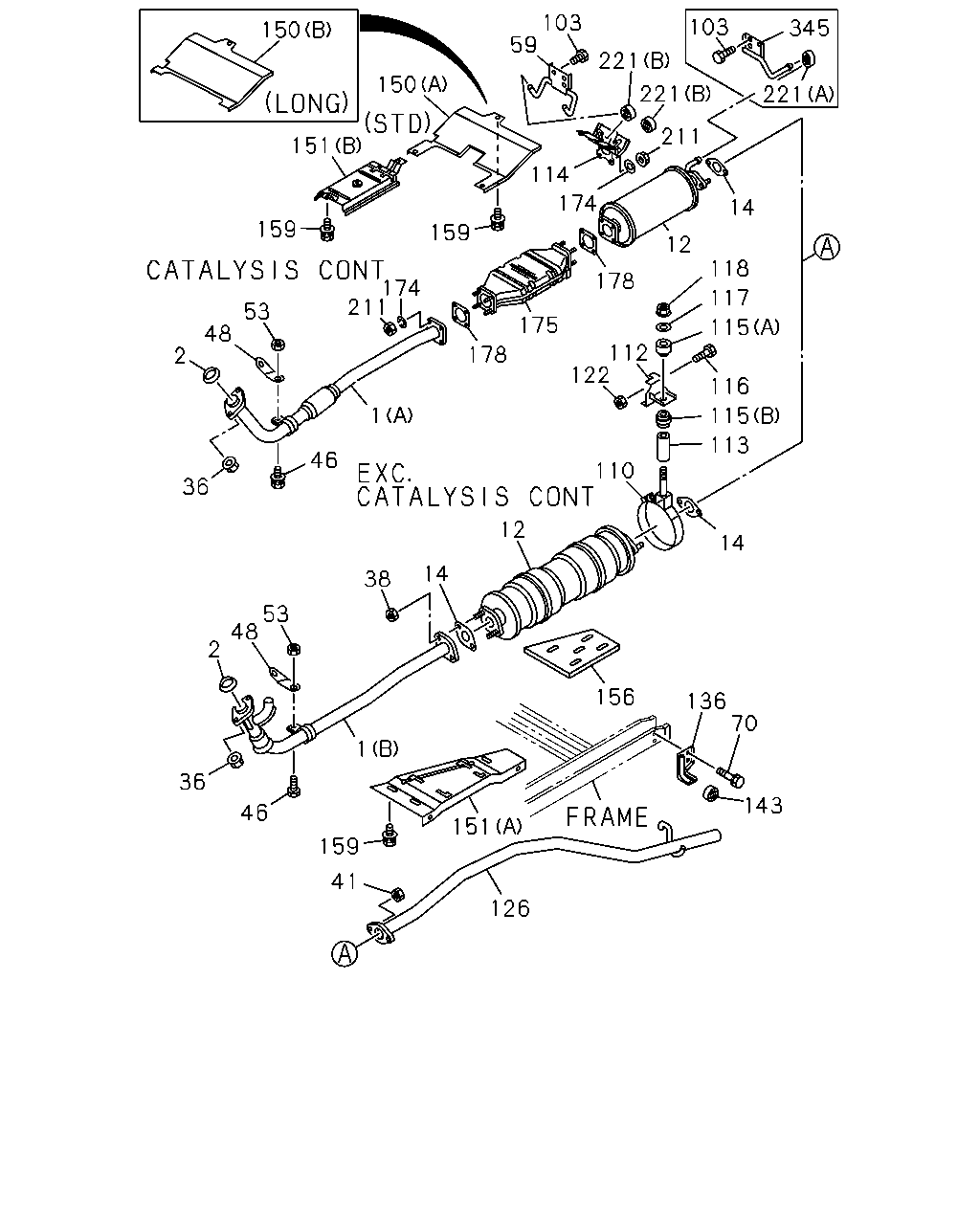

103 59 103 345 150 221 221 211 150 221 151 114 174 14 159 159 12 118 117 115 174 211 178 53 48 112 122 175 178 2 116 115 113 1 46 110 12 36 14 14 38 53 48 2 156 136 70 1 36 159 143 46 151 41 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH STANDARD(WFB6VC) CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A)	8-97106-959-0	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) HOT AIR INTAKE<RN4> (B) L=983	8-94418-832-3	01	1	9307-9406	●
1	PIPE; EXH STANDARD(WFB6VC) HOT AIR INTAKE<RN4> EXC. CATALYSIS CONTROL<6MZ> (B) L=983	8-94418-832-3	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) EXC. HOT AIR INTAKE<RN4> (B) L=983	8-94418-831-3	01	1	9307-9406	●
1	PIPE; EXH STANDARD(WFB6VC) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (B) L=983	8-94418-831-3	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A)	8-97106-958-0	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) HOT AIR INTAKE<RN4> (B) L=1323	8-94418-834-3	01	1	9307-9406	●
1	PIPE; EXH LONG(WFB6VF) HOT AIR INTAKE<RN4> EXC. CATALYSIS CONTROL<6MZ> (B) L=1323	8-94418-834-3	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) EXC. HOT AIR INTAKE<RN4> (B) L=1323	8-94418-833-3	01	1	9307-9406	●
1	PIPE; EXH LONG(WFB6VF) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (B) L=1323	8-94418-833-3	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) (D) L=976	8-94364-770-0	01	1	9307-9406		●
1	PIPE; EXH STANDARD(WFB6VC) EXC. TURBOCHARGER(K51) (D) L=976	8-94364-770-0	01	1	9407-		●
1	PIPE; EXH STANDARD(WFB6VC) TURBOCHARGER(K51) (C)	8-97073-236-0	01	1	9407-		●
1	PIPE; EXH LONG(WFB6VF) (D) L=1316	8-94385-038-0	01	1	9307-9406		●
1	PIPE; EXH LONG(WFB6VF) EXC. TURBOCHARGER(K51) (D) L=1316	8-94385-038-0	01	1	9407-		●
1	PIPE; EXH LONG(WFB6VF) TURBOCHARGER(K51) (C) L=1170	8-97073-237-0	01	1	9407-		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9307-9406	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9407-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER(K51)	8-97069-287-0	01	1	9407-		●
2	GASKET; PIPE TO MANIF D=61	9-22116-606-0	01	1	9307-9406		●
2	GASKET; PIPE TO MANIF EXC. TURBOCHARGER(K51) D=61	9-22116-606-0	01	1	9407-		●
12	SILENCER ASM; EXH	8-97041-612-0	01	1	9307-9406	●
12	SILENCER ASM; EXH EXC. CATALYSIS CONTROL<6MZ>	8-97041-612-0	01	1	9407-	●
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ>	8-94387-931-0	01	1	9407-	●
12	SILENCER ASM; EXH	8-97041-611-0	01	1	9307-9406		●
12	SILENCER ASM; EXH EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97041-611-0	01	1	9407-		●
12	SILENCER ASM; EXH TURBOCHARGER(K51)	8-97073-238-0	01	1	9407-		●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9307-9406	●	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9307-9406	●	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9407-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=55	8-97093-574-0	01	1	9407-	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9407-		●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-0	02	1	9307-	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	9307-9406	●	●
38	NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> M10 FLANGE	0-91150-110-0	02	1	9407-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9307-	●	●
46	BOLT; BRKT,EXH PIPE M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9307-9410	●	●
46	BOLT; BRKT,EXH PIPE M8X40 FLANGE	0-28680-840-0	01	1	9411-	●	●
48	BRACKET; EXH PIPE TO MTG CATALYSIS CONTROL<6MZ>	8-94455-969-0	01	1	9407-	●
48	BRACKET; EXH PIPE TO MTG	8-94171-326-0	01	1	9307-9406	●	●
48	BRACKET; EXH PIPE TO MTG EXC. CATALYSIS CONTROL<6MZ>	8-94171-326-0	01	1	9407-	●
48	BRACKET; EXH PIPE TO MTG	8-94171-326-0	01	1	9407-		●
53	NUT; BRKT TO CLAMP M8 FLANGE	0-91150-108-0	01	1	9307-	●	●
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	8-94320-819-1	01	1	9407-	●
70	BOLT; BRKT M8X25 W/LK&PL WASHER	8-94339-636-0	02	1	9307-9406	●	●
70	BOLT; BRKT M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9407-	●	●
103	BOLT; SILENCER BRKT FIX CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9407-9410	●
103	BOLT; SILENCER BRKT FIX CATALYSIS CONTROL<6MZ> M8X20 FLANGE	0-28680-820-0	04	1	9411-	●
110	BAND; MTG,SILENCER	8-94401-799-3	01	1	9307-9406	●	●
110	BAND; MTG,SILENCER EXC. EUROPEAN BASIC EQUIPMENT(EK4),CATALYSIS CONTROL<6MZ>	8-94401-799-4	01	1	9407-	●	●
110	BAND; MTG,SILENCER TURBOCHARGER(K51)	8-94360-490-3	01	1	9407-		●
112	BRACKET; HANGER	8-94470-526-0	01	1	9307-9406	●	●
112	BRACKET; HANGER EXC. CATALYSIS CONTROL<6MZ>	8-94470-526-0	01	1	9407-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9307-9406	●	●
113	COLLAR; DIST,MTG BRKT EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	9407-	●	●
114	BRACKET; EXH SILENCER CATALYSIS CONTROL<6MZ>	8-94320-818-0	01	1	9407-	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9307-9406	●	●
115	RUBBER; MTG,SILENCER EXC. CATALYSIS CONTROL<6MZ> (A)	8-94457-277-1	01	1	9407-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9307-9406	●	●
115	RUBBER; MTG,SILENCER EXC. CATALYSIS CONTROL<6MZ> (B)	8-94457-278-1	01	1	9407-	●	●
116	BOLT; BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-9406	●	●
116	BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> M8X45 W/LK WASHER	0-50040-845-0	01	1	9407-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=52	8-94319-341-0	01	1	9307-9406	●	●
117	WASHER; PL,SILENCER MTG BRKT EXC. CATALYSIS CONTROL<6MZ> OD=52	8-94319-341-0	01	1	9407-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9307-9406	●	●
118	NUT; SILENCER MTG BRKT EXC. CATALYSIS CONTROL<6MZ> M10 FLANGE	5-09440-006-0	01	1	9407-	●	●
122	NUT; HANGER BRKT M8 FLANGE	0-91150-108-0	02	1	9307-9406	●	●
122	NUT; HANGER BRKT EXC. CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91150-108-0	02	1	9407-	●	●
126	PIPE; EXH,RR	8-97041-615-0	01	1	9307-9406	●	●
126	PIPE; EXH,RR EXC. EUROPEAN BASIC EQUIPMENT(EK4),CATALYSIS CONTROL<6MZ>	8-97041-615-0	01	1	9407-	●	●
126	PIPE; EXH,RR CATALYSIS CONTROL<6MZ>	8-97041-616-0	01	1	9407-	●
126	PIPE; EXH,RR EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-352-0	01	1	9407-		●
136	BRACKET; MTG,EXH PIPE	8-94336-132-0	01	1	9307-	●	●
143	RUBBER; SUPPORT T=28 55X44(OVAL)	8-94332-331-0	01	1	9307-	●	●
150	PROTECTOR; HEAT,CONV,UPR STANDARD(WFB6VC) CATALYSIS CONTROL<6MZ> (A)	8-94345-537-0	01	1	9407-	●
150	PROTECTOR; HEAT,CONV,UPR LONG(WFB6VF) CATALYSIS CONTROL<6MZ> (B)	8-94345-450-1	01	1	9407-	●
151	PROTECTOR; HEAT,EXH PIPE (A)	8-94440-405-2	01	1	9307-	●
151	PROTECTOR; HEAT,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94385-245-1	01	1	9407-	●
151	PROTECTOR; HEAT,EXH PIPE	8-94429-668-2	01	1	9307-		●
156	INSULATOR; HEAT PROTECTOR	8-94440-382-0	01	1	9307-	●
159	BOLT; HEAT PROTECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	05	1	9307-	●	●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X18 W/LK&PL WASHER	0-50140-818-0	04	1	9407-	●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	8-94279-153-0	03	1	9407-	●
174	WASHER; PL CATALYSIS CONTROL<6MZ> ID=10.5	9-09164-510-0	08	1	9407-	●
175	CONVERTER; CATALYST CATALYSIS CONTROL<6MZ>	8-94457-066-0	01	1	9407-	●
178	GASKET; CONV TO MANIF CATALYSIS CONTROL<6MZ> ID=71	8-94324-194-0	02	1	9407-	●
211	NUT; CONV CATALYSIS CONTROL<6MZ> M10	8-94201-308-1	08	1	9407-	●
221	CLAMP; EXH SILENCER CATALYSIS CONTROL<6MZ> (A) T=28 55X44(OVAL)	8-94332-331-0	01	1	9407-	●
221	CLAMP; EXH SILENCER CATALYSIS CONTROL<6MZ> (B) T=16	8-94472-679-0	02	1	9407-	●
345	BRACKET; EXH SILENCER,RR CATALYSIS CONTROL<6MZ>	8-94320-817-1	01	1	9407-	●

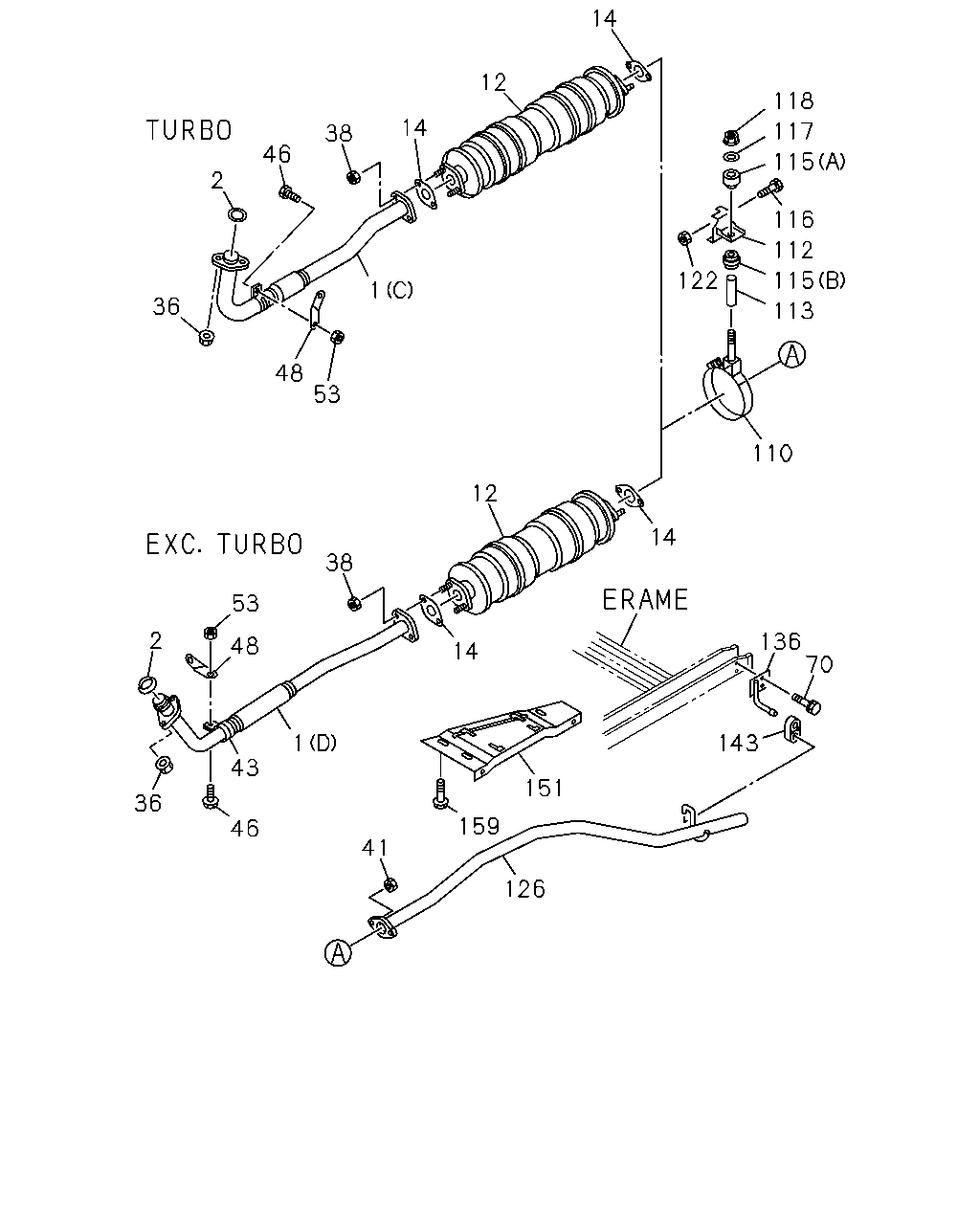

14 12 118 117 115 14 38 46 2 116 112 115 113 122 1 36 48 53 110 12 14 38 53 48 2 136 70 14 1 143 43 151 36 159 46 41 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH STANDARD(WFB6VC) CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A)	8-97106-959-0	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) HOT AIR INTAKE<RN4> (B) L=983	8-94418-832-3	01	1	9307-9406	●
1	PIPE; EXH STANDARD(WFB6VC) HOT AIR INTAKE<RN4> EXC. CATALYSIS CONTROL<6MZ> (B) L=983	8-94418-832-3	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) EXC. HOT AIR INTAKE<RN4> (B) L=983	8-94418-831-3	01	1	9307-9406	●
1	PIPE; EXH STANDARD(WFB6VC) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (B) L=983	8-94418-831-3	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A)	8-97106-958-0	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) HOT AIR INTAKE<RN4> (B) L=1323	8-94418-834-3	01	1	9307-9406	●
1	PIPE; EXH LONG(WFB6VF) HOT AIR INTAKE<RN4> EXC. CATALYSIS CONTROL<6MZ> (B) L=1323	8-94418-834-3	01	1	9407-	●
1	PIPE; EXH LONG(WFB6VF) EXC. HOT AIR INTAKE<RN4> (B) L=1323	8-94418-833-3	01	1	9307-9406	●
1	PIPE; EXH LONG(WFB6VF) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (B) L=1323	8-94418-833-3	01	1	9407-	●
1	PIPE; EXH STANDARD(WFB6VC) (D) L=976	8-94364-770-0	01	1	9307-9406		●
1	PIPE; EXH STANDARD(WFB6VC) EXC. TURBOCHARGER(K51) (D) L=976	8-94364-770-0	01	1	9407-		●
1	PIPE; EXH STANDARD(WFB6VC) TURBOCHARGER(K51) (C)	8-97073-236-0	01	1	9407-		●
1	PIPE; EXH LONG(WFB6VF) (D) L=1316	8-94385-038-0	01	1	9307-9406		●
1	PIPE; EXH LONG(WFB6VF) EXC. TURBOCHARGER(K51) (D) L=1316	8-94385-038-0	01	1	9407-		●
1	PIPE; EXH LONG(WFB6VF) TURBOCHARGER(K51) (C) L=1170	8-97073-237-0	01	1	9407-		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9307-9406	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9407-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER(K51)	8-97069-287-0	01	1	9407-		●
2	GASKET; PIPE TO MANIF D=61	9-22116-606-0	01	1	9307-9406		●
2	GASKET; PIPE TO MANIF EXC. TURBOCHARGER(K51) D=61	9-22116-606-0	01	1	9407-		●
12	SILENCER ASM; EXH	8-97041-612-0	01	1	9307-9406	●
12	SILENCER ASM; EXH EXC. CATALYSIS CONTROL<6MZ>	8-97041-612-0	01	1	9407-	●
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ>	8-94387-931-0	01	1	9407-	●
12	SILENCER ASM; EXH	8-97041-611-0	01	1	9307-9406		●
12	SILENCER ASM; EXH EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97041-611-0	01	1	9407-		●
12	SILENCER ASM; EXH TURBOCHARGER(K51)	8-97073-238-0	01	1	9407-		●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9307-9406	●	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9307-9406	●	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9407-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=55	8-97093-574-0	01	1	9407-	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-0	01	1	9407-		●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-0	02	1	9307-	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	9307-9406	●	●
38	NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> M10 FLANGE	0-91150-110-0	02	1	9407-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9307-	●	●
43	CLAMP; EXH PIPE STANDARD(WFB6VC)	8-94329-954-0	01	1	9307-9406		●
43	CLAMP; EXH PIPE STANDARD(WFB6VC) EXC. TURBOCHARGER(K51)	8-94329-954-0	01	1	9407-		●
46	BOLT; BRKT,EXH PIPE M8X40 W/LK&PL WASHER	0-50140-840-0	01	1	9307-9410	●	●
46	BOLT; BRKT,EXH PIPE M8X40 FLANGE	0-28680-840-0	01	1	9411-	●	●
48	BRACKET; EXH PIPE TO MTG CATALYSIS CONTROL<6MZ>	8-94455-969-0	01	1	9407-	●
48	BRACKET; EXH PIPE TO MTG	8-94171-326-0	01	1	9307-9406	●	●
48	BRACKET; EXH PIPE TO MTG EXC. CATALYSIS CONTROL<6MZ>	8-94171-326-0	01	1	9407-	●
48	BRACKET; EXH PIPE TO MTG	8-94171-326-0	01	1	9407-		●
53	NUT; BRKT TO CLAMP M8 FLANGE	0-91150-108-0	01	1	9307-	●	●
70	BOLT; BRKT M8X25 W/LK&PL WASHER	8-94339-636-0	02	1	9307-9406	●	●
70	BOLT; BRKT M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9407-	●	●
110	BAND; MTG,SILENCER	8-94401-799-3	01	1	9307-9406	●	●
110	BAND; MTG,SILENCER EXC. EUROPEAN BASIC EQUIPMENT(EK4),CATALYSIS CONTROL<6MZ>	8-94401-799-4	01	1	9407-	●	●
110	BAND; MTG,SILENCER TURBOCHARGER(K51)	8-94360-490-3	01	1	9407-		●
112	BRACKET; HANGER	8-94470-526-0	01	1	9307-9406	●	●
112	BRACKET; HANGER EXC. CATALYSIS CONTROL<6MZ>	8-94470-526-0	01	1	9407-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9307-9406	●	●
113	COLLAR; DIST,MTG BRKT EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	9407-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9307-9406	●	●
115	RUBBER; MTG,SILENCER EXC. CATALYSIS CONTROL<6MZ> (A)	8-94457-277-1	01	1	9407-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9307-9406	●	●
115	RUBBER; MTG,SILENCER EXC. CATALYSIS CONTROL<6MZ> (B)	8-94457-278-1	01	1	9407-	●	●
116	BOLT; BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-9406	●	●
116	BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> M8X45 W/LK WASHER	0-50040-845-0	01	1	9407-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=52	8-94319-341-0	01	1	9307-9406	●	●
117	WASHER; PL,SILENCER MTG BRKT EXC. CATALYSIS CONTROL<6MZ> OD=52	8-94319-341-0	01	1	9407-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9307-9406	●	●
118	NUT; SILENCER MTG BRKT EXC. CATALYSIS CONTROL<6MZ> M10 FLANGE	5-09440-006-0	01	1	9407-	●	●
122	NUT; HANGER BRKT M8 FLANGE	0-91150-108-0	02	1	9307-9406	●	●
122	NUT; HANGER BRKT EXC. CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91150-108-0	02	1	9407-	●	●
126	PIPE; EXH,RR	8-97041-615-0	01	1	9307-9406	●	●
126	PIPE; EXH,RR EXC. EUROPEAN BASIC EQUIPMENT(EK4),CATALYSIS CONTROL<6MZ>	8-97041-615-0	01	1	9407-	●	●
126	PIPE; EXH,RR CATALYSIS CONTROL<6MZ>	8-97041-616-0	01	1	9407-	●
126	PIPE; EXH,RR EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-352-0	01	1	9407-		●
136	BRACKET; MTG,EXH PIPE	8-94336-132-0	01	1	9307-	●	●
143	RUBBER; SUPPORT T=28 55X44(OVAL)	8-94332-331-0	01	1	9307-	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	8-94440-405-2	01	1	9307-	●
151	PROTECTOR; HEAT,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94385-245-1	01	1	9407-	●
151	PROTECTOR; HEAT,EXH PIPE	8-94429-668-2	01	1	9307-		●
159	BOLT; HEAT PROTECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	05	1	9307-	●	●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X18 W/LK&PL WASHER	0-50140-818-0	04	1	9407-	●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	8-94279-153-0	03	1	9407-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
