Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#46781) — 196 parça

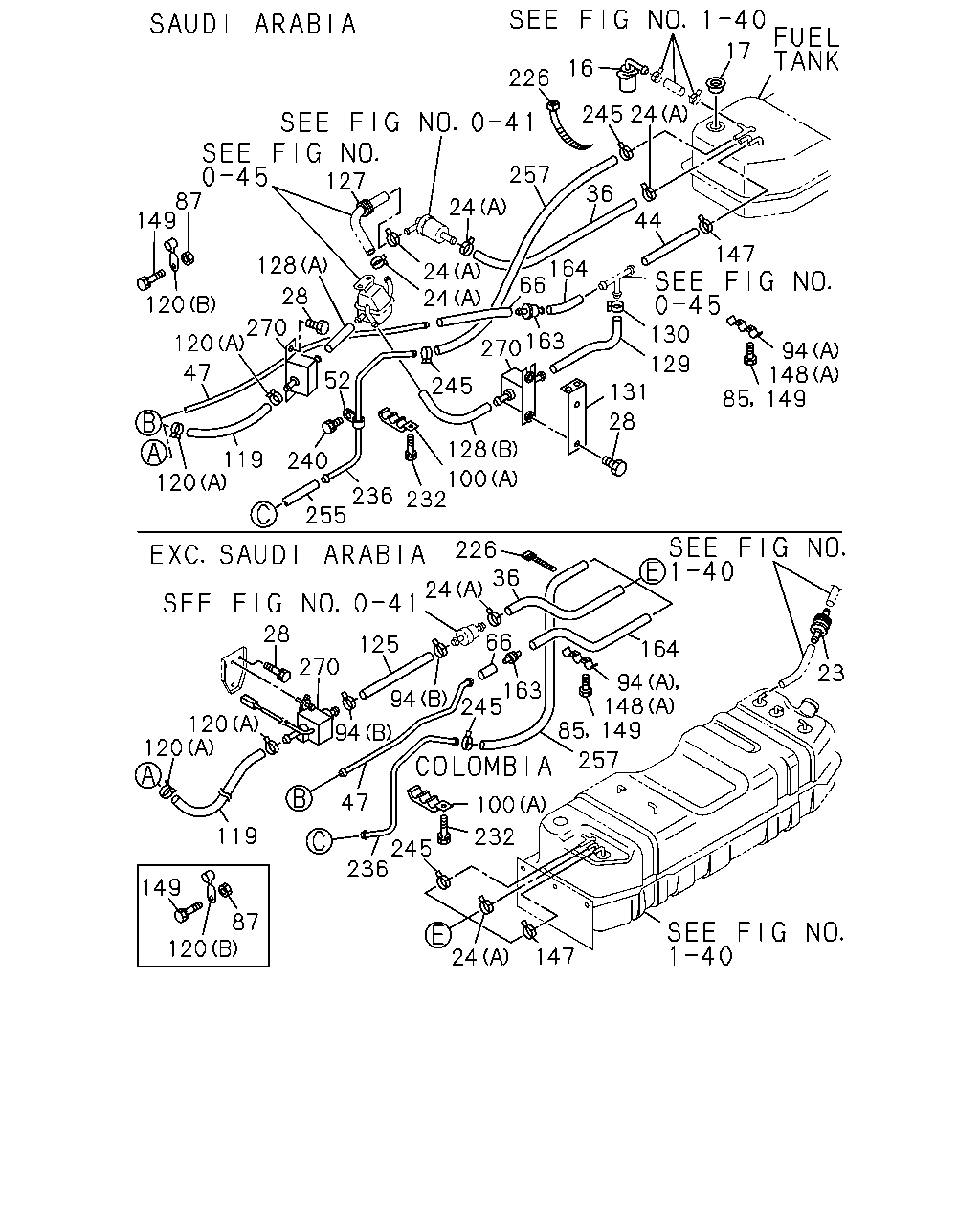

17 16 226 127 87 149 257 24 36 44 147 130 129 131 28 128 28 270 120 47 164 66 24 24 120 163 270 94 148 149 52 245 85 119 120 128 100 236 232 255 240 226 36 24 28 270 66 125 164 94 148 257 23 163 94 245 94 120 120 47 100 232 24 147 119 245 236 149 87 120 85 149 245 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	VALVE; FLOAT,FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94173-276-0	02	1	9307-9406	●
16	VALVE; FLOAT,FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94173-276-0	02	1	9407-	●
16	VALVE; FLOAT,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4)	8-94173-276-0	02	1	9407-		●
17	SEAL; FLOAT,VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-338-2	02	1	9307-9406	●
17	SEAL; FLOAT,VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-338-2	02	1	9407-	●
17	SEAL; FLOAT,VALVE EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-338-2	02	1	9407-		●
23	VALVE; 2 WAY,EVAP EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9307-9406	●
23	VALVE; 2 WAY,EVAP	8-94151-559-1	01	1	9307-9406		●
23	VALVE; 2 WAY,EVAP EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9407-	●
23	VALVE; 2 WAY,EVAP EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94151-559-1	01	1	9407-		●
24	CLIP; FUEL HOSE SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	09	1	9307-	●
24	CLIP; FUEL HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	02	1	9307-9406	●
24	CLIP; FUEL HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	02	1	9407-	●
24	CLIP; FUEL HOSE TURBOCHARGER(K51) (A) ID=14	8-94238-572-0	02	1	9407-		●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	04	1	9307-		●
24	CLIP; FUEL HOSE (B) ID=13 & 15	8-94428-546-0	01	1	9307-		●
28	BOLT; BRKT,FUEL PUMP STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2) M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-	●
28	BOLT; BRKT,FUEL PUMP M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-	●
36	HOSE; FUEL,FILTER TO TANK EXC. SAUDI ARABIA EQUIPMENT(EU2) L=400	8-94364-372-0	01	1	9307-	●
36	HOSE; FUEL,FILTER TO TANK STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2) L=350 SERVICED BY L=3000	0-01258-300-0	01	1	9307-	●
36	HOSE; FUEL,FILTER TO TANK LONG(WFB6VF) SAUDI ARABIA EQUIPMENT(EU2) L=320	8-94364-374-0	01	1	9307-	●
44	HOSE; RUBBER,3 WAY JOINT TO FUEL TANK SAUDI ARABIA EQUIPMENT(EU2) L=170 SERVICED BY L=3000	0-01254-300-0	01	1	9307-	●
47	PIPE; FUEL,RETURN	8-97016-772-0	01	1	9307-9406	●
47	PIPE; FUEL,RETURN	8-97016-775-0	01	1	9407-	●
47	PIPE; FUEL,RETURN	8-97016-773-0	01	1	9307-9406		●
47	PIPE; FUEL,RETURN	8-97016-774-0	01	1	9407-		●
52	CLIP; EVAP PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=7 L=16	9-09524-622-0	01	1	9307-9406	●
52	CLIP; EVAP PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> ID=7 L=16	9-09524-622-0	01	1	9407-	●
66	HOSE; FUEL,RETURN PIPE L=70	8-94363-218-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
85	BOLT; CLIP,FUEL HOSE M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●
87	NUT; CLIP,FUEL HOSE LONG(WFB6VF) M8	9-09110-408-0	01	1	9307-	●
94	CLIP; HOSE,FILTER (C) ID=13 & 15	8-94233-594-0	01	1	9307-	●
94	CLIP; HOSE,FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=16	8-94238-568-0	02	1	9307-	●
94	CLIP; HOSE,FILTER LONG(WFB6VF) (A)	8-94227-880-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (A) 3WAY	8-94239-646-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (B) ID=5 & 8	5-09700-165-0	02	1	9307-		●
119	HOSE; FUEL PUMP TO FEED PIPE STANDARD(WFB6VC) L=280 SERVICED BY L=3000	0-01258-300-0	01	1	9307-	●
119	HOSE; FUEL PUMP TO FEED PIPE LONG(WFB6VF) L=770 SERVICED BY L=3000	0-01258-300-0	01	1	9307-9307	●
119	HOSE; FUEL PUMP TO FEED PIPE LONG(WFB6VF) L=780 SERVICED BY L=3000	0-01258-300-0	01	1	9308-	●
120	CLIP; HOSE,FUEL PUMP (A) ID=14	8-94238-572-0	02	1	9307-	●
120	CLIP; HOSE,FUEL PUMP LONG(WFB6VF) (B) ID=16 L=48	9-09916-568-1	01	1	9307-	●
125	HOSE; FUEL PUMP TO FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94364-373-0	01	1	9307-	●
127	GROMMET; HOSE,FILTER TO VAPOR SEPARATO LONG(WFB6VF) SAUDI ARABIA EQUIPMENT(EU2) ID=16 OD=26 T=7.6	9-09575-316-0	01	1	9307-	●
128	HOSE; RUBBER,VAPOR SEPARATOR TO PUMP SAUDI ARABIA EQUIPMENT(EU2) (A) L=80 SERVICED BY L=3000	0-01258-300-0	01	1	9307-	●
128	HOSE; RUBBER,VAPOR SEPARATOR TO PUMP STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2) (B) L=120 SERVICED BY L=3000	0-01258-300-0	01	1	9307-	●
128	HOSE; RUBBER,VAPOR SEPARATOR TO PUMP LONG(WFB6VF) SAUDI ARABIA EQUIPMENT(EU2) (B)	8-94364-377-0	01	1	9307-	●
129	HOSE; RUBBER,PUMP TO 3 WAY CONNECTOR STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2)	8-94364-375-0	01	1	9307-	●
129	HOSE; RUBBER,PUMP TO 3 WAY CONNECTOR LONG(WFB6VF) SAUDI ARABIA EQUIPMENT(EU2)	8-94364-376-0	01	1	9307-	●
130	CLIP; RUBBER HOSE SAUDI ARABIA EQUIPMENT(EU2) ID=16	8-94238-568-0	01	1	9307-	●
131	BRACKET; SUB PUMP STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2)	8-94438-260-0	01	1	9307-	●
147	CLIP; FUEL PIPE TO HOSE ID=12	8-94238-610-0	02	1	9307-	●
147	CLIP; FUEL PIPE TO HOSE ID=11	8-94238-570-0	02	1	9307-	●	●
148	CLIP; HOSE,FUEL (B)	5-09700-163-2	01	1	9307-	●
148	CLIP; HOSE,FUEL (A)	8-94227-880-0	01	1	9307-	●	●
149	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
163	VALVE; 1 WAY,FUEL RETURN	8-94321-059-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN STANDARD(WFB6VC) SAUDI ARABIA EQUIPMENT(EU2) L=230	8-94363-222-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN STANDARD(WFB6VC) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=410	8-94363-219-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN LONG(WFB6VF) SAUDI ARABIA EQUIPMENT(EU2) L=600	8-94363-223-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN LONG(WFB6VF) EXC. SAUDI ARABIA EQUIPMENT(EU2) L=780	8-94363-220-0	01	1	9307-	●
226	CLIP; BAND L=140	5-09707-031-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12	0-20800-612-0	02	1	9307-		●
236	PIPE; FUEL,CANISTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97016-776-0	01	1	9307-	●
240	BOLT; EVAP PIPE CLIP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-9406	●
240	BOLT; EVAP PIPE CLIP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. CATALYSIS CONTROL<6MZ> M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-	●
245	CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	04	1	9307-	●
245	CLIP; EVAP HOSE EUROPEAN BASIC EQUIPMENT(EK4) ID=11	8-94238-570-0	05	1	9407-		●
255	HOSE; EVAP,2 WAY VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
257	HOSE; EVAP,FUEL TANK TO JOINT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=480 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
257	HOSE; EVAP,FUEL TANK TO JOINT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=840 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
270	PUMP ASM; FUEL SAUDI ARABIA EQUIPMENT(EU2)	8-94241-179-2	02	1	9307-	●
270	PUMP ASM; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94241-179-2	01	1	9307-	●

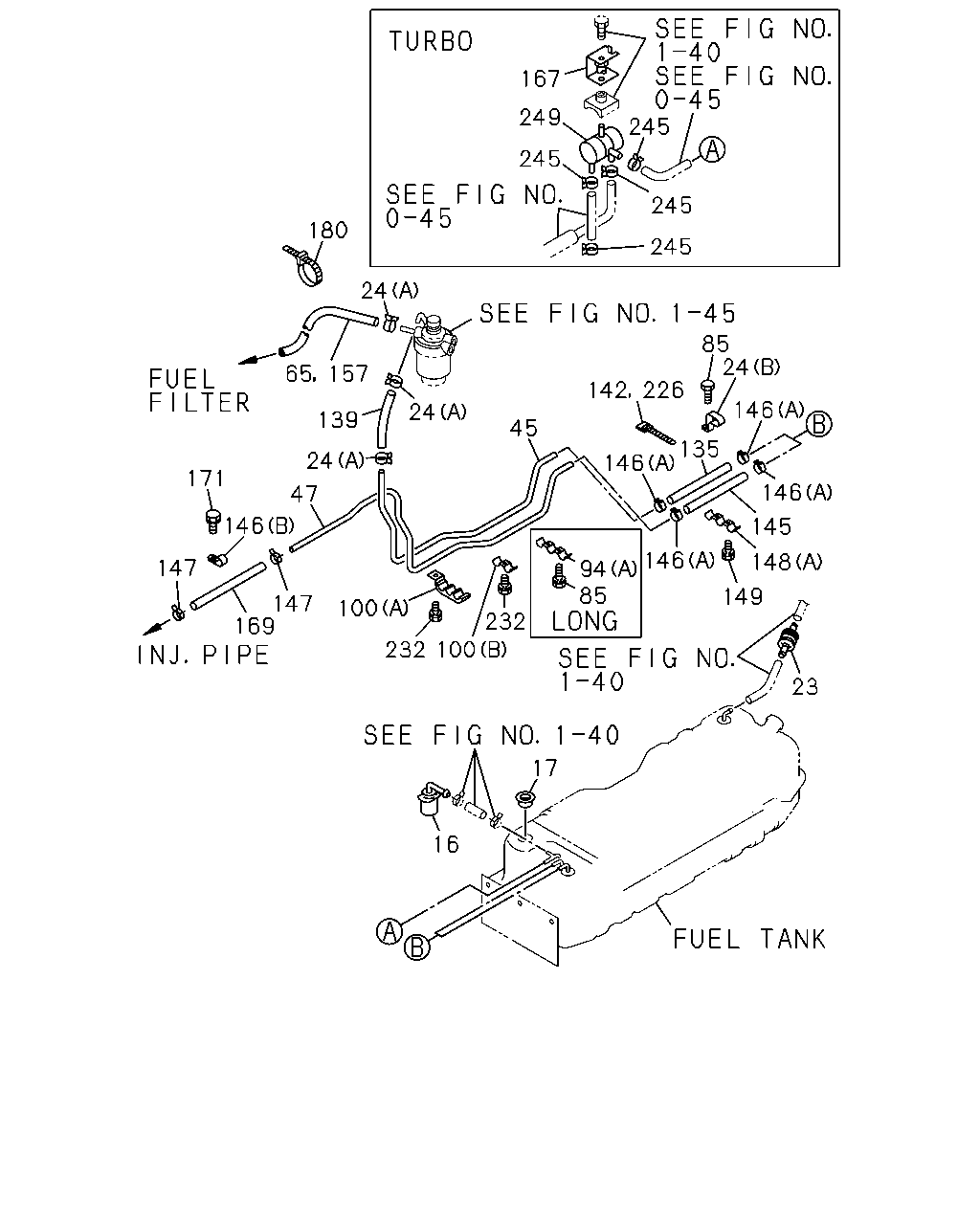

245 167 249 245 245 180 245 24 1 85 24 65 157 24 146 139 45 135 146 24 47 146 171 146 145 146 94 85 148 147 149 147 169 100 232 23 17 16 142 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CANISTER; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-17090-119-0	01	1	9307-	●
16	VALVE; FLOAT,FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94173-276-0	02	1	9307-9406	●
16	VALVE; FLOAT,FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94173-276-0	02	1	9407-	●
16	VALVE; FLOAT,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4)	8-94173-276-0	02	1	9407-		●
17	SEAL; FLOAT,VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-338-2	02	1	9307-9406	●
17	SEAL; FLOAT,VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-338-2	02	1	9407-	●
17	SEAL; FLOAT,VALVE EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-338-2	02	1	9407-		●
23	VALVE; 2 WAY,EVAP EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9307-9406	●
23	VALVE; 2 WAY,EVAP	8-94151-559-1	01	1	9307-9406		●
23	VALVE; 2 WAY,EVAP EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9407-	●
23	VALVE; 2 WAY,EVAP EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94151-559-1	01	1	9407-		●
24	CLIP; FUEL HOSE SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	09	1	9307-	●
24	CLIP; FUEL HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	02	1	9307-9406	●
24	CLIP; FUEL HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) ID=14	8-94238-572-0	02	1	9407-	●
24	CLIP; FUEL HOSE TURBOCHARGER(K51) (A) ID=14	8-94238-572-0	02	1	9407-		●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	04	1	9307-		●
24	CLIP; FUEL HOSE (B) ID=13 & 15	8-94428-546-0	01	1	9307-		●
45	PIPE; FUEL,DELIVERY	8-94227-116-1	01	1	9307-9406	●
45	PIPE; FUEL,DELIVERY	8-94117-958-0	01	1	9407-	●
45	PIPE; FUEL,DELIVERY	8-94250-147-0	01	1	9307-9406		●
45	PIPE; FUEL,DELIVERY EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94250-147-0	01	1	9407-		●
45	PIPE; FUEL,DELIVERY EUROPEAN BASIC EQUIPMENT(EK4)	8-94443-826-0	01	1	9407-		●
47	PIPE; FUEL,RETURN	8-97016-772-0	01	1	9307-9406	●
47	PIPE; FUEL,RETURN	8-97016-775-0	01	1	9407-	●
47	PIPE; FUEL,RETURN	8-97016-773-0	01	1	9307-9406		●
47	PIPE; FUEL,RETURN	8-97016-774-0	01	1	9407-		●
65	HOSE; FUEL,DELIVERY PIPE TURBOCHARGER(K51) L=520 SERVICED BY L=3000	0-01258-300-0	01	1	9407-		●
85	BOLT; CLIP,FUEL HOSE M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
85	BOLT; CLIP,FUEL HOSE M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●
94	CLIP; HOSE,FILTER (C) ID=13 & 15	8-94233-594-0	01	1	9307-	●
94	CLIP; HOSE,FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=16	8-94238-568-0	02	1	9307-	●
94	CLIP; HOSE,FILTER LONG(WFB6VF) (A)	8-94227-880-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (A) 3WAY	8-94239-646-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (B) ID=5 & 8	5-09700-165-0	02	1	9307-		●
135	HOSE; FUEL TANK TO FUEL PIPE STANDARD(WFB6VC) L=570 SERVICED BY L=3000	0-01158-300-0	01	1	9307-9307		●
135	HOSE; FUEL TANK TO FUEL PIPE STANDARD(WFB6VC) L=570 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
135	HOSE; FUEL TANK TO FUEL PIPE LONG(WFB6VF) L=870 SERVICED BY L=3000	0-01158-300-0	01	1	9307-9307		●
135	HOSE; FUEL TANK TO FUEL PIPE LONG(WFB6VF) L=870 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
139	HOSE; OIL TANK DRAIN L=180 SERVICED BY L=3000	0-01258-300-0	01	1	9307-9307		●
139	HOSE; OIL TANK DRAIN L=180 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
142	CLIP; BAND,FUEL HOSE TURBOCHARGER(K51) L=140	5-09707-031-0	01	1	9407-		●
145	HOSE; FUEL TANK TO RETURN PIPE STANDARD(WFB6VC) L=520 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
145	HOSE; FUEL TANK TO RETURN PIPE STANDARD(WFB6VC) L=520 SERVICED BY L=3000	0-01254-300-0	01	1	9308-		●
145	HOSE; FUEL TANK TO RETURN PIPE LONG(WFB6VF) L=870 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
145	HOSE; FUEL TANK TO RETURN PIPE LONG(WFB6VF) L=880 SERVICED BY L=3000	0-01254-300-0	01	1	9308-		●
146	CLIP; HOSE,FUEL RETURN PIPE (A) ID=11	8-94238-570-0	02	1	9307-	●	●
146	CLIP; HOSE,FUEL RETURN PIPE (B) ID=6 H=20 L=20	9-09527-005-0	01	1	9307-		●
147	CLIP; FUEL PIPE TO HOSE ID=12	8-94238-610-0	02	1	9307-	●
147	CLIP; FUEL PIPE TO HOSE ID=11	8-94238-570-0	02	1	9307-	●	●
148	CLIP; HOSE,FUEL (B)	5-09700-163-2	01	1	9307-	●
148	CLIP; HOSE,FUEL (A)	8-94227-880-0	01	1	9307-	●	●
149	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
157	HOSE; FUEL FILTER TO FEED PIPE L=115 SERVICED BY L=3050	8-94209-301-1	01	1	9307-9307		●
157	HOSE; FUEL FILTER TO FEED PIPE L=120 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9406		●
157	HOSE; FUEL FILTER TO FEED PIPE EXC. TURBOCHARGER(K51) L=120 SERVICED BY L=3000	0-01258-300-0	01	1	9407-		●
167	BRACKET EUROPEAN BASIC EQUIPMENT(EK4) EXC. CATALYSIS CONTROL<6MZ>	8-94233-590-1	01	1	9407-		●
169	HOSE; INJ PIPE TO RETURN PIPE L=370 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
169	HOSE; INJ PIPE TO RETURN PIPE L=370 SERVICED BY L=3000	0-01254-300-0	01	1	9308-9406		●
169	HOSE; INJ PIPE TO RETURN PIPE EXC. TURBOCHARGER(K51) L=370 SERVICED BY L=3000	0-01254-300-0	01	1	9407-		●
169	HOSE; INJ PIPE TO RETURN PIPE TURBOCHARGER(K51) L=400 W/PROTECTOR	8-97093-693-0	01	1	9407-		●
171	BOLT; CLIP M6X12	0-20800-612-0	01	1	9307-	●
171	BOLT; CLIP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-	●
171	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-		●
180	CLIP; DELIVERY & RETURN L=100	5-09707-036-0	01	1	9307-9406		●
180	CLIP; DELIVERY & RETURN EXC. TURBOCHARGER(K51) L=100	5-09707-036-0	01	1	9407-		●
226	CLIP; BAND L=140	5-09707-031-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12	0-20800-612-0	02	1	9307-		●
245	CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	04	1	9307-	●
245	CLIP; EVAP HOSE EUROPEAN BASIC EQUIPMENT(EK4) ID=11	8-94238-570-0	05	1	9407-		●
249	VALVE; CONT,EVAP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9307-9308	●
249	VALVE; CONT,EVAP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97076-391-0	01	1	9309-	●
249	VALVE; CONT,EVAP EUROPEAN BASIC EQUIPMENT(EK4)	8-94222-045-0	01	1	9407-		●

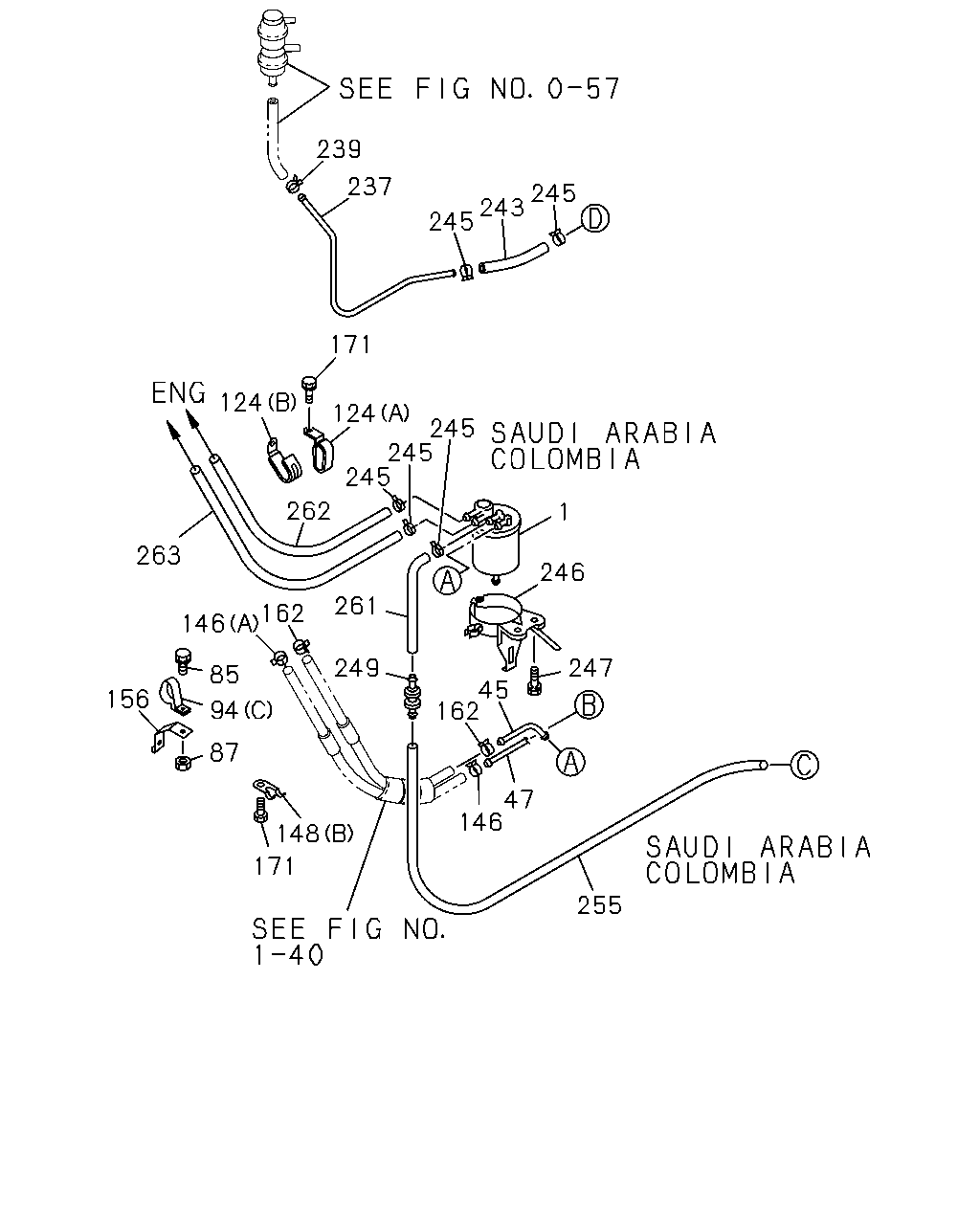

239 237 245 243 245 171 124 124 245 245 245 262 1 263 246 261 162 146 247 45 162 249 85 94 156 87 47 146 148 171 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CANISTER; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-17090-119-0	01	1	9307-	●
45	PIPE; FUEL,DELIVERY	8-94227-116-1	01	1	9307-9406	●
45	PIPE; FUEL,DELIVERY	8-94117-958-0	01	1	9407-	●
45	PIPE; FUEL,DELIVERY	8-94250-147-0	01	1	9307-9406		●
45	PIPE; FUEL,DELIVERY EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94250-147-0	01	1	9407-		●
45	PIPE; FUEL,DELIVERY EUROPEAN BASIC EQUIPMENT(EK4)	8-94443-826-0	01	1	9407-		●
47	PIPE; FUEL,RETURN	8-97016-772-0	01	1	9307-9406	●
47	PIPE; FUEL,RETURN	8-97016-775-0	01	1	9407-	●
47	PIPE; FUEL,RETURN	8-97016-773-0	01	1	9307-9406		●
47	PIPE; FUEL,RETURN	8-97016-774-0	01	1	9407-		●
85	BOLT; CLIP,FUEL HOSE M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB6VF) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
85	BOLT; CLIP,FUEL HOSE M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●
87	NUT; CLIP,FUEL HOSE LONG(WFB6VF) M8	9-09110-408-0	01	1	9307-	●
94	CLIP; HOSE,FILTER (C) ID=13 & 15	8-94233-594-0	01	1	9307-	●
94	CLIP; HOSE,FILTER EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=16	8-94238-568-0	02	1	9307-	●
94	CLIP; HOSE,FILTER LONG(WFB6VF) (A)	8-94227-880-0	01	1	9307-	●	●
124	CLIP; HOSE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9307-	●
124	CLIP; HOSE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (A) ID=13 & 15	8-94233-594-0	01	1	9307-	●
146	CLIP; HOSE,FUEL RETURN PIPE (A) ID=11	8-94238-570-0	02	1	9307-	●	●
146	CLIP; HOSE,FUEL RETURN PIPE (B) ID=6 H=20 L=20	9-09527-005-0	01	1	9307-		●
148	CLIP; HOSE,FUEL (B)	5-09700-163-2	01	1	9307-	●
148	CLIP; HOSE,FUEL (A)	8-94227-880-0	01	1	9307-	●	●
156	BRACKET; FUEL HOSE	8-94233-591-1	01	1	9307-	●
162	CLIP; HOSE,FUEL PIPE ID=14	8-94238-572-0	02	1	9307-	●
171	BOLT; CLIP M6X12	0-20800-612-0	01	1	9307-	●
171	BOLT; CLIP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-	●
171	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-		●
237	PIPE; FUEL,CANISTER,AIR VENT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) OD=8	8-94424-075-1	01	1	9307-	●
239	CLIP; FUEL PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=9 L=16	9-09524-822-0	01	1	9307-	●
243	HOSE; CANISTER TO FUEL PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=400 SERVICED BY L=3000	0-04790-300-0	01	1	9307-	●
245	CLIP; EVAP HOSE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	04	1	9307-	●
245	CLIP; EVAP HOSE EUROPEAN BASIC EQUIPMENT(EK4) ID=11	8-94238-570-0	05	1	9407-		●
246	BRACKET; CANISTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97100-661-1	01	1	9307-	●
247	BOLT; CANISTER BRKT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9307-	●
249	VALVE; CONT,EVAP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94151-559-1	01	1	9307-9308	●
249	VALVE; CONT,EVAP SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97076-391-0	01	1	9309-	●
249	VALVE; CONT,EVAP EUROPEAN BASIC EQUIPMENT(EK4)	8-94222-045-0	01	1	9407-		●
255	HOSE; EVAP,2 WAY VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
261	HOSE; CONT VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	9307-9402	●
261	HOSE; CONT VALVE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=115 ID=5.4 & 7.0	8-94335-689-1	01	1	9403-	●
262	HOSE; CANISTER PURGE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97100-675-0	01	1	9307-	●
263	HOSE; CANISTER SIGNAL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=780	8-94425-273-1	01	1	9307-9406	●
263	HOSE; CANISTER SIGNAL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=780 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
