Sayfa 1-40 - Isuzu EPC

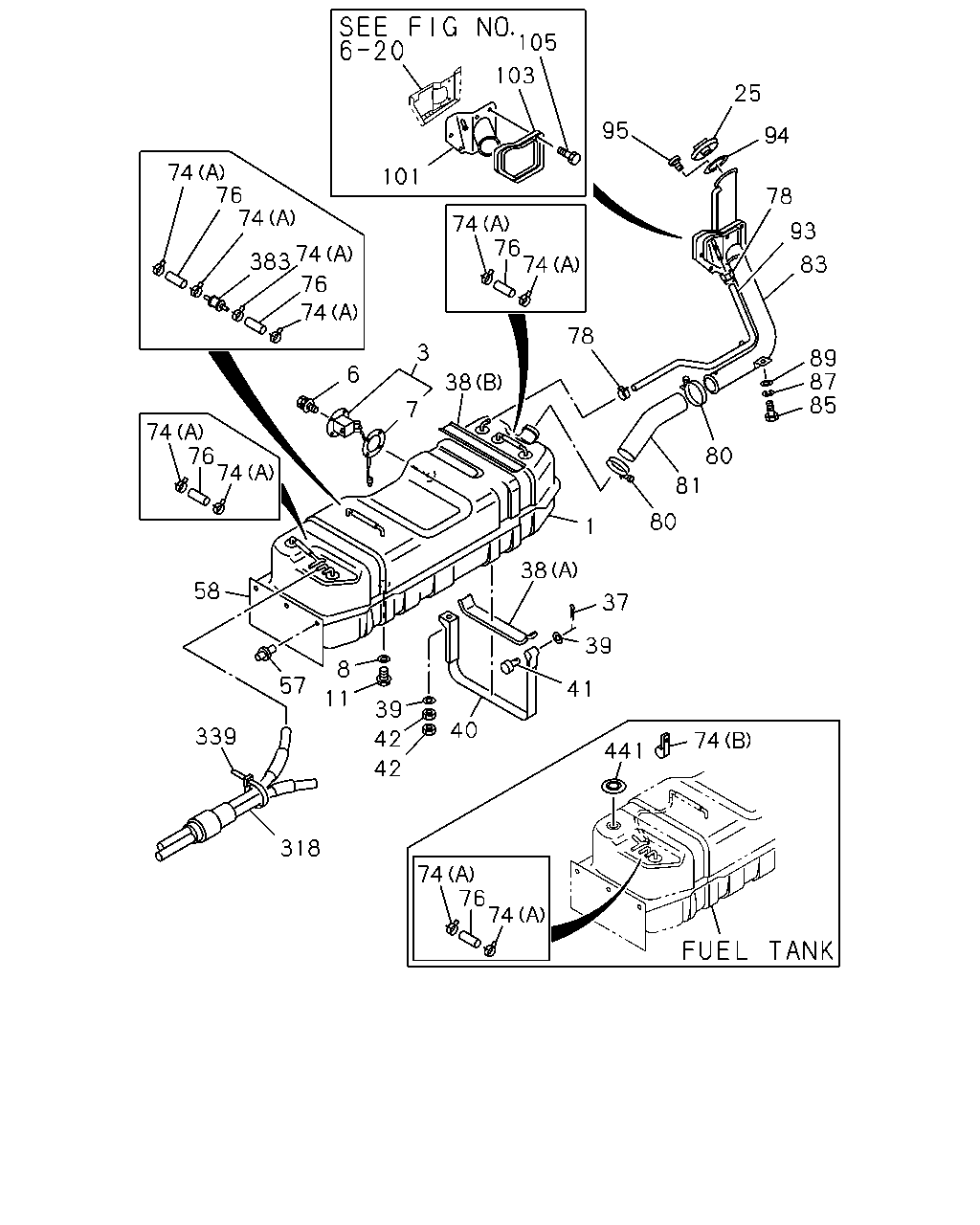

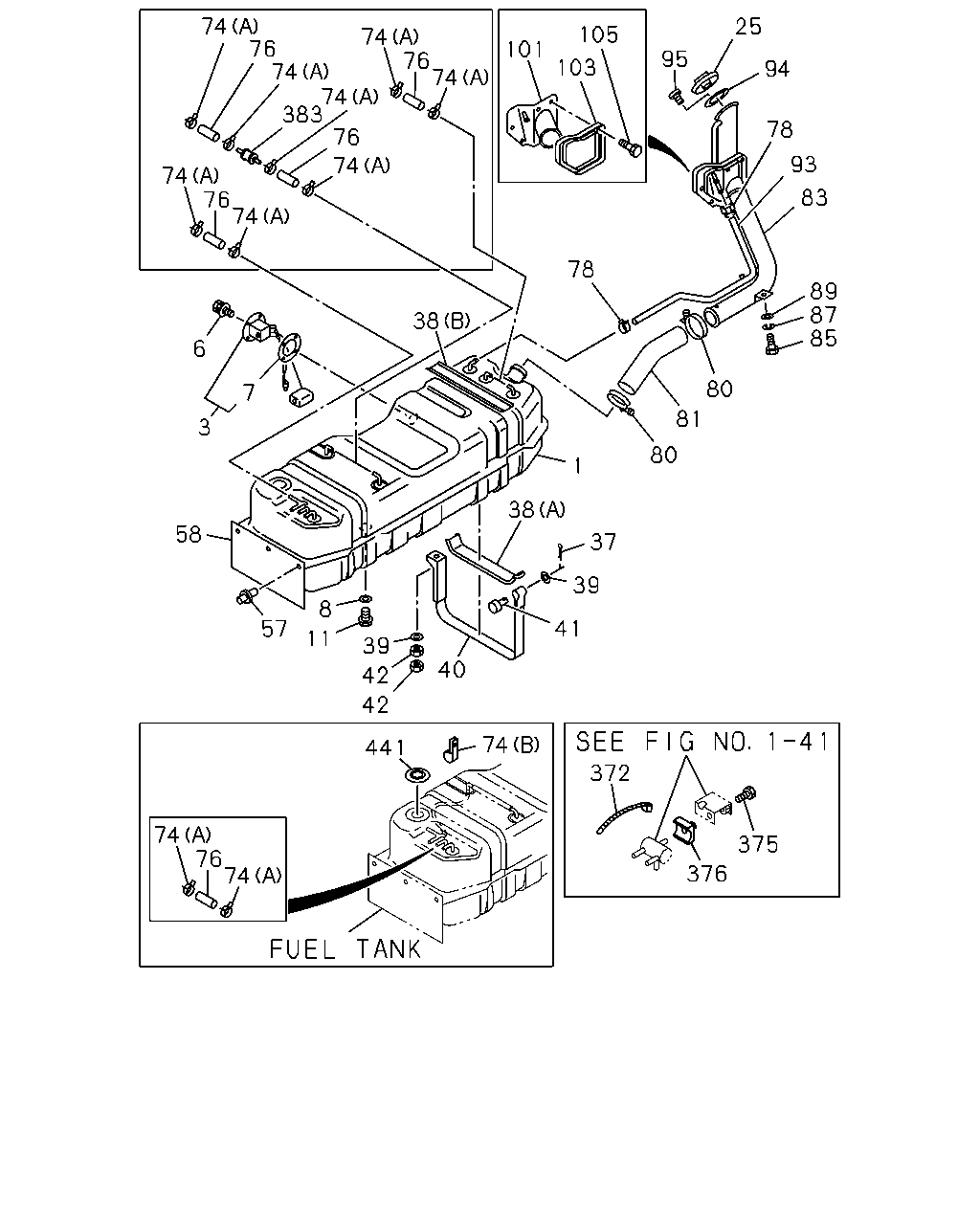

1-40 — FUEL TANK (#46780) — 162 parça

74 76 74 74 383 76 74 25 105 103 74 76 74 101 95 94 78 93 83 74 76 74 78 89 87 85 38 6 80 81 7 3 80 1 38 39 58 37 8 11 3 42 42 57 41 40 372 74 441 74 76 74 375 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-420-0	01	1	9307-9406	●
1	TANK; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-420-0	01	1	9407-	●
1	TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-420-0	01	1	9407-		●
1	TANK; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-422-0	01	1	9307-9406	●
1	TANK; FUEL	8-97075-422-0	01	1	9307-9406		●
1	TANK; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-422-0	01	1	9407-	●
1	TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-422-0	01	1	9407-		●
3	UNIT; FUEL TANK,SUB	8-94437-108-1	01	1	9307-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	9307-	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9307-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9307-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9307-	●	●
25	CAP; FILLER,FUEL TANK	8-94124-322-1	01	1	9307-	●	●
37	PIN; SPLIT,SUPPORT BELT OD=2.8 L=18	9-08113-018-0	02	1	9307-	●	●
38	INSULATION; SUPPORT BELT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) L=335	8-94171-394-0	02	1	9307-9406	●
38	INSULATION; SUPPORT BELT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) L=335	8-94171-394-0	02	1	9407-	●
38	INSULATION; SUPPORT BELT EUROPEAN BASIC EQUIPMENT(EK4) (B) L=335	8-94171-394-0	02	1	9407-		●
38	INSULATION; SUPPORT BELT (A) L=470	8-94372-633-0	02	1	9307-	●	●
39	WASHER; PL,SUPPORT BELT ID=10.5 OD=18	9-09160-510-0	04	1	9307-	●	●
40	BELT; SUPPORT,FUEL TANK	8-94171-392-2	02	1	9307-	●	●
41	PIN; SUPPORT BELT	9-08224-048-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT T=8 M10	9-09110-410-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT T=6 M10	9-09111-410-0	02	1	9307-	●	●
57	FASTENER; FUEL TANK PROTECTOR	5-09989-002-0	03	1	9307-	●	●
58	PROTECTOR; HEAT,FUEL TANK	8-94432-093-0	01	1	9307-	●	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (A) ID=8.5	8-94166-071-0	10	1	9307-9406	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (A) ID=8.5	8-94166-071-0	10	1	9407-	●
74	CLIP; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) (A) ID=8.5	8-94166-071-0	10	1	9407-		●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) T=0.8	8-97096-666-0	02	1	9307-9406	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) T=0.8	8-97096-666-0	02	1	9407-	●
74	CLIP; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) (B) T=0.8	8-97096-666-0	02	1	9407-		●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9307-9406	●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9407-	●
76	HOSE; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9407-		●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9307-9406	●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9407-	●
76	HOSE; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9407-		●
78	CLIP; BREATHER HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	03	1	9307-9406	●
78	CLIP; BREATHER HOSE ID=11	8-94238-570-0	03	1	9307-9406		●
78	CLIP; BREATHER HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	03	1	9407-	●
78	CLIP; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4) ID=11	8-94238-570-0	03	1	9407-		●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9307-	●	●
80	CLIP; FILLER HOSE ID=60	9-09915-265-1	02	1	9307-	●	●
81	HOSE; FUEL FILLER	8-94424-265-1	01	1	9307-	●	●
83	NECK; FUEL FILLER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94428-388-3	01	1	9307-9406	●
83	NECK; FUEL FILLER EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94428-388-3	01	1	9407-	●	●
83	NECK; FUEL FILLER EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97073-526-0	01	1	9307-9406	●
83	NECK; FUEL FILLER	8-97073-526-0	01	1	9307-9406		●
83	NECK; FUEL FILLER EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97073-526-0	01	1	9407-	●
83	NECK; FUEL FILLER EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97073-526-0	01	1	9407-		●
85	BOLT; FILLER NECK M8X35	0-20800-835-0	01	1	9307-	●	●
87	WASHER; LK,FILLER NECK ID=8.2	9-09150-508-0	01	1	9307-	●	●
89	WASHER; PL,FILLER NECK ID=8.4 OD=18	9-09160-608-0	01	1	9307-	●	●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=500	0-04250-500-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=500	0-04250-500-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=540	0-04250-540-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=540	0-04250-540-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK L=960 SERVICED BY L=1400	8-94152-003-0	01	1	9307-	●	●
94	GASKET; FILLER NECK	8-94227-110-0	01	1	9307-	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9307-	●	●
101	SEAL; FILLER NECK	8-94227-111-1	01	1	9307-	●	●
103	RETAINER; FILLER NECK	8-94227-112-1	01	1	9307-	●	●
105	BOLT; RET M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
372	CLIP; CONT VALVE EUROPEAN BASIC EQUIPMENT(EK4) EXC. CATALYSIS CONTROL<6MZ> L=250	5-09707-030-0	01	1	9407-		●
375	BOLT; CONT VALVE EUROPEAN BASIC EQUIPMENT(EK4) EXC. CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9407-		●
376	GROMMET; CONT VALVE EUROPEAN BASIC EQUIPMENT(EK4) EXC. CATALYSIS CONTROL<6MZ>	8-94222-046-1	01	1	9407-		●
383	VALVE; 2 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-339-0	01	1	9307-9406	●
383	VALVE; 2 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-339-0	01	1	9407-	●
383	VALVE; 2 WAY EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-339-0	01	1	9407-		●
441	SEAT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-336-1	02	1	9307-9406	●
441	SEAT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-336-1	02	1	9407-	●
441	SEAT EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-336-1	02	1	9407-		●

105 103 25 95 94 74 76 74 101 78 74 76 74 93 83 74 383 76 74 78 3 89 87 85 6 38 7 74 76 74 80 81 80 1 38 39 58 37 8 11 39 42 42 57 41 40 339 74 441 318 74 76 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-420-0	01	1	9307-9406	●
1	TANK; FUEL SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-420-0	01	1	9407-	●
1	TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-420-0	01	1	9407-		●
1	TANK; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-422-0	01	1	9307-9406	●
1	TANK; FUEL	8-97075-422-0	01	1	9307-9406		●
1	TANK; FUEL EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97075-422-0	01	1	9407-	●
1	TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97075-422-0	01	1	9407-		●
3	UNIT; FUEL TANK,SUB	8-94437-108-1	01	1	9307-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	9307-	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9307-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9307-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9307-	●	●
25	CAP; FILLER,FUEL TANK	8-94124-322-1	01	1	9307-	●	●
37	PIN; SPLIT,SUPPORT BELT OD=2.8 L=18	9-08113-018-0	02	1	9307-	●	●
38	INSULATION; SUPPORT BELT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) L=335	8-94171-394-0	02	1	9307-9406	●
38	INSULATION; SUPPORT BELT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) L=335	8-94171-394-0	02	1	9407-	●
38	INSULATION; SUPPORT BELT EUROPEAN BASIC EQUIPMENT(EK4) (B) L=335	8-94171-394-0	02	1	9407-		●
38	INSULATION; SUPPORT BELT (A) L=470	8-94372-633-0	02	1	9307-	●	●
39	WASHER; PL,SUPPORT BELT ID=10.5 OD=18	9-09160-510-0	04	1	9307-	●	●
40	BELT; SUPPORT,FUEL TANK	8-94171-392-2	02	1	9307-	●	●
41	PIN; SUPPORT BELT	9-08224-048-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT T=8 M10	9-09110-410-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT T=6 M10	9-09111-410-0	02	1	9307-	●	●
57	FASTENER; FUEL TANK PROTECTOR	5-09989-002-0	03	1	9307-	●	●
58	PROTECTOR; HEAT,FUEL TANK	8-94432-093-0	01	1	9307-	●	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (A) ID=8.5	8-94166-071-0	10	1	9307-9406	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (A) ID=8.5	8-94166-071-0	10	1	9407-	●
74	CLIP; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) (A) ID=8.5	8-94166-071-0	10	1	9407-		●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) T=0.8	8-97096-666-0	02	1	9307-9406	●
74	CLIP; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) (B) T=0.8	8-97096-666-0	02	1	9407-	●
74	CLIP; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) (B) T=0.8	8-97096-666-0	02	1	9407-		●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9307-9406	●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9407-	●
76	HOSE; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9407-		●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9307-9406	●
76	HOSE; FUEL TANK SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9407-	●
76	HOSE; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9407-		●
78	CLIP; BREATHER HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	03	1	9307-9406	●
78	CLIP; BREATHER HOSE ID=11	8-94238-570-0	03	1	9307-9406		●
78	CLIP; BREATHER HOSE EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=11	8-94238-570-0	03	1	9407-	●
78	CLIP; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4) ID=11	8-94238-570-0	03	1	9407-		●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9307-	●	●
80	CLIP; FILLER HOSE ID=60	9-09915-265-1	02	1	9307-	●	●
81	HOSE; FUEL FILLER	8-94424-265-1	01	1	9307-	●	●
83	NECK; FUEL FILLER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94428-388-3	01	1	9307-9406	●
83	NECK; FUEL FILLER EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94428-388-3	01	1	9407-	●	●
83	NECK; FUEL FILLER EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97073-526-0	01	1	9307-9406	●
83	NECK; FUEL FILLER	8-97073-526-0	01	1	9307-9406		●
83	NECK; FUEL FILLER EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-97073-526-0	01	1	9407-	●
83	NECK; FUEL FILLER EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97073-526-0	01	1	9407-		●
85	BOLT; FILLER NECK M8X35	0-20800-835-0	01	1	9307-	●	●
87	WASHER; LK,FILLER NECK ID=8.2	9-09150-508-0	01	1	9307-	●	●
89	WASHER; PL,FILLER NECK ID=8.4 OD=18	9-09160-608-0	01	1	9307-	●	●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=500	0-04250-500-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=500	0-04250-500-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=540	0-04250-540-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=540	0-04250-540-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK L=960 SERVICED BY L=1400	8-94152-003-0	01	1	9307-	●	●
94	GASKET; FILLER NECK	8-94227-110-0	01	1	9307-	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9307-	●	●
101	SEAL; FILLER NECK	8-94227-111-1	01	1	9307-	●	●
103	RETAINER; FILLER NECK	8-94227-112-1	01	1	9307-	●	●
105	BOLT; RET M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
318	HOSE ASM; FUEL,DELIVERY,RETURN	8-97026-264-0	01	1	9307-	●
339	CLIP; BAND,FUEL HOSE SAUDI ARABIA EQUIPMENT(EU2) L=140	5-09707-031-0	01	1	9307-9406	●
339	CLIP; BAND,FUEL HOSE SAUDI ARABIA EQUIPMENT(EU2) L=140	5-09707-031-0	01	1	9407-	●
339	CLIP; BAND,FUEL HOSE CATALYSIS CONTROL<6MZ> L=140	5-09707-031-0	01	1	9407-	●
383	VALVE; 2 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-339-0	01	1	9307-9406	●
383	VALVE; 2 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-339-0	01	1	9407-	●
383	VALVE; 2 WAY EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-339-0	01	1	9407-		●
441	SEAT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-336-1	02	1	9307-9406	●
441	SEAT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74)	8-94246-336-1	02	1	9407-	●
441	SEAT EUROPEAN BASIC EQUIPMENT(EK4)	8-94246-336-1	02	1	9407-		●

114 113 115 112 108 113 113 114 49 115 115 115 112 113 112 113 112 108 113 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT LONG(WFB6VF) M8	9-09111-408-0	02	1	9307-	●	●
108	PROTECTOR; FUEL TANK LONG(WFB6VF)	8-94443-390-0	01	1	9307-	●	●
112	BOLT; PROTECTOR TO BRKT M8X18 W/LK&PL WASHER	0-50140-818-0	06	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK (B)	8-94443-250-0	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK (A)	8-94443-251-0	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK LONG(WFB6VF) (D)	8-94287-047-2	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK LONG(WFB6VF) (C)	8-94443-396-0	01	1	9307-	●	●
114	PATCH; PROTECTOR,FUEL TANK LONG(WFB6VF)	8-94436-887-0	03	1	9307-	●	●
115	BOLT; BRKT LONG(WFB6VF) M8X25 W/LK&PL WASHER	0-50140-825-0	06	1	9307-	●	●
