1-31 — AIR DUCT (#46779) — 62 parça

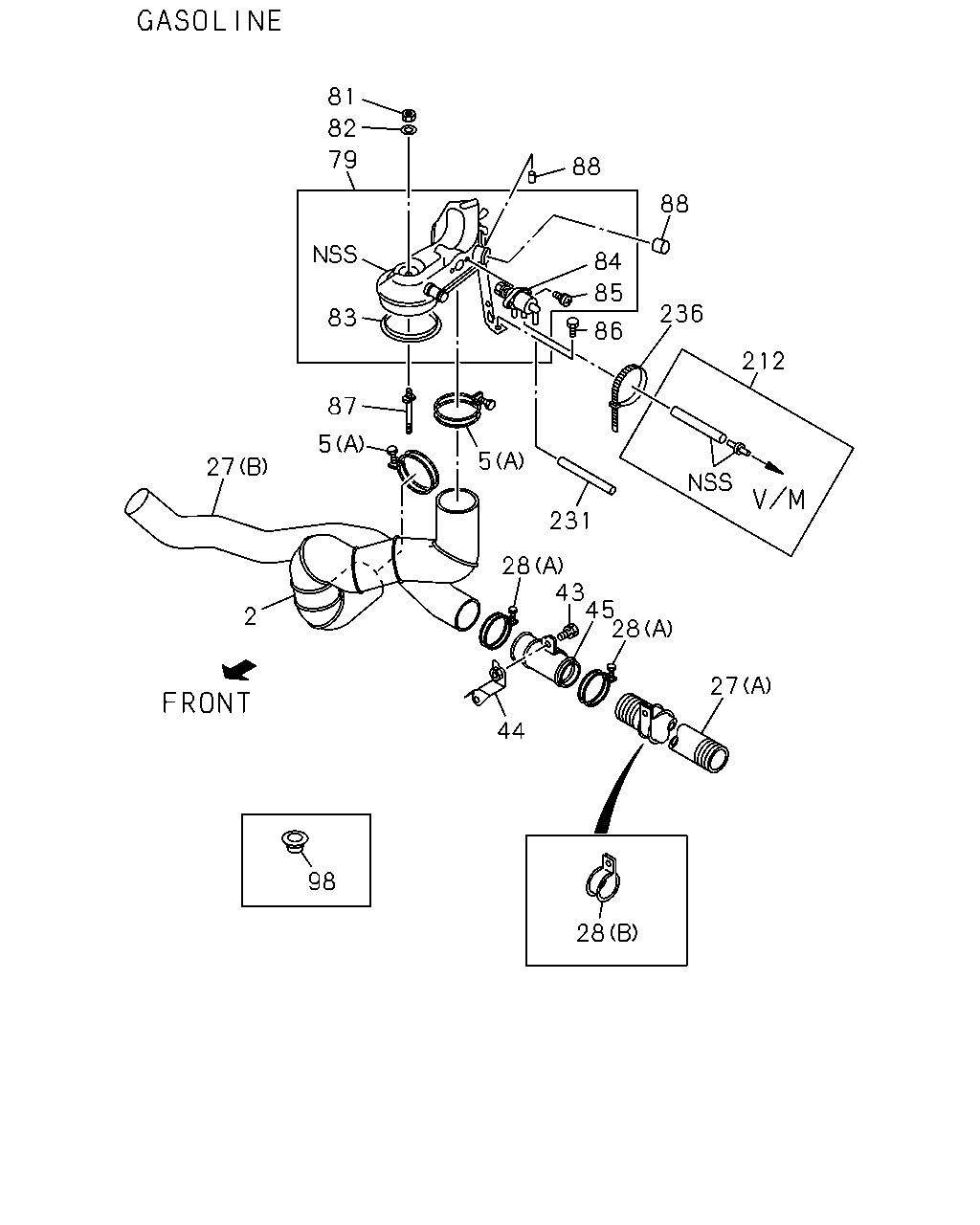

çizim 65912
81 82 79 88 88 84 85 236 83 86 212 87 5 5 27 231 28 43 45 28 2 27 44 98 28
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 8-94226-745-1 01 1 9307- ●
2 HOSE; ACL 8-94226-744-1 01 1 9307-9406 ●
2 HOSE; ACL
EXC. TURBOCHARGER(K51) 		8-94226-744-1 01 1 9407- ●
5 CLIP; AIR DUCT
(A) ID=77.5 		9-09715-102-1 02 1 9307-9406 ● ●
5 CLIP; AIR DUCT
(A) ID=77.5 		9-09715-102-1 02 1 9407- ●
5 CLIP; AIR DUCT
EXC. TURBOCHARGER(K51) (A) ID=77.5 		9-09715-102-1 02 1 9407- ●
5 CLIP; AIR DUCT
(A) ID=64 		9-09915-268-1 02 1 9307-9406 ●
5 CLIP; AIR DUCT
EXC. TURBOCHARGER(K51) (A) ID=64 		9-09915-268-1 02 1 9407- ●
5 CLIP; AIR DUCT
TURBOCHARGER(K51) (A) ID=77.5 		9-09715-102-1 01 1 9407- ●
5 CLIP; AIR DUCT
TURBOCHARGER(K51) (B) ID=80.5 		9-09915-588-0 01 1 9407- ●
27 HOSE; HOT AIR,ACL
HOT AIR INTAKE<RN4> (A) 		8-94328-254-0 01 1 9307- ●
27 HOSE; HOT AIR,ACL
HOT AIR INTAKE<RN4> (B) 		8-94419-302-0 01 1 9307- ●
28 CLIP; AIR DUCT
HOT AIR INTAKE<RN4> (A) ID=51 		5-09704-050-1 02 1 9307- ●
28 CLIP; AIR DUCT
HOT AIR INTAKE<RN4> (B) ID=45.5 		8-94232-636-0 01 1 9307- ●
43 BOLT; HOT AIR PIPE
HOT AIR INTAKE<RN4> EXC. SAUDI ARABIA EQUIPMENT(EU2),RADIATOR HEAVY DUTY(V05),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9307- ●
44 BRACKET; HOT AIR PIPE
HOT AIR INTAKE<RN4> EXC. SAUDI ARABIA EQUIPMENT(EU2),RADIATOR HEAVY DUTY(V05),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) 		8-94412-124-1 01 1 9307- ●
45 PIPE; HOT AIR
HOT AIR INTAKE<RN4> EXC. SAUDI ARABIA EQUIPMENT(EU2),RADIATOR HEAVY DUTY(V05),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) 		8-94412-259-0 01 1 9307- ●
79 DUCT ASM; AIR,CARB 8-94423-509-1 01 1 9307- ●
81 NUT; AIR DUCT,CARB
M8 		9-09110-408-0 01 1 9307- ●
82 WASHER; SEAL,AIR DUCT
OD=18 		8-94232-054-0 01 1 9307- ●
83 GASKET; DUCT 8-94237-154-0 01 1 9307- ●
84 VALVE SUB ASM; THERMO 8-94237-155-0 01 1 9307- ●
85 SCREW; VLV FIX (W/WASHER)
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9307- ●
86 BOLT; AIR DUCT TO INL MANIF
M8X14 W/LK WASHERT 		8-94208-228-0 01 1 9307- ●
87 STUD; AIR DUCT,CARB 8-94232-283-1 01 1 9307- ●
88 CAP; RUBBER,AIR DUCT
ID=6 		8-94203-788-1 01 1 9307- ●
88 CAP; RUBBER,AIR DUCT
ID=21 		8-94207-866-0 01 1 9307- ●
98 GROMMET; SILENCER,AIR INT
OD=15 T=6.5 		9-09956-766-0 03 1 9307- ●
212 HOSE; RUB,VAC MOTOR,ACL
HOT AIR INTAKE<RN4> EXC. SAUDI ARABIA EQUIPMENT(EU2),RADIATOR HEAVY DUTY(V05),COLOMBIA EQUIPMENT(X74),CHINA EQUIPMENT(YT2) 		8-94433-309-0 01 1 9307- ●
231 HOSE; RUBBER,INL MANIF TO CARB DUCT
L=230 SERVICED BY L=3050 		8-94237-378-0 01 1 9307- ●
236 CLIP; HOSE,ACL
SAUDI ARABIA EQUIPMENT(EU2) L=140 		5-09707-031-0 01 1 9307-9406 ●
236 CLIP; HOSE,ACL
SAUDI ARABIA EQUIPMENT(EU2) L=140 		5-09707-031-0 01 1 9407- ●
236 CLIP; HOSE,ACL
CATALYSIS CONTROL<6MZ> L=140 		5-09707-031-0 01 1 9407- ●
çizim 66176
96 5 5 2 97 95 94 92 93 5 78 5 89 5 5 24 25 190 96 97 95 94 406 26 92 297 414 248
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 8-94226-745-1 01 1 9307- ●
2 HOSE; ACL 8-94226-744-1 01 1 9307-9406 ●
2 HOSE; ACL
EXC. TURBOCHARGER(K51) 		8-94226-744-1 01 1 9407- ●
5 CLIP; AIR DUCT
(A) ID=77.5 		9-09715-102-1 02 1 9307-9406 ● ●
5 CLIP; AIR DUCT
(A) ID=77.5 		9-09715-102-1 02 1 9407- ●
5 CLIP; AIR DUCT
EXC. TURBOCHARGER(K51) (A) ID=77.5 		9-09715-102-1 02 1 9407- ●
5 CLIP; AIR DUCT
(A) ID=64 		9-09915-268-1 02 1 9307-9406 ●
5 CLIP; AIR DUCT
EXC. TURBOCHARGER(K51) (A) ID=64 		9-09915-268-1 02 1 9407- ●
5 CLIP; AIR DUCT
TURBOCHARGER(K51) (A) ID=77.5 		9-09715-102-1 01 1 9407- ●
5 CLIP; AIR DUCT
TURBOCHARGER(K51) (B) ID=80.5 		9-09915-588-0 01 1 9407- ●
24 BOLT; INL DUCT
TURBOCHARGER(K51) M10X25 W/LK&PL WASHER 		0-50151-025-0 02 1 9407- ●
25 STAY; CONN DUCT
TURBOCHARGER(K51) 		8-94324-351-0 01 1 9407- ●
26 DUCT; AIR INT
TURBOCHARGER(K51) 		8-97025-537-1 01 1 9407- ●
78 HOSE; INT SILENCER TO ACL 8-94233-100-2 01 1 9307-9406 ●
78 HOSE; INT SILENCER TO ACL
EXC. TURBOCHARGER(K51) 		8-94233-100-2 01 1 9407- ●
89 SILENCER ASM; INT,ACL 8-94314-071-2 01 1 9307-9406 ●
89 SILENCER ASM; INT,ACL
EXC. TURBOCHARGER(K51) 		8-94314-071-2 01 1 9407- ●
92 WASHER; PL,INT SILENCER
ID=8.4 OD=26 		9-09164-808-0 03 1 9307- ●
93 BOLT; INT SILENCER
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9307-9406 ●
93 BOLT; INT SILENCER
EXC. TURBOCHARGER(K51) M8X30 W/LK WASHER 		0-50040-830-0 03 1 9407- ●
94 COLLAR; SILENCER 8-94334-476-0 03 1 9307- ●
95 INSULATOR; INT SILENCER 8-97042-575-0 03 1 9307- ●
96 BRACKET; INT SILENCER 8-94269-890-1 01 1 9307- ●
97 BOLT; BRKT,INT SILENCER 1-09980-049-0 03 1 9401- ●
190 HOSE; CONN,DUCT TO ACL
TURBOCHARGER(K51) 		8-97083-613-0 01 1 9407- ●
248 CLIP; RUBBER HOSE
TURBOCHARGER(K51) ID=11 L=20 		9-09525-036-0 01 1 9407- ●
297 BOLT; DUCT
TURBOCHARGER(K51) M8X30 W/LK WASHER 		0-50040-830-0 03 1 9407- ●
406 CLIP; AIR DUCT TO ACL
TURBOCHARGER(K51) ID=64 		9-09915-268-1 02 1 9407- ●
414 BOLT; CLIP
TURBOCHARGER(K51) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9407- ●
