1-11 — RADIATOR HOSE AND SUB TANK (#46777) — 14 parça

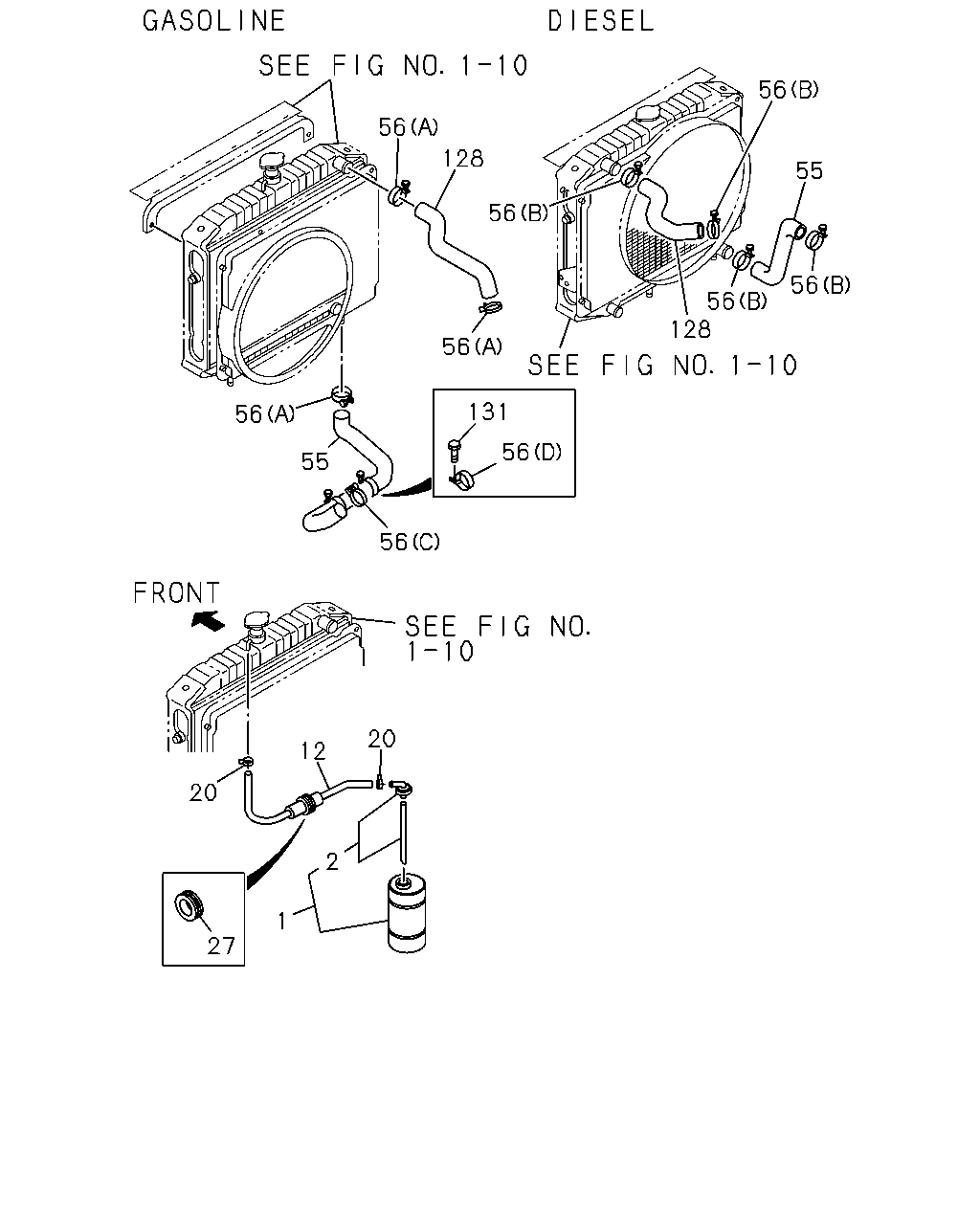

çizim 68101
56 56 128 56 55 56 56 128 56 131 56 56 55 56 20 12 20 2 1 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-94370-450-0 01 1 9307- ● ●
2 CAP; SURGE TANK 8-94370-522-0 01 1 9307- ● ●
12 HOSE; SURGE TANK 8-94433-715-1 01 1 9307- ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 02 1 9307- ● ●
27 GROMMET; HOSE,SURGE TANK
ID=16 OD=26 T=7.6 		9-09575-316-0 01 1 9307- ● ●
55 HOSE; WATER,RAD OUTLET 8-94362-315-0 01 1 9307- ●
55 HOSE; WATER,RAD OUTLET 8-94157-507-0 01 1 9307- ●
56 CLIP; WATER HOSE,RAD
(A) ID=42 		5-09704-047-1 03 1 9307- ●
56 CLIP; WATER HOSE,RAD
(C) ID=44 		5-09704-048-0 01 1 9307- ●
56 CLIP; WATER HOSE,RAD
(D) ID=39 		8-94360-805-0 02 1 9307- ●
56 CLIP; WATER HOSE,RAD
(B) ID=42 		5-09704-047-1 04 1 9307- ●
128 HOSE; WATER,RAD INL 8-94418-595-1 01 1 9307- ●
128 HOSE; WATER,RAD INL 8-94226-551-1 01 1 9307- ●
131 BOLT; WATER HOSE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9307- ●
