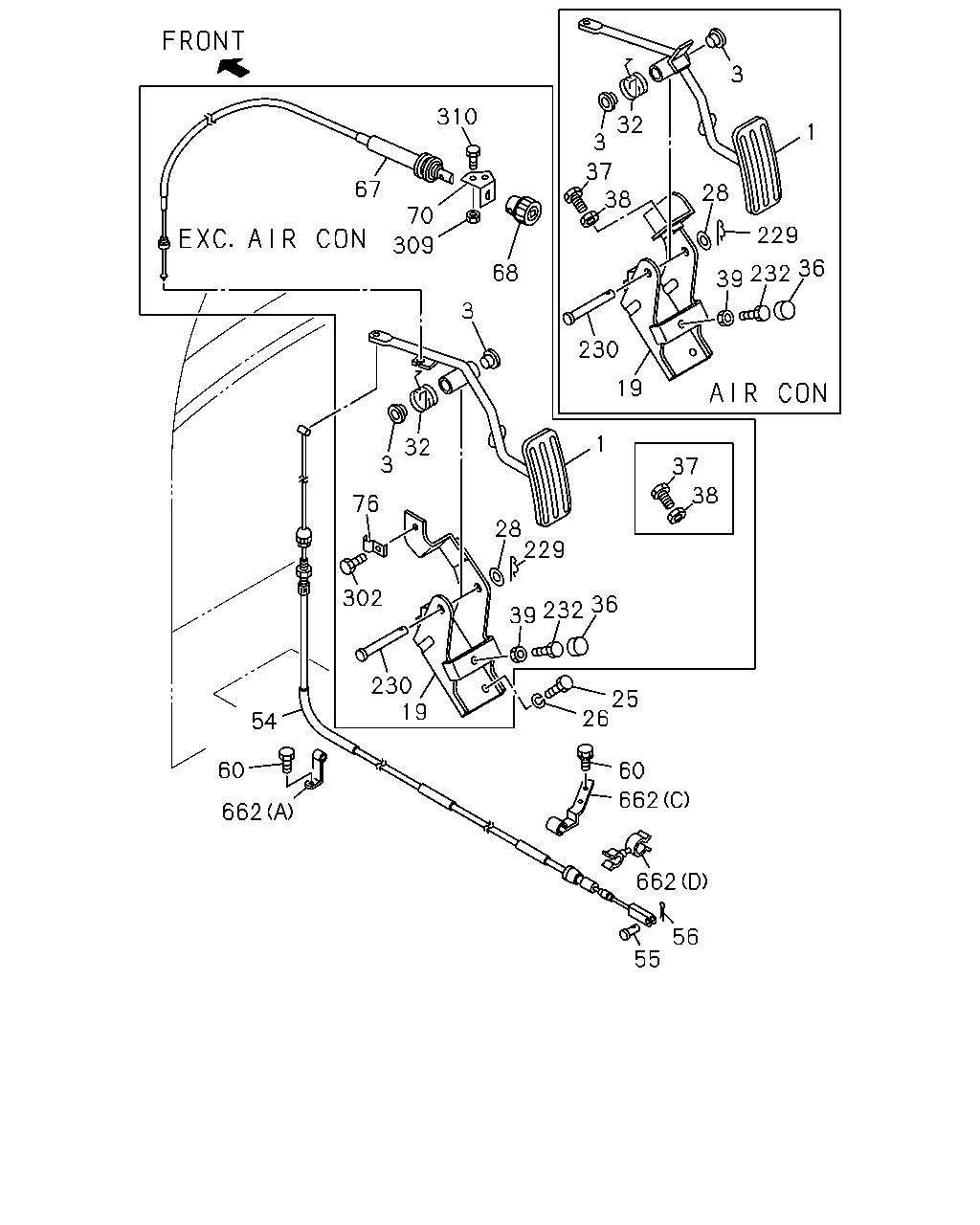

1-01 — ACCELERATOR PEDAL AND CONTROL (#46775) — 93 parça

3 32 3 37 38 310 1 67 28 70 309 229 39 232 36 68 3 230 19 1 32 3 37 38 76 28 229 302 39 232 36 230 19 25 26 54 60 60 662 662 662 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; PEDAL SIDE	8-94116-751-1	01	1	9307-	●
1	LEVER; PEDAL SIDE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94116-751-1	01	1	9307-		●
1	LEVER; PEDAL SIDE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-930-3	01	1	9307-		●
3	BUSHING; PEDAL T=6 OD=17.5	9-33659-249-0	02	1	9307-	●	●
19	BRACKET; ACCEL PEDAL	8-94116-752-1	01	1	9307-	●
19	BRACKET; ACCEL PEDAL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94116-752-1	01	1	9307-		●
19	BRACKET; ACCEL PEDAL EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-929-3	01	1	9307-		●
25	BOLT; SHAFT SIDE M8X14	0-20800-814-0	02	1	9307-	●	●
26	WASHER; LK,PEDAL BRKT BOLT ID=8.2	9-09150-508-0	02	1	9307-	●	●
28	WASHER; PL,ACCEL PEDAL ID=10.5 OD=18	9-09160-510-0	01	1	9307-	●	●
32	SPRING; RETURN,ACCEL PEDAL	8-94246-179-1	01	1	9307-	●	●
36	PAD; ACCEL PEDAL STOPPER	5-23249-003-0	01	1	9307-	●	●
37	BOLT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2) M10X28	0-20801-028-0	01	1	9307-9406	●
37	BOLT; ACCEL PEDAL ADJ M10X28	0-20801-028-0	01	1	9307-9406		●
37	BOLT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> M10X28	0-20801-028-0	01	1	9407-	●
37	BOLT; ACCEL PEDAL ADJ M10X28	0-20801-028-0	01	1	9407-		●
38	NUT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2) M10	9-09110-410-0	01	1	9307-9406	●
38	NUT; ACCEL PEDAL ADJ M10	9-09110-410-0	01	1	9307-9406		●
38	NUT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> M10	9-09110-410-0	01	1	9407-	●
38	NUT; ACCEL PEDAL ADJ M10	9-09110-410-0	01	1	9407-		●
39	NUT; ACCEL PEDAL STOPPER M6	9-09111-406-0	01	1	9307-	●	●
54	CABLE; ENG CONT L=1770	8-94244-932-6	01	1	9307-9406	●
54	CABLE; ENG CONT EXC. CATALYSIS CONTROL<6MZ> L=1770	8-94244-932-6	01	1	9407-	●
54	CABLE; ENG CONT CATALYSIS CONTROL<6MZ>	8-94326-722-3	01	1	9407-	●
54	CABLE; ENG CONT L=1395	8-94121-552-2	01	1	9307-9406		●
54	CABLE; ENG CONT EXC. TURBOCHARGER(K51) L=1395	8-94121-552-2	01	1	9407-		●
54	CABLE; ENG CONT TURBOCHARGER(K51)	8-97095-444-0	01	1	9407-		●
55	PIN; JAW JOINT OD=6 L=10	9-08223-610-0	01	1	9307-		●
56	PIN; SNAP,JAW JOINT	9-09916-547-0	01	1	9307-		●
60	BOLT; CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK WASHER	0-50040-620-0	01	1	9307-	●
60	BOLT; CABLE M6X20 W/LK WASHER	0-50040-620-0	01	1	9307-		●
60	BOLT; CABLE CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9407-	●
60	BOLT; CABLE M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
67	CABLE ASM; IDLE CONT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94438-160-1	01	1	9307-		●
68	KNOB; IDLE CONT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94171-431-0	01	1	9307-		●
70	NUT; CONT CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6	9-09110-406-0	02	1	9307-		●
76	CLAMP; IDLING CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94226-314-1	01	1	9307-		●
229	PIN; SNAP,ACCEL PEDAL TO BRKT L=27.7	8-94202-777-0	01	1	9307-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	9-08224-058-0	01	1	9307-	●	●
232	BOLT; STOPPER,ACCEL PEDAL M6X30	9-02050-630-0	01	1	9307-	●	●
302	BOLT; IDLE CONT CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10	0-20800-510-0	01	1	9307-		●
309	BRACKET; IDLE CONT CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94171-432-1	01	1	9307-		●
310	BOLT; IDLE BRKT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-		●
662	CLIP; ACCEL CONT CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9307-	●
662	CLIP; ACCEL CONT CABLE (A) ID=7	1-09700-483-0	01	1	9307-	●	●
662	CLIP; ACCEL CONT CABLE (C)	8-94123-576-0	01	1	9307-		●
662	CLIP; ACCEL CONT CABLE (D) D=6.35 & 8.0	8-94168-480-0	01	1	9307-		●

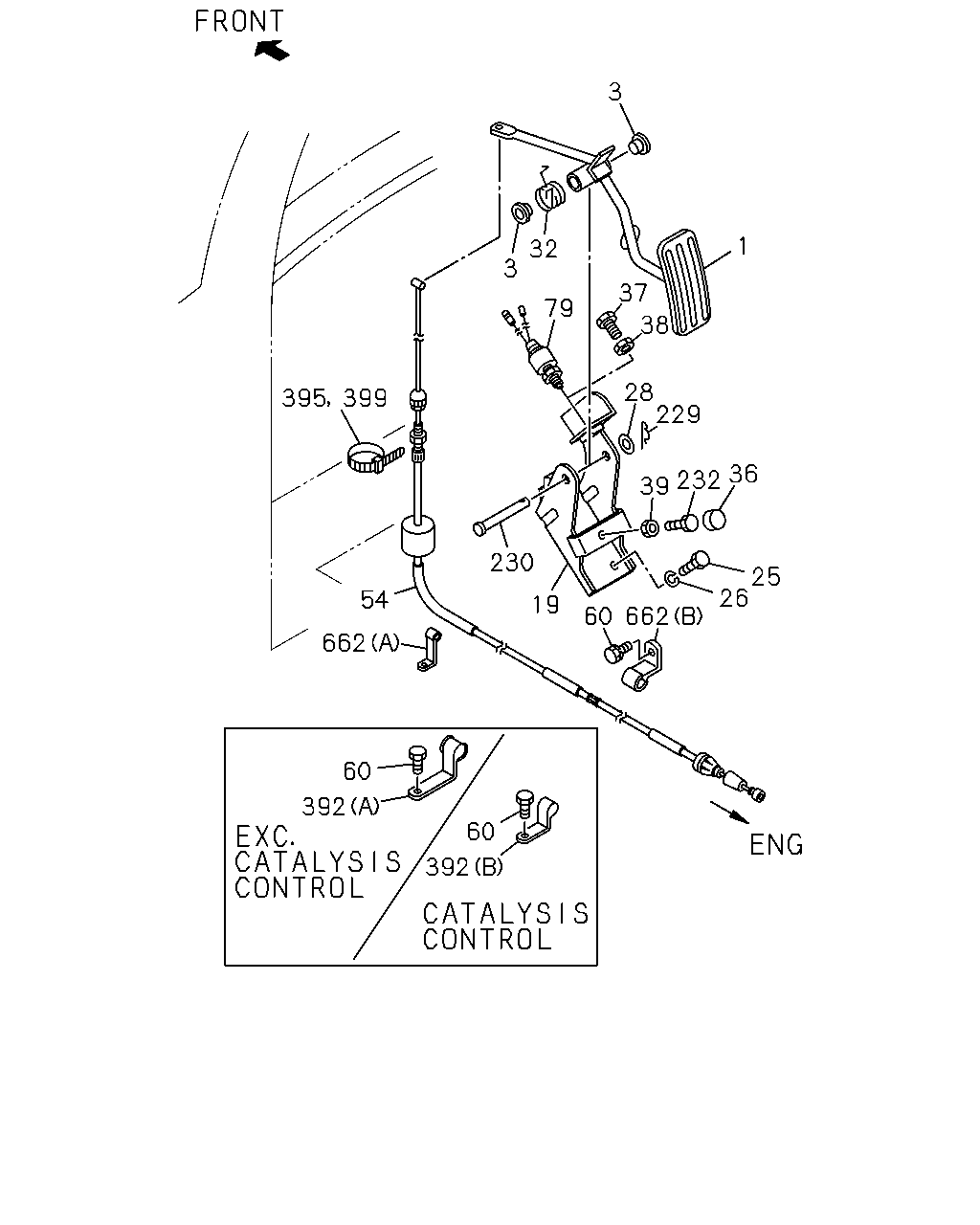

3 1 32 3 37 38 28 229 79 39 232 36 230 25 26 54 19 662 60 392 60 392 395 399 60 662

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; PEDAL SIDE	8-94116-751-1	01	1	9307-	●
1	LEVER; PEDAL SIDE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94116-751-1	01	1	9307-		●
1	LEVER; PEDAL SIDE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-930-3	01	1	9307-		●
3	BUSHING; PEDAL T=6 OD=17.5	9-33659-249-0	02	1	9307-	●	●
19	BRACKET; ACCEL PEDAL	8-94116-752-1	01	1	9307-	●
19	BRACKET; ACCEL PEDAL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94116-752-1	01	1	9307-		●
19	BRACKET; ACCEL PEDAL EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-929-3	01	1	9307-		●
25	BOLT; SHAFT SIDE M8X14	0-20800-814-0	02	1	9307-	●	●
26	WASHER; LK,PEDAL BRKT BOLT ID=8.2	9-09150-508-0	02	1	9307-	●	●
28	WASHER; PL,ACCEL PEDAL ID=10.5 OD=18	9-09160-510-0	01	1	9307-	●	●
32	SPRING; RETURN,ACCEL PEDAL	8-94246-179-1	01	1	9307-	●	●
36	PAD; ACCEL PEDAL STOPPER	5-23249-003-0	01	1	9307-	●	●
37	BOLT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2) M10X28	0-20801-028-0	01	1	9307-9406	●
37	BOLT; ACCEL PEDAL ADJ M10X28	0-20801-028-0	01	1	9307-9406		●
37	BOLT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> M10X28	0-20801-028-0	01	1	9407-	●
37	BOLT; ACCEL PEDAL ADJ M10X28	0-20801-028-0	01	1	9407-		●
38	NUT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2) M10	9-09110-410-0	01	1	9307-9406	●
38	NUT; ACCEL PEDAL ADJ M10	9-09110-410-0	01	1	9307-9406		●
38	NUT; ACCEL PEDAL ADJ EXC. SAUDI ARABIA EQUIPMENT(EU2),CATALYSIS CONTROL<6MZ> M10	9-09110-410-0	01	1	9407-	●
38	NUT; ACCEL PEDAL ADJ M10	9-09110-410-0	01	1	9407-		●
39	NUT; ACCEL PEDAL STOPPER M6	9-09111-406-0	01	1	9307-	●	●
54	CABLE; ENG CONT L=1770	8-94244-932-6	01	1	9307-9406	●
54	CABLE; ENG CONT EXC. CATALYSIS CONTROL<6MZ> L=1770	8-94244-932-6	01	1	9407-	●
54	CABLE; ENG CONT CATALYSIS CONTROL<6MZ>	8-94326-722-3	01	1	9407-	●
54	CABLE; ENG CONT L=1395	8-94121-552-2	01	1	9307-9406		●
54	CABLE; ENG CONT EXC. TURBOCHARGER(K51) L=1395	8-94121-552-2	01	1	9407-		●
54	CABLE; ENG CONT TURBOCHARGER(K51)	8-97095-444-0	01	1	9407-		●
60	BOLT; CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK WASHER	0-50040-620-0	01	1	9307-	●
60	BOLT; CABLE M6X20 W/LK WASHER	0-50040-620-0	01	1	9307-		●
60	BOLT; CABLE CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9407-	●
60	BOLT; CABLE M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
79	SWITCH; ACCEL PEDAL SAUDI ARABIA EQUIPMENT(EU2)	5-82340-007-1	01	1	9307-9406	●
79	SWITCH; ACCEL PEDAL SAUDI ARABIA EQUIPMENT(EU2) EXC. CATALYSIS CONTROL<6MZ>	5-82340-007-1	01	1	9407-	●
79	SWITCH; ACCEL PEDAL CATALYSIS CONTROL<6MZ>	5-82340-007-1	01	1	9407-	●
229	PIN; SNAP,ACCEL PEDAL TO BRKT L=27.7	8-94202-777-0	01	1	9307-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	9-08224-058-0	01	1	9307-	●	●
232	BOLT; STOPPER,ACCEL PEDAL M6X30	9-02050-630-0	01	1	9307-	●	●
392	CLIP; ACCEL CONT CABLE (A)	8-94110-651-0	01	1	9307-9406	●
392	CLIP; ACCEL CONT CABLE EXC. CATALYSIS CONTROL<6MZ> (A)	8-94110-651-0	01	1	9407-	●
392	CLIP; ACCEL CONT CABLE CATALYSIS CONTROL<6MZ> (B)	8-94151-229-0	01	1	9407-	●
395	CLIP; BAND,ACCEL CONT CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=140	5-09707-031-0	01	1	9307-	●
399	CLIP; CABLE,RAD SIDE L=100	5-09707-036-0	01	1	9307-	●
662	CLIP; ACCEL CONT CABLE EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9307-	●
662	CLIP; ACCEL CONT CABLE (A) ID=7	1-09700-483-0	01	1	9307-	●	●
662	CLIP; ACCEL CONT CABLE (C)	8-94123-576-0	01	1	9307-		●
662	CLIP; ACCEL CONT CABLE (D) D=6.35 & 8.0	8-94168-480-0	01	1	9307-		●
