◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#46773) — 7 parça

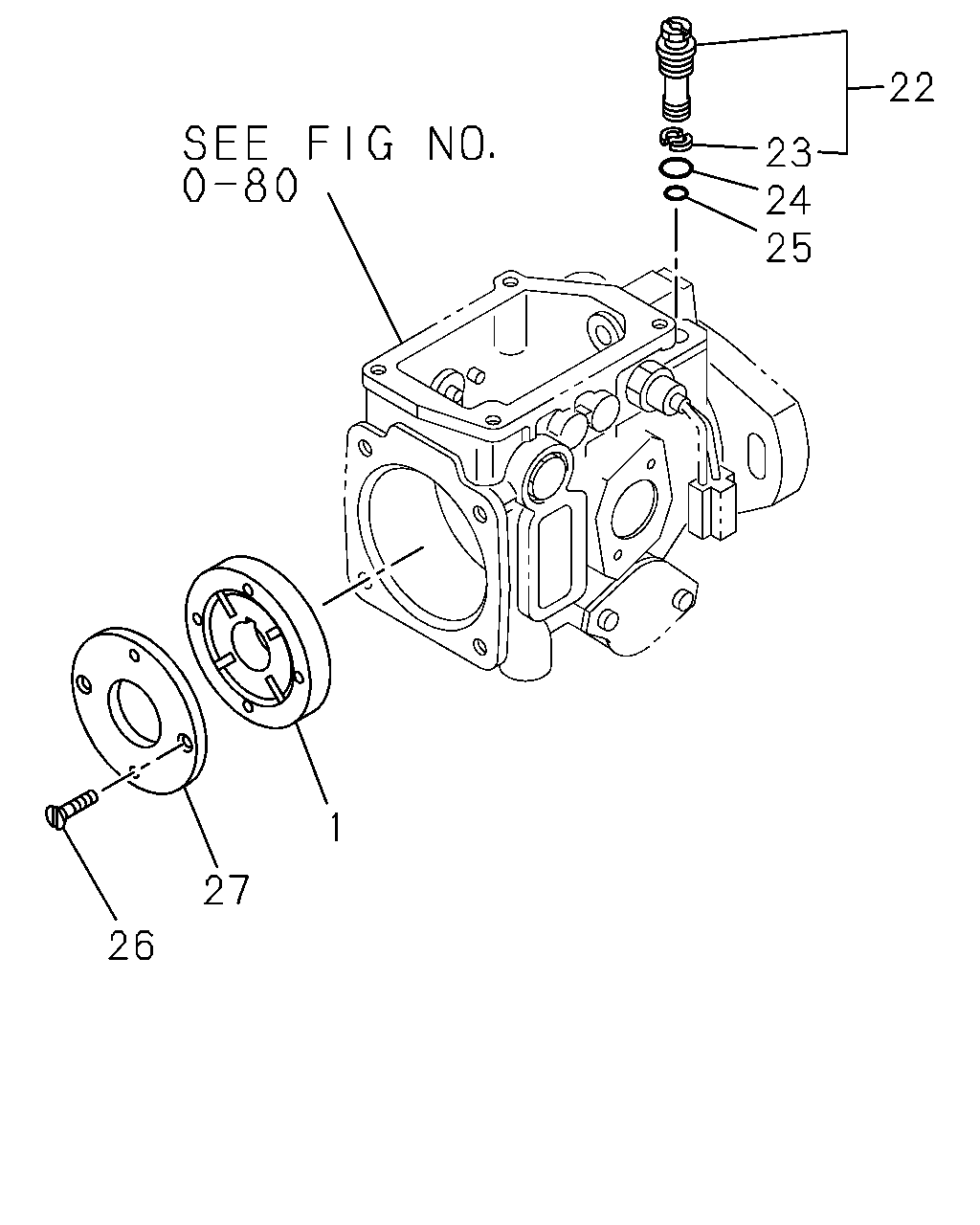

çizim 19691
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-477-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 02 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-642-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-478-0 01 1 -
