◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#46771) — 62 parça

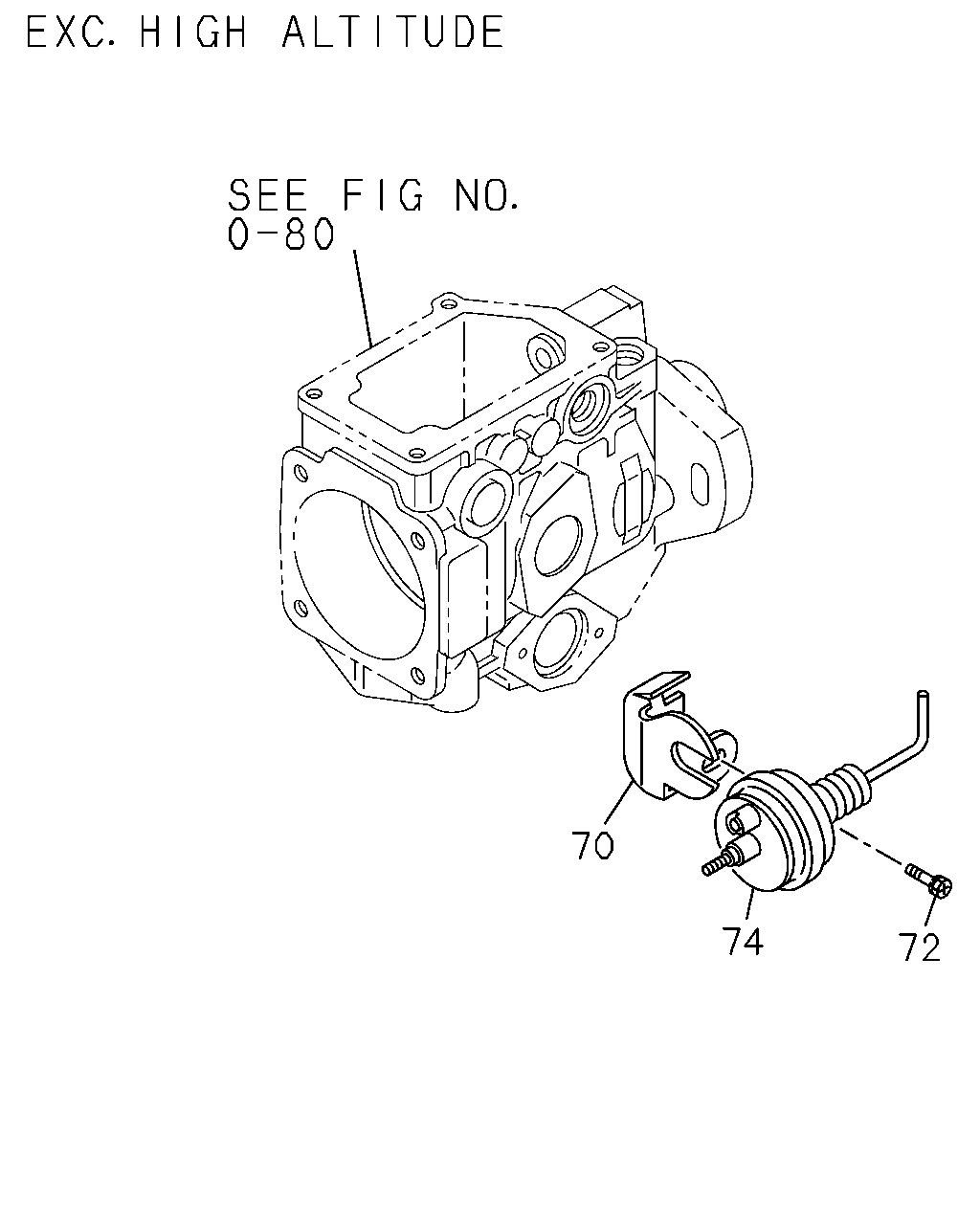

çizim 18263
70 74 72
BalonParca AdiParca NoAdetTipApplied Date
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94121-626-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
(A) ASM PART: C = 8-97106-834-0 		8-94368-313-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
(B) ASM PART: C = 8-97106-834-0 		8-97091-733-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: C = 8-97106-834-0 		8-94242-278-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(A) ASM PART: C = 8-97106-834-0 		8-94313-254-0 02 1 -
72 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94343-302-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94121-625-0 01 1 -

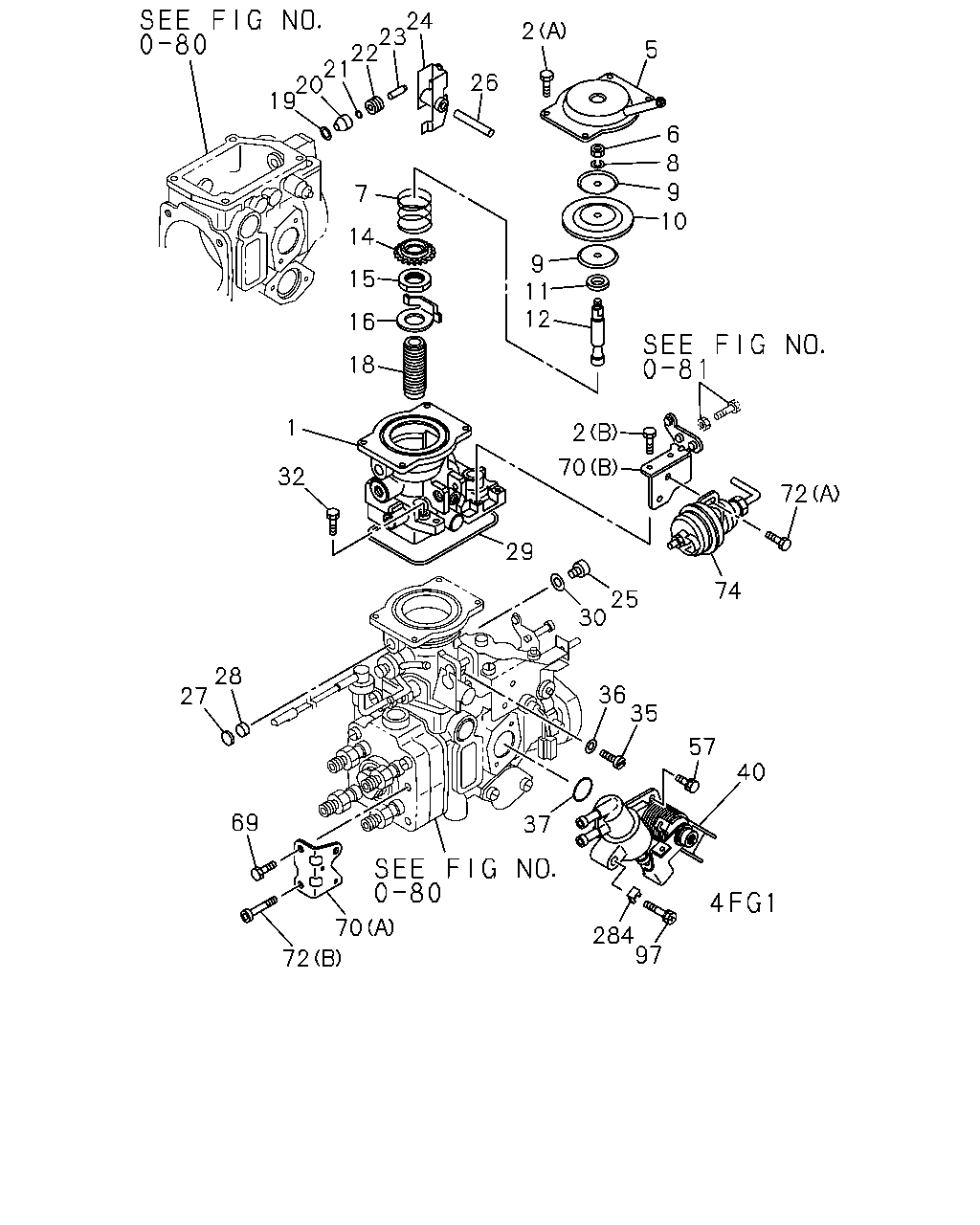

çizim 18265
24 23 22 21 20 19 2 5 26 6 8 9 10 7 14 9 11 12 15 16 18 1 2 70 32 72 29 74 25 30 28 27 36 35 57 40 69 37 70 72 284 97
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-97106-834-0 		8-97091-732-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: C = 8-97106-834-0 		8-94313-203-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B), M6X14 ASM PART: C = 8-97106-834-0 		8-94331-551-0 02 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: C = 8-97106-834-0 		8-94151-394-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		9-88410-525-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94420-969-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94122-725-0 01 1 -
9 PLATE; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94122-723-0 02 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97106-834-0 		8-94122-724-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70 ASM PART: C = 8-97106-834-0 		8-97046-102-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80 ASM PART: C = 8-97106-834-0 		8-97046-103-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90 ASM PART: C = 8-97106-834-0 		8-97046-104-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00 ASM PART: C = 8-97106-834-0 		8-97046-105-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10 ASM PART: C = 8-97106-834-0 		8-97046-106-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20 ASM PART: C = 8-97106-834-0 		8-97046-107-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30 ASM PART: C = 8-97106-834-0 		8-97046-108-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40 ASM PART: C = 8-97106-834-0 		8-97046-109-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50 ASM PART: C = 8-97106-834-0 		8-97046-110-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60 ASM PART: C = 8-97106-834-0 		8-97046-111-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70 ASM PART: C = 8-97106-834-0 		8-97046-112-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80 ASM PART: C = 8-97106-834-0 		8-97046-113-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90 ASM PART: C = 8-97106-834-0 		8-97046-114-0 01 1 -
12 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94122-722-0 01 1 -
14 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94122-726-0 01 1 -
15 NUT; BUSHING LK,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94122-720-0 01 1 -
16 PLATE; BUSHING,ADJ
ASM PART: C = 8-97106-834-0 		8-94122-719-0 01 1 -
18 BUSHING; ADJ PIN,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94151-391-0 01 1 -
19 GASKET; BUSHING,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-686-0 01 1 -
20 BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-685-0 01 1 -
21 GASKET; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-684-0 01 1 -
22 NUT; BUSHING,CONT PIN,BOOST COMPENSATO
ASM PART: C = 8-97106-834-0 		8-94257-683-0 01 1 -
23 PIN; CONT,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94151-392-0 01 1 -
24 LEVER; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97106-834-0 		8-94150-173-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-687-0 01 1 -
26 PIN; CONT LEVER,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-693-0 01 1 -
27 PLUG; ELEMENT
ASM PART: C = 8-97106-834-0 		8-94151-395-0 01 1 -
28 ELEMENT; BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94159-096-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94227-599-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94144-588-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
ASM PART: C = 8-97106-834-0 		8-94242-298-0 04 1 -
35 PLUG; CONT LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		8-94257-694-0 02 1 -
36 GASKET; LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97106-834-0 		5-15729-099-0 02 1 -
37 GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: C = 8-97106-834-0 		8-94227-491-0 01 1 -
40 ADVANCER ASM; STARTING,GOV
ASM PART: C = 8-97106-834-0 		8-97033-203-0 01 1 -
57 BOLT; START ADVANCE
ASM PART: C = 8-97106-834-0 		8-94428-867-0 01 1 -
69 SCREW; BRKT,INJ PUMP
ASM PART: C = 8-97106-834-0 		8-94313-264-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94121-626-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
(A) ASM PART: C = 8-97106-834-0 		8-94368-313-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
(B) ASM PART: C = 8-97106-834-0 		8-97091-733-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: C = 8-97106-834-0 		8-94242-278-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(A) ASM PART: C = 8-97106-834-0 		8-94313-254-0 02 1 -
72 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94343-302-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-94386-821-0, B = 8-94386-823-0 		8-94121-625-0 01 1 -
97 BOLT; PLATE,START ADVANCE
ASM PART: C = 8-97106-834-0 		1-15729-053-0 01 1 -
284 CLIP; START ADVANCE
ASM PART: C = 8-97106-834-0 		8-94343-309-0 01 1 -
