Sayfa 0-25A - Isuzu EPC

0-25A — INLET MANIFOLD (#4677) — 462 parça

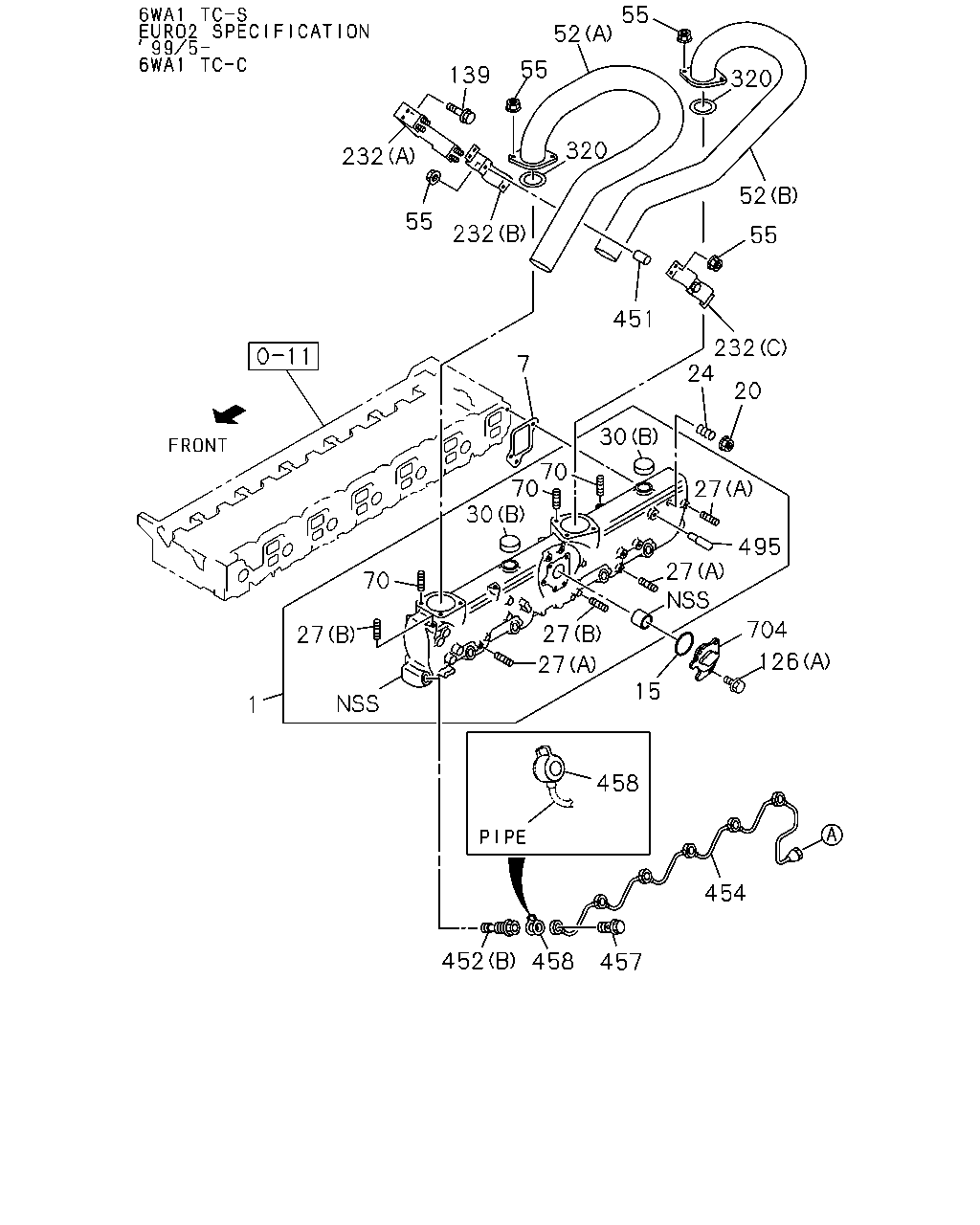

55 52 55 139 320 320 232 52 55 232 55 451 232 24 7 20 30 70 70 30 27 495 27 70 704 27 27 126 27 15 458 454 452 458 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9603-9706	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9707-9804	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9805-9904	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-	●		●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9706	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9707-9804	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9805-9904	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-	●		●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9603-9706	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9707-9804	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9805-9904	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-	●		●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9603-9706	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9707-9804	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9805-9904	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-	●		●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9603-9706	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9707-9804	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9805-9904	●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-	●		●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9603-9706	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9707-9804	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9805-9904	●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9706	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9706	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-	●		●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9603-9706	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9707-9804	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9805-9904	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-	●		●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9603-9706	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9707-9804	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9805-9904	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-	●		●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9603-9706	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9707-9804	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9805-9904	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-	●		●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9603-9706	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9707-9804	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9805-9904	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-	●		●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9603-9706	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9707-9804	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9805-9904	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9905-	●		●	●	●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9707-9904		●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-					●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9603-9706	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9707-9804	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9805-9904	●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9603-9706	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-	●		●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9603-9706	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9707-9804	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9805-9904	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-	●		●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9603-9706	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9707-9804	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9805-9904	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-	●		●	●	●
452	CYLINDER ASM; AIR EURO2 SPECIFICATION<THN> (B)	1-14370-013-0	06	1	9610-9706	●
452	CYLINDER ASM; AIR EURO2 SPECIFICATION<THN> (B)	1-14370-013-0	06	1	9707-9904	●
452	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-14370-013-0	06	1	9707-9904		●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9905-			●		●
452	CYLINDER ASM; AIR (A)	1-22190-579-0	01	1	9707-9904		●
452	CYLINDER ASM; AIR (A)	1-22190-579-1	01	1	9905-					●
454	PIPE; AIR,IVES EURO2 SPECIFICATION<THN>	1-19192-590-0	01	1	9610-9706	●
454	PIPE; AIR,IVES EURO2 SPECIFICATION<THN>	1-19192-590-1	01	1	9707-9904	●
454	PIPE; AIR,IVES SHORT CHASSIS&RHD(EXZ5MC)	1-19192-590-1	01	1	9707-9904		●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9905-			●		●
457	BOLT; EYE,AIR PIPE,IVES EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	06	1	9610-9706	●
457	BOLT; EYE,AIR PIPE,IVES EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	06	1	9707-9904	●
457	BOLT; EYE,AIR PIPE,IVES SHORT CHASSIS&RHD(EXZ5MC) M8X18 EYE-BOLT	1-09675-037-1	06	1	9707-9904		●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9905-			●		●
458	GASKET; AIR PIPE,VSS EURO2 SPECIFICATION<THN> ID=8.6	8-94395-214-0	06	1	9610-9706	●
458	GASKET; AIR PIPE,VSS EURO2 SPECIFICATION<THN> ID=8.6	8-94395-214-0	06	1	9707-9904	●
458	GASKET; AIR PIPE,VSS SHORT CHASSIS&RHD(EXZ5MC) ID=8.6	8-94395-214-0	06	1	9707-9904		●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9905-			●		●
495	PIPE; BOOST SENSOR EURO2 SPECIFICATION<THN>	1-09669-073-0	01	1	9610-9706	●
495	PIPE; BOOST SENSOR EURO2 SPECIFICATION<THN>	1-09669-073-0	01	1	9707-9904	●
495	PIPE; BOOST SENSOR SHORT CHASSIS&RHD(EXZ5MC)	1-09669-073-0	01	1	9707-9904		●
495	PIPE; BOOST SENSOR ELECTRONIC GOV RED3(KG5)	1-09669-073-0	01	1	9905-			●
495	PIPE; BOOST SENSOR SHORT CHASSIS&RHD(EXZ5MC)	1-09669-073-0	01	1	9905-					●
704	COVER	1-14134-193-0	01	1	9603-9804	●
704	COVER	1-14134-193-0	01	1	9805-9904	●		●
704	COVER	1-14134-193-0	01	1	9905-	●		●	●

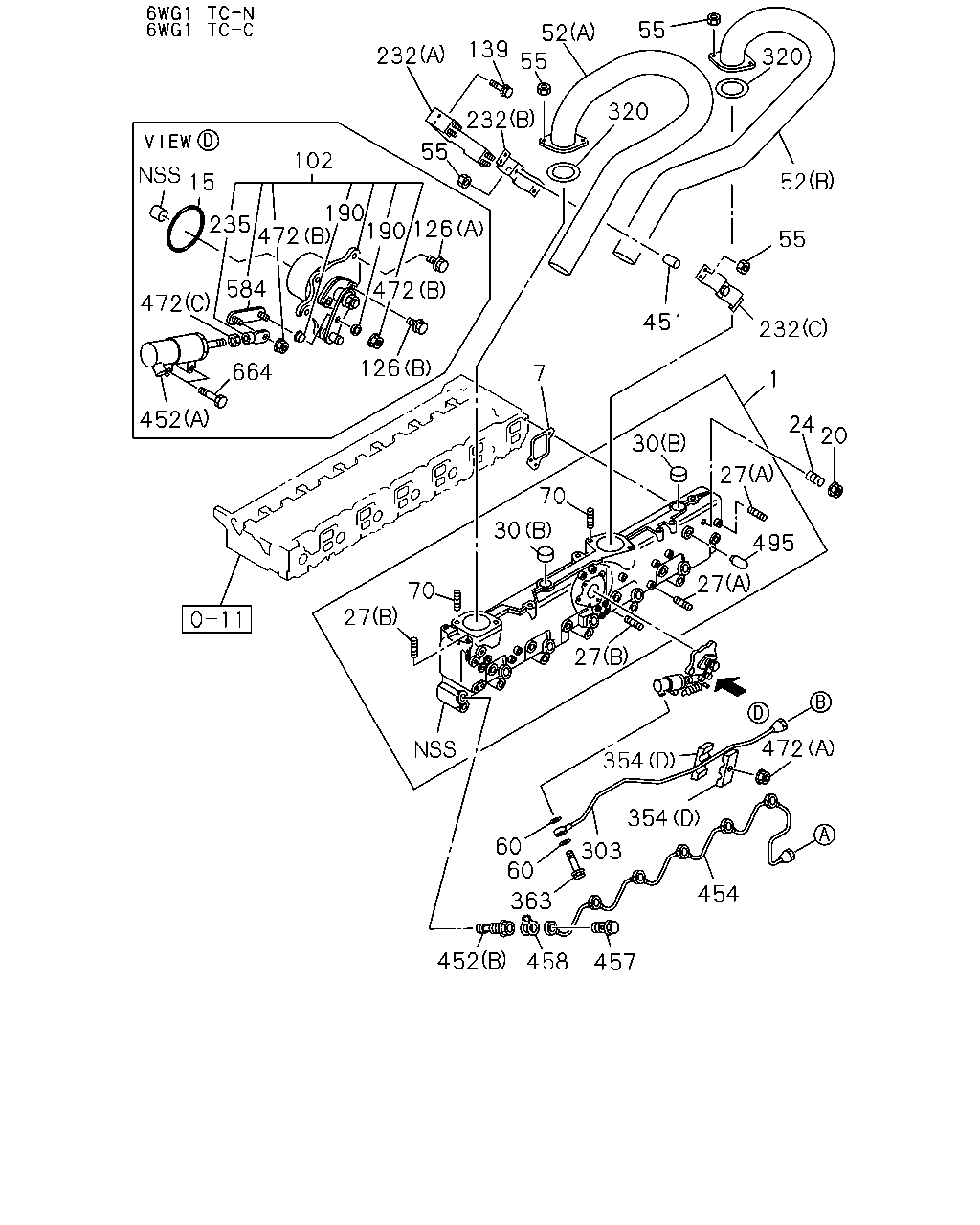

55 52 55 139 232 320 320 232 55 102 15 52 190 235 190 126 472 55 584 472 472 451 232 126 664 7 1 452 24 20 30 27 70 27 30 495 27 70 27 472 354 354 60 60 303 454 363 452 458 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	MANIFOLD; INL EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14110-547-1	01	1	9603-9804	●
1	MANIFOLD; INL EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14110-547-3	01	1	9805-9904	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9805-9904			●
1	MANIFOLD; INL	1-14110-547-4	01	1	9905-				●
1	MANIFOLD; INL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN>	1-14110-548-3	01	1	9603-9904	●
1	MANIFOLD; INL	1-14110-548-4	01	1	9905-	●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-1	01	1	9603-9706	●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-3	01	1	9707-9904	●
1	MANIFOLD; INL SHORT CHASSIS&RHD(EXZ5MC)	1-14110-551-3	01	1	9707-9904		●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-4	01	1	9905-			●
1	MANIFOLD; INL SHORT CHASSIS&RHD(EXZ5MC)	1-14110-551-4	01	1	9905-					●
1	MANIFOLD; INL RLD GOVERNOR(SD7)	1-14110-579-2	01	1	9905-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9603-9706	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9707-9804	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9805-9904	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-	●		●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9706	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9707-9804	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9805-9904	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-	●		●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9603-9706	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9707-9804	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9805-9904	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-	●		●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9603-9706	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9707-9804	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9805-9904	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-	●		●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9603-9706	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9707-9804	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9805-9904	●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-	●		●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9603-9706	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9707-9804	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9805-9904	●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9706	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9706	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-	●		●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9603-9706	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9707-9804	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9805-9904	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-	●		●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9603-9706	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9707-9804	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9805-9904	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-	●		●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9603-9706	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9707-9804	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9805-9904	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-	●		●	●	●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9707-9904		●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-					●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9603-9706	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9707-9804	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9805-9904	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-	●		●	●	●
102	VALVE ASM; INDUCTION CONT	1-14310-221-1	01	1	9707-9904		●
102	VALVE ASM; INDUCTION CONT	1-14310-221-1	01	1	9905-					●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9603-9706	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9707-9804	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9805-9904	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9905-	●		●	●	●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9707-9904		●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-					●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9603-9706	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9707-9804	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9805-9904	●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-	●		●	●	●
190	COLLAR; INLET MANIFOLD	1-22199-138-0	02	1	9707-9904		●
190	COLLAR; INLET MANIFOLD	1-22199-138-0	02	1	9905-					●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9603-9706	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-	●		●	●	●
235	JOINT; INL MANIF	1-22199-137-0	01	1	9707-9904		●
235	JOINT; INL MANIF	1-22199-137-0	01	1	9905-					●
303	PIPE; AIR	1-19192-803-0	01	1	9707-9904		●
303	PIPE; AIR	1-19192-803-1	01	1	9905-					●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9603-9706	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9707-9804	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9805-9904	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-	●		●	●	●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9904	●
354	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-			●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-					●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9610-9706	●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9707-9904	●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9707-9904		●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-			●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-					●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (C) ID=7 L=20	9-09524-635-0	01	1	9610-9904	●
354	CLIP; AIR PIPE (D)	1-09701-132-0	02	1	9707-9904		●
354	CLIP; AIR PIPE (D)	1-09701-132-1	02	1	9905-					●
363	BOLT; EYE M10X21 FLANGE	8-94396-711-0	01	1	9707-9904		●
363	BOLT; EYE M10X21 FLANGE	8-94396-711-0	01	1	9905-					●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9603-9706	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9707-9804	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9805-9904	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-	●		●	●	●
452	CYLINDER ASM; AIR EURO2 SPECIFICATION<THN> (B)	1-14370-013-0	06	1	9610-9706	●
452	CYLINDER ASM; AIR EURO2 SPECIFICATION<THN> (B)	1-14370-013-0	06	1	9707-9904	●
452	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-14370-013-0	06	1	9707-9904		●
452	CYLINDER ASM; AIR (B)	1-14370-013-0	06	1	9905-			●		●
452	CYLINDER ASM; AIR (A)	1-22190-579-0	01	1	9707-9904		●
452	CYLINDER ASM; AIR (A)	1-22190-579-1	01	1	9905-					●
454	PIPE; AIR,IVES EURO2 SPECIFICATION<THN>	1-19192-590-0	01	1	9610-9706	●
454	PIPE; AIR,IVES EURO2 SPECIFICATION<THN>	1-19192-590-1	01	1	9707-9904	●
454	PIPE; AIR,IVES SHORT CHASSIS&RHD(EXZ5MC)	1-19192-590-1	01	1	9707-9904		●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	9905-			●		●
457	BOLT; EYE,AIR PIPE,IVES EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	06	1	9610-9706	●
457	BOLT; EYE,AIR PIPE,IVES EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT	1-09675-037-1	06	1	9707-9904	●
457	BOLT; EYE,AIR PIPE,IVES SHORT CHASSIS&RHD(EXZ5MC) M8X18 EYE-BOLT	1-09675-037-1	06	1	9707-9904		●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	9905-			●		●
458	GASKET; AIR PIPE,VSS EURO2 SPECIFICATION<THN> ID=8.6	8-94395-214-0	06	1	9610-9706	●
458	GASKET; AIR PIPE,VSS EURO2 SPECIFICATION<THN> ID=8.6	8-94395-214-0	06	1	9707-9904	●
458	GASKET; AIR PIPE,VSS SHORT CHASSIS&RHD(EXZ5MC) ID=8.6	8-94395-214-0	06	1	9707-9904		●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	9905-			●		●
472	NUT EURO2 SPECIFICATION<THN> (D) M8 FLANGE	0-91150-108-0	03	1	9610-9904	●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9707-9904		●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9905-					●
472	NUT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9707-9904		●
472	NUT (D) M8 FLANGE	0-91150-108-0	01	1	9905-			●
472	NUT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-					●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904		●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9905-					●
472	NUT (C) M8	9-09110-408-0	01	1	9707-9904		●
472	NUT (C) M8	9-09110-408-0	01	1	9905-					●
495	PIPE; BOOST SENSOR EURO2 SPECIFICATION<THN>	1-09669-073-0	01	1	9610-9706	●
495	PIPE; BOOST SENSOR EURO2 SPECIFICATION<THN>	1-09669-073-0	01	1	9707-9904	●
495	PIPE; BOOST SENSOR SHORT CHASSIS&RHD(EXZ5MC)	1-09669-073-0	01	1	9707-9904		●
495	PIPE; BOOST SENSOR ELECTRONIC GOV RED3(KG5)	1-09669-073-0	01	1	9905-			●
495	PIPE; BOOST SENSOR SHORT CHASSIS&RHD(EXZ5MC)	1-09669-073-0	01	1	9905-					●
584	LINK	1-22199-153-0	01	1	9707-9904		●
584	LINK	1-22199-153-0	01	1	9905-					●
664	BOLT; AIR CYL M8X35 FLANGE	0-28080-835-0	02	1	9707-9904		●
664	BOLT; AIR CYL M8X35 FLANGE	0-28080-835-0	02	1	9905-					●

55 52 55 139 320 320 232 52 55 232 55 232 451 7 1 30 70 70 30 24 20 27 27 70 27 27 167 27 15 704 126 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	MANIFOLD; INL EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14110-547-1	01	1	9603-9804	●
1	MANIFOLD; INL EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14110-547-3	01	1	9805-9904	●
1	MANIFOLD; INL	1-14110-547-3	01	1	9805-9904			●
1	MANIFOLD; INL	1-14110-547-4	01	1	9905-				●
1	MANIFOLD; INL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN>	1-14110-548-3	01	1	9603-9904	●
1	MANIFOLD; INL	1-14110-548-4	01	1	9905-	●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-1	01	1	9603-9706	●
1	MANIFOLD; INL EURO2 SPECIFICATION<THN>	1-14110-551-3	01	1	9707-9904	●
1	MANIFOLD; INL SHORT CHASSIS&RHD(EXZ5MC)	1-14110-551-3	01	1	9707-9904		●
1	MANIFOLD; INL ELECTRONIC GOV RED3(KG5)	1-14110-551-4	01	1	9905-			●
1	MANIFOLD; INL SHORT CHASSIS&RHD(EXZ5MC)	1-14110-551-4	01	1	9905-					●
1	MANIFOLD; INL RLD GOVERNOR(SD7)	1-14110-579-2	01	1	9905-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9603-9706	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9707-9804	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9805-9904	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	9905-	●		●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9706	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9707-9804	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9805-9904	●	●	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-	●		●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9603-9706	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9707-9804	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9805-9904	●	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	9905-	●		●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9603-9706	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9707-9804	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9805-9904	●	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	9905-	●		●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9603-9706	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9707-9804	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9805-9904	●	●	●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	9905-	●		●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9603-9706	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9707-9804	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9805-9904	●	●	●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9706	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9706	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-	●		●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9603-9706	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9707-9804	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9805-9904	●	●	●
52	PIPE; INL (B)	1-14112-522-1	01	1	9905-	●		●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9603-9706	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9707-9804	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9805-9904	●	●	●
52	PIPE; INL (A)	1-14112-635-0	01	1	9905-	●		●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9603-9706	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9707-9804	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9805-9904	●	●	●
55	NUT; INL PIPE M10 FLANGE	0-91150-110-0	09	1	9905-	●		●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9603-9706	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9707-9804	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9805-9904	●	●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	9905-	●		●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9603-9706	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9707-9804	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9805-9904	●	●	●
126	BOLT; COVER (A) M10X20 FLANGE	0-28181-020-0	03	1	9905-	●		●	●	●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9707-9904		●
126	BOLT; COVER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-					●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9603-9706	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9707-9804	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9805-9904	●	●	●
139	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	05	1	9905-	●		●	●	●
167	PLUG; INL MANIF EXC. EURO2 SPECIFICATION<THN>	1-14129-025-0	01	1	9603-9804	●
167	PLUG; INL MANIF EXC. EURO2 SPECIFICATION<THN>	1-14129-025-0	01	1	9805-9904	●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9805-9904			●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9905-9905	●			●
167	PLUG; INL MANIF EXC. EURO2 SPECIFICATION<THN>	1-14129-025-0	01	1	9905-9905			●
167	PLUG; INL MANIF	1-14129-025-0	01	1	9905-	●			●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9603-9706	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (A)	1-14119-377-0	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (B)	1-14119-378-1	01	1	9905-	●		●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9603-9706	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9707-9804	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9805-9904	●	●	●
232	BRACKET; INJ PIPE (C)	1-14119-379-1	01	1	9905-	●		●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9603-9706	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9707-9804	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9805-9904	●	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	9905-	●		●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9603-9706	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9707-9804	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9805-9904	●	●	●
451	TUBE; DIST,BRKT	1-21529-002-0	01	1	9905-	●		●	●	●
704	COVER	1-14134-193-0	01	1	9603-9804	●
704	COVER	1-14134-193-0	01	1	9805-9904	●		●
704	COVER	1-14134-193-0	01	1	9905-	●		●	●

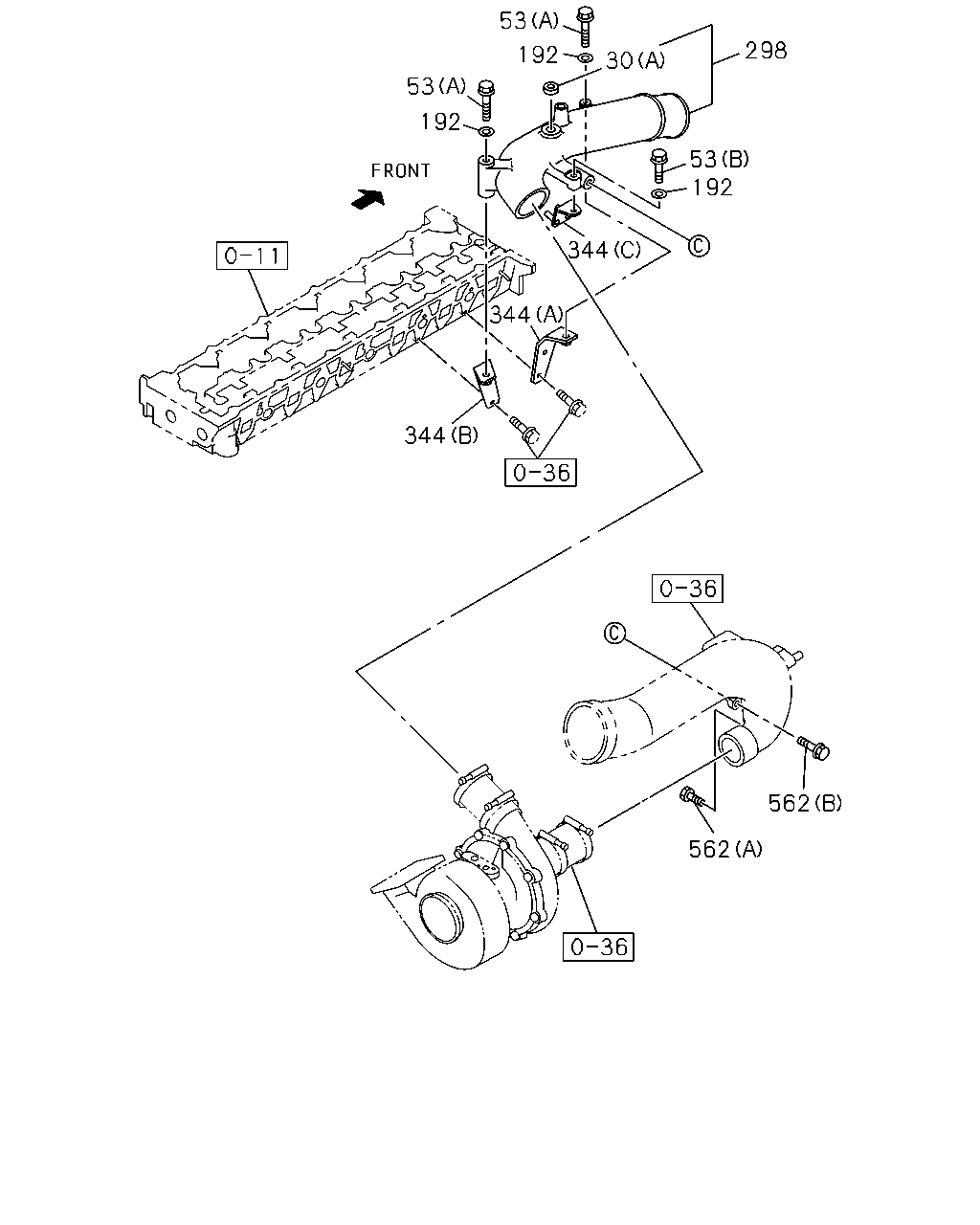

53 298 192 30 53 192 53 192 344 344 344 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9603-9706	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	9905-	●		●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9603-9706	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9707-9804	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9805-9904	●	●	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	9905-	●		●	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9603-9706	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9707-9804	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9805-9904	●	●	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	9905-	●		●	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9603-9706	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9707-9804	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9805-9904	●	●	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	9905-	●		●	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9902-9904	●	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	9905-	●		●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-1	01	1	9603-9706	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-1	01	1	9707-9804	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9805-9904	●	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	9905-	●		●	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9603-9706	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9707-9804	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9805-9904	●	●	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	9905-	●		●	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9603-9706	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9707-9804	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9805-9904	●	●	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	9905-	●		●	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9603-9706	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9707-9804	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9805-9904	●	●	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	9905-	●		●	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9603-9706	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9707-9804	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9805-9904	●	●	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	9905-	●		●	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9603-9706	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9707-9804	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9805-9904	●	●	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	9905-	●		●	●	●

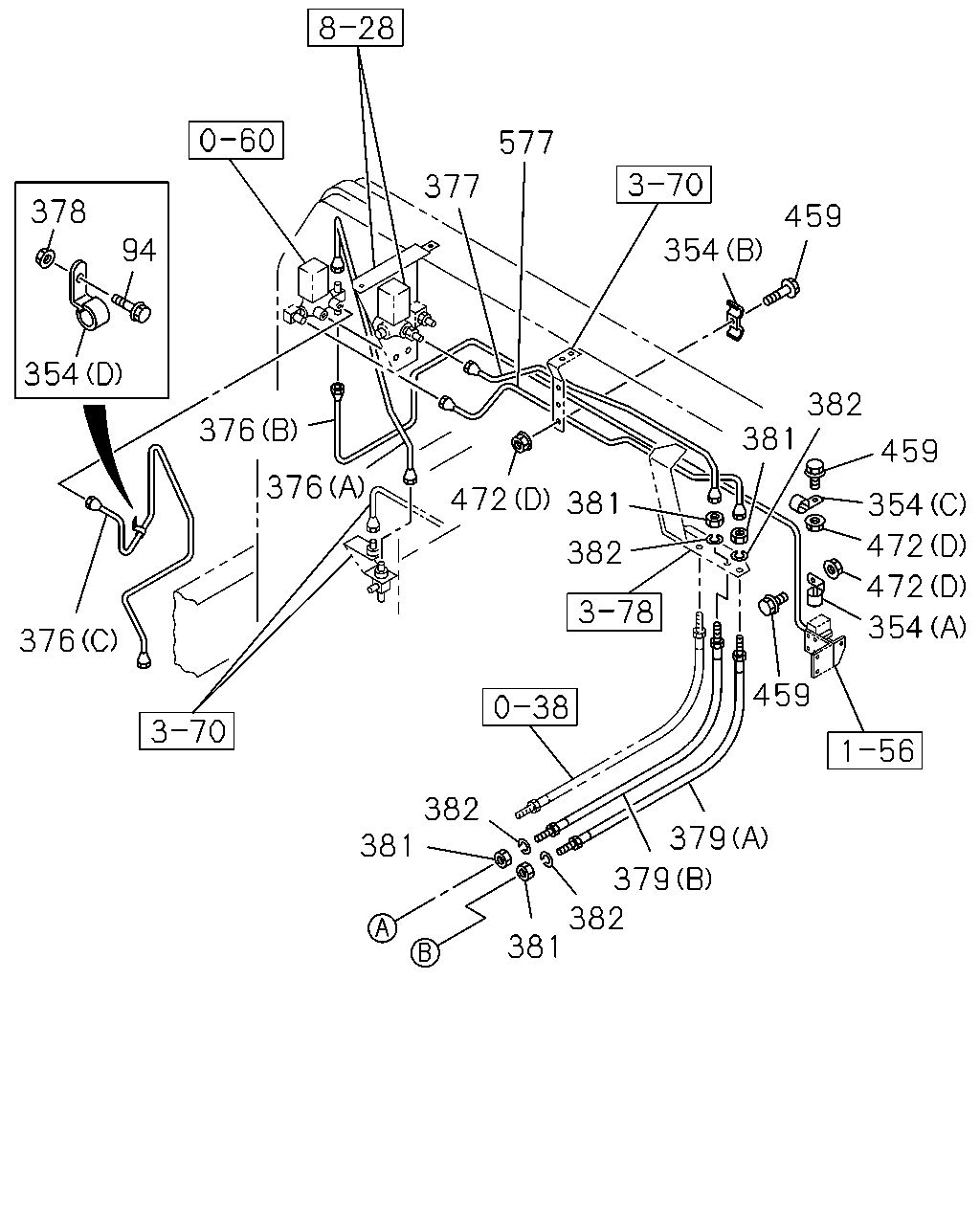

577 377 378 459 94 354 354 382 376 381 459 376 472 381 354 472 382 472 354 459 376 382 381 379 379 382 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
94	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9905-			●
94	BOLT SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28680-820-0	01	1	9905-				●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9904	●
354	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-			●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-				●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9610-9706	●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9707-9904	●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9707-9904		●
354	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-			●
354	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-				●
354	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> (C) ID=7 L=20	9-09524-635-0	01	1	9610-9904	●
354	CLIP; AIR PIPE (D)	1-09701-132-0	02	1	9707-9904		●
354	CLIP; AIR PIPE (D)	1-09701-132-1	02	1	9905-				●
376	PIPE ASM; AIR UNION TO MAG VLV EURO2 SPECIFICATION<THN> (A)	1-49114-277-0	01	1	9610-9706	●
376	PIPE ASM; AIR UNION TO MAG VLV SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +50MM<W60> (A)	1-49114-277-0	01	1	9707-9904	●	●
376	PIPE ASM; AIR UNION TO MAG VLV SHORT CHASSIS&LHD(EXZ6MC) (A)	1-49114-277-0	01	1	9707-9904	●
376	PIPE ASM; AIR UNION TO MAG VLV EURO2 SPECIFICATION<THN> (B)	1-49117-470-0	01	1	9610-9904	●
376	PIPE ASM; AIR UNION TO MAG VLV EXC. CAB UP +110MM<TGG> (C) L=620	1-49121-778-0	01	1	9905-			●
376	PIPE ASM; AIR UNION TO MAG VLV SHORT CHASSIS&RHD(EXZ5MC) CAB UP +50MM<W60> (A)	1-49116-708-0	01	1	9707-9904	●	●
376	PIPE ASM; AIR UNION TO MAG VLV SHORT CHASSIS&RHD(EXZ5MC) (B) L=185	1-49117-855-0	01	1	9707-9904		●
376	PIPE ASM; AIR UNION TO MAG VLV CAB UP +110MM<TGG> (C)	1-49121-779-0	01	1	9905-			●
376	PIPE ASM; AIR UNION TO MAG VLV SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> (C)	1-49121-779-0	01	1	9905-				●
377	PIPE ASM; AIR MAG VLV SHORT CHASSIS&RHD(EXZ5MC)	1-49114-260-0	01	1	9707-9904		●
377	PIPE ASM; AIR MAG VLV SHORT CHASSIS&RHD(EXZ5MC) L=612 SERVICED BY L=650	1-47428-810-0	01	1	9905-				●
378	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-			●
378	NUT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	01	1	9905-				●
379	HOSE; FLEX EURO2 SPECIFICATION<THN> (A) L=520	0-07030-520-0	01	1	9610-9702	●
379	HOSE; FLEX EURO2 SPECIFICATION<THN> (A) L=520	1-09363-657-0	01	1	9703-9706	●
379	HOSE; FLEX SHORT CHASSIS&RHD(EXZ5MC) EXC. CAB UP +50MM<W60> (A) L=520	1-09363-657-0	01	1	9707-9904	●	●
379	HOSE; FLEX SHORT CHASSIS&LHD(EXZ6MC) (A) L=520	1-09363-657-0	01	1	9707-9904	●
379	HOSE; FLEX (A) L=520	1-09363-657-0	01	1	9905-			●
379	HOSE; FLEX SHORT CHASSIS&RHD(EXZ5MC) (A) L=520	1-09363-657-0	01	1	9905-				●
379	HOSE; FLEX SHORT CHASSIS&RHD(EXZ5MC) CAB UP +50MM<W60> (A) L=560	1-09363-689-0	01	1	9707-9904	●	●
379	HOSE; FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=390	1-09363-629-0	01	1	9707-9904		●
379	HOSE; FLEX SHORT CHASSIS&RHD(EXZ5MC) (B) L=360	1-09363-658-0	01	1	9905-				●
381	NUT; FLEX TUBE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	9610-9706	●
381	NUT; FLEX TUBE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	9707-9904	●
381	NUT; FLEX TUBE SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	02	1	9707-9904		●
381	NUT; FLEX TUBE M12	9-09840-280-0	02	1	9905-			●
381	NUT; FLEX TUBE SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	02	1	9905-				●
381	NUT; FLEX TUBE SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	02	1	9905-				●
382	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	9610-9706	●
382	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	9707-9904	●
382	WASHER; LK,FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) ID=12.2	9-09150-512-0	02	1	9707-9904		●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9905-			●
382	WASHER; LK,FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) ID=12.2	9-09150-512-0	02	1	9905-				●
382	WASHER; LK,FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) ID=12.2	9-09150-512-0	02	1	9905-				●
459	BOLT; CLIP FIX EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	03	1	9610-9904	●
459	BOLT; CLIP FIX SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28680-820-0	01	1	9707-9904		●
459	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	9905-			●
459	BOLT; CLIP FIX SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28680-820-0	01	1	9905-				●
472	NUT EURO2 SPECIFICATION<THN> (D) M8 FLANGE	0-91150-108-0	03	1	9610-9904	●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9707-9904		●
472	NUT (A) M6 FLANGE	0-91150-106-0	01	1	9905-				●
472	NUT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9707-9904		●
472	NUT (D) M8 FLANGE	0-91150-108-0	01	1	9905-			●
472	NUT SHORT CHASSIS&RHD(EXZ5MC) (D) M8 FLANGE	0-91150-108-0	01	1	9905-				●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904		●
472	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9905-				●
472	NUT (C) M8	9-09110-408-0	01	1	9707-9904		●
472	NUT (C) M8	9-09110-408-0	01	1	9905-				●
577	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800	1-47428-812-0	01	1	9610-9706	●
577	PIPE; AIR,UNION TO FLEX HOSE EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800	1-47428-812-0	01	1	9707-9904	●
577	PIPE; AIR,UNION TO FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) L=708 SERVICED BY L=800	1-47428-812-0	01	1	9707-9904		●
577	PIPE; AIR,UNION TO FLEX HOSE CAB UP +110MM<TGG> L=766 SERVICED BY L=800	1-47428-812-0	01	1	9905-			●
577	PIPE; AIR,UNION TO FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> L=766 SERVICED BY L=800	1-47428-812-0	01	1	9905-				●
577	PIPE; AIR,UNION TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-49121-789-0	01	1	9905-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
