1 |

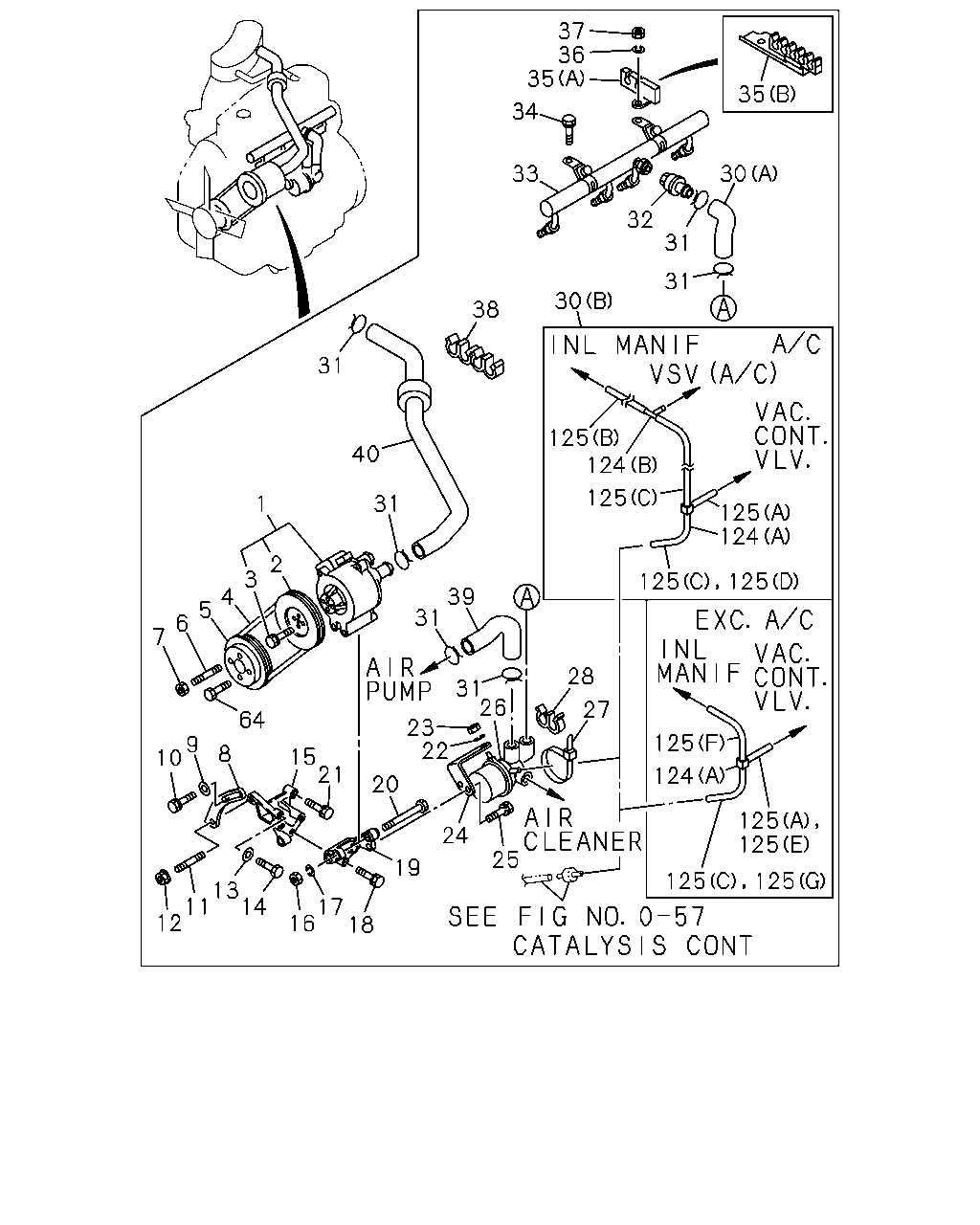

AIR PUMP ASM
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94339-026-0 |
01 |
1 |
9307- |
● |
|
| |
2 |
PULLEY; AIR INJ PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94223-813-0 |
01 |
1 |
9307- |
● |
|
| |
3 |
BOLT; PULLEY,AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94223-814-0 |
03 |
1 |
9307- |
● |
|
| |
4 |
BELT; AIR PUMP DRIVE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94232-287-3 |
01 |
1 |
9307- |
● |
|
| |
5 |
PULLEY; AIR PUMP DRIVE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94136-783-1 |
01 |
1 |
9307- |
● |
|
| |
6 |
STUD; PULLEY,AIR PUMP
M8X20 L=32
|
9-04110-820-0 |
04 |
1 |
9307- |
● |
|
| |
7 |
NUT; PULLEY,AIR PUMP
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9307- |
● |
|
| |
8 |
PLATE; ADJ,AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94227-287-0 |
01 |
1 |
9307- |
● |
|
| |
9 |
WASHER; PL,ADJ PLATE,AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=8.4 OD=22
|
9-09164-708-0 |
01 |
1 |
9307- |
● |
|
| |
10 |
BOLT; AIR PUMP TO ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9307- |
● |
|
| |
11 |
STUD; BRKT,BYPASS PIPE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8X20 L=32
|
9-04110-820-0 |
01 |
1 |
9307- |
● |
|
| |
12 |
NUT; ADJ PLATE,AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8 FLANGE
|
5-09440-005-0 |
01 |
1 |
9307- |
● |
|
| |
13 |
WASHER; LK,BRKT (A)
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=10.2
|
9-09150-610-0 |
02 |
1 |
9307-9405 |
● |
|
| |
14 |
BOLT; BRKT (A) TO C/BL
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M10X40
|
9-01061-055-0 |
02 |
1 |
9307-9405 |
● |
|
| |
14 |
BOLT; BRKT (A) TO C/BL
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M10X50 FLANGE
|
0-28081-050-0 |
02 |
1 |
9406- |
● |
|
| |
15 |
BRACKET ASM; AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94140-911-1 |
01 |
1 |
9307-9502 |
● |
|
| |
15 |
BRACKET ASM; AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-97129-607-0 |
01 |
1 |
9503- |
● |
|
| |
16 |
NUT; AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8
|
9-09110-508-0 |
01 |
1 |
9307- |
● |
|
| |
17 |
WASHER; LK,AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9307- |
● |
|
| |
18 |
BOLT; BRKT (B) TO BRKT (A)
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8X30 W/LK WASHER
|
0-50040-830-0 |
03 |
1 |
9307- |
● |
|
| |
19 |
BRACKET; AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94146-491-0 |
01 |
1 |
9307- |
● |
|
| |
20 |
BOLT; AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8X115
|
9-09600-109-0 |
01 |
1 |
9307- |
● |
|
| |
21 |
BOLT; AIR PUMP BRKT (A)
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M10X30
|
8-94238-617-0 |
01 |
1 |
9307- |
● |
|
| |
22 |
WASHER; BRKT,AIR BYPASS VLV
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9307- |
● |
|
| |
23 |
NUT; BRKT,AIR BYPASS VLV
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8
|
9-09110-408-0 |
01 |
1 |
9307- |
● |
|
| |
24 |
BRACKET; AIR BYPASS VLV
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94235-506-1 |
01 |
1 |
9307- |
● |
|
| |
25 |
BOLT; BRKT,AIR BYPASS VLV
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9307- |
● |
|
| |
26 |
VALVE; AIR BYPASS
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
|
8-94238-489-0 |
01 |
1 |
9407- |
● |
|
| |
26 |
VALVE; AIR BYPASS
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
|
8-94207-063-0 |
01 |
1 |
9307- |
● |
|
| |
27 |
CLIP; HOSE
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
L=219.5
|
1-09987-136-0 |
01 |
1 |
9407- |
● |
|
| |
27 |
CLIP; HOSE
COLOMBIA EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
L=140
|
5-09707-031-0 |
01 |
1 |
9307- |
● |
|
| |
27 |
CLIP; HOSE
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
L=140
|
5-09707-031-0 |
02 |
1 |
9307- |
● |
|
| |
28 |
CLIP; 2 HOSE
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=6.8X2
|
8-94126-636-0 |
01 |
1 |
9307- |
● |
|
| |
30 |
HOSE; ABV TO AIR MANIF
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(B)
|
8-94423-894-2 |
01 |
1 |
9407- |
● |
|
| |
30 |
HOSE; ABV TO AIR MANIF
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
(A)
|
8-94235-511-0 |
01 |
1 |
9307- |
● |
|
| |
30 |
HOSE; ABV TO AIR MANIF
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
(B)
|
8-94320-690-0 |
01 |
1 |
9407- |
● |
● |
| |
31 |
CLIP; HOSE,AIR INJ
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
ID=27
|
8-94411-850-0 |
06 |
1 |
9307- |
● |
|
| |
32 |
VALVE; CHECK
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94204-935-0 |
01 |
1 |
9307- |
● |
|
| |
33 |
MANIFOLD ASM; AIR
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94344-904-0 |
01 |
1 |
9307- |
● |
|
| |
34 |
BOLT; AIR MANIF STAY
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
01 |
1 |
9307- |
● |
|
| |
35 |
CLIP; CABLE,FRT
(A)
|
8-94160-679-0 |
01 |
1 |
9307-9406 |
● |
|
| |
35 |
CLIP; CABLE,FRT
EXC. CATALYSIS CONTROL<6MZ>
(A)
|
8-94160-679-0 |
01 |
1 |
9407- |
● |
|
| |
35 |
CLIP; CABLE,FRT
CATALYSIS CONTROL<6MZ>
(B)
|
8-94457-981-2 |
01 |
1 |
9407- |
● |
|
| |
36 |
WASHER; LK,CABLE CLIP
EXC. SAUDI ARABIA EQUIPMENT(EU2)
ID=6.1
|
9-09150-506-0 |
01 |
1 |
9307- |
● |
|
| |
37 |
NUT; CABLE CLIP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9307- |
● |
|
| |
37 |
NUT; CABLE CLIP
EXC. SAUDI ARABIA EQUIPMENT(EU2)
M6
|
9-09110-406-0 |
01 |
1 |
9307- |
● |
|
| |
38 |
CLIP; 3 HOSE
4XID=6.8
|
8-94132-799-0 |
01 |
1 |
9307- |
● |
|
| |
39 |
HOSE; RUBBER,AIR PUMP TO BYPASS VLV
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94206-005-3 |
01 |
1 |
9307- |
● |
|
| |
40 |
HOSE; RUBBER,CARB DUCT TO AIR PUMP
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
|
8-94321-231-1 |
01 |
1 |
9307- |
● |
|
| |
64 |
BOLT; PULLEY,AIR PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR
CONDITIONER MANUAL CONT FRT&RR(EM2)
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
9307- |
● |
|
| |
124 |
JOINT; 3 WAY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(B)
|
8-94111-558-0 |
01 |
1 |
9307-9406 |
● |
|
| |
124 |
JOINT; 3 WAY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
(B)
|
8-94111-558-0 |
01 |
1 |
9407- |
● |
|
| |
124 |
JOINT; 3 WAY
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(A)
3WAY
|
8-94439-294-0 |
01 |
1 |
9307-9406 |
● |
|
| |
124 |
JOINT; 3 WAY
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
(A)
3WAY
|
8-94439-294-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
SAUDI ARABIA EQUIPMENT(EU2)
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR
CONDITIONER MANUAL CONT FRT&RR(EM2),HOT AIR INTAKE<RN4>
(E) L=40
SERVICED BY L=3000
|
0-04730-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
SAUDI ARABIA EQUIPMENT(EU2)
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR
CONDITIONER MANUAL CONT FRT&RR(EM2),HOT AIR INTAKE<RN4>
(F) L=300,(G) L=550
SERVICED BY L=3000
|
0-04740-300-0 |
02 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(A)
L=40
SERVICED BY L=3000
|
0-04730-300-0 |
01 |
1 |
9307-9406 |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(A)
L=40
SERVICED BY L=3000
|
0-04730-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
(A)
L=40
SERVICED BY L=3000
|
0-04730-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(B)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9307-9406 |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA
EQUIPMENT(X74)
EXC. HOT AIR INTAKE<RN4>
(B)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(C)
L=180
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9307-9406 |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(C)
L=180
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
(C)
L=180
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
SAUDI ARABIA EQUIPMENT(EU2)
EXC. HOT AIR INTAKE<RN4>
(D)
L=550
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9307- |
● |
|
| |
125 |
HOSE; RUBBER
COLOMBIA EQUIPMENT(X74)
CATALYSIS CONTROL<6MZ>
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR
CONDITIONER MANUAL CONT FRT&RR(EM2),HOT AIR INTAKE<RN4>
(F)
L=300
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9407- |
● |
|
| |
125 |
HOSE; RUBBER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER
MANUAL CONT FRT&RR(EM2)
CATALYSIS CONTROL<6MZ>
EXC. HOT AIR INTAKE<RN4>
(C)
L=180
SERVICED BY L=3000
|
0-04740-300-0 |
02 |
1 |
9407- |
● |
|
