◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-71 - DISTRIBUTOR ▶
0-71 — DISTRIBUTOR (#46767) — 43 parça

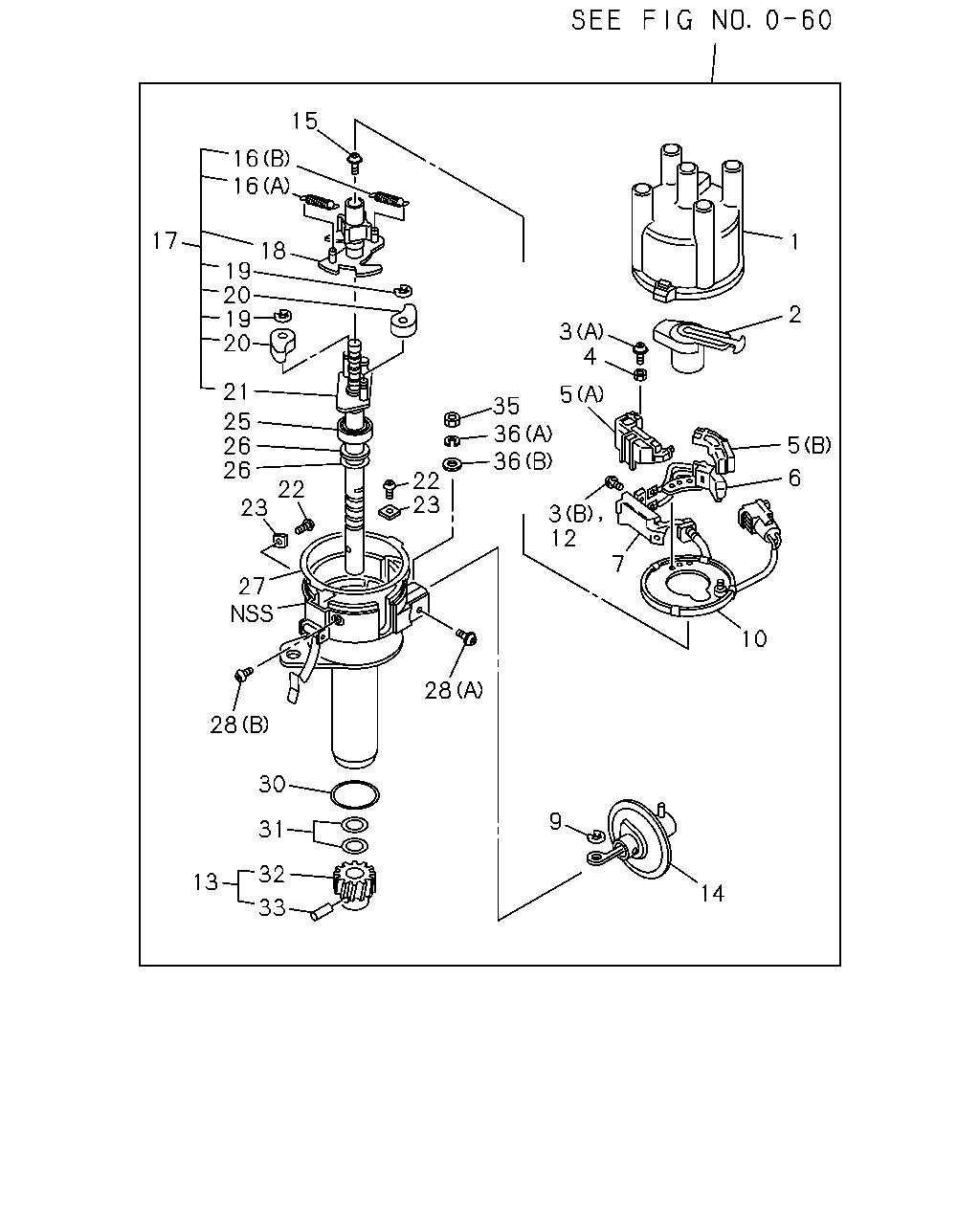

çizim 17560
15 16 16 17 1 18 19 20 19 20 2 3 4 21 25 26 26 5 35 36 36 5 6 22 23 22 23 3 12 7 27 10 28 28 30 9 31 32 33 13 14
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94129-202-0 01 1 -
2 ROTOR; DISTR
ASM PART: B = 8-94419-999-0, C = 8-94420-009-1 		8-94216-729-0 01 1 -
2 ROTOR; DISTR
ASM PART: A = 8-94419-998-0, D = 8-94452-967-0 		8-94338-910-0 01 1 -
3 SCREW; BREAKER,DISTR
(A) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94206-155-0 02 1 -
3 SCREW; BREAKER,DISTR
(B) ASM PART: D = 8-94452-967-0 		8-94212-645-0 02 1 -
4 NUT; SPACER
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94147-857-0 01 1 -
5 COVER; DUST,BREAKER,DISTR
(A) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94129-193-0 01 1 -
5 COVER; DUST,BREAKER,DISTR
(B) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94129-194-0 01 1 -
6 GENERATOR; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-97080-226-0 01 1 -
7 IGNITER; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94425-629-0 01 1 -
9 WASHER; SNAP,BREAKER,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94207-822-0 01 1 -
10 PLATE; BREAKER,DIST
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94129-198-0 01 1 -
12 SCREW; WIRE CLAMP,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1 		8-94212-645-0 02 1 -
13 COUPLING; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-156-0 01 1 -
14 CONTROL; VAC,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0 		8-94413-447-0 01 1 -
14 CONTROL; VAC,DISTR
ASM PART: C = 8-94420-009-1 		8-94425-630-0 01 1 -
14 CONTROL; VAC,DISTR
ASM PART: D = 8-94452-967-0 		8-94457-898-0 01 1 -
15 SCREW; CAM,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94206-155-0 01 1 -
16 SPRING; GOV,DISTR
(B) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, D = 8-94452-967-0 		8-94402-434-0 01 1 -
16 SPRING; GOV,DISTR
(A) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, D = 8-94452-967-0 		8-94402-435-0 01 1 -
16 SPRING; GOV,DISTR
(A),(B) ASM PART: C = 8-94420-009-1 		8-94425-632-0 02 1 -
17 GOVERNOR; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, D = 8-94452-967-0 		8-94413-448-0 01 1 -
17 GOVERNOR; DISTR
ASM PART: C = 8-94420-009-1 		8-94425-633-0 01 1 -
18 CAM; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, D = 8-94452-967-0 		8-94129-218-0 01 1 -
18 CAM; DISTR
ASM PART: C = 8-94420-009-1 		8-94425-631-0 01 1 -
19 WASHER; FLYWEIGHT,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94207-822-0 02 1 -
20 FLYWEIGHT; GOV,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-186-0 02 1 -
21 SHAFT; DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-184-0 01 1 -
22 SCREW; CLAMP,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94206-158-0 02 1 -
23 WASHER; CLAMP SCREW,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94216-700-0 02 1 -
25 SEAL; SHAFT,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-158-0 01 1 -
26 WASHER; SHAFT,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94220-282-0 02 1 -
27 GASKET; HSG,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94216-701-0 01 1 -
28 SCREW; VAC CONT
(B) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94108-473-0 02 1 -
28 SCREW; VAC CONT
(A) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-241-0 01 1 -
30 GASKET; HSG,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94206-165-0 01 1 -
31 WASHER; THRUST,DISTR
T=0.20 ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94206-157-0 01 1 -
31 WASHER; THRUST,DISTR
T=0.30 ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94207-823-0 01 1 -
32 GEAR; DRIVE,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-176-0 01 1 -
33 PIN; STRAIGHT,DISTR
ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		8-94237-157-0 01 1 -
35 NUT; PLATE,DISTR
M8 ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		9-09110-508-0 01 1 -
36 WASHER; PLATE,DISTR
(A) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		9-09150-508-0 01 1 -
36 WASHER; PLATE,DISTR
(B) ASM PART: A = 8-94419-998-0, B = 8-94419-999-0, C = 8-94420-009-1, D = 8-94452-967-0 		9-09160-608-0 01 1 -
