Sayfa 0-70 - Isuzu EPC

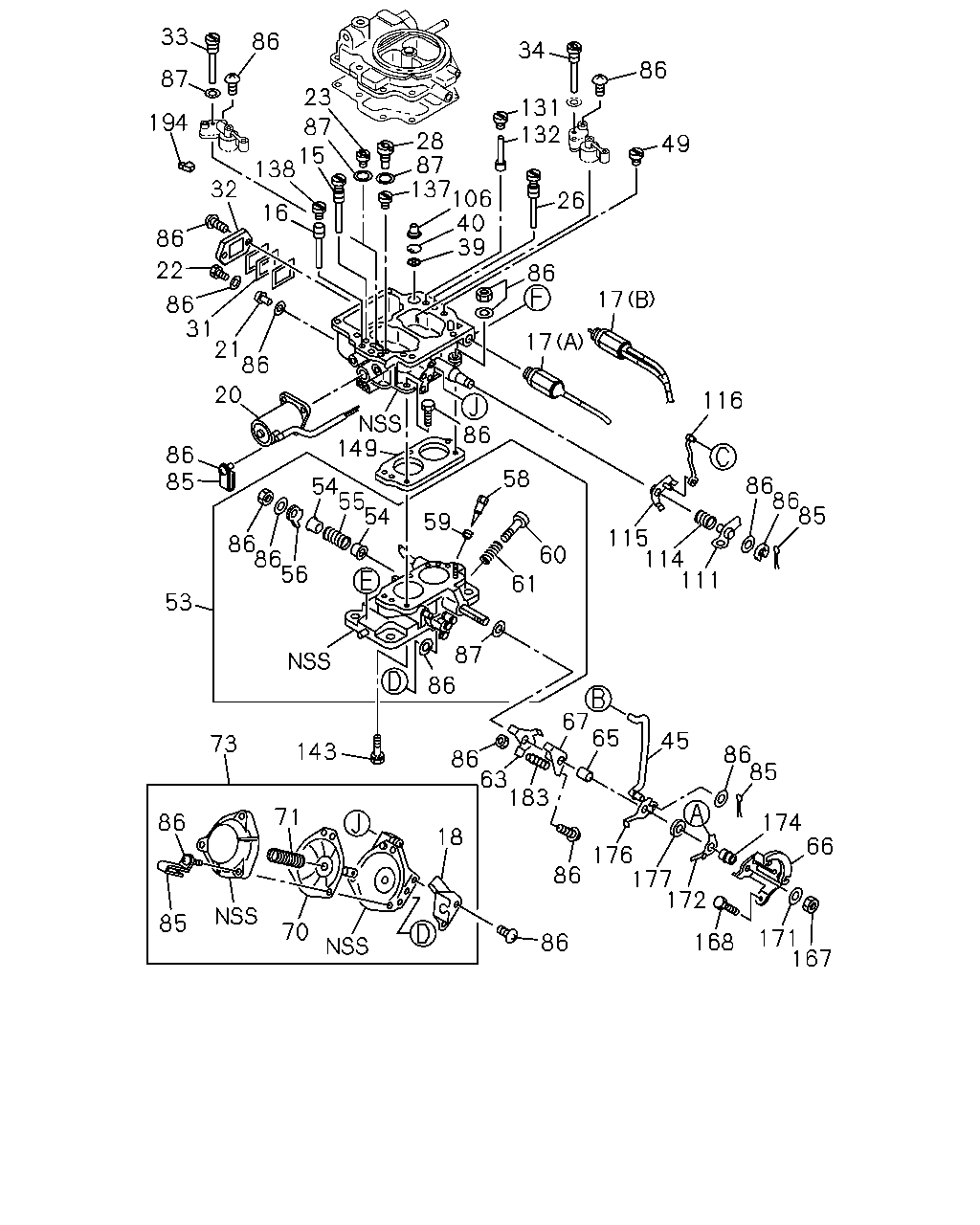

0-70 — CARBURETOR (#46766) — 151 parça

23 87 28 15 138 87 32 137 106 40 39 33 86 34 86 87 194 131 132 49 26 16 86 22 86 31 21 86 20 86 86 17 17 116 149 86 85 58 86 86 85 54 55 54 59 115 114 111 86 86 56 60 61 53 87 86 67 65 86 63 183 45 73 143 86 85 71 174 66 86 18 176 86 177 172 85 70 171 167 168 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	JET ASM; STEP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-284-0	01	1	-9312
15	JET ASM; STEP,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-94313-286-0	01	1	-
15	JET ASM; STEP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94313-286-0	01	1	9401-
16	JET; COASTING,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94100-955-0	01	1	-
16	JET; COASTING,CARB ASM PART: B = 8-94419-994-1	8-94240-303-0	01	1	-
17	VALVE ASM; SOLENOID,CARB (B) ASM PART: C = 8-94456-524-1	8-94363-229-0	01	1	-
17	VALVE ASM; SOLENOID,CARB (A) ASM PART: A = 8-94178-217-1	8-94440-143-0	01	1	-
17	VALVE ASM; SOLENOID,CARB (A) ASM PART: B = 8-94419-994-1, D = 8-97094-124-0	8-94440-144-0	01	1	-
18	HOLDER; THROTTLE WIRE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-295-0	01	1	-
19	JET; STEP,AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-285-0	01	1	-9312
20	ENRICHER COMPL; COASTING,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94100-954-0	01	1	-
20	ENRICHER COMPL; COASTING,CARB ASM PART: B = 8-94419-994-1	8-94240-302-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: B = 8-94419-994-1	5-15255-014-0	01	1	9401-
21	JET; 2ND MAIN,CARB ASM PART: C = 8-94456-524-1	5-15255-014-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94212-057-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: B = 8-94419-994-1	8-94212-057-0	01	1	-9312
22	PLUG; MAIN PASSAGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94221-789-0	01	1	-
23	JET; 1ST MAIN,CARB ASM PART: C = 8-94456-524-1	8-94118-654-0	01	1	-
23	JET; 1ST MAIN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, D = 8-97094-124-0	8-94218-098-0	01	1	-
26	JET ASM; SLOW,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94152-716-0	01	1	-
28	JET ASM; POWER,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94218-099-0	01	1	-
31	GLASS; FUEL LEVEL GAUGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-291-0	01	1	-
32	COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-292-0	01	1	-
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-283-0	01	1	-9312
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97102-589-0	01	1	9401-
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97102-589-0	01	1	-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-282-0	01	1	-9312
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: C = 8-94456-524-1	8-94240-282-0	01	1	-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: D = 8-97094-124-0	8-97102-589-0	01	1	-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97102-589-0	01	1	9401-
39	STRAINER; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	9-81111-614-0	01	1	-
40	CLIP; PUMP STRAINER,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	9-81135-061-0	01	1	-
45	ROD; PUMP CONNECTOR,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94118-728-0	01	1	-
49	JET; AIR BLEED,2ND,CARB ASM PART: B = 8-94419-994-1	8-94118-726-0	01	1	-9312
49	JET; AIR BLEED,2ND,CARB ASM PART: A = 8-94178-217-1	8-94208-714-0	01	1	-9312
53	BODY; THROTTLE,CARB ASM PART: B = 8-94419-994-1	8-94440-145-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94440-149-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: C = 8-94456-524-1	8-97105-037-0	01	1	-
54	BUSHING; THROTTLE,SHAFT CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-308-0	02	1	-
55	SPRING; THROTTLE,RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94419-681-0	01	1	-
56	ARM; THROTTLE RETURN SPR,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94248-611-0	01	1	-
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-309-0	01	1	-9312
58	SCREW; IDLE ADJ,CARB ASM PART: D = 8-97094-124-0	8-97102-587-0	01	1	-
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97102-587-0	01	1	9401-
58	SCREW; IDLE ADJ,CARB ASM PART: C = 8-94456-524-1	8-97102-588-0	01	1	-
59	SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	9-81155-174-0	01	1	-
60	SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94402-183-0	01	1	-
61	SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94206-012-0	01	1	-
63	ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94140-381-0	01	1	-
65	COLLAR; THROTTLE SHAFT "A",CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-311-0	01	1	-
66	LEVER ASM; THROTTLE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-317-0	01	1	-
67	ARM ASM; FAST IDLE CAM ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94248-612-0	01	1	-
70	DIAPHRAGM ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-294-0	01	1	-
71	SPRING; DIAPH,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94118-661-0	01	1	-
71	SPRING; DIAPH,CARB ASM PART: B = 8-94419-994-1, C = 8-94456-524-1	8-94248-608-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: C = 8-94456-524-1	8-94248-507-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: B = 8-94419-994-1	8-94248-607-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94440-142-0	01	1	-
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-341-0	01	1	-9312
85	CLIP SET; CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97103-516-0	01	1	-
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97103-516-0	01	1	9401-
86	SCREW SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, D = 8-97094-124-0	8-94240-342-0	01	1	-
86	SCREW SET; CARB ASM PART: C = 8-94456-524-1	8-94363-234-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-343-0	01	1	-9312
87	GASKET SET; CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97103-517-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97103-517-0	01	1	9401-
106	SPRING; PUMP RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-287-0	01	1	-9312
106	SPRING; PUMP RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97102-567-0	01	1	9401-
106	SPRING; PUMP RETURN,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97102-567-0	01	1	-
111	CAM; FAST IDLE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, D = 8-97094-124-0	8-94248-609-0	01	1	-
111	CAM; FAST IDLE,CARB ASM PART: C = 8-94456-524-1	8-94329-570-0	01	1	-
114	SPRING; FAST IDLE CAM,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-297-0	01	1	-
115	ARM; START,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-298-0	01	1	-
116	ROD; CONN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-335-0	01	1	-
131	SPRING; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94118-656-0	01	1	-
132	SEAT ASM; CHECK VLV,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94118-657-0	01	1	-
137	PLUG; SLOW PASSAGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-286-0	03	1	-9312
137	PLUG; SLOW PASSAGE,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-94311-881-0	03	1	-
137	PLUG; SLOW PASSAGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94311-881-0	03	1	9401-
138	JET; 1ST COASTING AIR BLEED,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94208-314-0	01	1	-
138	JET; 1ST COASTING AIR BLEED,CARB ASM PART: B = 8-94419-994-1	8-94240-304-0	01	1	-
143	SCREW; FLANGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94221-789-0	01	1	9401-
143	SCREW; FLANGE,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-94251-769-0	01	1	-
143	SCREW; FLANGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94251-769-0	01	1	-9312
149	INSULATOR ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94140-385-0	01	1	-
167	NUT; THROTTLE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	9-81155-605-0	01	1	-
168	SCREW; FAST IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94402-184-0	01	1	-
171	WASHER; LEVER,THROTTLE ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	9-09150-008-0	01	1	9401-
171	WASHER; LEVER,THROTTLE ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	9-09150-008-0	01	1	-
172	ARM ASM; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94248-613-0	01	1	-
174	COLLAR; THROTTLE SHAFT "B",CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94419-682-0	01	1	-
176	ARM; PUMP CONNECTOR,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-315-0	01	1	-
177	COLLAR; ROLLING,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-314-0	01	1	-
183	SPRING; SELECT SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94206-012-0	01	1	-
194	CLIP; CORD CONNECTOR,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94311-889-0	01	1	9401-
194	CLIP; CORD CONNECTOR,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-94311-889-0	01	1	-

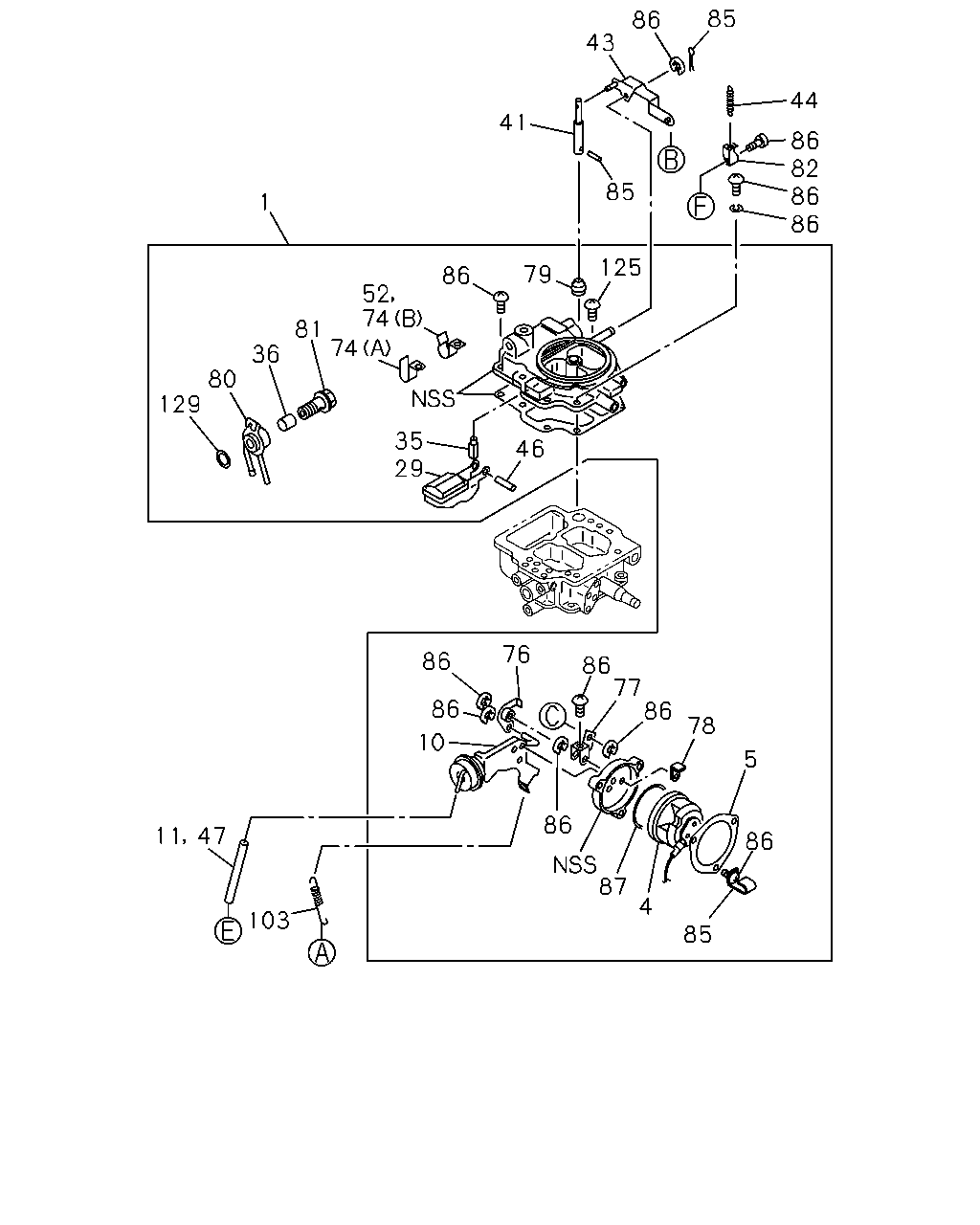

85 86 43 44 41 86 82 86 86 85 1 125 79 46 86 52 74 81 36 74 80 129 35 29 76 86 86 77 86 78 86 10 5 86 86 47 11 87 4 103 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AIR HORN COMPL; CARB ASM PART: B = 8-94419-994-1	8-94440-153-0	01	1	-9312
1	AIR HORN COMPL; CARB ASM PART: A = 8-94178-217-1	8-94440-154-0	01	1	-
1	AIR HORN COMPL; CARB ASM PART: B = 8-94419-994-1	8-97102-565-0	01	1	9401-
1	AIR HORN COMPL; CARB ASM PART: C = 8-94456-524-1	8-97102-566-0	01	1	-
1	AIR HORN COMPL; CARB ASM PART: D = 8-97094-124-0	8-97103-515-0	01	1	-
4	HOUSING COMPL; COIL,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94140-384-0	01	1	-
4	HOUSING COMPL; COIL,CARB ASM PART: D = 8-97094-124-0	8-94324-157-0	01	1	-
4	HOUSING COMPL; COIL,CARB ASM PART: C = 8-94456-524-1	8-94363-232-0	01	1	-
5	PLATE; BIMETAL CASE SET,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-326-0	01	1	-
10	PISTON; CHOKE,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-324-0	01	1	-
11	HOSE; VAC,CARB ASM PART: B = 8-94419-994-1	8-94240-339-0	01	1	-9312
19	JET; STEP,AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-285-0	01	1	-9312
29	FLOAT; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-329-0	01	1	-
35	SEAT COMPL; FLOAT VLV,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-327-0	01	1	-
36	STRAINER ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-331-0	01	1	-
41	PLUNGER; ACCEL CMPR,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94118-727-0	01	1	-
43	ARM; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-340-0	01	1	-
44	SPRING; SUB RETURN,CARB ASM PART: C = 8-94456-524-1	8-94240-301-0	01	1	-
44	SPRING; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-301-0	01	1	-9312
44	SPRING; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94426-149-1	01	1	9401-
44	SPRING; SUB RETURN,CARB ASM PART: D = 8-97094-124-0	8-94426-149-1	01	1	-
46	PIN; FLOAT,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-328-0	01	1	-
47	HOSE; RUBBER,CARB ASM PART: B = 8-94419-994-1	8-94240-339-0	01	1	9401-
47	HOSE; RUBBER,CARB ASM PART: C = 8-94456-524-1	8-94240-339-0	01	1	-
47	HOSE; RUBBER,CARB ASM PART: A = 8-94178-217-1, D = 8-97094-124-0	8-94440-155-0	01	1	-
52	CLIP; SOLENOID HARNESS ASM PART: A = 8-94178-217-1	8-94248-615-0	01	1	-9312
74	CLAMP; SOLENOID HARNESS,CARB (B) ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94150-361-0	01	1	-9312
74	CLAMP; SOLENOID HARNESS,CARB (B) ASM PART: A = 8-94178-217-1	8-94248-615-0	01	1	9401-
74	CLAMP; SOLENOID HARNESS,CARB (B) ASM PART: B = 8-94419-994-1, D = 8-97094-124-0	8-94248-615-0	01	1	-
74	CLAMP; SOLENOID HARNESS,CARB (A) ASM PART: C = 8-94456-524-1	8-94363-233-0	01	1	-
76	LEVER; CHOKE BREAKER ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94140-383-0	01	1	-
77	ARM ASM; CHOKE BREAKER ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-321-0	01	1	-
78	ARM; CHOKE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94402-093-0	01	1	-
79	BELLOWS; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-323-0	01	1	-
80	CONNECTOR; FUEL RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-332-0	01	1	-
81	BOLT; UNION,FUEL RETURN,CARB ASM PART: C = 8-94456-524-1	8-94240-300-0	01	1	-
81	BOLT; UNION,FUEL RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, D = 8-97094-124-0	8-94240-330-0	01	1	-
82	HOLDER; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94240-300-0	01	1	-
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-341-0	01	1	-9312
85	CLIP SET; CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97103-516-0	01	1	-
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97103-516-0	01	1	9401-
86	SCREW SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1, D = 8-97094-124-0	8-94240-342-0	01	1	-
86	SCREW SET; CARB ASM PART: C = 8-94456-524-1	8-94363-234-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-94240-343-0	01	1	-9312
87	GASKET SET; CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-97103-517-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94419-994-1	8-97103-517-0	01	1	9401-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: B = 8-94419-994-1, C = 8-94456-524-1, D = 8-97094-124-0	8-94168-495-0	01	1	-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1	8-94168-495-0	01	1	9401-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1	8-94240-336-0	01	1	-9312
125	SCREW; MIXTURE BYPASS,CARB ASM PART: B = 8-94419-994-1	8-94240-290-0	01	1	-
125	SCREW; MIXTURE BYPASS,CARB ASM PART: C = 8-94456-524-1, D = 8-97094-124-0	8-94240-290-0	04	1	-
125	SCREW; MIXTURE BYPASS,CARB ASM PART: A = 8-94178-217-1	8-94240-290-0	04	1	9401-
129	GASKET; SOLENOID VLV ASM PART: B = 8-94419-994-1, C = 8-94456-524-1	8-94178-132-0	01	1	-
129	GASKET; SOLENOID VLV ASM PART: A = 8-94178-217-1	8-94178-132-0	01	1	9401-
129	GASKET; SOLENOID VLV ASM PART: D = 8-97094-124-0	8-94178-132-0	03	1	-
