0-65 — STARTER (#46764) — 60 parça

114 115 31 35 16 54 5 6 28 41 40 87 42 39 2 22 23 21 27 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-94469-496-3	8-94242-069-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 8-94412-142-1	8-94430-160-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 8-94412-142-1	9-82115-288-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 8-94412-142-1	9-82125-210-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94412-142-1	8-94430-158-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94412-142-1	8-94239-106-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94469-496-3	8-94478-860-1	01	1	-9506
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94412-142-1	8-94239-111-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94469-496-3	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94412-142-1	8-94239-110-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94469-496-3	8-94478-863-0	01	1	-9506
23	COVER; RR COVER STARTER ASM PART: A = 8-94412-142-1	8-94239-109-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94469-496-3	8-94242-062-0	01	1	-9506
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94412-142-1	8-94239-119-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-94469-496-3	8-94242-071-0	02	1	-9506
28	LEVER; SHIFT,STARTER ASM PART: B = 8-94469-496-3	8-94228-452-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-94412-142-1	8-94239-112-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94469-496-3	8-94228-453-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94412-142-1	8-94419-212-1	01	1	-
35	NUT; MAG SW FIX,STARTER ASM PART: A = 8-94412-142-1	8-94239-121-0	02	1	-
39	SEAL; RR COVER,STARTER ASM PART: A = 8-94412-142-1	8-94239-116-0	01	1	-
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 8-94412-142-1	8-94239-115-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-94412-142-1	8-94239-120-0	02	1	-
42	SPRING; RR COVER,STARTER ASM PART: A = 8-94412-142-1	8-94239-117-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94469-496-3	8-94115-569-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94412-142-1	8-94125-889-0	01	1	-
87	PLATE; RR COVER,STARTER ASM PART: A = 8-94412-142-1	8-94239-118-0	01	1	-
114	NUT; TERMINAL M8 ASM PART: A = 8-94412-142-1	9-09110-508-0	01	1	-
115	WASHER; TERMINAL ID=8.2 ASM PART: A = 8-94412-142-1	9-09150-508-0	01	1	-

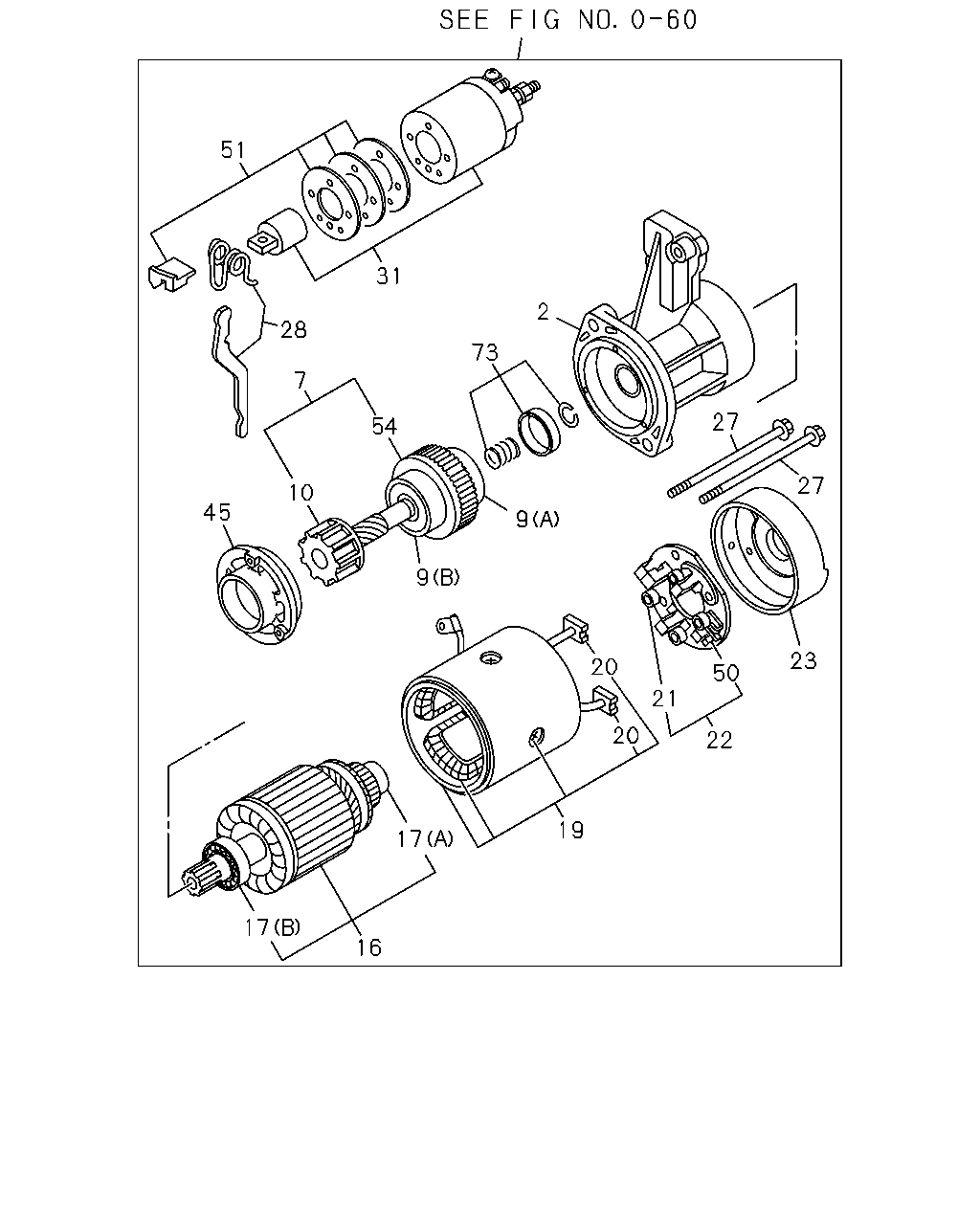

51 31 2 28 73 7 27 54 27 10 45 9 9 23 20 50 21 20 22 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-94469-496-3	8-94242-069-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 8-94412-142-1	8-94430-160-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-94469-496-3	8-94115-568-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-94469-496-3	8-94228-448-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-94469-496-3	8-94228-449-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-94469-496-3	8-94242-067-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94412-142-1	8-94239-106-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94469-496-3	8-94478-860-1	01	1	-9506
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94469-496-3	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94469-496-3	8-94228-437-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-94469-496-3	8-94478-861-0	01	1	-9506
20	BRUSH; (+),STARTER ASM PART: B = 8-94469-496-3	8-94478-862-0	02	1	-9506
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94412-142-1	8-94239-111-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94469-496-3	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94412-142-1	8-94239-110-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94469-496-3	8-94478-863-0	01	1	-9506
23	COVER; RR COVER STARTER ASM PART: A = 8-94412-142-1	8-94239-109-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94469-496-3	8-94242-062-0	01	1	-9506
27	BOLT; THROUGH,STARTER ASM PART: A = 8-94412-142-1	8-94239-119-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-94469-496-3	8-94242-071-0	02	1	-9506
28	LEVER; SHIFT,STARTER ASM PART: B = 8-94469-496-3	8-94228-452-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-94412-142-1	8-94239-112-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94469-496-3	8-94228-453-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94412-142-1	8-94419-212-1	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: B = 8-94469-496-3	8-94228-456-0	03	1	9507-
45	RETAINER; BEARING,STARTER ASM PART: B = 8-94469-496-3	8-94228-456-0	01	1	-9506
50	BRUSH; (-),STARTER ASM PART: B = 8-94469-496-3	8-94478-864-0	02	1	-9506
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-94469-496-3	8-94242-070-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94469-496-3	8-94115-569-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94412-142-1	8-94125-889-0	01	1	-
73	STOPPER SET; PINION ASM PART: B = 8-94469-496-3	8-94228-450-0	01	1	-
