0-60 — ENGINE ELECTRICAL CONTROL PARTS (#46762) — 126 parça

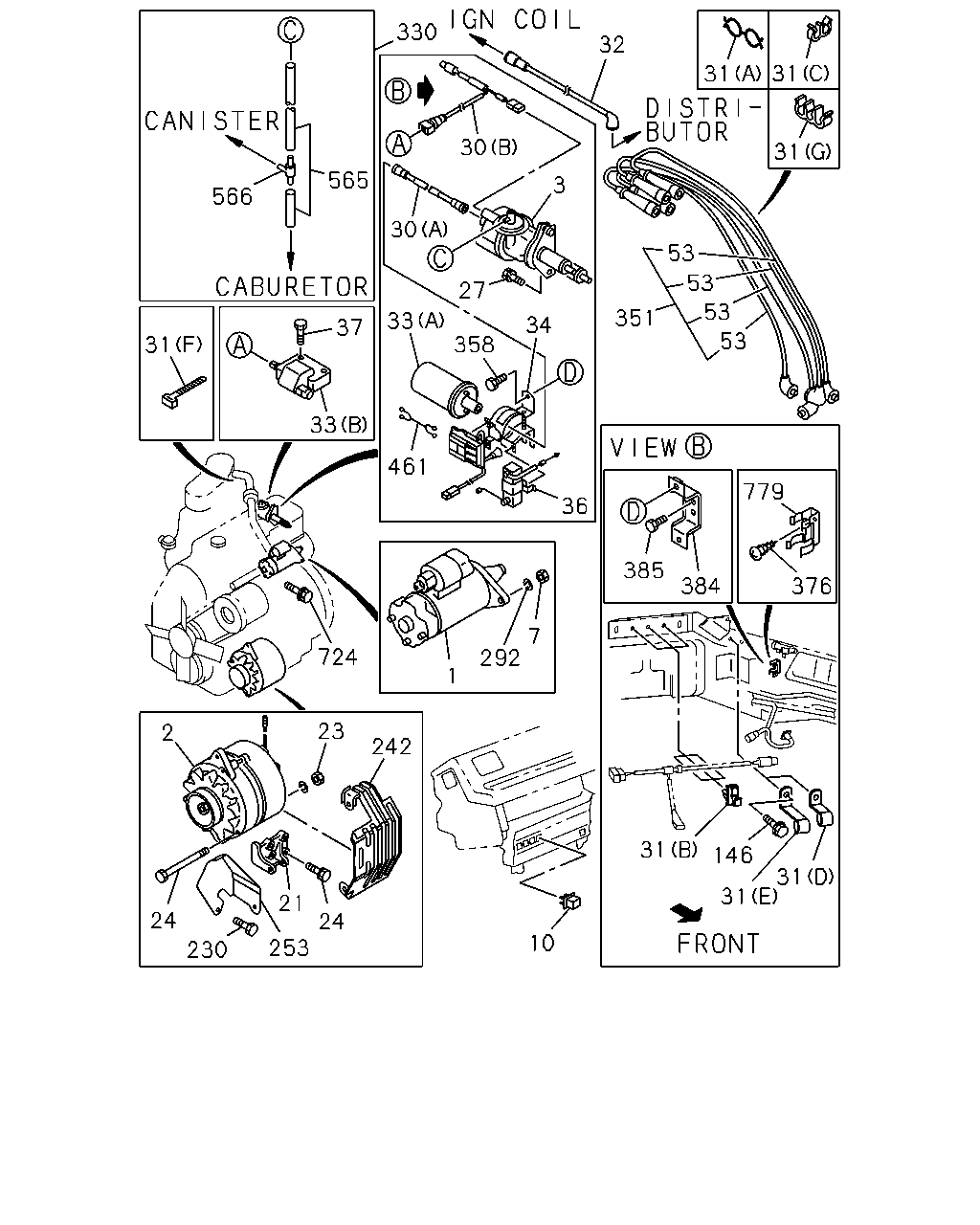

330 32 30 31 565 3 566 30 27 33 358 53 53 53 53 351 34 37 31 33 461 36 779 385 384 376 7 292 724 23 2 242 31 146 31 31 21 24 230 24 253 10 1 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 0.9KW	8-94412-142-1	01	1	9307-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-94469-496-3	01	1	9307-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94413-997-0	01	1	9307-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A HITACHI	8-94449-054-2	01	1	9307-9406		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER(K51) 12V 50A HITACHI	8-94449-054-2	01	1	9407-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER(K51) 12V 55A HITACHI	8-94452-740-3	01	1	9407-		●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. CATALYSIS CONTROL<6MZ>	8-94452-967-0	01	1	9407-	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. CHINA EQUIPMENT(YT2)	8-94420-009-1	01	1	9307-	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94419-998-0	01	1	9307-9403	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2),CATALYSIS CONTROL<6MZ>	8-94419-998-0	01	1	9404-	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-94419-999-0	01	1	9307-9403	●
7	NUT; STARTER M8	9-09111-408-0	01	1	9307-	●
7	NUT; STARTER M10	9-09110-410-0	01	1	9307-		●
10	RELAY; STARTER 12V 15A	8-94147-095-0	01	1	9307-	●
21	BRACKET; GEN	8-94433-419-2	01	1	9307-	●
21	BRACKET; GEN POWER STEERING<N40>	8-94323-029-0	01	1	9307-9404		●
21	BRACKET; GEN	8-94323-029-0	01	1	9405-		●
21	BRACKET; GEN EXC. POWER STEERING<N40>	8-94323-030-0	01	1	9307-9404		●
23	NUT; GEN M10	9-09110-510-0	01	1	9307-	●
24	BOLT; GEN BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-	●
24	BOLT; GEN BRKT M10X100	9-09600-092-0	01	1	9307-9405	●
24	BOLT; GEN BRKT M10X100	0-10806-000-0	01	1	9406-	●
24	BOLT; GEN BRKT M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-		●
24	BOLT; GEN BRKT M10X45 W/LK WASHER	0-50041-045-0	03	1	9307-		●
27	BOLT; DISTR M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9307-	●
30	CABLE; DISTR TO IGN COIL (A)	8-94402-008-3	01	1	9307-9406	●
30	CABLE; DISTR TO IGN COIL EXC. CATALYSIS CONTROL<6MZ> (A)	8-94402-008-3	01	1	9407-	●
30	CABLE; DISTR TO IGN COIL CATALYSIS CONTROL<6MZ> (B)	8-94320-689-3	01	1	9407-	●
31	CLIP; HIGH TENSION CABLE (C) ID=6.8X2	8-94126-636-0	01	1	9307-	●
31	CLIP; HIGH TENSION CABLE (D) ID=6.8 & 6.8	8-94208-733-0	01	1	9307-9406	●
31	CLIP; HIGH TENSION CABLE EXC. CATALYSIS CONTROL<6MZ> (D) ID=6.8 & 6.8	8-94208-733-0	01	1	9407-	●
31	CLIP; HIGH TENSION CABLE (A) ID=8 & 10	8-94252-372-0	03	1	9307-	●
31	CLIP; HIGH TENSION CABLE (B) ID=7.0	8-94423-229-0	03	1	9307-	●
31	CLIP; HIGH TENSION CABLE CATALYSIS CONTROL<6MZ> (G) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9407-	●
31	CLIP; HIGH TENSION CABLE CATALYSIS CONTROL<6MZ> (E) ID=7	1-09700-483-0	01	1	9407-	●
31	CLIP; HIGH TENSION CABLE CATALYSIS CONTROL<6MZ> (F) L=250	5-09707-030-0	01	1	9407-	●
32	CABLE; DISTR TO IGN COIL CATALYSIS CONTROL<6MZ>	8-94320-691-1	01	1	9407-	●
33	COIL ASM; IGN (A)	8-94438-364-0	01	1	9307-9406	●
33	COIL ASM; IGN EXC. CATALYSIS CONTROL<6MZ> (A)	8-94438-364-0	01	1	9407-	●
33	COIL ASM; IGN CATALYSIS CONTROL<6MZ> (B)	8-94136-766-0	01	1	9407-	●
34	BAND; IGN COIL	8-94109-761-0	01	1	9307-9406	●
34	BAND; IGN COIL EXC. CATALYSIS CONTROL<6MZ>	8-94109-761-0	01	1	9407-	●
36	WIRE; IGN COIL	8-94438-363-0	01	1	9307-9406	●
36	WIRE; IGN COIL EXC. CATALYSIS CONTROL<6MZ>	8-94438-363-0	01	1	9407-	●
37	BOLT; IGN COIL CATALYSIS CONTROL<6MZ> M6X35 W/LK WASHER	0-50040-635-0	02	1	9407-	●
53	CABLE; IGN PLUG NO.1	8-94238-875-0	01	1	9307-	●
53	CABLE; IGN PLUG NO.3	8-94238-877-0	01	1	9307-	●
53	CABLE; IGN PLUG NO.2	8-94338-300-0	01	1	9307-	●
53	CABLE; IGN PLUG NO.4	8-94338-301-0	01	1	9307-	●
146	BOLT; CLIP CATALYSIS CONTROL<6MZ> M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9407-	●
230	BOLT; HEAT PROTECTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-	●
242	PLATE; GUIDE,GEN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94433-421-1	01	1	9307-	●
253	PROTECTOR; HEAT,GEN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94433-420-3	01	1	9307-	●
292	WASHER; LK,STARTER ID=8.2	9-09150-508-0	01	1	9307-	●
330	HOSE; CARBURETOR TO DISTR SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=70 & L=290	8-94420-003-0	01	1	9307-	●
330	HOSE; CARBURETOR TO DISTR EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) L=400 SERVICED BY L=3000	0-04730-300-0	01	1	9307-	●
351	CABLE KIT; HIGH TENSION	8-94338-230-0	01	1	9307-	●
358	BOLT; IGN COIL TO BODY M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9307-9406	●
358	BOLT; IGN COIL TO BODY EXC. CATALYSIS CONTROL<6MZ> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9407-	●
376	SCREW; IGN COIL M5X8 TAPPING	9-07065-508-0	02	1	9307-	●
384	BRACKET ASM; IGN COIL TO PANEL	8-94277-850-1	01	1	9307-9406	●
384	BRACKET ASM; IGN COIL TO PANEL EXC. CATALYSIS CONTROL<6MZ>	8-94277-850-1	01	1	9407-	●
385	BOLT; BRKT,IGN COIL M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-9406	●
385	BOLT; BRKT,IGN COIL EXC. CATALYSIS CONTROL<6MZ> M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9407-	●
461	CLIP; PURSE LOCK	8-94423-049-0	02	1	9307-9406	●
461	CLIP; PURSE LOCK EXC. CATALYSIS CONTROL<6MZ>	8-94423-049-0	02	1	9407-	●
565	HOSE; RUBBER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> SERVICED BY L=3000	0-04740-300-0	02	1	9307-	●
566	JOINT; 3 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94111-558-0	01	1	9307-	●
724	BOLT; ENG EARTH CABLE M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9307-	●	●
779	BRACKET; CONNECTOR	8-94415-155-0	01	1	9307-	●

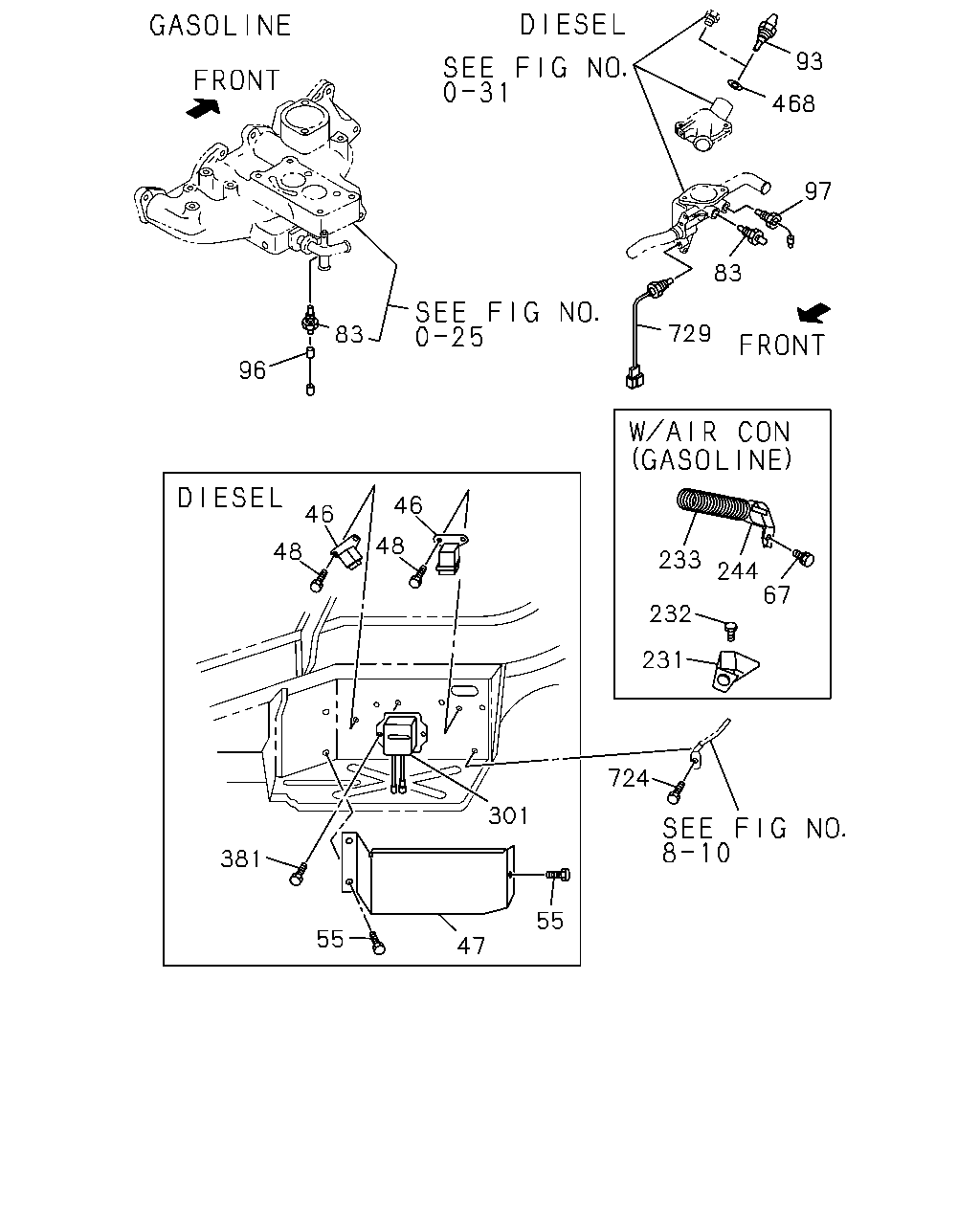

93 468 97 83 729 83 96 46 46 48 48 233 244 67 232 231 301 724 381 55 55 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	RELAY; GLOW PLUG	8-94248-162-0	02	1	9307-		●
47	COVER; GLOW RELAY	8-94293-850-1	01	1	9307-		●
48	BOLT; GLOW PLUG RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9307-		●
55	BOLT; COVER TO RELAY M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9307-		●
67	BOLT; STAY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9307-	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9307-	●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9307-		●
93	SWITCH; THERMO,A/C CUT AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94107-993-1	01	1	9307-9406		●
96	HARNESS; THERMO UNIT L=240	8-94321-193-0	01	1	9307-	●
97	SWITCH; THERMO,EGR CONT TURBOCHARGER(K51) YELLOW	8-94154-986-1	01	1	9407-		●
231	COVER; AIR GUIDE,GEN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94438-592-2	01	1	9307-	●
232	BOLT; AIR GUIDE COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X14 W/LK WASHER	0-50040-814-0	02	1	9307-	●
233	HOSE; FLEX,AIR,AC GEN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94311-110-0	01	1	9307-	●
244	STAY; GEN BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94311-107-0	01	1	9307-	●
301	RESISTOR; DROPPING	8-94364-592-0	01	1	9307-9406		●
301	RESISTOR; DROPPING EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94364-592-0	01	1	9407-		●
301	RESISTOR; DROPPING EUROPEAN BASIC EQUIPMENT(EK4)	8-94241-718-1	01	1	9407-		●
381	BOLT; DROPPING RESISTOR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-		●
468	GASKET; THERMO SWITCH ID=16.2 OD=24	9-09571-416-0	01	1	9307-		●
724	BOLT; ENG EARTH CABLE M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9307-	●	●
729	SENSOR; QOS THERMO	8-97018-064-0	01	1	9307-		●

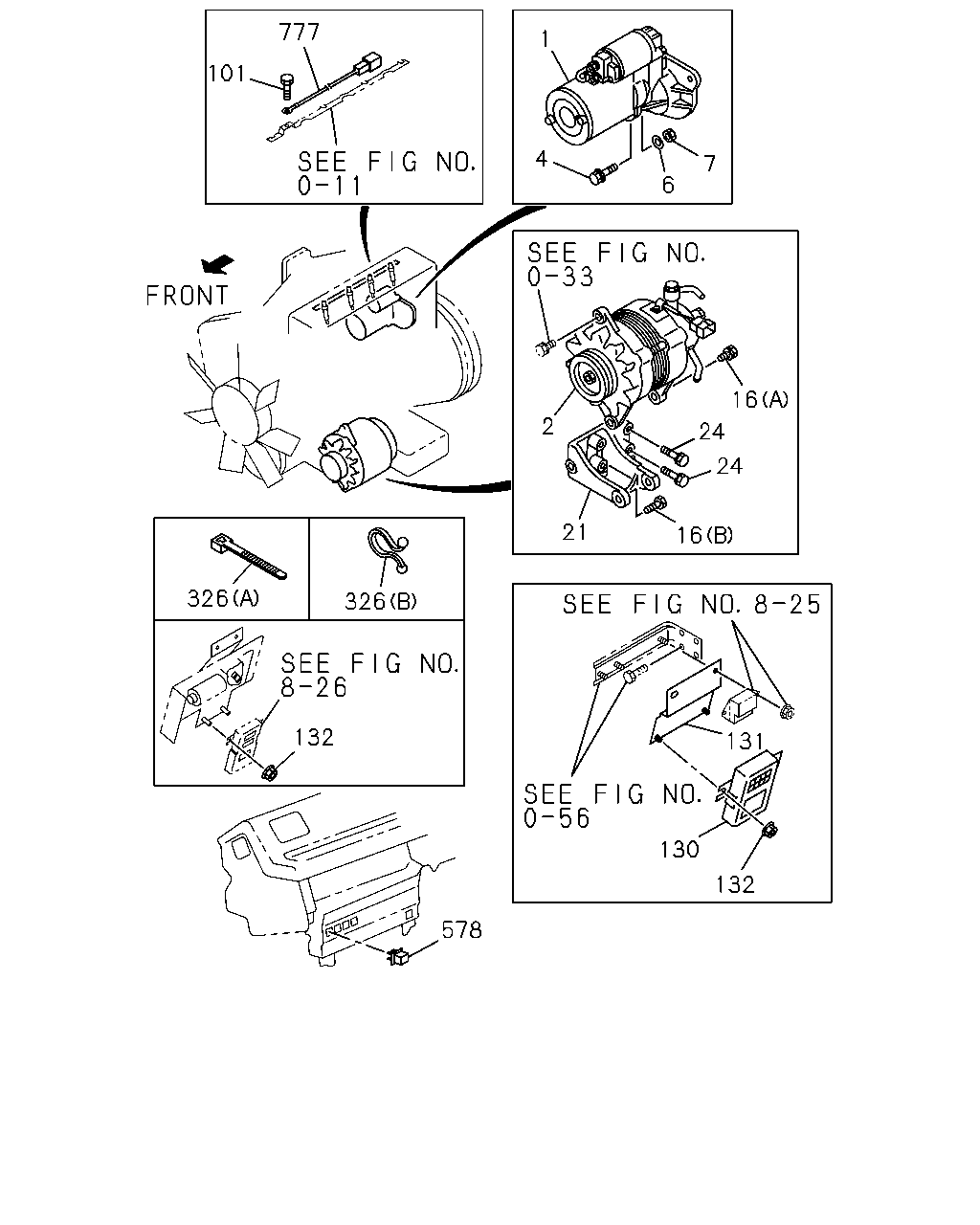

777 1 101 4 7 6 16 24 2 24 21 16 326 326 131 130 132 578 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 0.9KW	8-94412-142-1	01	1	9307-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-94469-496-3	01	1	9307-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94413-997-0	01	1	9307-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A HITACHI	8-94449-054-2	01	1	9307-9406		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER(K51) 12V 50A HITACHI	8-94449-054-2	01	1	9407-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER(K51) 12V 55A HITACHI	8-94452-740-3	01	1	9407-		●
4	BOLT; STARTER M10X30	0-20801-030-0	01	1	9307-		●
4	BOLT; STARTER M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9307-		●
6	WASHER; PL,STARTER ID=10.5 OD=26	9-09164-710-0	01	1	9307-		●
7	NUT; STARTER M8	9-09111-408-0	01	1	9307-	●
7	NUT; STARTER M10	9-09110-410-0	01	1	9307-		●
16	BOLT; GEN (A) M10X35 W/LK&PL WASHER	0-50141-035-0	01	1	9307-		●
16	BOLT; GEN (B) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9307-		●
21	BRACKET; GEN	8-94433-419-2	01	1	9307-	●
21	BRACKET; GEN POWER STEERING<N40>	8-94323-029-0	01	1	9307-9404		●
21	BRACKET; GEN	8-94323-029-0	01	1	9405-		●
21	BRACKET; GEN EXC. POWER STEERING<N40>	8-94323-030-0	01	1	9307-9404		●
24	BOLT; GEN BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-	●
24	BOLT; GEN BRKT M10X100	9-09600-092-0	01	1	9307-9405	●
24	BOLT; GEN BRKT M10X100	0-10806-000-0	01	1	9406-	●
24	BOLT; GEN BRKT M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-		●
24	BOLT; GEN BRKT M10X45 W/LK WASHER	0-50041-045-0	03	1	9307-		●
101	BOLT; HARNESS M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-		●
130	CONTROLLER; EGR EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	8-97103-841-0	01	1	9407-		●
131	BRACKET; EGR TURBOCHARGER(K51)	8-94459-155-0	01	1	9407-		●
132	NUT; CONTROLLER M6 FLANGE	5-09440-004-0	02	1	9307-9406		●
132	NUT; CONTROLLER M6 FLANGE	5-09440-004-0	02	1	9407-		●
132	NUT; CONTROLLER TURBOCHARGER(K51) M6 FLANGE	5-09440-004-0	02	1	9407-		●
326	CLIP; RESISTOR HARNESS (A) ID=20	1-09709-068-0	01	1	9307-9406		●
326	CLIP; RESISTOR HARNESS EXC. TURBOCHARGER(K51) (A) ID=20	1-09709-068-0	01	1	9407-		●
326	CLIP; RESISTOR HARNESS (B) L=290	8-94238-173-0	01	1	9307-9406		●
326	CLIP; RESISTOR HARNESS (B) L=290	8-94238-173-0	01	1	9407-		●
578	RELAY; CHARGE WARNING 12V 20A BLUE	8-94235-627-0	01	1	9307-		●
777	HARNESS; GLOW PLUG CONNECTOR	8-94366-279-1	01	1	9307-		●
