0-57 — EMISSION PIPING (#46761) — 100 parça

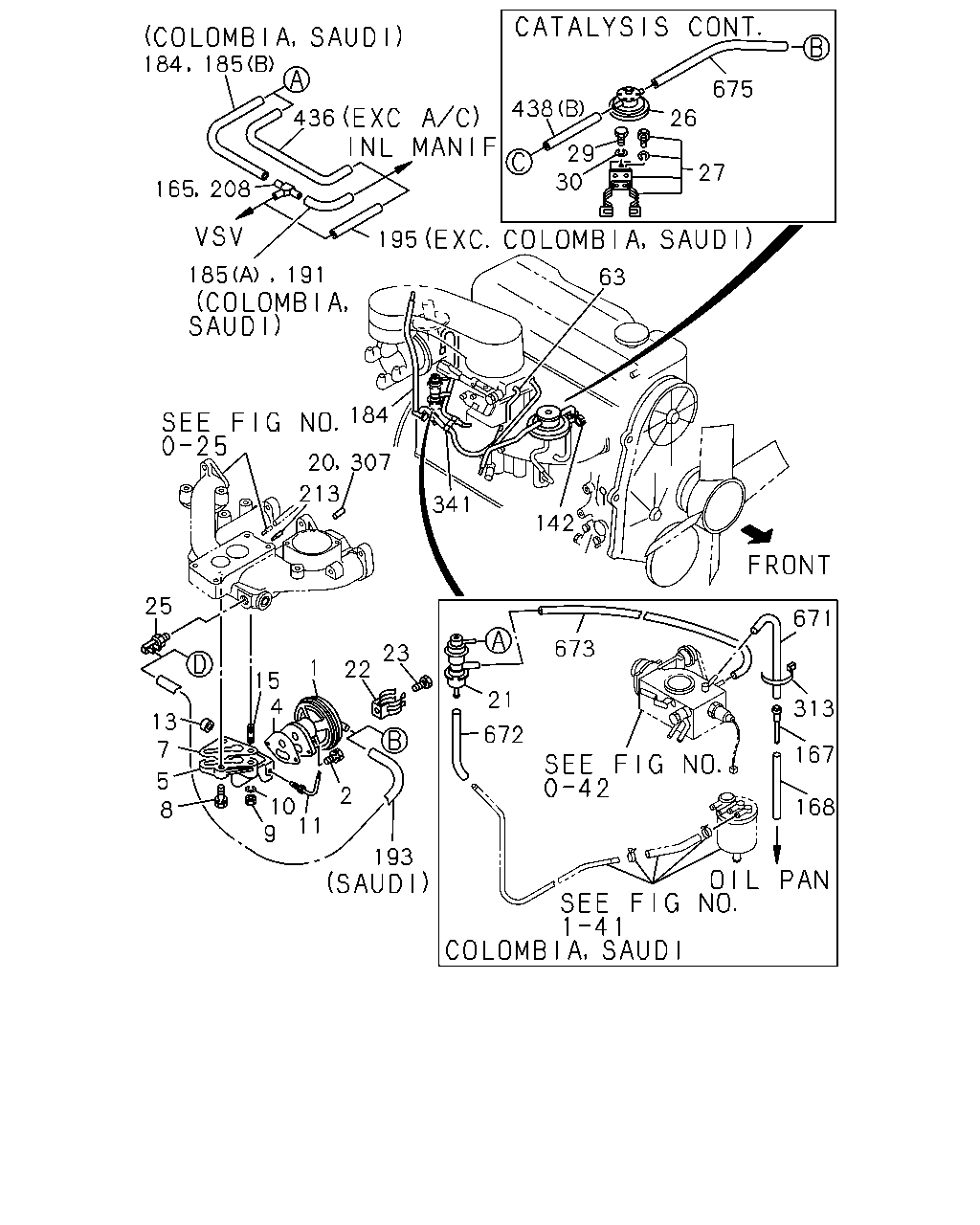

675 438 26 29 30 27 185 191 63 184 213 142 341 25 671 673 23 22 1 15 4 21 313 13 7 5 8 672 167 2 10 11 9 168 193 195 184 185 436 165 208 20 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR CATALYSIS CONTROL<6MZ>	8-94215-090-0	01	1	9407-	●
1	VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94248-646-0	01	1	9307-	●
1	VALVE; EGR TURBOCHARGER(K51)	8-97043-021-4	01	1	9407-		●
2	BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94324-191-0	01	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51)	8-94334-338-0	01	1	9407-		●
5	ADAPTER ASM CATALYSIS CONTROL<6MZ>	8-94321-115-0	01	1	9407-	●
5	ADAPTER ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94125-350-0	01	1	9307-	●
7	GASKET; ADAPTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94328-253-0	01	1	9307-	●
8	BOLT; EGR ADAPTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X30 W/LK WASHER	0-50040-830-0	01	1	9307-	●
9	NUT; EGR ADAPTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8	9-09110-408-0	02	1	9307-	●
10	WASHER; EGR ADAPTER SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> ID=8.2	9-09150-508-0	02	1	9307-	●
11	PIPE ASM; BPT SIGNAL CATALYSIS CONTROL<6MZ>	8-94217-292-0	01	1	9407-	●
13	ORIFICE; ADAPTER CATALYSIS CONTROL<6MZ>	8-94217-294-0	01	1	9407-	●
15	STUD; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X35 L=47	9-04110-835-0	02	1	9307-	●
20	CAP; RUBBER EXC. SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) ID=4	8-94217-809-0	01	1	9307-	●
21	VALVE ASM; VAC CONT SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94423-329-0	01	1	9307-	●
22	BRACKET; VAC CONT VLV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94209-610-0	01	1	9307-	●
23	BOLT; BRKT,VAC CONT VLV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-	●
25	VALVE; THERMAL VAC SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94213-554-0	01	1	9307-	●
26	TRANSDUCER; BACK PRESSURE CATALYSIS CONTROL<6MZ>	8-94215-082-0	01	1	9407-	●
27	RUBBER; BPT MTG CATALYSIS CONTROL<6MZ>	8-94174-510-1	01	1	9407-	●
29	BOLT; BPT BRKT CATALYSIS CONTROL<6MZ> M8X14 W/LK WASHERT	8-94208-228-0	01	1	9407-	●
30	WASHER; PL,TRANSDUCER BRKT CATALYSIS CONTROL<6MZ> ID=8.4 OD=18	9-09160-608-0	01	1	9407-9407	●
63	HOSE; FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	9307-	●
142	CLIP; PIPE & HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=100	5-09707-036-0	01	1	9307-	●
165	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> 3WAY	8-94165-537-0	01	1	9307-9406	●
165	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> 3WAY	8-94165-537-0	01	1	9407-	●
167	PIPE; JOINT COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94458-616-0	01	1	9307-	●
168	HOSE; RUBBER JOINT TO OIL PAN COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=360 SERVICED BY L=3000	0-04850-300-0	01	1	9307-	●
184	HOSE; RUBBER,VCV TO 3 WAY SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> L=50 SERVICED BY L=3000	0-04770-300-0	01	1	9307-	●
185	HOSE; RUBBER,VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (A) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
185	HOSE; RUBBER,VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>,CATALYSIS CONTROL<6MZ> (B) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
191	HOSE; RUBBER,3 WAY TO PIPE SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> L=210 SERVICED BY L=3000	0-04770-300-0	01	1	9307-	●
193	HOSE; TVV TO EGR VLV SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> L=310 SERVICED BY L=3050	8-94209-298-1	01	1	9307-9406	●
193	HOSE; TVV TO EGR VLV SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> L=310 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
195	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
195	HOSE; VAC EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (B) OD=7 L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9407-		●
195	HOSE; VAC EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (A) OD=7 L=1230	8-97106-960-0	01	1	9407-		●
208	JOINT; 3 WAY,VCV SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> 3WAY	8-94211-900-1	01	1	9307-	●
213	PIPE; ABV SIGNAL OD=5 L=34	8-94200-851-2	01	1	9307-	●
307	CAP; RUBBER,VSV EXC. HOT AIR INTAKE<RN4> ID=4	8-94217-809-0	01	1	9307-	●
313	CLIP; BAND,RUBBER HOSE CATALYSIS CONTROL<6MZ> L=140	5-09707-031-0	01	1	9407-	●
341	CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> ID=6.8X2	8-94126-636-0	02	1	9407-	●
341	CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> ID=6.8X3 & 12.8	8-94208-735-0	01	1	9407-	●
436	HOSE; RUBBER,VSV & SIGNAL COLOMBIA EQUIPMENT(X74) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2),HOT AIR INTAKE<RN4>,CA TALYSIS CONTROL<6MZ> L=330 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A) L=50 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (B) L=760 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (C) L=820 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (D) L=40 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
671	HOSE; RUBBER,VENT TO 3 WAY SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=260 SERVICED BY L=3000	0-04870-300-0	01	1	9307-	●
672	HOSE; RUBBER VLV TO PIPE COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=260 SERVICED BY L=3000	0-04870-300-0	01	1	9307-	●
673	HOSE; RUBBER,CARB TO VLV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=260 SERVICED BY L=3000	0-04870-300-0	01	1	9307-	●
675	HOSE; EPT TO EGR VLV CATALYSIS CONTROL<6MZ> L=290 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●

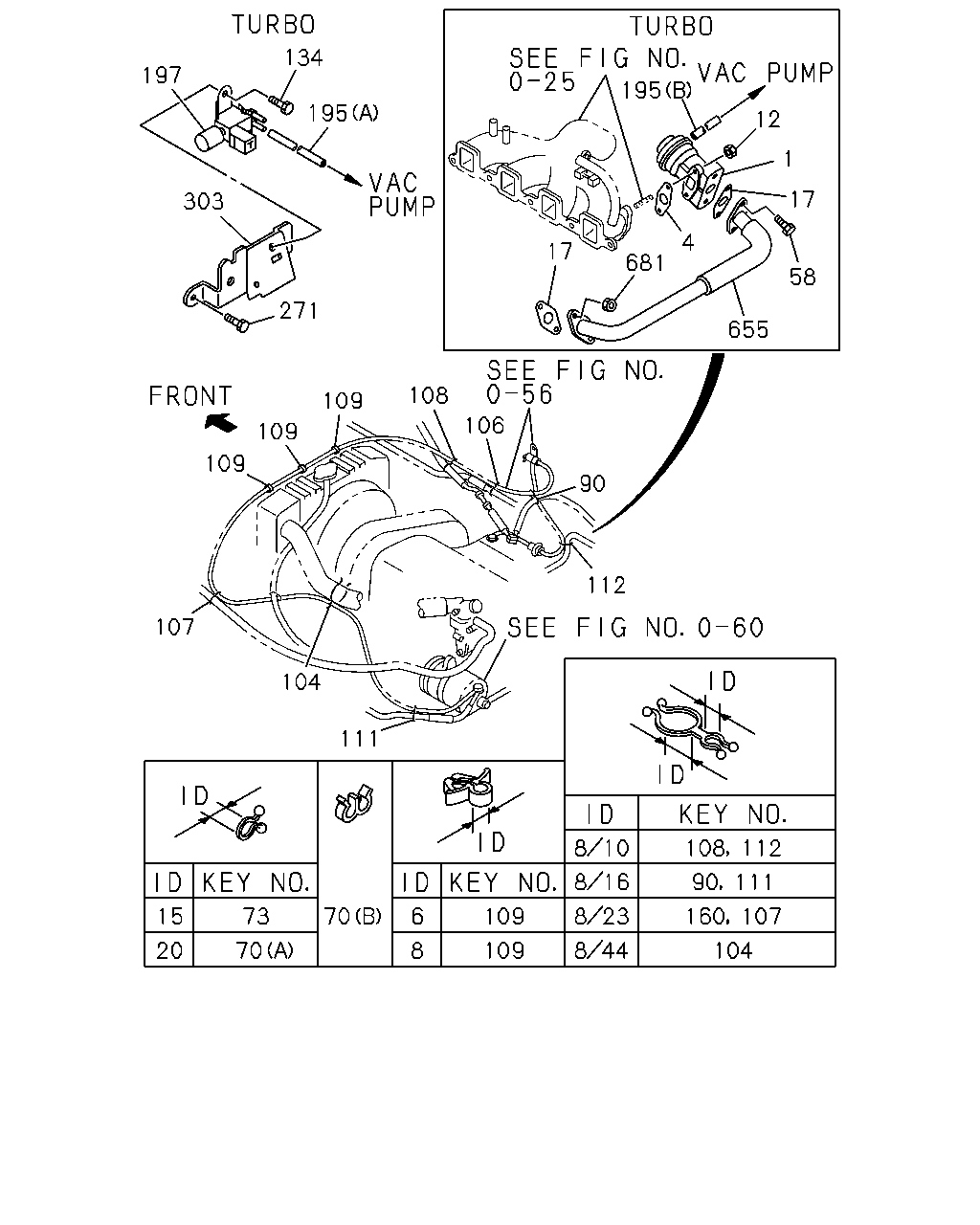

134 195 197 195 12 17 681 1 303 17 4 58 271 655 106 108 109 109 109 90 112 107 104 111 108 90 112 111 160 107 104 73 70 109 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR CATALYSIS CONTROL<6MZ>	8-94215-090-0	01	1	9407-	●
1	VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4>	8-94248-646-0	01	1	9307-	●
1	VALVE; EGR TURBOCHARGER(K51)	8-97043-021-4	01	1	9407-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94324-191-0	01	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51)	8-94334-338-0	01	1	9407-		●
12	NUT; EGR VLV TURBOCHARGER(K51) M8 FLANGE	0-91150-108-0	02	1	9407-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51)	8-94422-576-0	02	1	9407-		●
58	BOLT; PIPE TURBOCHARGER(K51) M8X22 W/LK WASHER	0-50040-822-0	02	1	9407-		●
70	CLIP; RUBBER HOSE EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (A) ID=20	1-09709-068-0	01	1	9407-		●
70	CLIP; RUBBER HOSE EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (B) ID=6.8X2	8-94126-636-0	03	1	9407-		●
73	CLIP; VAC HOSE EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) ID=15	1-09709-003-0	01	1	9407-		●
90	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	8-94165-407-0	01	1	9307-9401		●
90	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8 & 16	5-09707-032-0	01	1	9402-		●
104	CLIP; VAC HOSE TO RAD UPR HOSE	8-94109-862-0	01	1	9307-		●
106	CLIP; VAC HOSE TO HTR HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8 & 23	5-09707-002-0	01	1	9307-		●
107	CLIP; VAC HOSE TO CMPR HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 23	5-09707-002-0	01	1	9307-		●
108	CLIP; VAC HOSE TO ACCEL CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8 & 10	8-94252-372-0	01	1	9307-		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=6	8-94104-894-0	01	1	9307-		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8	8-94110-509-0	02	1	9307-		●
111	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	8-94165-407-0	01	1	9307-9401		●
111	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8 & 16	5-09707-032-0	01	1	9402-		●
112	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) ID=8 & 10	8-94252-372-0	01	1	9307-		●
134	BOLT; VSV EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) M4X6	9-03494-406-0	01	1	9407-		●
195	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
195	HOSE; VAC EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (B) OD=7 L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9407-		●
195	HOSE; VAC EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (A) OD=7 L=1230	8-97106-960-0	01	1	9407-		●
197	VALVE; VAC SWITCHING EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	8-94450-271-0	01	1	9407-		●
271	BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) M8X12 W/LK WASHER	0-50040-812-0	02	1	9407-		●
303	BRACKET; VAC SW EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	8-97085-948-1	01	1	9407-		●
655	PIPE; EGR VLV TURBOCHARGER(K51)	8-94321-788-2	01	1	9407-		●
681	NUT; EGR PIPE TURBOCHARGER(K51) M8 FLANGE	0-91150-108-0	02	1	9407-		●

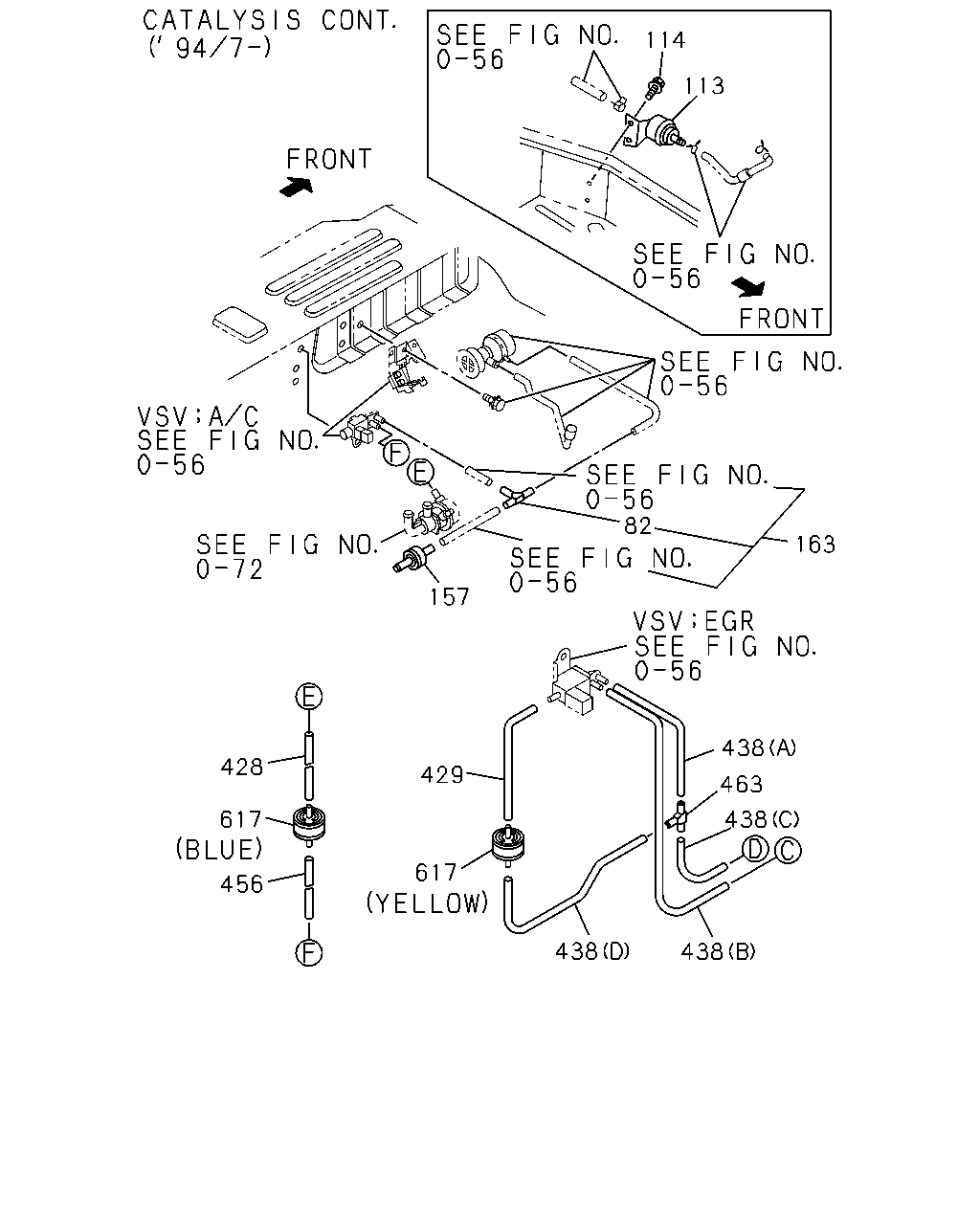

114 113 82 163 157 438 428 429 463 438 617 456 617 438 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	JOINT; 3 WAY CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> 3WAY	8-94165-537-0	01	1	9407-	●
113	SILENCER; DIVERT AIR CATALYSIS CONTROL<6MZ>	8-94320-590-0	01	1	9407-	●
114	BOLT; AIR SILENCER CATALYSIS CONTROL<6MZ> M6X16 W/LK WASHER	0-50040-616-0	02	1	9407-	●
157	FILTER; GAS CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4>	8-94236-909-0	01	1	9407-	●
163	HOSE; RUBBER CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4>	8-94371-048-0	01	1	9407-	●
428	HOSE; RUBBER,SDV TO ASV CATALYSIS CONTROL<6MZ> L=80 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
429	HOSE; RUBBER,SDV TO VSV CATALYSIS CONTROL<6MZ> L=120 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A) L=50 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (B) L=760 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (C) L=820 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
438	HOSE; RUBBER,VSV,EGR CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (D) L=40 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
456	HOSE; VAC,VSV TO DELAY VLV CATALYSIS CONTROL<6MZ> L=170 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
463	JOINT; RUBBER HOSE CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> 3WAY	8-94165-537-0	01	1	9407-	●
617	VALVE; SPARK DELAY CATALYSIS CONTROL<6MZ> YELLOW	8-94249-018-0	01	1	9407-	●
617	VALVE; SPARK DELAY CATALYSIS CONTROL<6MZ> DARK BLUE	8-94412-768-0	01	1	9407-	●
