0-56 — EMISSION SYSTEM (#46760) — 45 parça

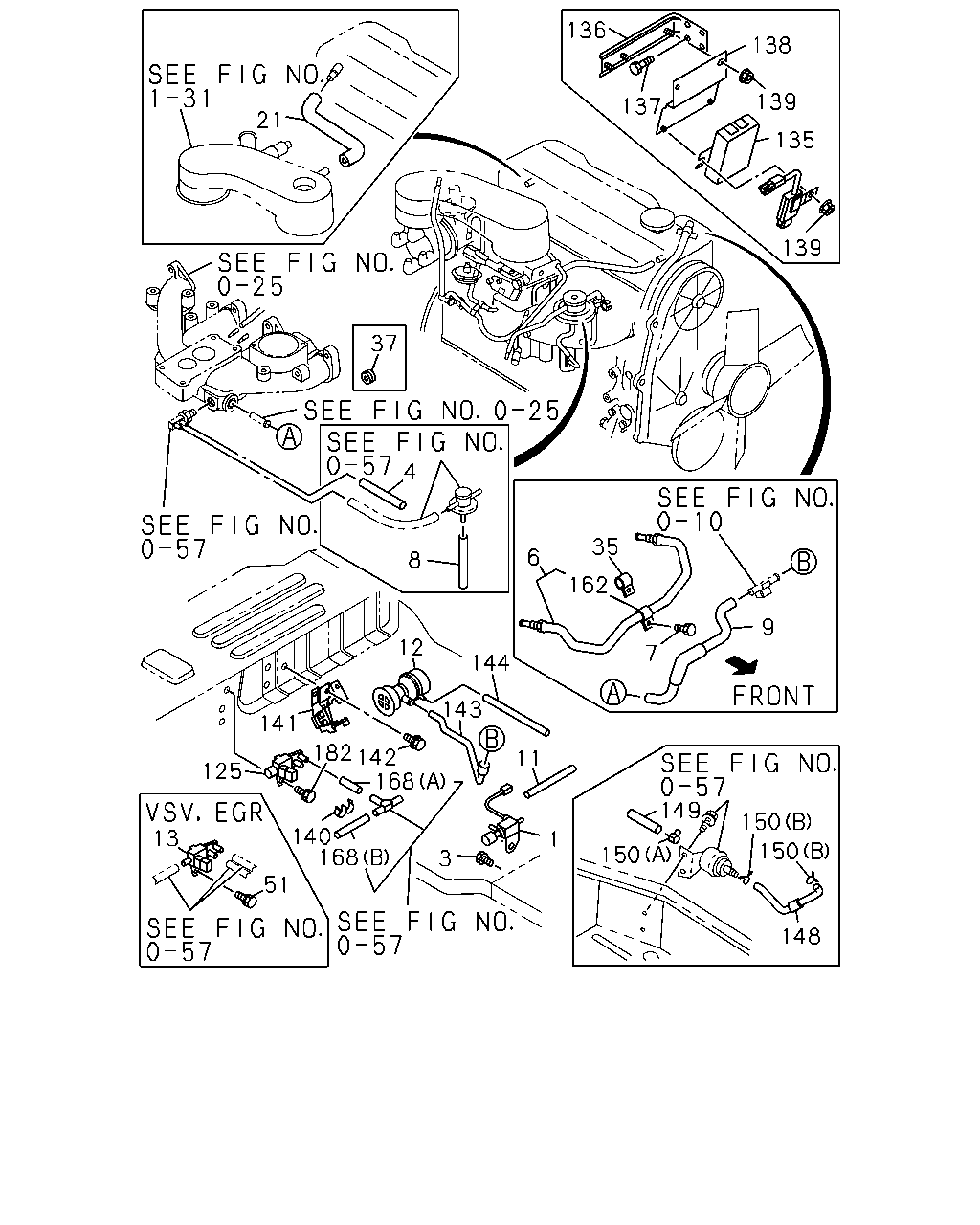

136 138 139 137 21 135 139 37 4 35 6 8 162 9 12 7 144 143 141 182 142 168 11 149 125 13 150 150 140 168 150 3 51 148 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; VAC SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94217-299-0	01	1	9307-	●
3	BOLT; VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9307-	●
4	HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=80 SERVICED BY L=3050	8-94209-298-1	01	1	9307-9406	●
4	HOSE; CARB TO TVV SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> L=80 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
6	PIPE; EGR SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94227-918-0	01	1	9307-	●
7	BOLT; BRKT,EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4> M8X18 W/LK WASHER	0-50040-818-0	01	1	9307-	●
8	HOSE; RUBBER,BPT TO SIGNAL PIPE CATALYSIS CONTROL<6MZ> L=400	8-94215-580-0	01	1	9407-	●
9	HOSE; RUBBER,MCV,VAC CATALYSIS CONTROL<6MZ>	8-94320-809-2	01	1	9407-	●
11	HOSE; 3 WAY TO VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SAUDI ARABIA EQUIPMENT(EU2) L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
12	VALVE; MIXTURE CONT CATALYSIS CONTROL<6MZ>	8-94145-956-0	01	1	9407-	●
13	VALVE; VAC SW CATALYSIS CONTROL<6MZ>	8-94459-952-0	01	1	9407-	●
21	HOSE; HD COVER TO COMMON CHAMBER	8-94338-886-0	01	1	9307-	●
35	CLIP; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94232-308-0	01	1	9307-	●
37	PLUG SAUDI ARABIA EQUIPMENT(EU2) EXC. HOT AIR INTAKE<RN4> PT3/8	5-09605-005-0	01	1	9307-	●
51	BOLT; VAC SW CATALYSIS CONTROL<6MZ> M6X12	8-94279-111-0	01	1	9407-	●
125	VALVE; VAC SW,FAST IDLE CATALYSIS CONTROL<6MZ>	8-94459-951-0	01	1	9407-	●
135	SENSOR; ENG SPD CATALYSIS CONTROL<6MZ>	8-94337-779-0	01	1	9407-	●
136	STAY; BRKT,ENG SPD SENSOR EUROPEAN BASIC EQUIPMENT(EK4),COLOMBIA EQUIPMENT(X74) EXC. POWER WINDOW FRT DOOR<A32>	8-94405-173-2	01	1	9407-	●	●
137	BOLT; SENSOR STAY EUROPEAN BASIC EQUIPMENT(EK4),COLOMBIA EQUIPMENT(X74) EXC. POWER WINDOW FRT DOOR<A32> M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9407-	●	●
138	BRACKET; ENG SPD SENSOR CATALYSIS CONTROL<6MZ>	8-94459-155-0	01	1	9407-	●
139	NUT; ENG SPD SENSOR CATALYSIS CONTROL<6MZ> M6 FLANGE	5-09440-004-0	02	1	9407-	●
139	NUT; ENG SPD SENSOR CATALYSIS CONTROL<6MZ> EXC. POWER WINDOW FRT DOOR<A32> M6 FLANGE	5-09440-004-0	02	1	9407-	●
140	CLIP; HOSE CATALYSIS CONTROL<6MZ> ID=6.8X2	8-94126-636-0	01	1	9407-	●
141	BRACKET; MCV CATALYSIS CONTROL<6MZ>	8-94320-589-1	01	1	9407-	●
142	BOLT; MCV BRKT CATALYSIS CONTROL<6MZ> M6X12	8-94279-111-0	02	1	9407-	●
143	HOSE; RUBBER,MCV CATALYSIS CONTROL<6MZ>	8-94320-810-0	01	1	9407-	●
144	HOSE; RUBBER,GAS FILTER TO JOINT CATALYSIS CONTROL<6MZ> L=40 SERVICED BY L=3000	0-04741-300-0	01	1	9407-	●
148	HOSE; RUBBER,AIR SILENCER,INL CATALYSIS CONTROL<6MZ>	8-94324-275-0	01	1	9407-	●
149	HOSE; RUBBER,AIR SILENCER,OUTLET CATALYSIS CONTROL<6MZ> L=200	0-03112-200-0	01	1	9407-	●
150	CLIP; RUBBER HOSE,AIR SILENCER CATALYSIS CONTROL<6MZ> (A) ID=19	8-94238-569-0	01	1	9407-	●
150	CLIP; RUBBER HOSE,AIR SILENCER CATALYSIS CONTROL<6MZ> (B) ID=21	8-94411-849-0	02	1	9407-	●
162	CLIP; PIPE,EGR SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74) EXC. HOT AIR INTAKE<RN4>	8-94232-308-0	01	1	9307-	●
168	HOSE; RUBBER CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (A) L=190 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
168	HOSE; RUBBER CATALYSIS CONTROL<6MZ> EXC. HOT AIR INTAKE<RN4> (B) L=350 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
182	BOLT; VLV CATALYSIS CONTROL<6MZ> M6X12	8-94279-111-0	01	1	9407-	●

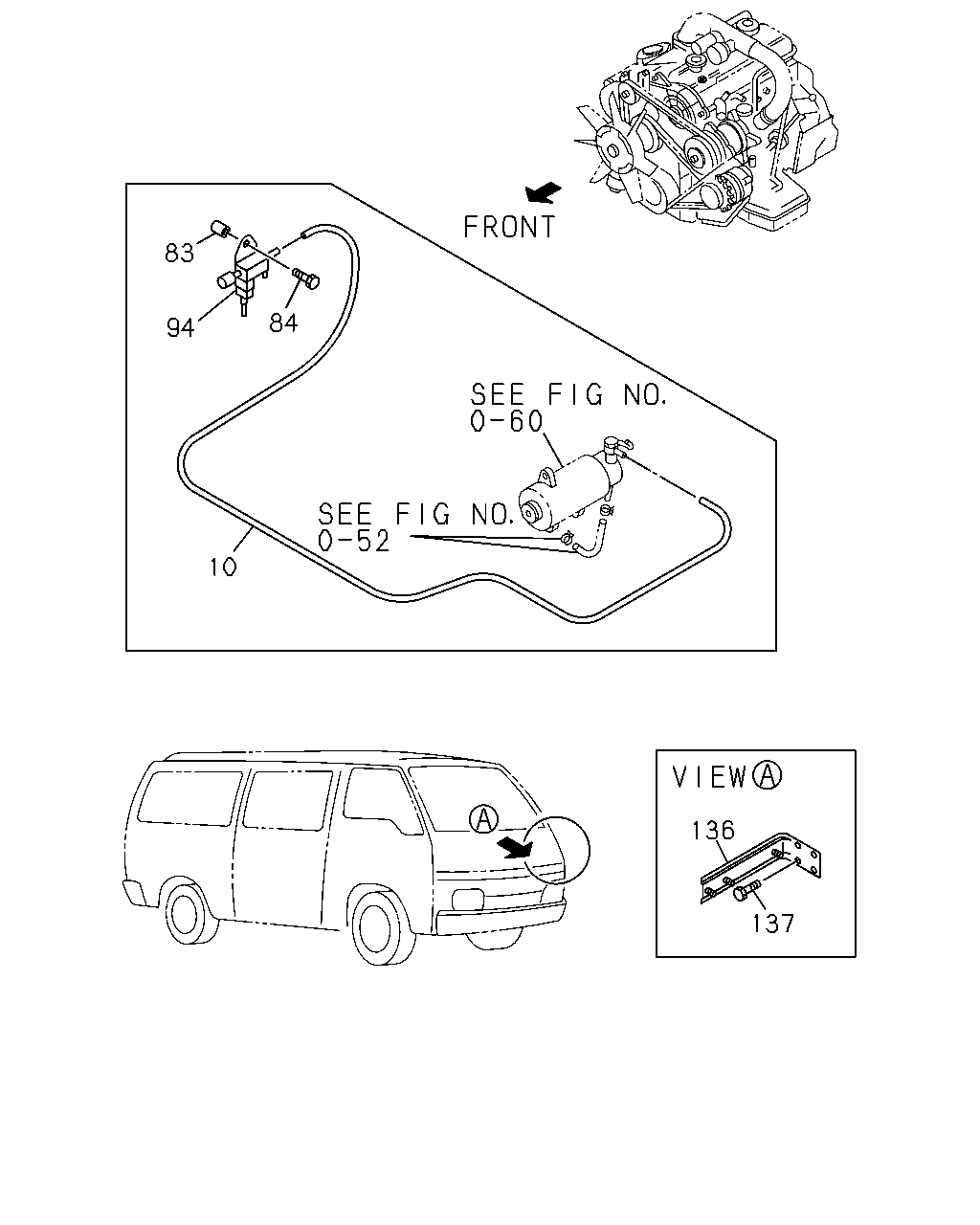

83 84 94 10 136 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	HOSE; RUBBER,PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=1640	8-94407-082-0	01	1	9307-9406		●
10	HOSE; RUBBER,PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) L=1640 SERVICED BY L=3000	0-04730-300-0	01	1	9407-		●
83	PIECE; DIST,VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94146-294-0	01	1	9307-9406		●
83	PIECE; DIST,VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51)	8-94146-294-0	01	1	9407-		●
84	BOLT; VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X35 W/LK WASHER	0-50040-835-0	01	1	9307-9406		●
84	BOLT; VSV AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51) M8X35 W/LK WASHER	0-50040-835-0	01	1	9407-		●
94	VALVE; VAC SWITCH,FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94421-565-0	01	1	9307-9406		●
94	VALVE; VAC SWITCH,FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TURBOCHARGER(K51)	8-94421-565-0	01	1	9407-		●
136	STAY; BRKT,ENG SPD SENSOR EUROPEAN BASIC EQUIPMENT(EK4),COLOMBIA EQUIPMENT(X74) EXC. POWER WINDOW FRT DOOR<A32>	8-94405-173-2	01	1	9407-	●	●
137	BOLT; SENSOR STAY EUROPEAN BASIC EQUIPMENT(EK4),COLOMBIA EQUIPMENT(X74) EXC. POWER WINDOW FRT DOOR<A32> M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9407-	●	●
